Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox
-
Groupset XT, SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Redline full suspension frame, BB92 pressfit
Suspension Fork
Fox Float 29in, 100mm travel, FIT, CTD adj, 15mm QR, 1.5 tapered
Rear Shock
Fox Float with CTD
Drivetrain
Rear Derailleur
Shimano XT
Front Derailleur
Shimano SLX
Shift Levers
Shimano XT 2X10sp
Cassette
Shimano SLX 10s, 11-34t
Crank
Shimano XT Hollowtech 2 10sp
Bottom Bracket
FSA press fit bb92
Chain
KMC X10
Wheels
Rims
Novatech Flow Trail 29" Tubeless ready, 15MM QR front and 12MM through rear hub
Tires
Schwalbe Rocket Ron, 29X2.25, Folding
Brakes
Brakes
Shimano XT
Cockpit
Stem
FSA Afterburner, 31.8mm, ±6?, black
Handlebar
FSA Afterburner 31.8mm, 740mm width
Grips
Redline Flight flangeless lock-on
Headset
FSA Internal sealed bearing, 1.5 lower, 1 1/8" upper
Seat
Saddle
WTB Silverado Race SL
Seatpost
FSA Afterburner 31.6MM, 350MM length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.352 mm | 1.308 mm | 1.241 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 336 mm | 687 mm | 707 mm | 737 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 1090 mm | 93 mm | 89 mm | 80 mm |
| Stack | 599 mm | 603 mm | 603 mm | 608 mm |
| Reach | 422 mm | 446 mm | 461 mm | 490 mm |
| Top Tube Length | 569 mm | 595 mm | 610 mm | 640 mm |
| Seat Tube Angle | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 475 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 722 mm | 735 mm | 775 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

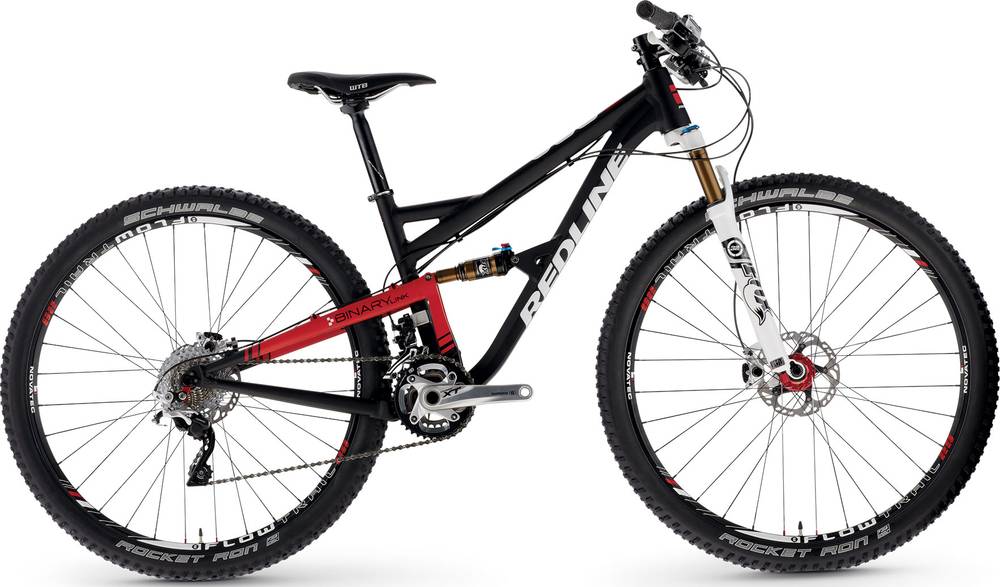

D880 belongs to the Redline D880 model. 2 bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
D880 components
Fork
The fork installed on this bike is the Fox model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The D880 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline D880 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
