Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 110mm -
Fork Fox
-
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Redline alloy, 110mm rear wheel travel, 142mm rear spacing, tapered headtube
Suspension Fork
Fox Float 29in, 100mm travel, FIT, CTD adj, 15mm QR, 1.5 tapered
Rear Shock
Fox Float with CTD
Drivetrain
Rear Derailleur
SRAM X1
Front Derailleur
N/A
Shift Levers
SRAM X1, 11s rear with Shimano XT levers
Cassette
SRAM 1180 XG, 10-42t
Crank
SRAM X1, 32t
Bottom Bracket
SRAM press fit mtb bb92
Chain
SRAM 1130, 11s
Wheels
Rims
Novatech Flow Trail 29" Tubeless ready, 15MM QR front and 12MM through rear hub, XD rear hub body
Tires
Schwalbe Rocket Ron, 29X2.25, Folding
Brakes
Brakes
Shimano XT with ICE tech 160mm rotors
Cockpit
Stem
Crank Brothers Cobalt 2, 31.8mm, ±6¡, black
Handlebar
Crank Brothers Cobalt 3, 31.8mm clamp, 740mm width, 9 degree backsweep, 8mm rise
Grips
Redline Flight flangeless lock-on
Headset
FSA Internal sealed bearing, 1.5 lower, 1 1/8" upper
Seat
Saddle
Fizik Tundra
Seatpost
Crank Brothers Cobalt 2, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.352 mm | 1.308 mm | 1.241 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 336 mm | 687 mm | 707 mm | 737 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 1090 mm | 93 mm | 89 mm | 80 mm |
| Stack | 599 mm | 603 mm | 603 mm | 608 mm |
| Reach | 422 mm | 446 mm | 461 mm | 490 mm |
| Top Tube Length | 569 mm | 595 mm | 610 mm | 640 mm |
| Seat Tube Angle | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 475 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 722 mm | 735 mm | 775 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

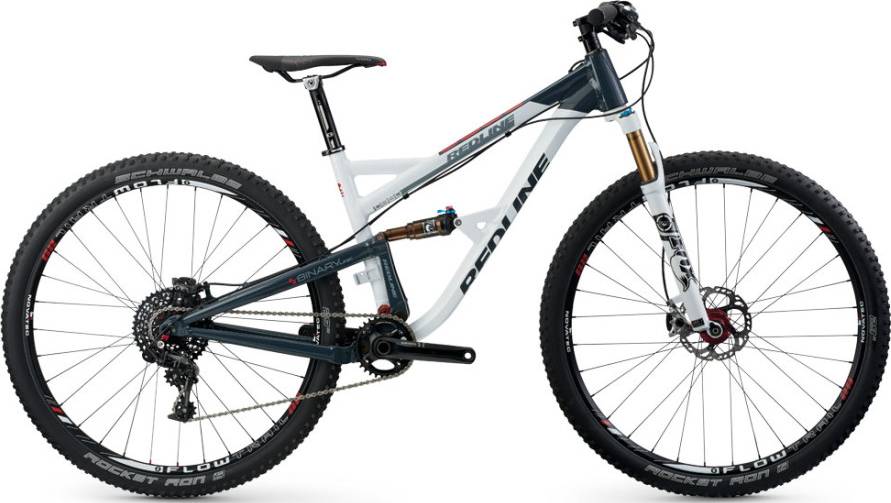

D880 is a Redline D880 model. Redline launched 2 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
D880 components
Fork
The D880 comes factory-installed with the Fox fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float with CTD rear shock model, which has a travel of 110mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the D880 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
