Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Groupset Truvativ -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Redline alloy mono disc frame with tapered headtube, sliding drop outs, optional hanger for gears
Suspension Fork
Redline full carbon fork with tapered steer, post style disc mount, 15mm thru axle
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A shifters, Shimano M445 levers
Cassette
18T
Crank
Truvativ AKA, 32t
Bottom Bracket
FSA bb92 pressfit
Chain
KMC Z33
Wheels
Rims
Alex XD Comp 32h, Double wall, Formula sealed bearing front and rear hubs
Tires
Schwalbe Nobby Nic, 29 x 2.25"
Brakes
Brakes
Shimano M447, 160mm Shimano rotors
Cockpit
Stem
Crank Brothers Cobalt 1, 31.8mm clamp
Handlebar
Crank Brothers Cobalt 1, 31.8mm clamp, 680mm width, 8mm rise
Grips
Redline Flight flangeless lock-on, 135mm
Headset
FSA internal 1 1/8" to 1.5" sealed bearing
Seat
Saddle
Fizik Nisene mg
Seatpost
Crank Brothers Cobalt 1, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.49 mm | 1.47 mm | 1.41 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 649 mm | 658 mm | 667 mm | 687 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 70 mm | 69 mm | 61 mm | 62 mm |
| Stack | 603 mm | 605 mm | 616 mm | 619 mm |
| Reach | 397 mm | 405 mm | 420 mm | 440 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 72.5 ° | 72 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 380 mm | 430 mm | 475 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1080 mm | 1089 mm | 1098 mm | 1118 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 711 mm | 750 mm | 767 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

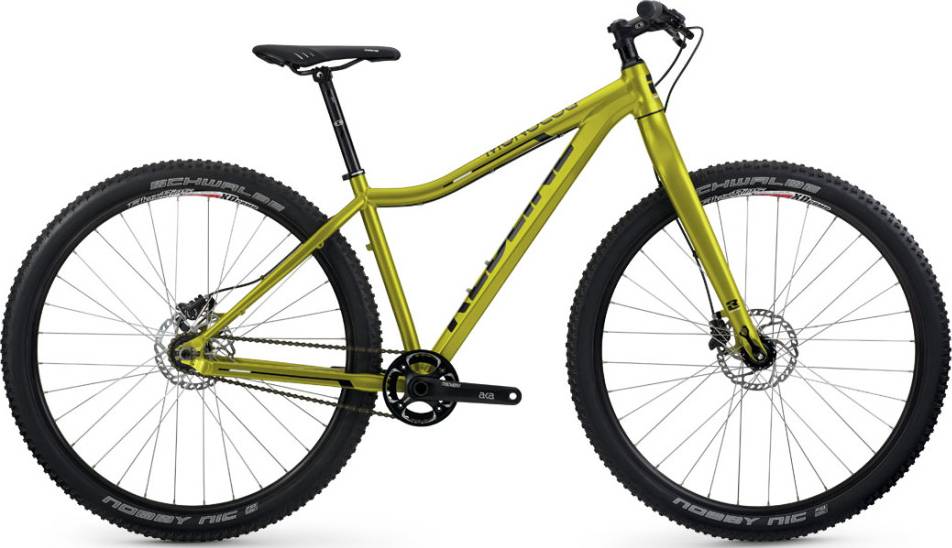

Monocog Al is part of the Redline Monocog model. 3 bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Monocog Al components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Monocog Al model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Monocog Al comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
