Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum,Integrated HT, Ovalized Anti-Flex Stays
Suspension Fork
RL Race Chromo Steer, Taperd leg, 30mm Off set
Drivetrain
Crank
RL Chromo 175mm 3pc Cranks
Bottom Bracket
Sealed Euro
Chain
KMC Z410
Pedals
RL Aluminum 9/16" Platform
Wheels
Front Hub
RL Aluminum
Rear Hub
RL Aluminum Flip-Flop
Rims
Race 20 x 1.75, 36h
Spokes
Black 14g
Tires
Tioga PowerBlock (F)20 x 1.9 / (R)20 x 1.75" Tires
Brakes
Brakes
Tektro 918 Linear
Brake Levers
Tektro
Cockpit
Stem
RL Hollowpoint Aluminum 55mm Threadless with M8 bolts
Handlebar
RL Race 8", 10¡ Back, 4¡ up
Grips
Redline Hex Pro w/plugs
Headset
Integrated 1 1/8"
Seat
Saddle
Pivotal Race
Seatpost
Pivotal 26.8
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

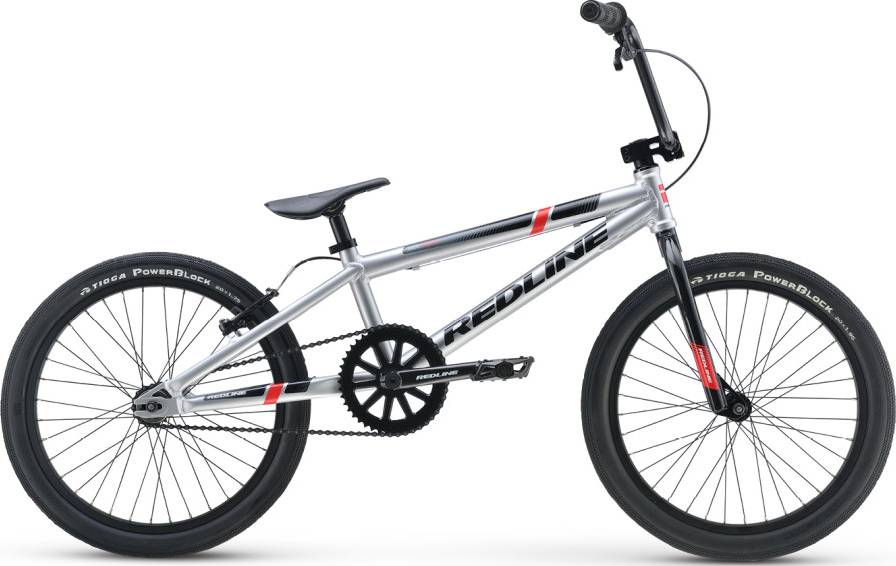

MX-20 is part of the Redline Mx 20 model. Redline launched 2 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
BMX bikes average price
According to our math, the average price for a trustworthy BMX bike is 348$. However, paying less money than this amount doesn’t mean that you couldn’t get a great BMX bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2016 for 449$. In conclusion, this bike price is 29.02% more expensive than the price of the average BMX bike.
Average weight for BMX bikes
On a deeper look, we notice that the average weight of a BMX bike is 10.54 kg (23.24 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
MX-20 weighs 9.5 kg (20.94 lbs) and is considerably lighter than the average. To sum up, it’s 10.95% lighter than the average weight of BMX bikes.
MX-20 components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the MX-20 bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MX-20 comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
