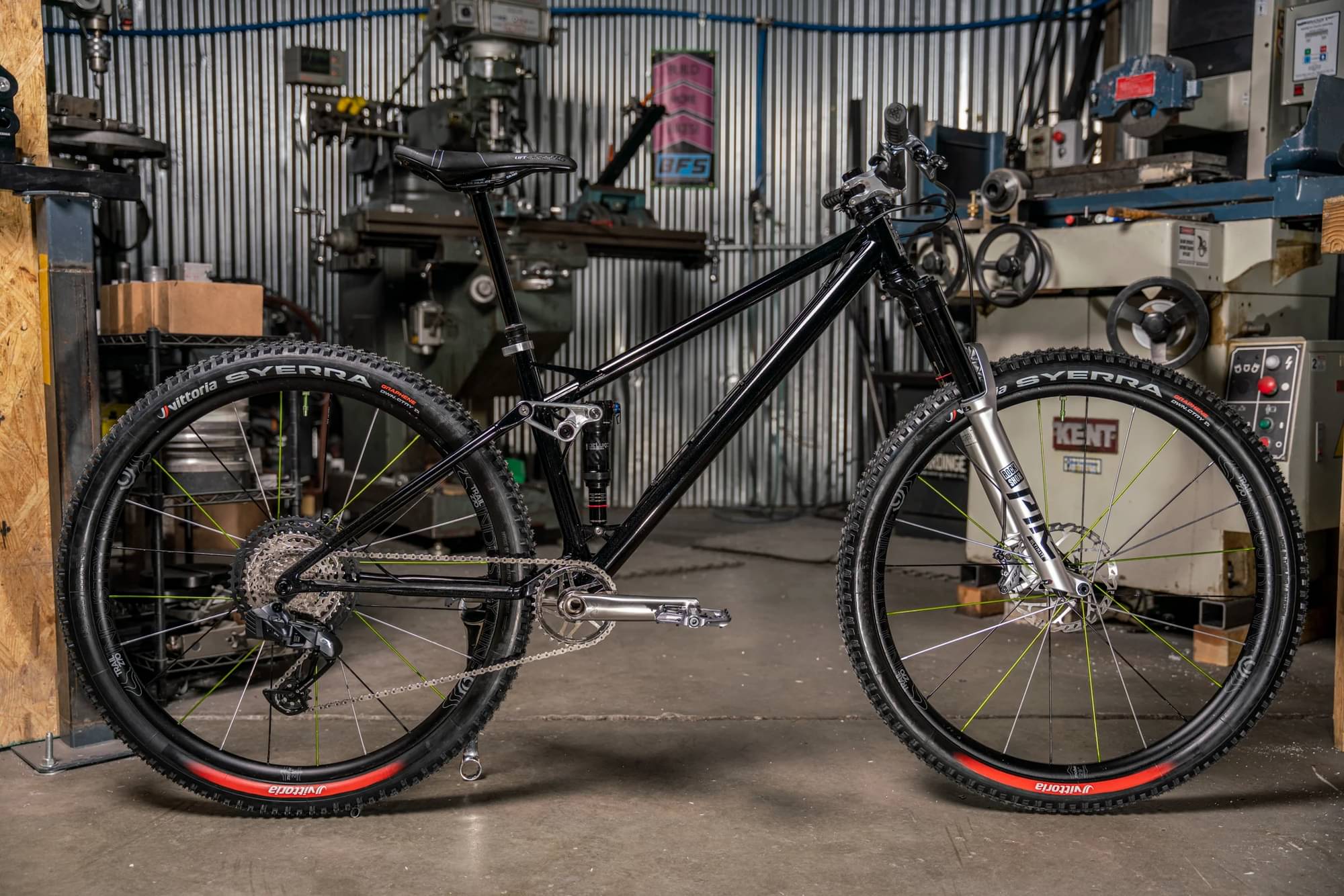

REEB SST Air X0 Eagle T-Type 2024
2024 Mountain
Estimate price |
8,495$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 140mm -
Travel Rear 120mm -
Fork Cane Creek HELM
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
120mm, REEB proprietary 4130 Chromoly tubing/3D printed 316L Stainless Steel, Handwelded in USA
Suspension Fork
Cane Creek Helm 140mm
Rear Shock
Cane Creek DBair IL 120mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle T-Type AXS, 12 spd
Shift Levers
SHIFTER: SRAM X0 AXS
Cassette
SRAM X0, XS-1295, 10-52, 12 spd
Crank
SRAM X0 Eagle T-Type
Wheels
Rims
Industry Nine 1/1 Enduro S
Tires
Vittoria Mazza Trail 2.4
Brakes
Brakes
TRP Trail Evo
Cockpit
Stem
Industry Nine I35, 40mm
Handlebar
OneUp Carbon
Grips
OneUp lock on
Headset
Cane Creek Hellbender 70
Seat
Saddle
Chromag Lift
Seatpost
OneUp V2/OneUp Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.371 mm | 1.336 mm | 1.299 mm | 1.243 mm |
| Bottom Bracket Height | 334 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 739 mm | 756 mm | 773 mm | 815.6 mm | 832 mm |
| Rake | 49 mm | 42 mm | 43 mm | 44 mm | 41 mm |
| Trail | 128 mm | 125 mm | 123 mm | 122 mm | 126 mm |
| Stack | 590 mm | 610 mm | 614.5 mm | 623.5 mm | 634 mm |
| Reach | 420 mm | 445 mm | 460 mm | 480 mm | 510 mm |
| Top Tube Length | 580 mm | 596 mm | 612.5 mm | 637 mm | 668 mm |
| Seat Tube Angle | 75 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 410.5 mm | 425 mm | 450 mm |
| Head Tube Angle | 64 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1176 mm | 1189 mm | 1207 mm | 1232 mm | 1264 mm |
| Bottom Bracket Drop | 40 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 715 mm | 740 mm | 755 mm | 760 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
