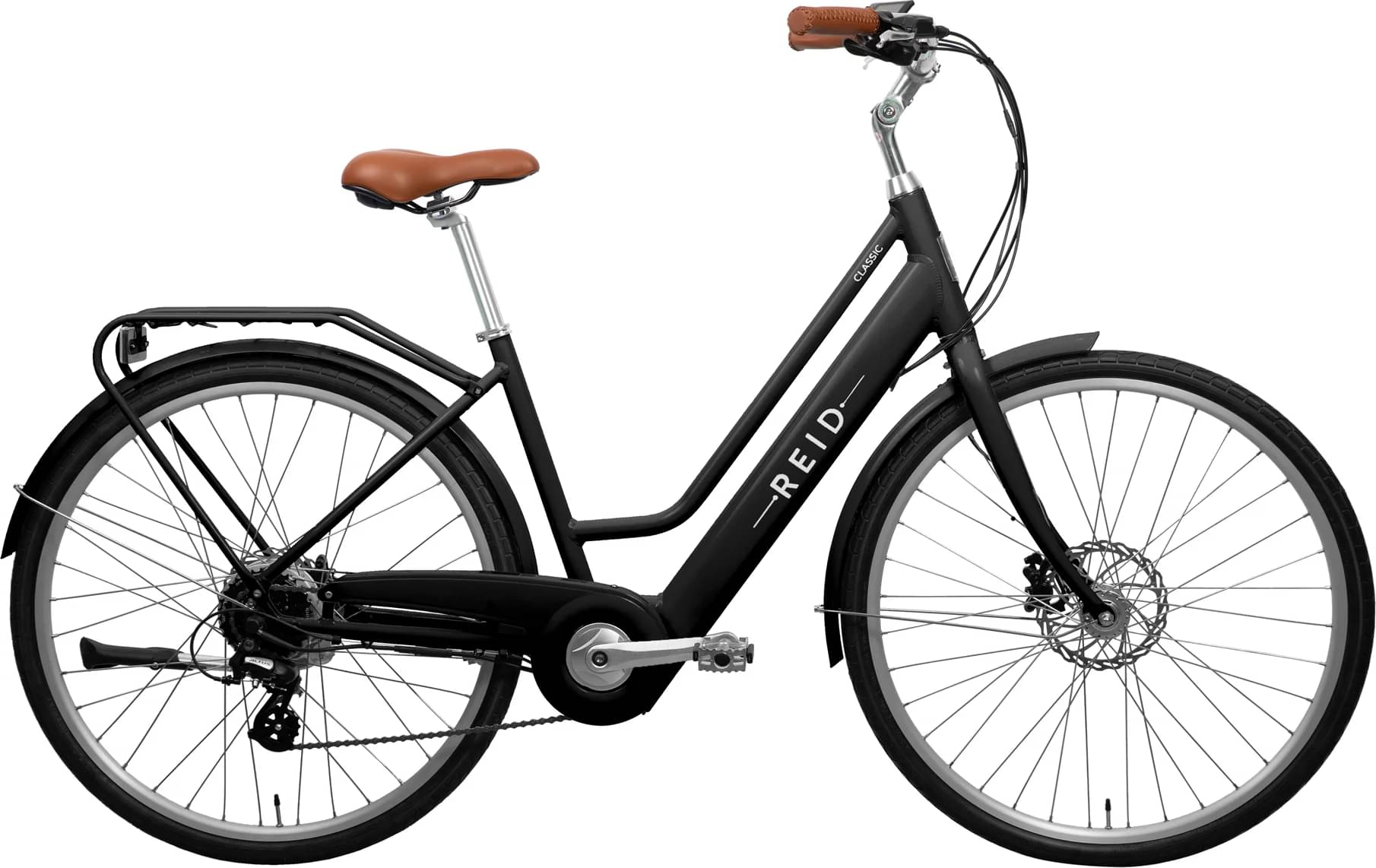

reid Classic Vintage eBike 2024
2024 E-bike
Estimate price |
1,371$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Motor Bafang 250W hub-drive -
Battery 36V/10AH LISHEN 21700 CELL w/ integrated battery management system -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061 Aluminium Alloy
Suspension Fork
Hi-Ten Steel
Drivetrain
Rear Derailleur
M310 Altus 8 Speed
Front Derailleur
#N/A
Cassette
Shimano TZ500 7-Speed Freewheel (14-28t)
Bottom Bracket
Feimine FP-B902 Sealed Bearing
Chain
KMC Z7
Chain Guide
Included
Pedals
Alloy platform with 9/16" steel axle
Wheels
Rims
700c, 36H, 13G, DOUBLE WALL alloy, F/V
Tires
Wanda 700 x 45c
Brakes
Brakes
NUTT Hydraulic Brakes
Brake Levers
NUTT Hydraulic Levers Alloy
Cockpit
Stem
Alloy 1" Quill Stem
Handlebar
Alloy Vintage w/ backsweep 620mm wide 38mm rise 25.4 Barbore
Headset
THREAD TYPE,25.4MM,44*44MM,W/15MM
Seat
Saddle
Selle Royal sprung comfort
Seatpost
Alloy 27.2mm x 350mm
Motor & Battery
Motor
Bafang 250W rear hub
Battery
36V/10AH LISHEN 21700 CELL w/ integrated battery management system
Charger
MDA257 36V/2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
