Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061 Aluminium Alloy with tapered headtube and internal cable routing
Suspension Fork
100mm travel coil suspension with lock out
Drivetrain
Rear Derailleur
Shimano Tourney RD-TZ31 (7 speed)
Front Derailleur
Shimano Tourney FD-TZ500 (3 speed)
Shift Levers
Shimano Altus EF500 EZ-Fire (3x7) 21-speed
Cassette
ATA KDF-711 7 speed
Crank
Alloy MTB 3x
Bottom Bracket
Sealed bearing
Chain
TEC 7 speed
Pedals
Neco plastic
Wheels
Front Hub
Alloy disc specific MTB with quick release
Rear Hub
Alloy disc specific MTB with quick release
Rims
Double wall alloy 29"
Tires
29 x 2.1? Compass MTB
Brakes
Brakes
Mechanical Disc with 160mm rotors
Brake Levers
Shimano Altus EF500 integrated
Cockpit
Stem
MTB A-head alloy oversize 31.8mm
Handlebar
MTB double butted alloy 31.8
Grips
MTB rubber
Seat
Saddle
MTB Performance
Seatpost
MTB alloy 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

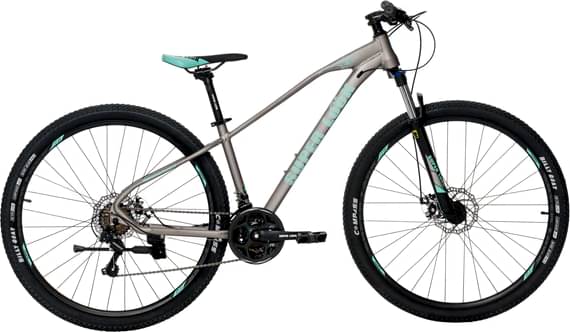

Jaguar 29 MTB Disc is a Reid Jaguar model. REID launched 2 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 190$. If we compare this with the average Crosscountry bike cost we notice that the price is 902.63% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Wheels size
The wheels on Jaguar 29 MTB Disc are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Jaguar 29 MTB Disc has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
REID Jaguar 29 MTB Disc bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
