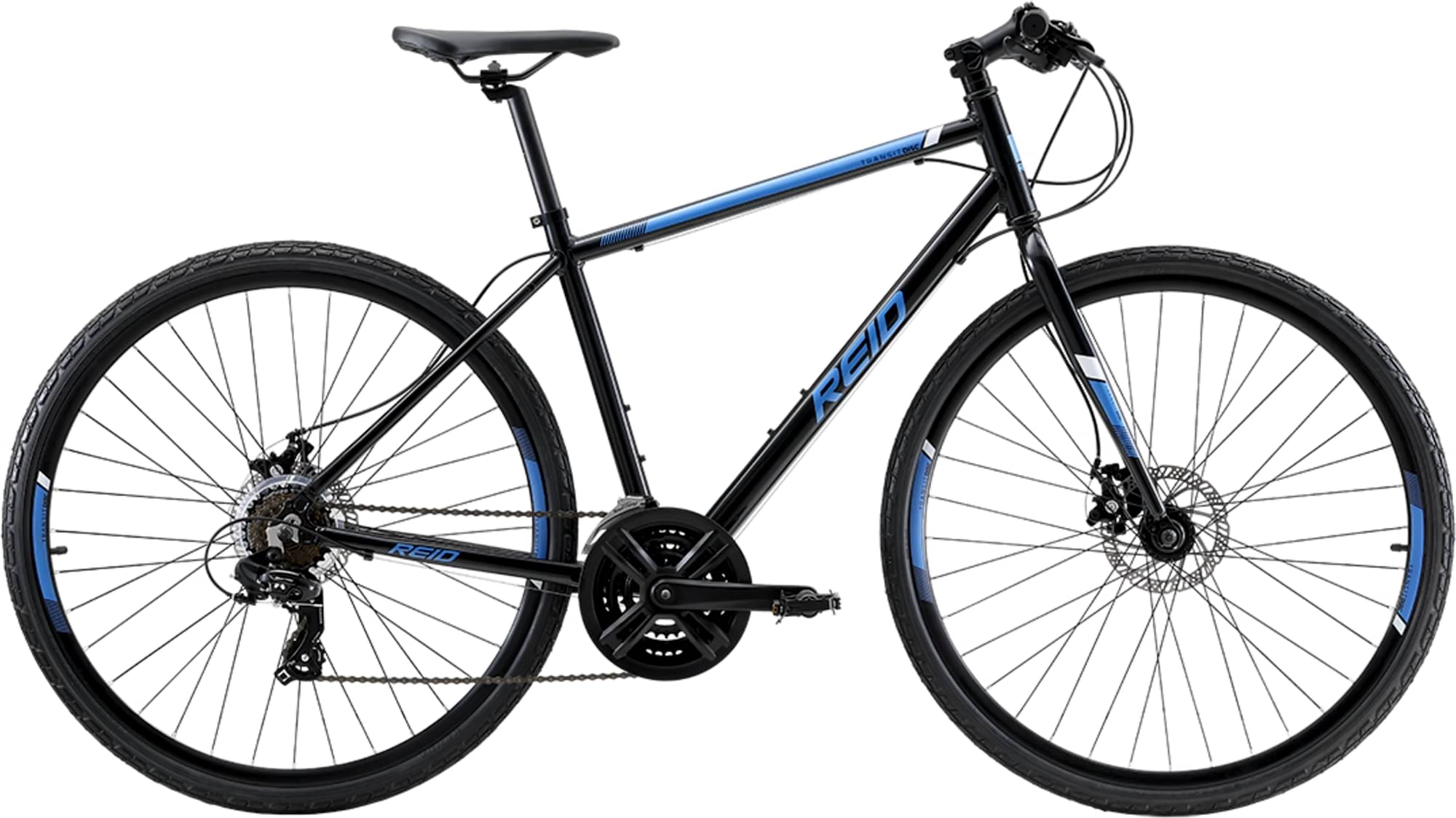

reid Transit Disc Commuter Bike 2024
2024 Urban
Estimate price |
375$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061 Aluminium Alloy
Suspension Fork
Steel
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TZ31
Shift Levers
Shimano Tourney EF41 EZ-Fire PLUS Integrated
Cassette
Shimano TZ500 7-Speed Freewheel (14-28t)
Bottom Bracket
NECO B908 Sealed Bearing
Chain
KMC Z33
Pedals
Nylon platform with 9/16" steel axle
Wheels
Rims
Double Wall Alloy Disc Specific
Tires
Kenda K198 700 x 40c commuter
Brakes
Brakes
Tektro MD280 Mechanical DIsc Brake w/ 160mm rotors
Brake Levers
Shimano Tourney EF41 EZ-Fire PLUS Integrated
Cockpit
Stem
Alloy threadless 90mm 7° rise
Handlebar
Alloy 600mm 6° backsweep 20mm rise Barbore 31.8
Grips
Commuter rubber 125mm
Seat
Saddle
Reid Black Commuter Saddle
Seatpost
Alloy 27.2mm x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
