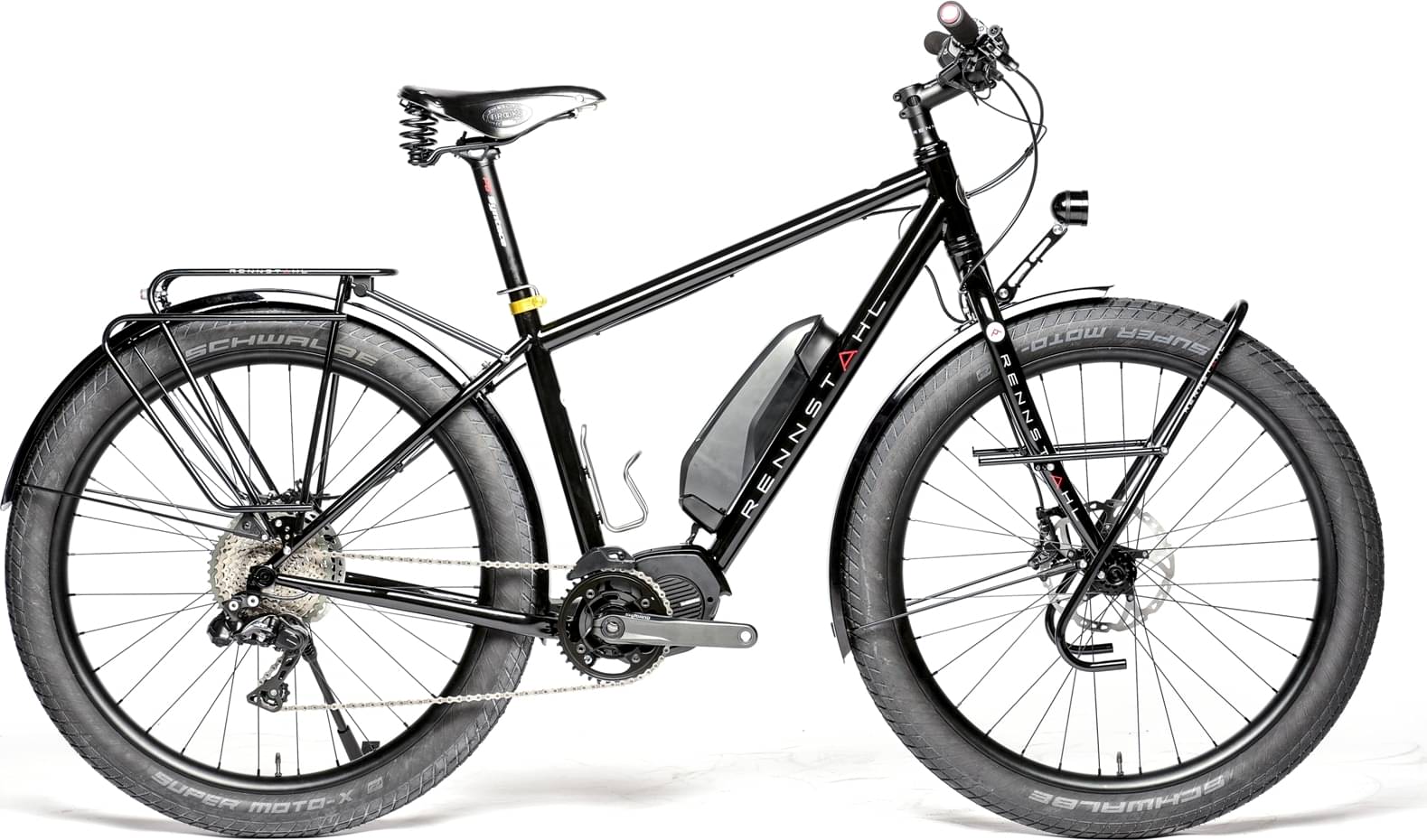

rennstahl 853 E-Trekkingrad STEPS 8000 2024
2024 E-bike
Estimate price |
8,284$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset XT Di2 -
Suspension Rigid -
Motor Shimano 250W 85Nm mid-drive -
Battery BT-E8010, 504Wh -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Racing steel steel fork Syntace X-15 x 110mm BOOST
Drivetrain

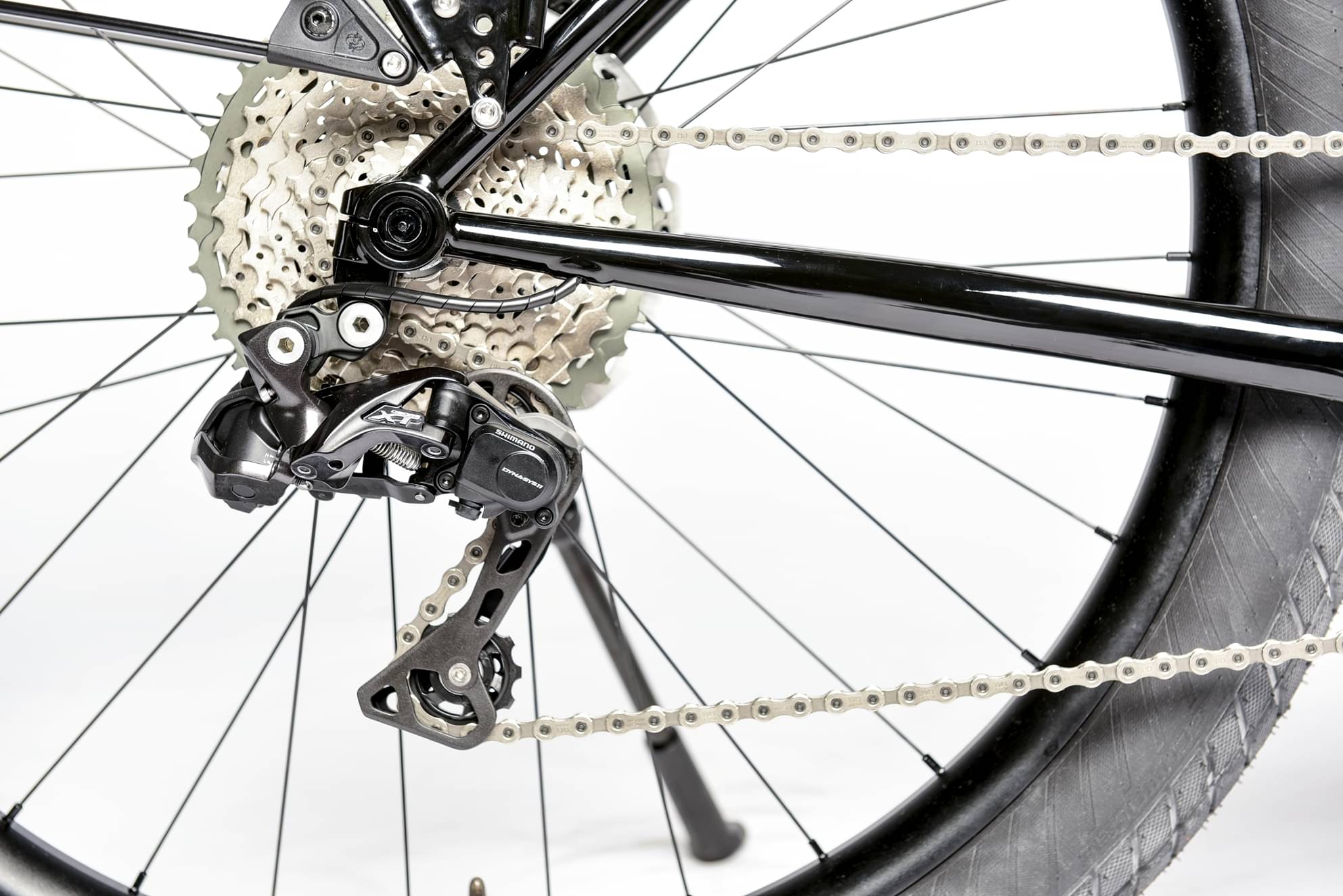

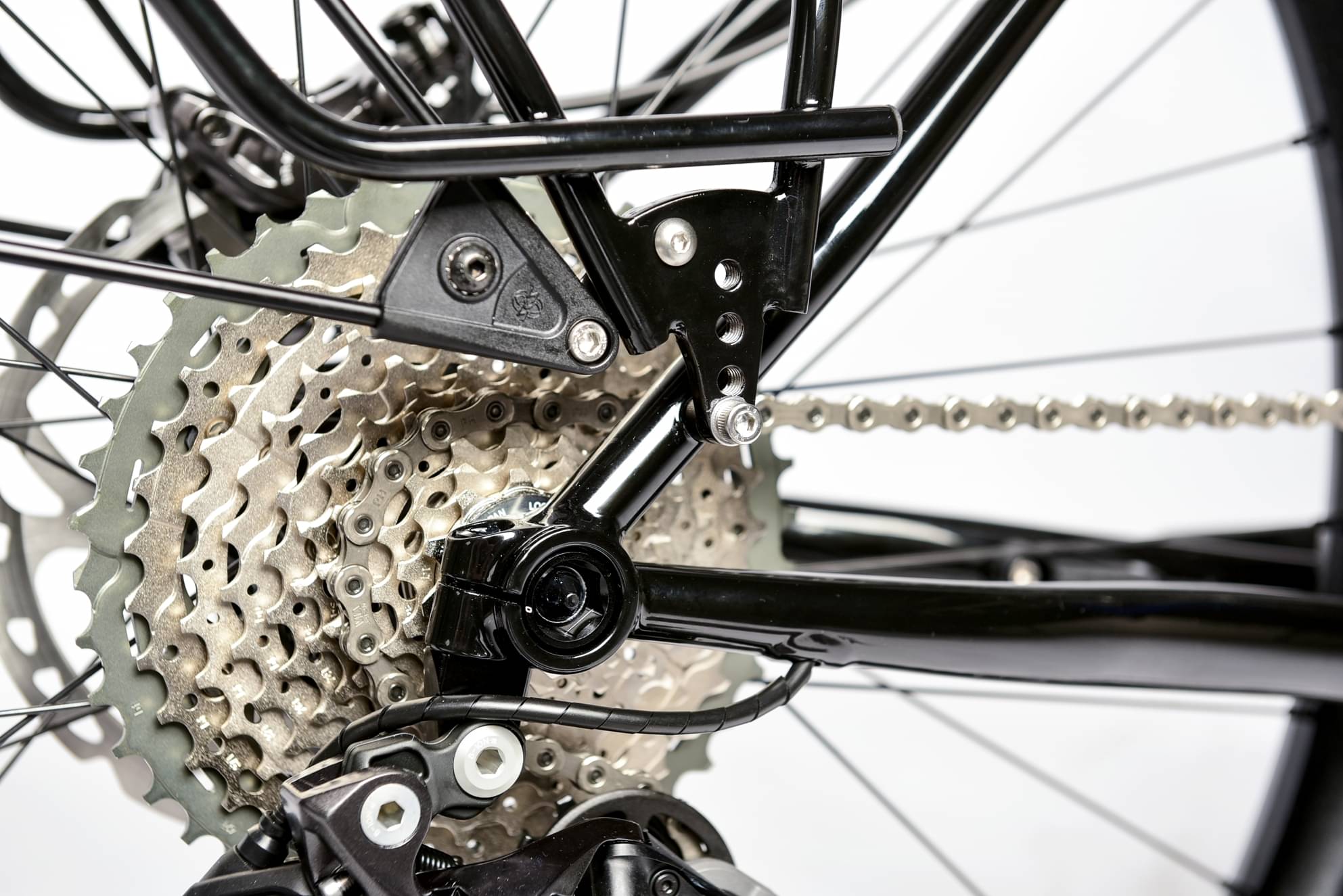

Rear Derailleur
Shimano XT Di2 Firebolt Trigger

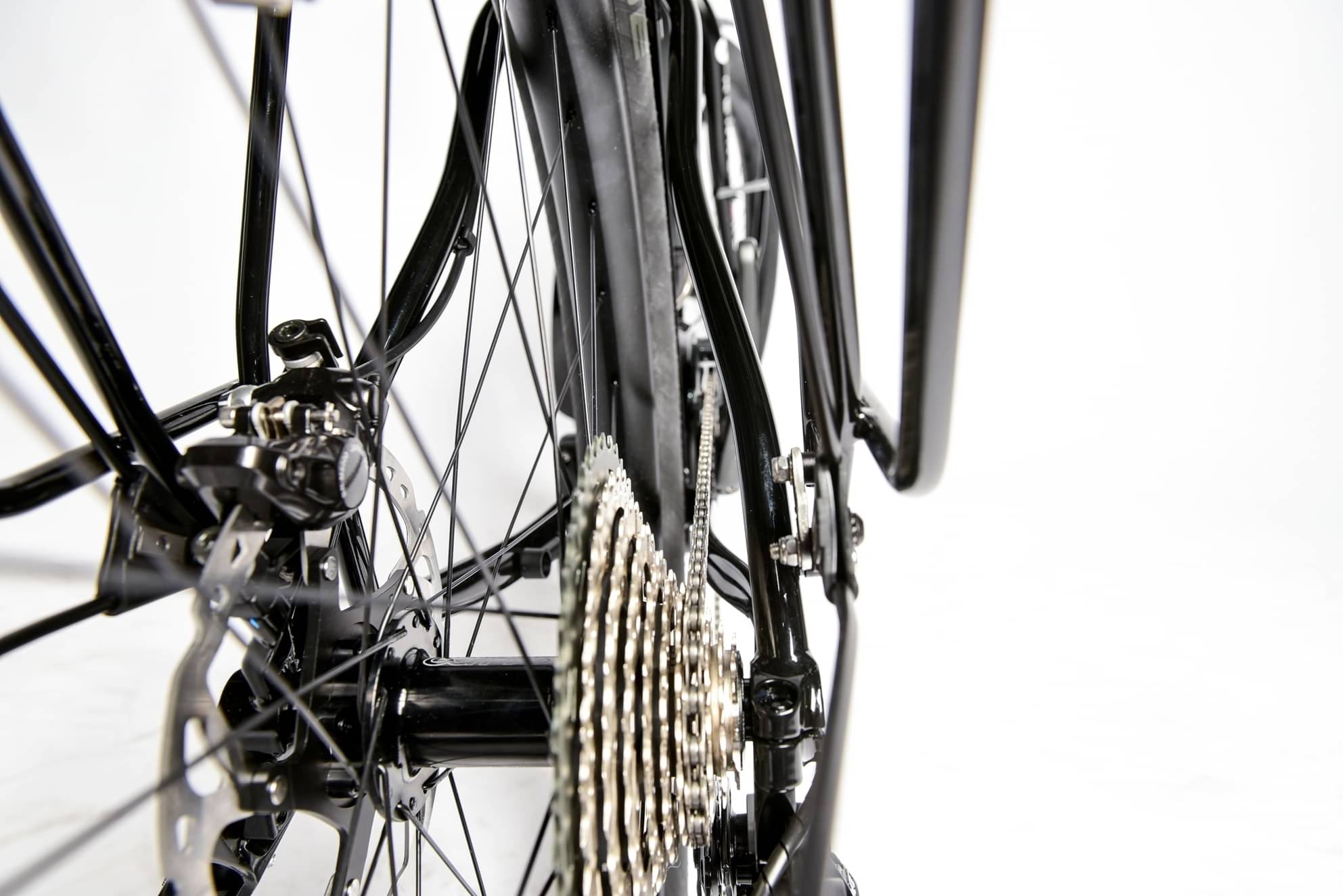

Cassette
Shimano XT 11-40
Crank
E8050 Shimano XT Hollowtech with chainring SM-CRE80-B 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Pedals
without
Wheels
Rims
Tune 27.5 Plus Enduroryder, King Boost-32L/Kong Boost-32L / rim Enduroryder /SAPIM D-light black-oxidized
Tires
Schwalbe Marathon Almotion 28x2.15
Brakes

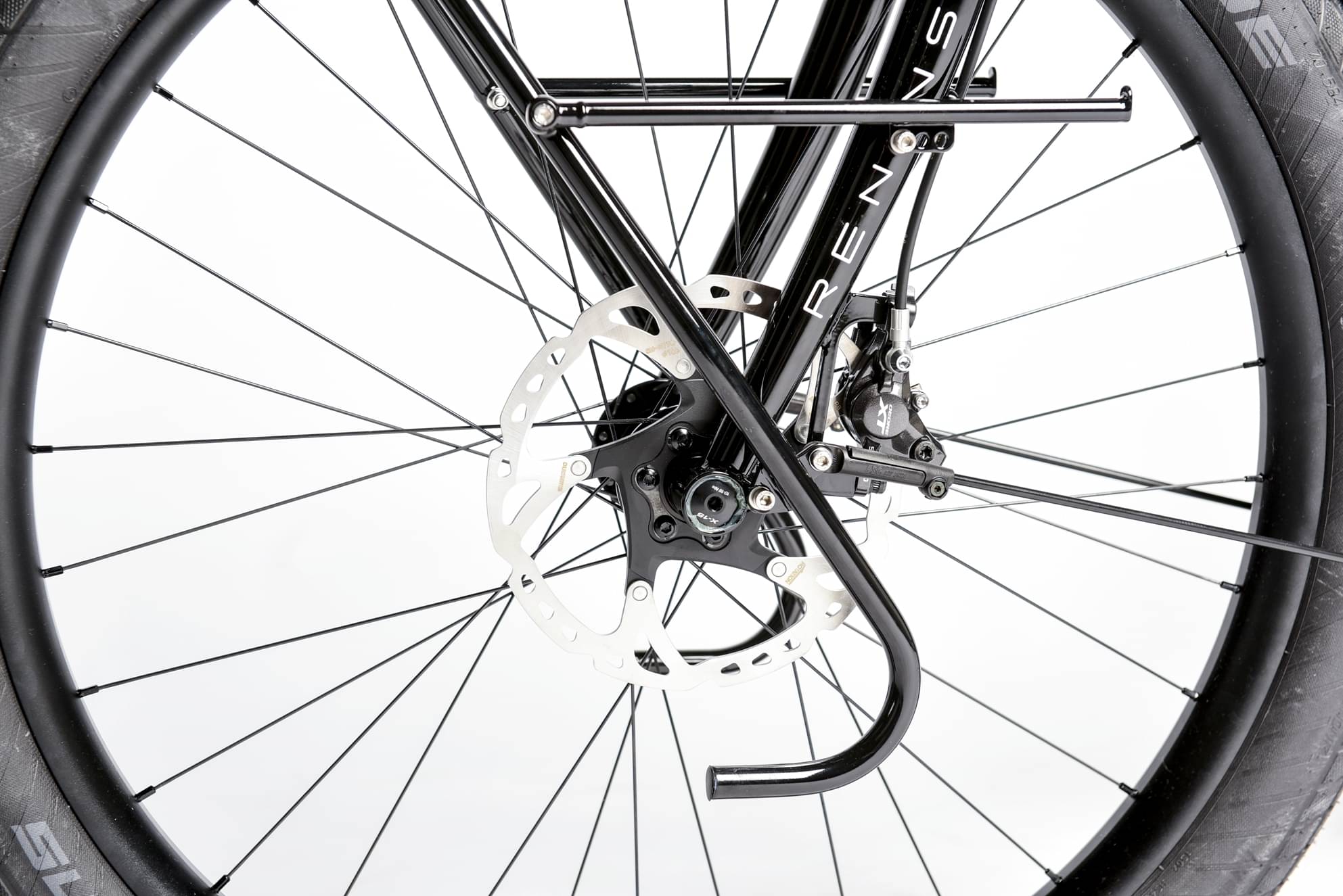

Brakes
Magura MT5 4 piston brake
Cockpit
Stem
Ergotec Swell XR adjustable
Handlebar
Ergotec Rizer 660mm, height 30mm, setback 12 degrees
Seat
Saddle
without
Seatpost
Ergotec Scalar
Motor & Battery

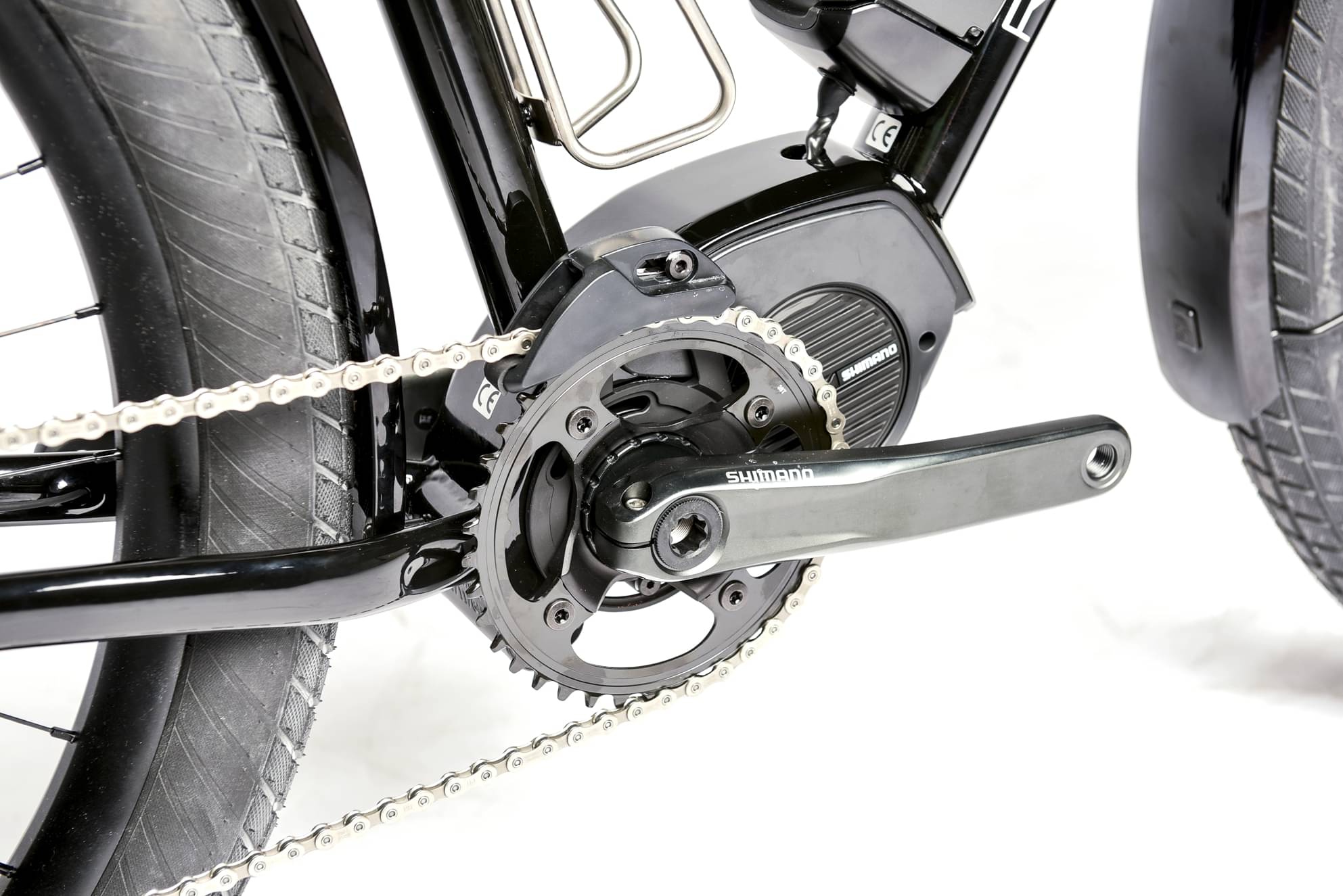

Motor
STEPS EP8 engine
Battery
BT-E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Top Tube Length | 603 mm | 622 mm | 642 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Standover Height | 785 mm | 815 mm | 845 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
