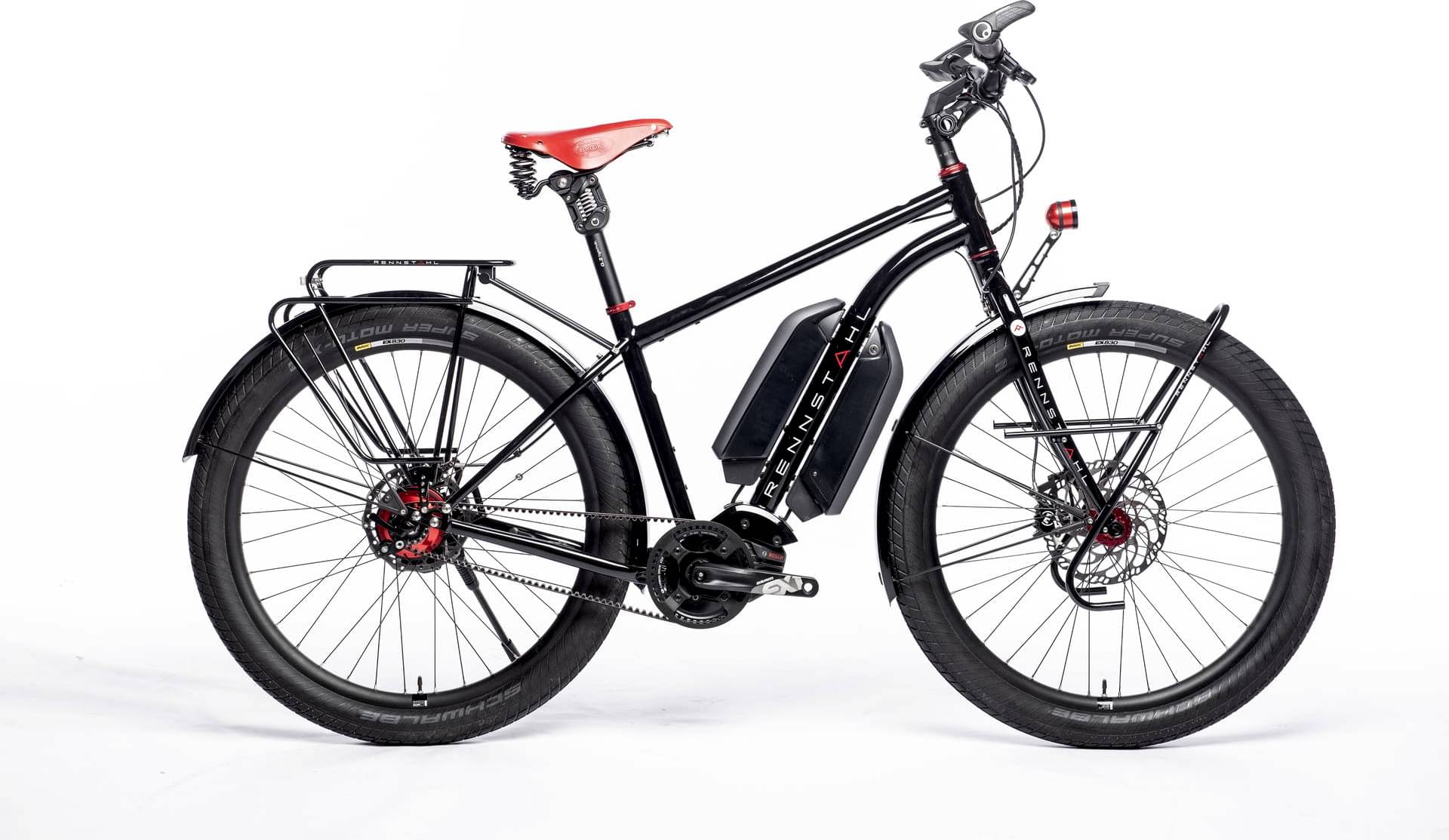

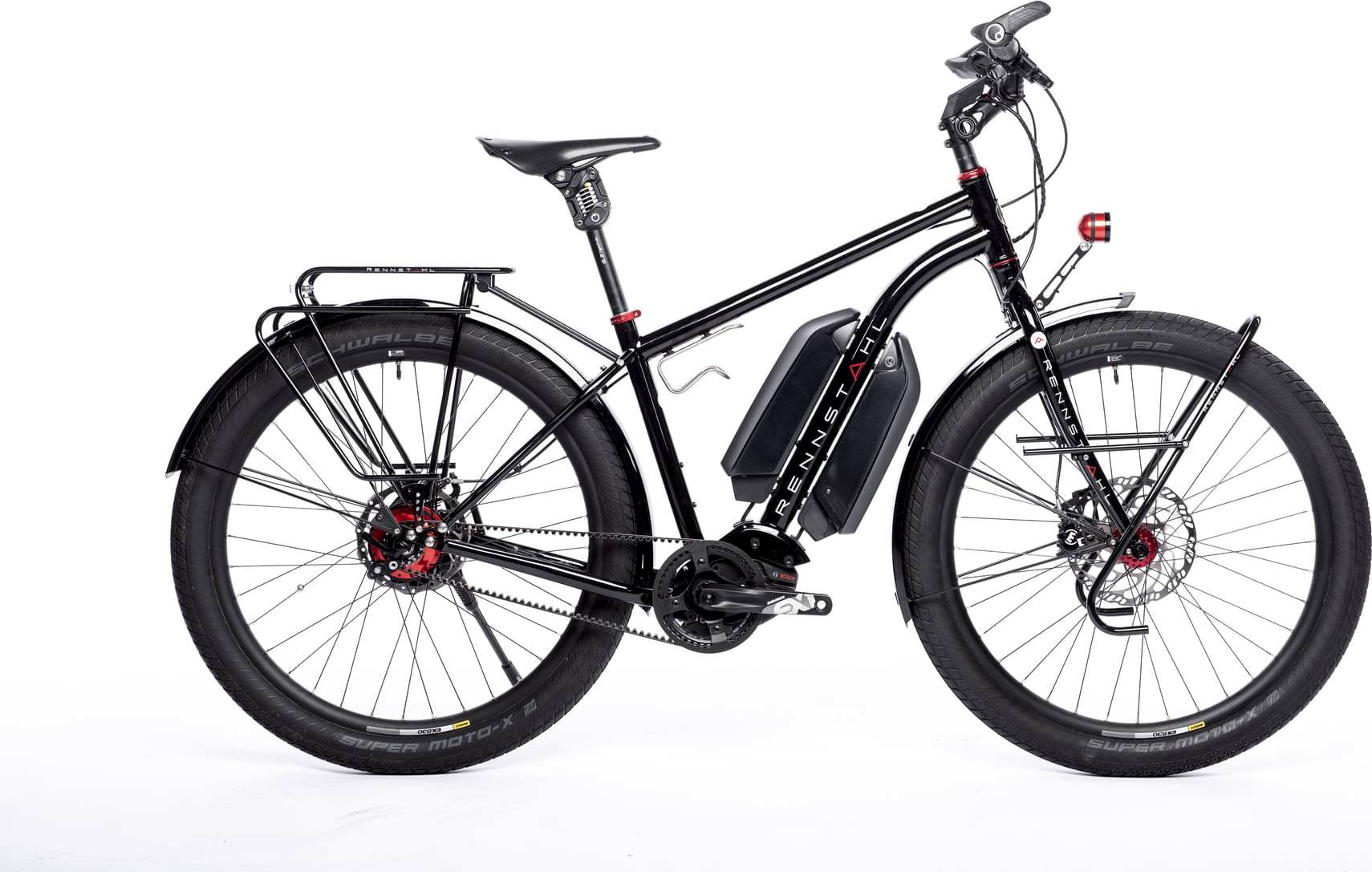

rennstahl 853 E14 Touring 2024
2024 E-bike
Estimate price |
10,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset RED -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Incl. 2nd additional Bosch battery - total capacity 1,000Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

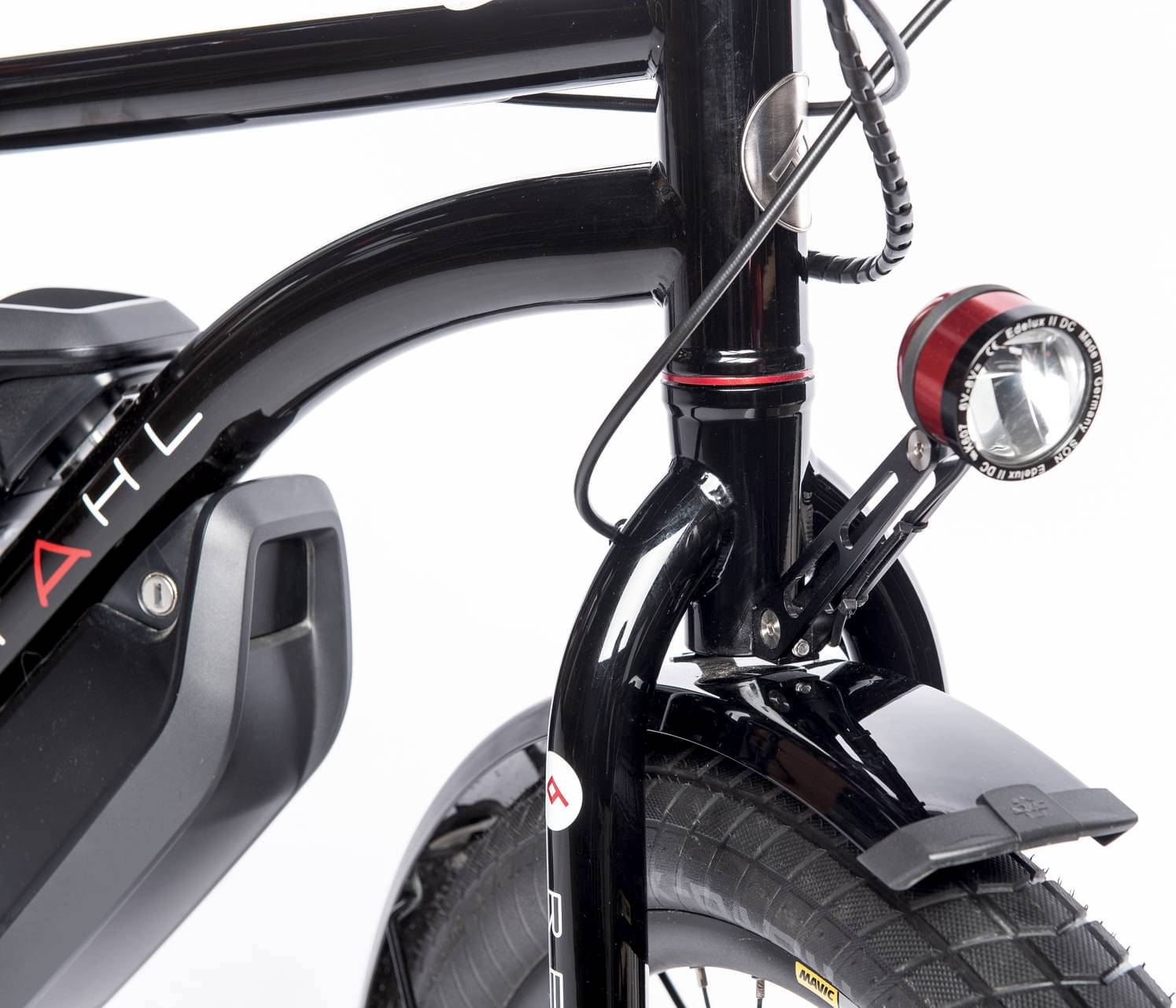

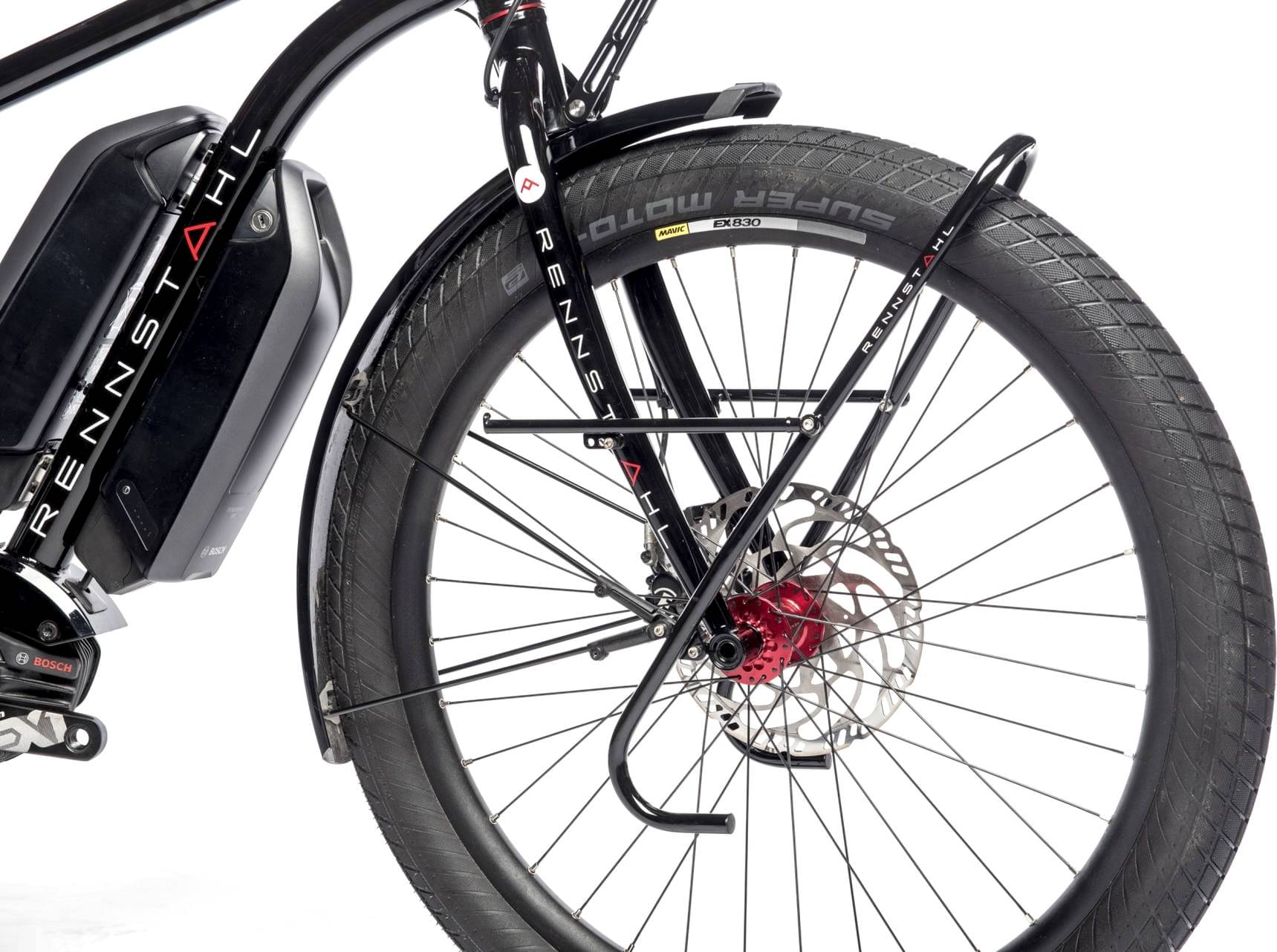

Suspension Fork
RACING STEEL Steel Fork Syntace X-15 x 110mm BOOST
Drivetrain

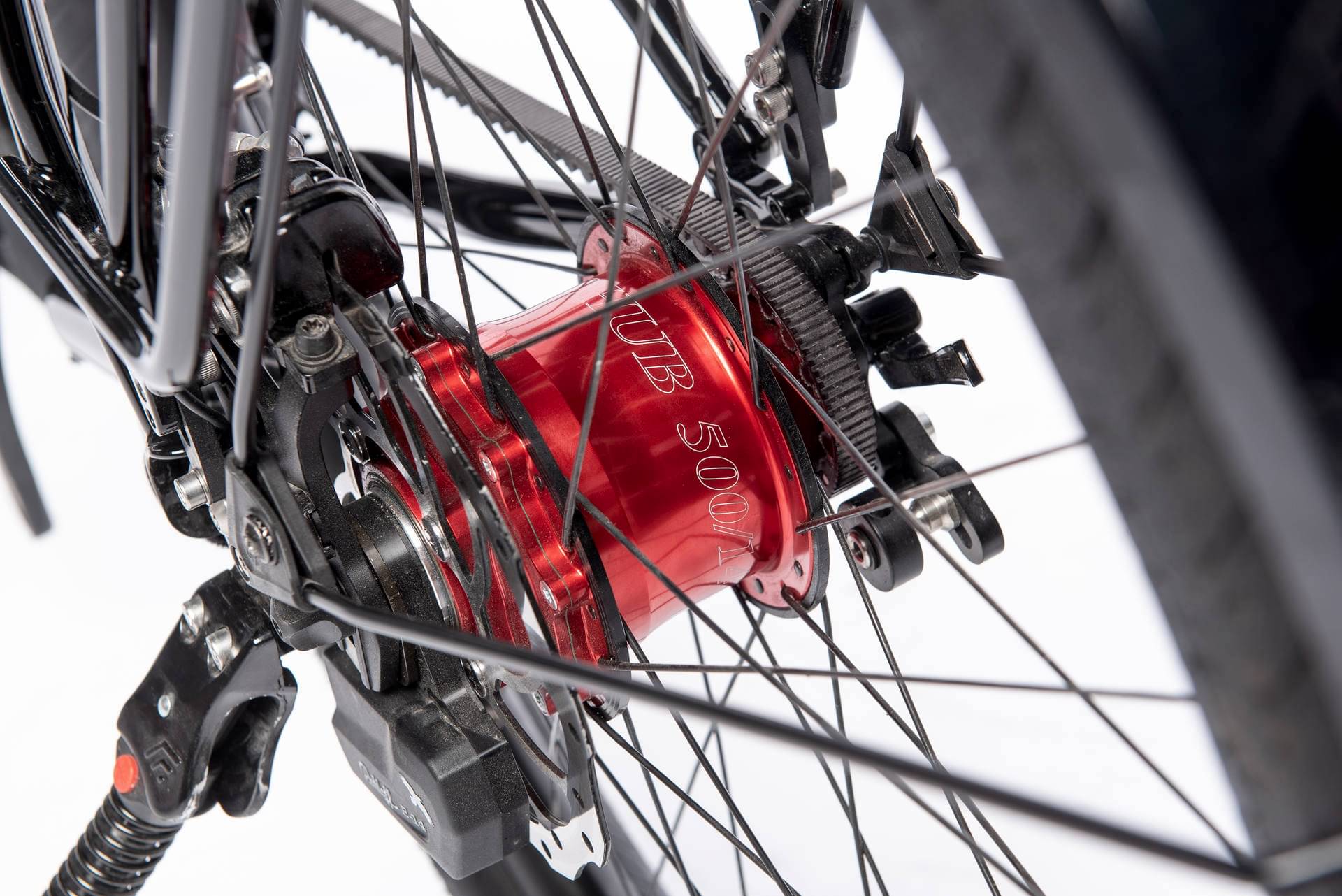

Rear Derailleur

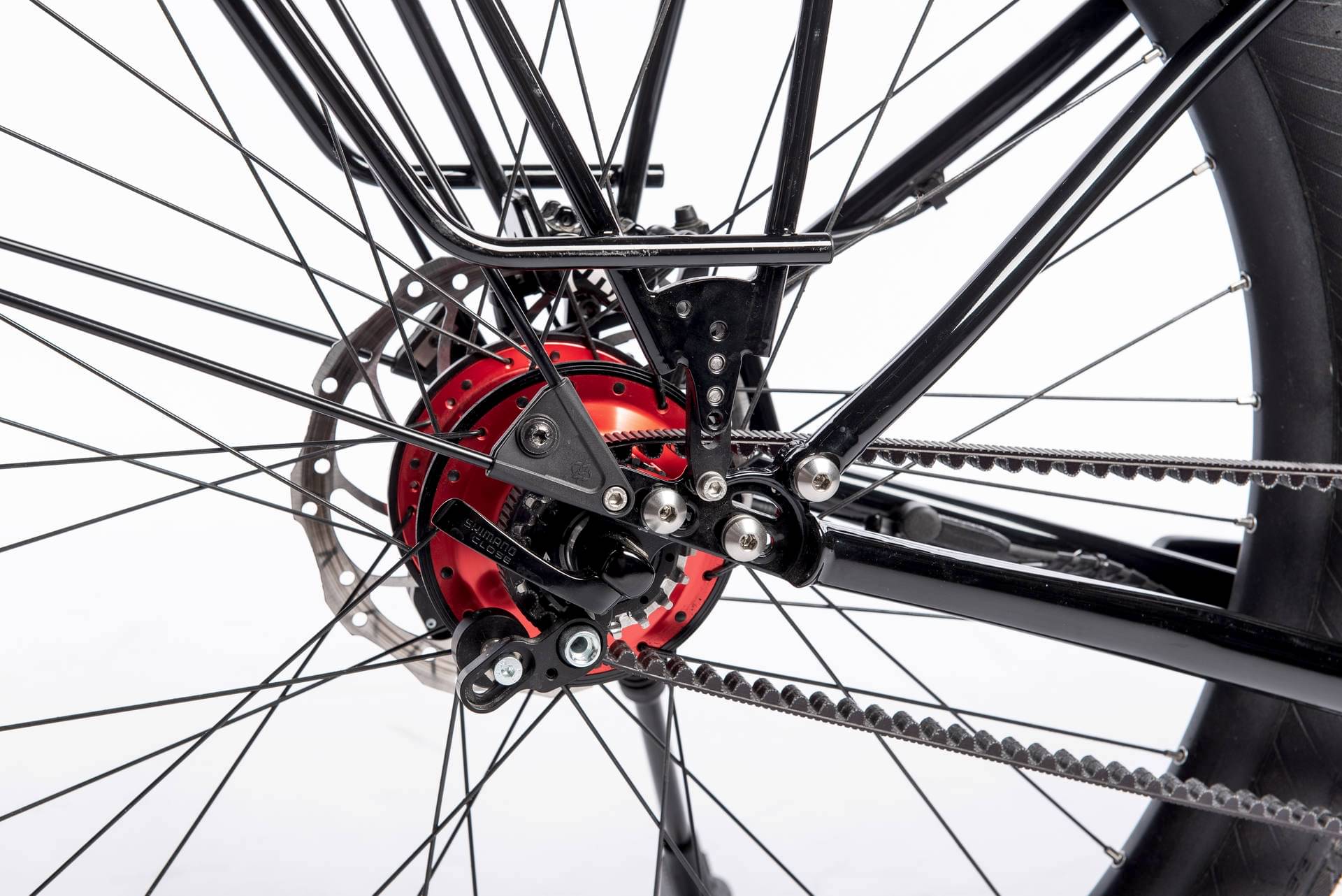

Rohloff E-14 red
Crank
SRAM EX 1
Pedals
without
Wheels
Rims
Rohloff E-14 RED, Tune King 15/Mavic 1030 rim with 36 holes
Brakes
Brakes
Magura MT5 4 piston brake

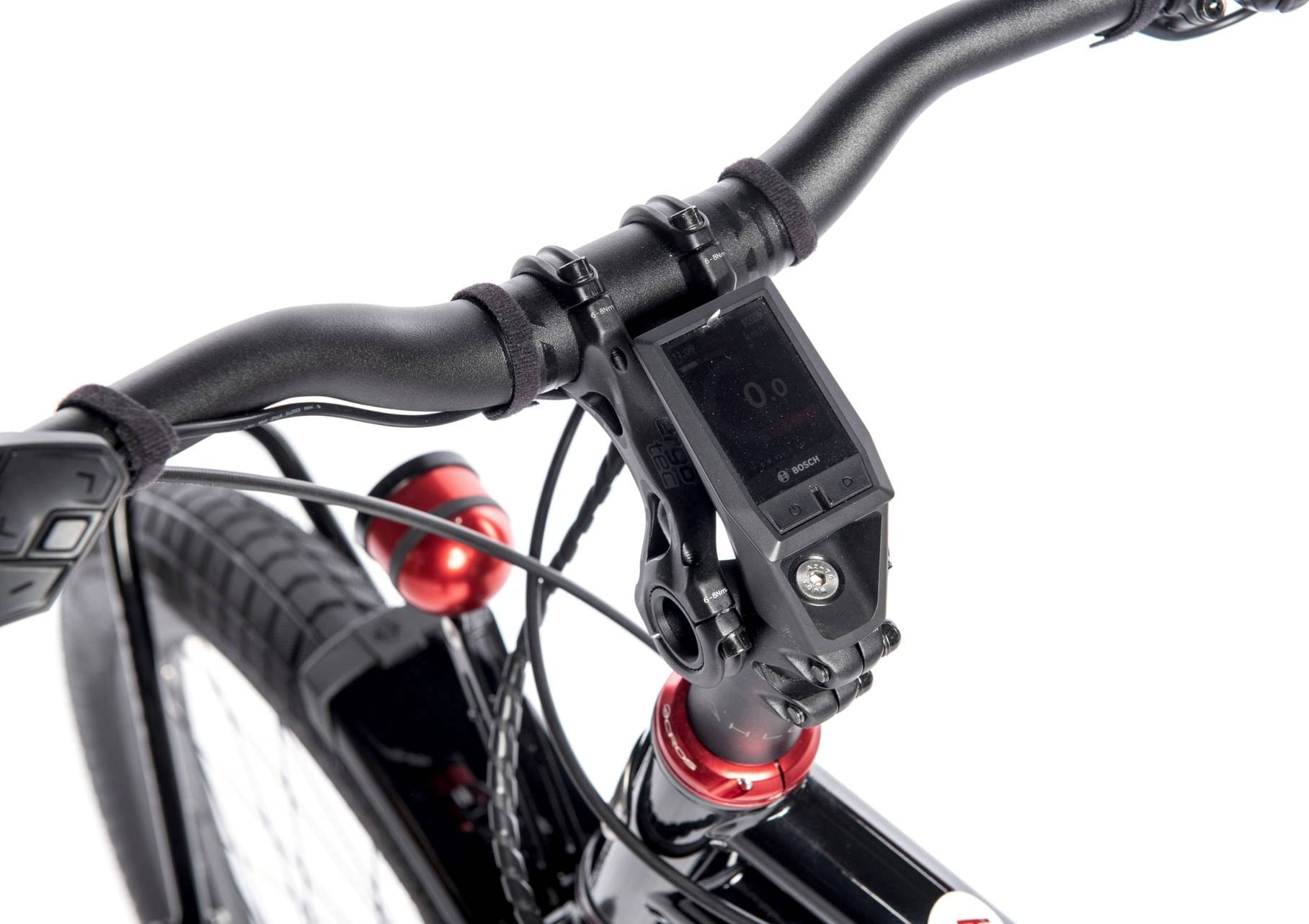

Cockpit
Stem
Ergotec Swell XR adjustable
Handlebar
Ergotec Rizer 660mm, height 30mm, setback 12 degrees
Seat
Saddle
Brooks flyer red
Seatpost
By Schulz G2 spring support (spring according to body weight)
Motor & Battery

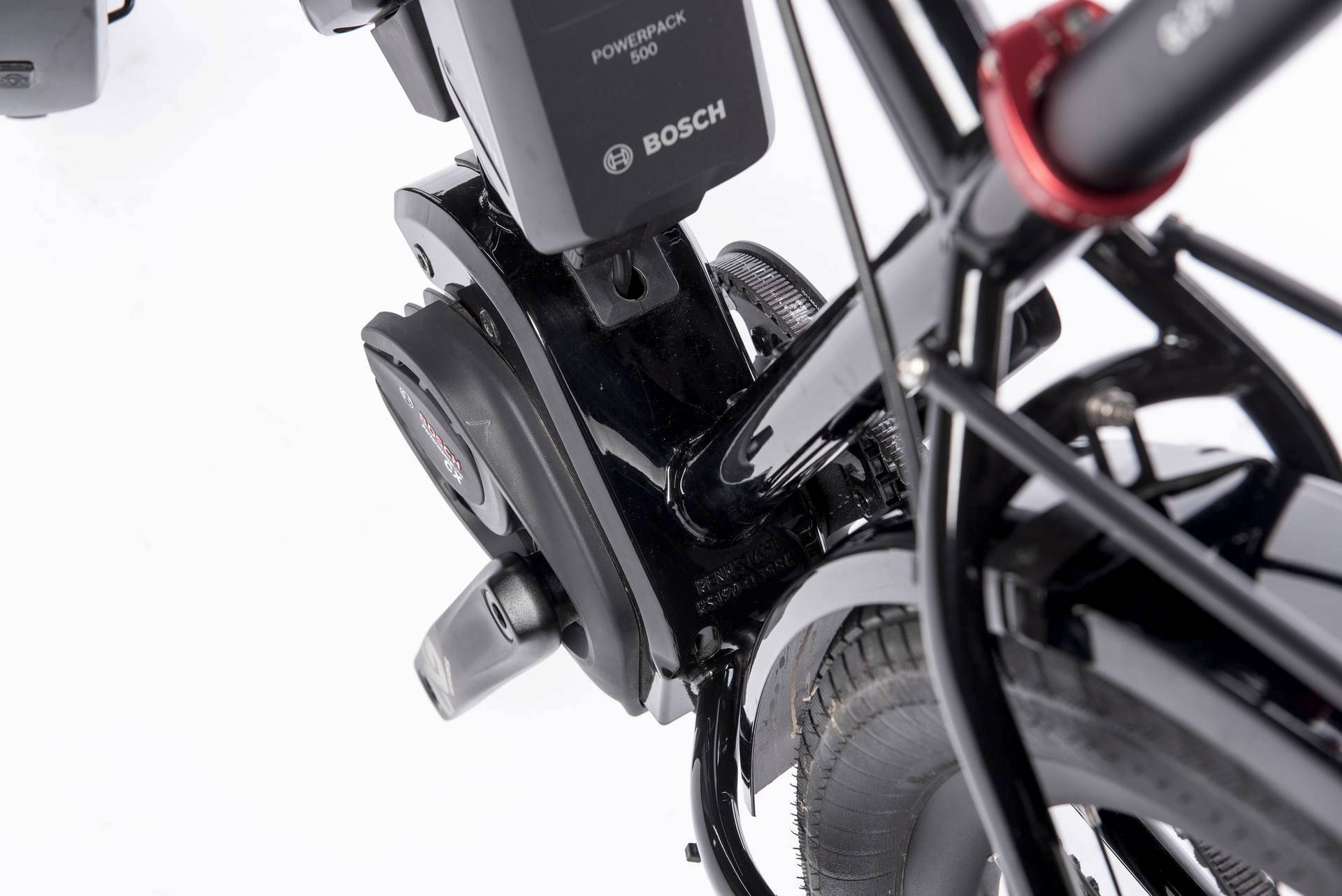

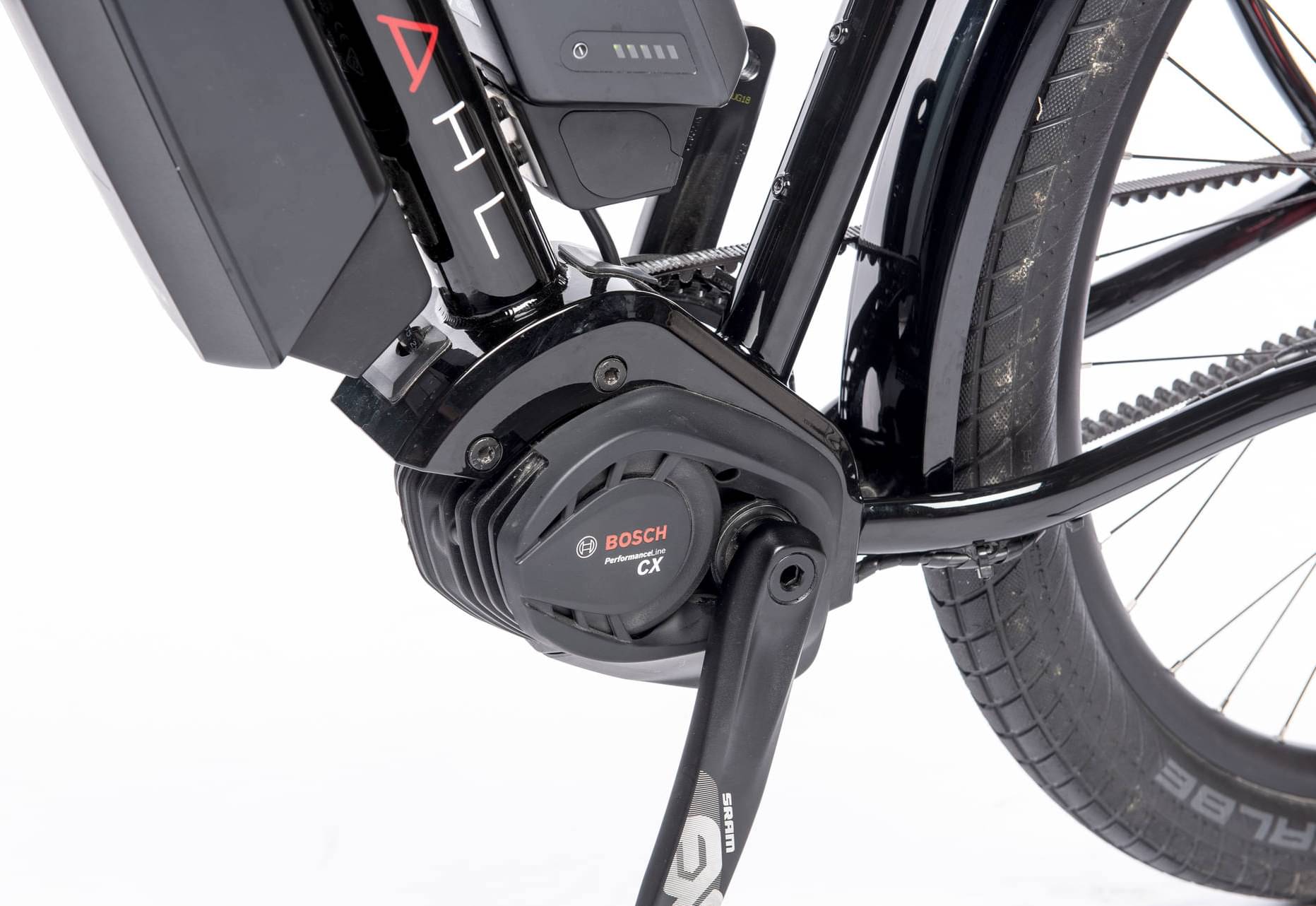

Motor
Bosch Performance CX with Nyon display

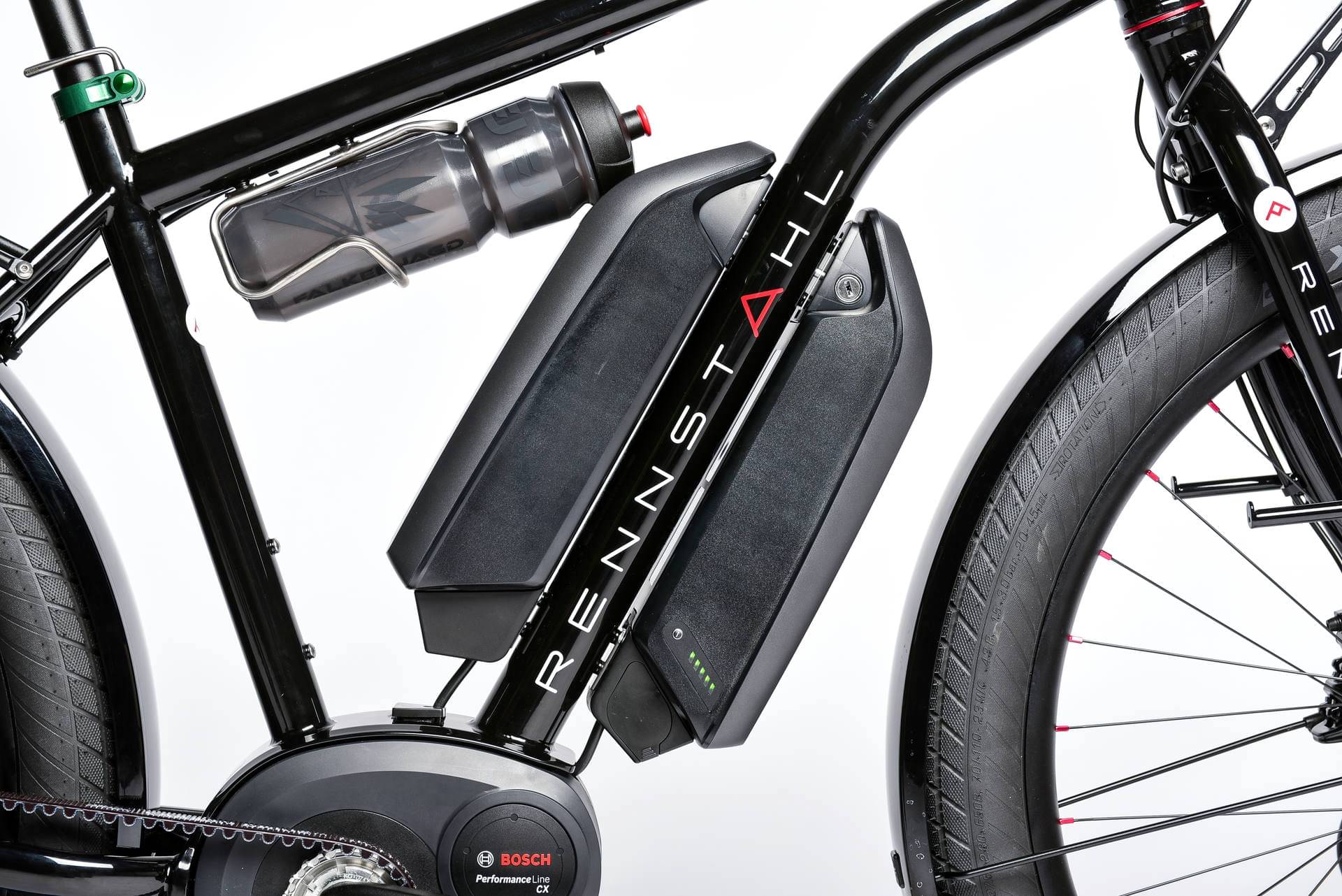

Battery
Incl. 2nd additional Bosch battery - total capacity 1,000Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.735 mm | 1.671 mm | 1.63 mm | 1.589 mm | 1.558 mm |
| Front Center | 635 mm | 666 mm | 684 mm | 705 mm | 720 mm |
| Rake | 38 mm | 51 mm | 49 mm | 50 mm | 46 mm |
| Trail | 75 mm | 61 mm | 63 mm | 62 mm | 66 mm |
| Stack | 656 mm | 660 mm | 670 mm | 680 mm | 690 mm |
| Reach | 378 mm | 395 mm | 411 mm | 428 mm | 443 mm |
| Top Tube Length | 600 mm | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 445 mm | 483 mm | 533 mm | 555 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1089 mm | 1121 mm | 1139 mm | 1160 mm | 1175 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
