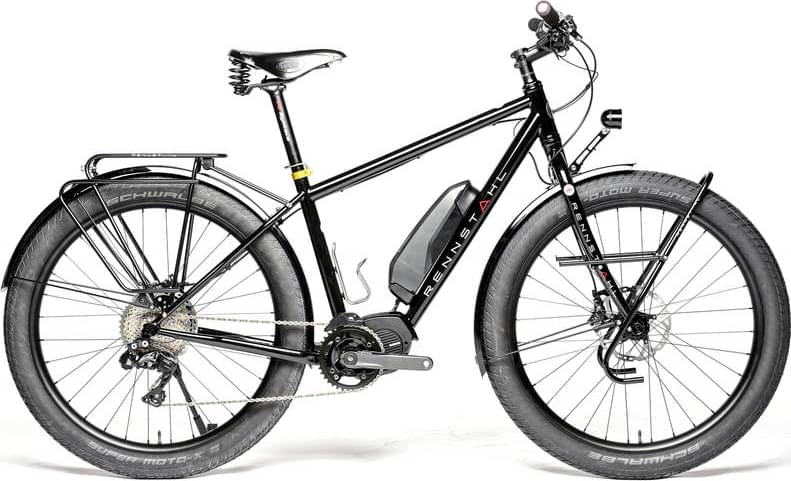

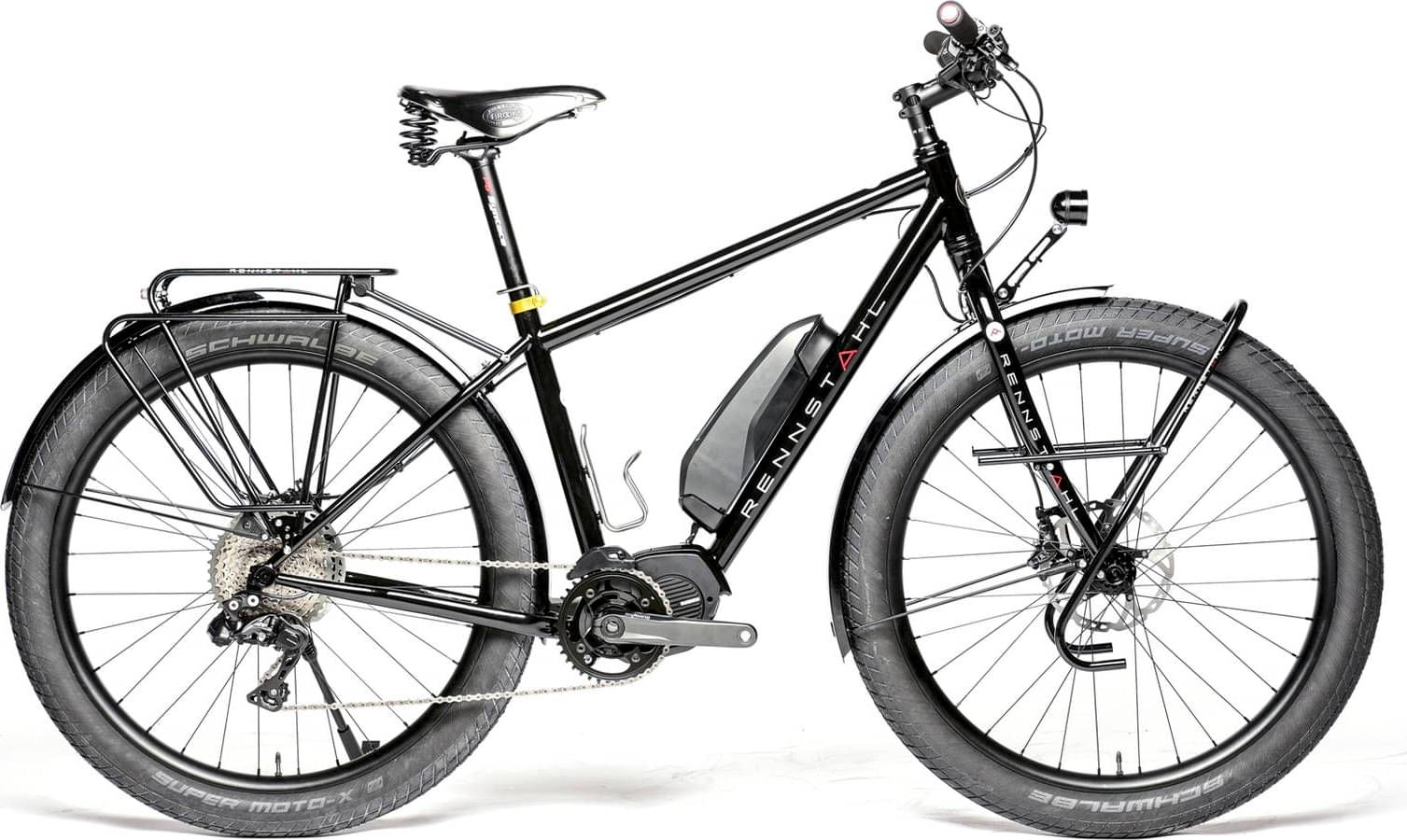

rennstahl 853 ETA Touring 2024
2024 E-bike
Estimate price |
8,284$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset XT Di2 -
Suspension Rigid -
Motor Shimano 85Nm mid-drive -
Battery BT-E8010, 504Wh -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RACING STEEL Steel Fork Syntace X-15 x 110mm BOOST
Drivetrain
Rear Derailleur
Shimano XT Di2 Firebolt Trigger

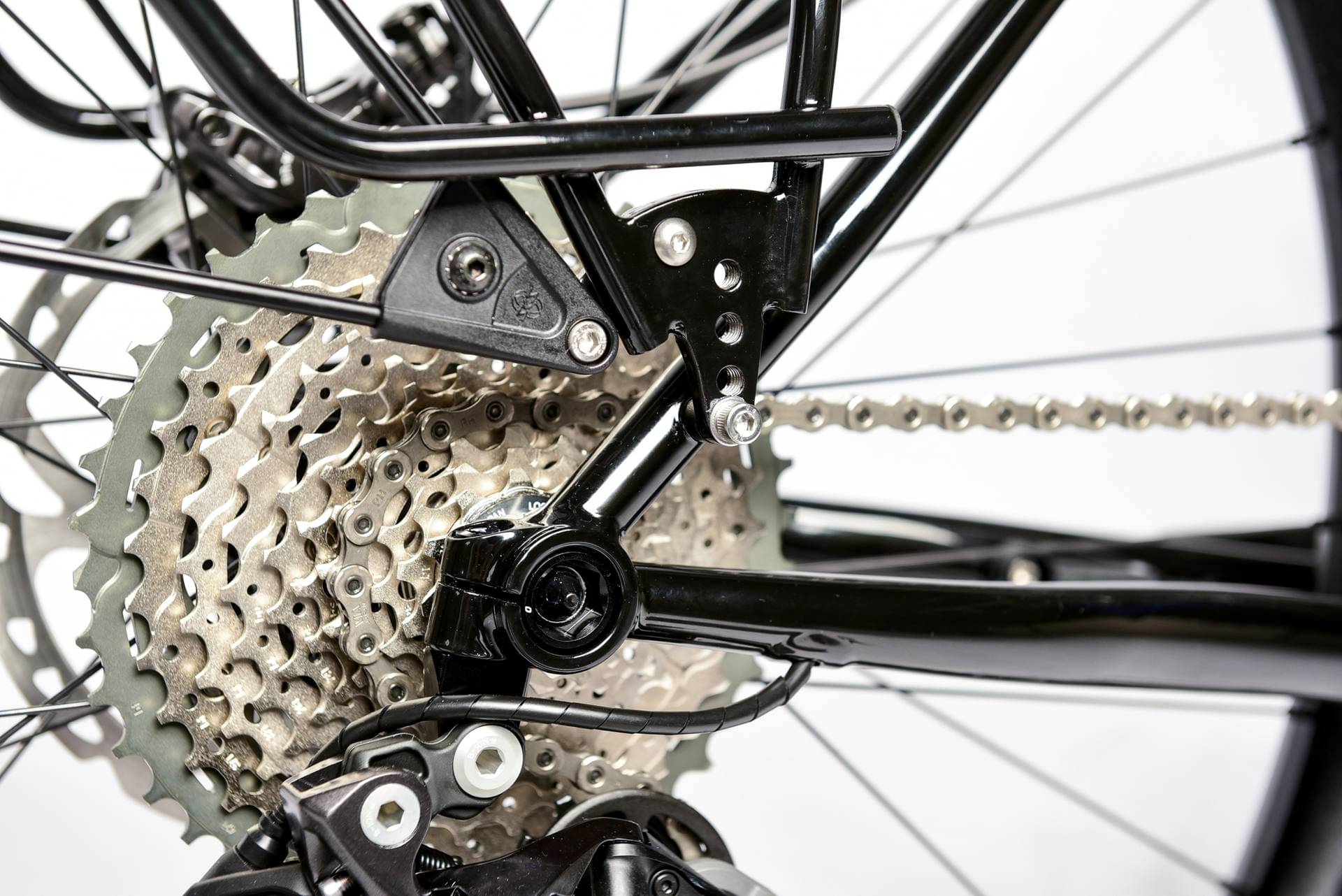

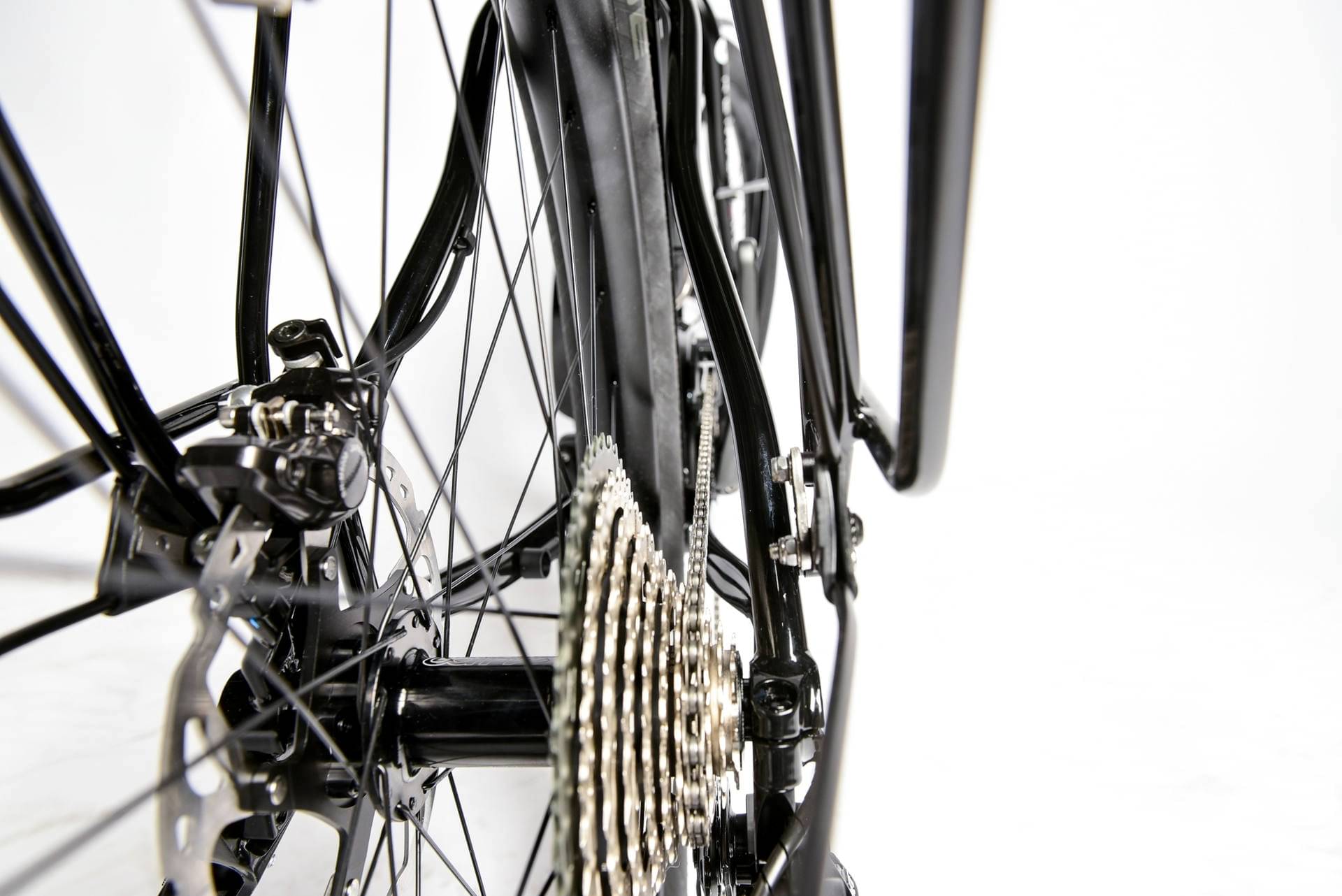

Cassette
Shimano XT 11-40

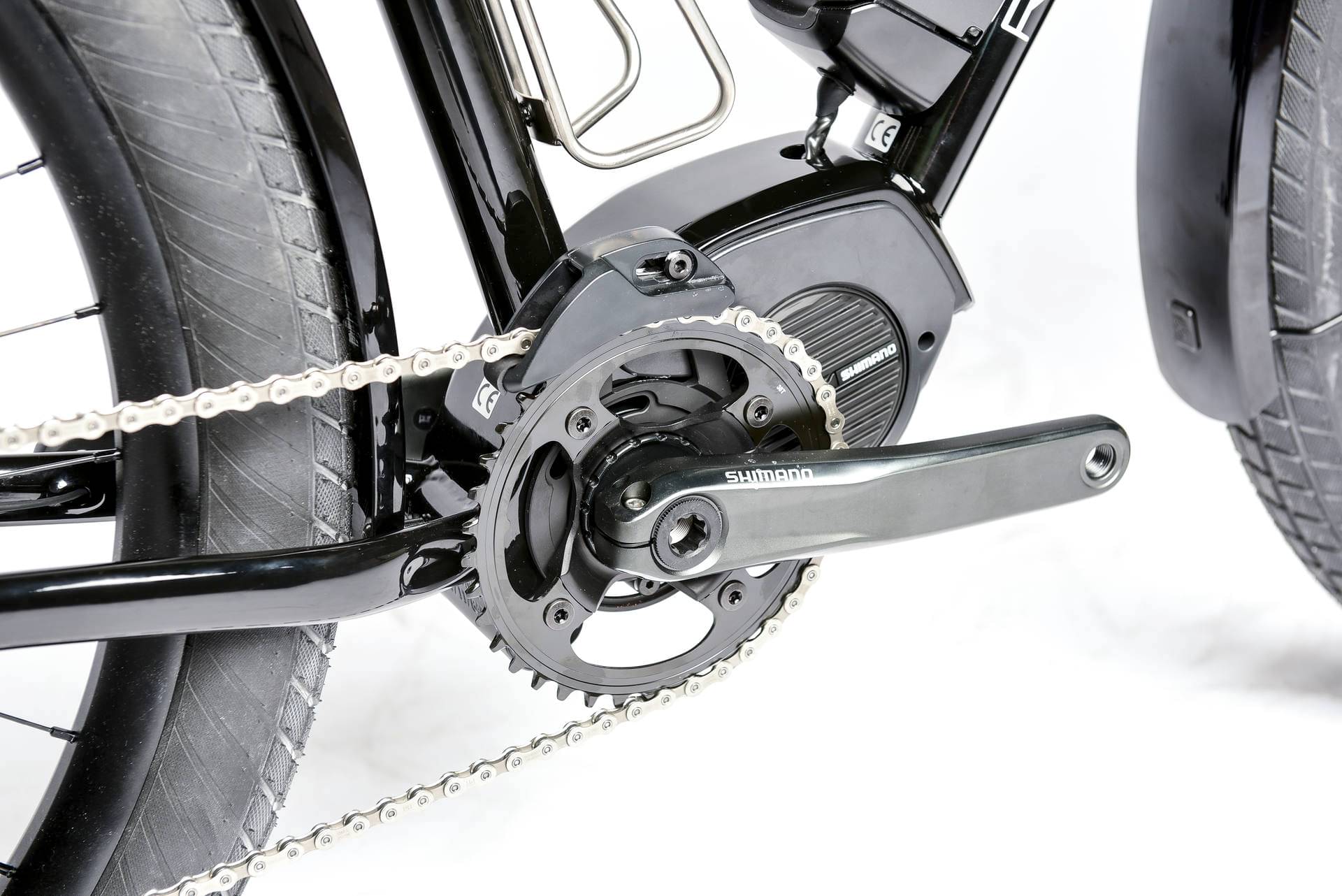

Crank
E8050 Shimano XT Hollowtech with chainring SM-CRE80-B 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Pedals
without
Wheels
Rims
Tune 27.5 Plus Enduroryder, King Boost-32L/Kong Boost-32L / rim Enduroryder /SAPIM D-light black-oxidized

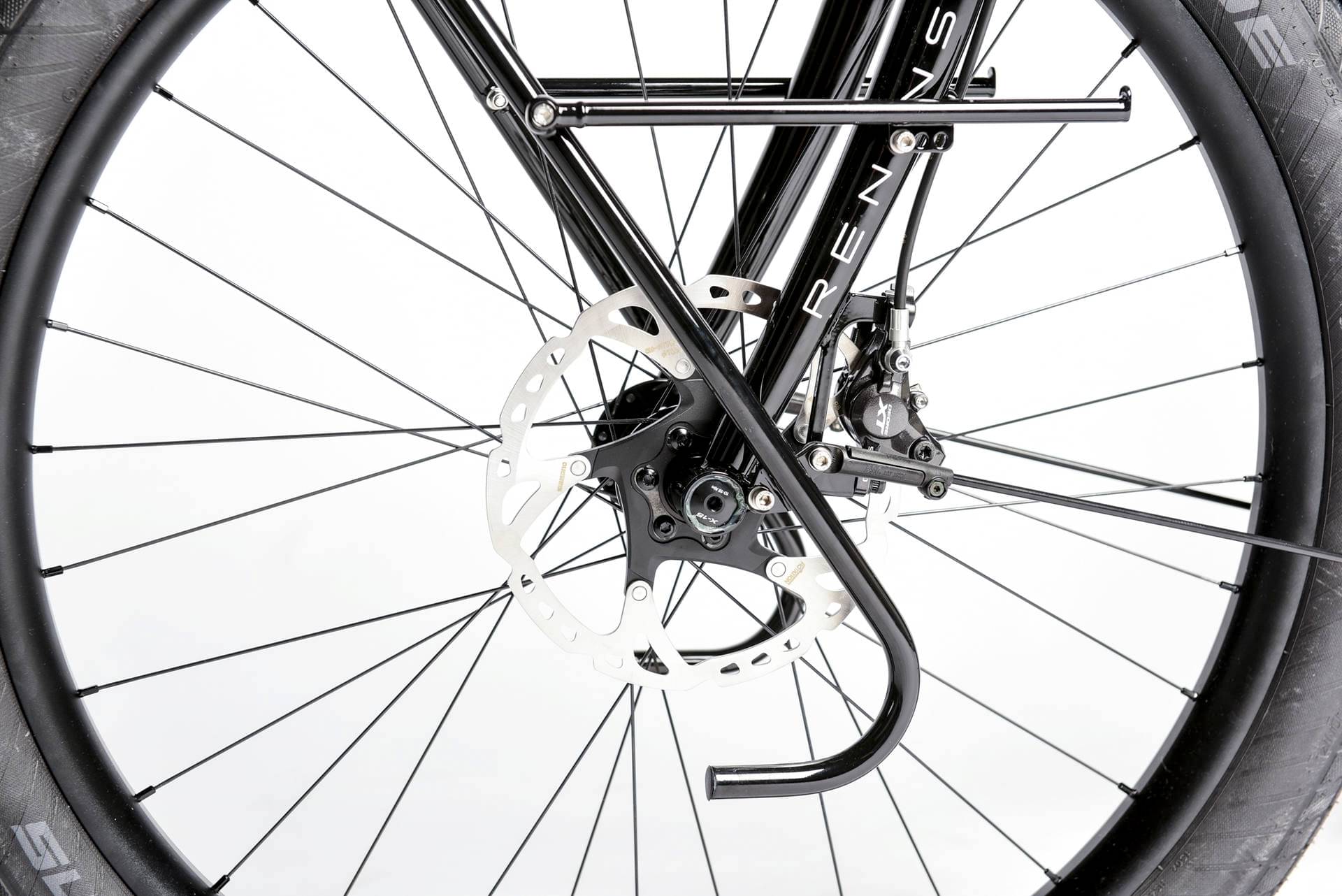

Brakes
Brakes
Magura MT5 4 piston brake
Cockpit

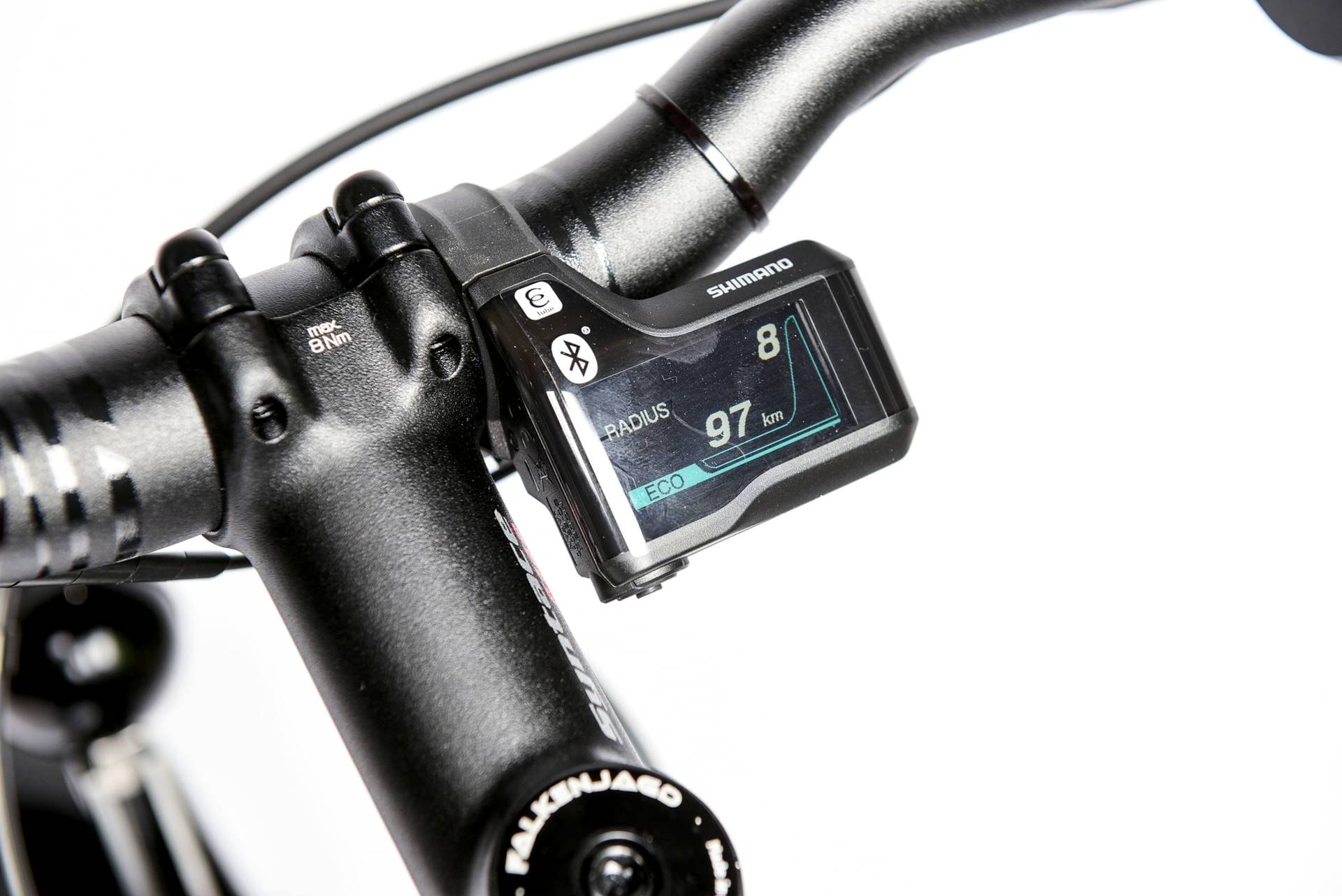

Stem
Ergotec Swell XR adjustable
Handlebar
Ergotec Rizer 660mm, height 30mm, setback 12 degrees
Seat
Saddle
without
Seatpost
Ergotec Scalar
Motor & Battery
Motor
STEPS EP8 engine
Battery
BT-E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.641 mm | 1.601 mm | 1.561 mm |
| Front Center | 647 mm | 689 mm | 707 mm | 728 mm |
| Rake | 52 mm | 74 mm | 72 mm | 73 mm |
| Trail | 60 mm | 37 mm | 39 mm | 38 mm |
| Stack | 644 mm | 648 mm | 658 mm | 668 mm |
| Reach | 378 mm | 395 mm | 411 mm | 428 mm |
| Top Tube Length | 540 mm | 603 mm | 622 mm | 642 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 450 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1089 mm | 1121 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm |
