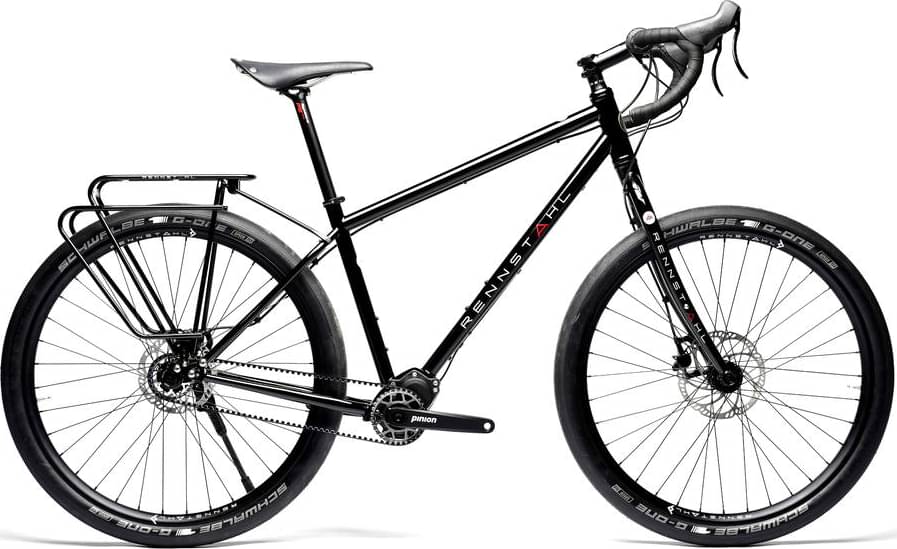

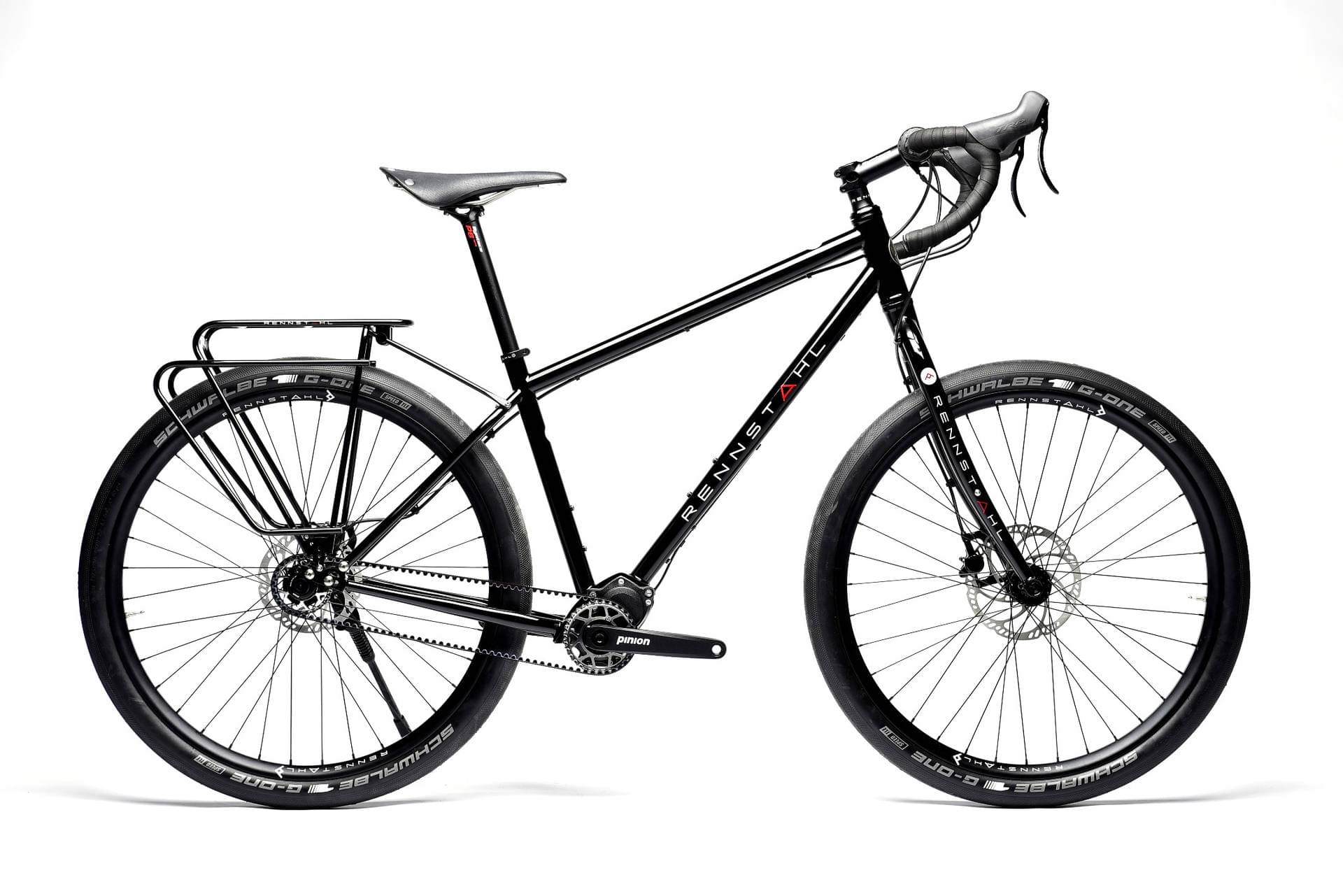

rennstahl 853 PI Randonneur Touring 2024
2024 Road
Estimate price |
5,230$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Pinion -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

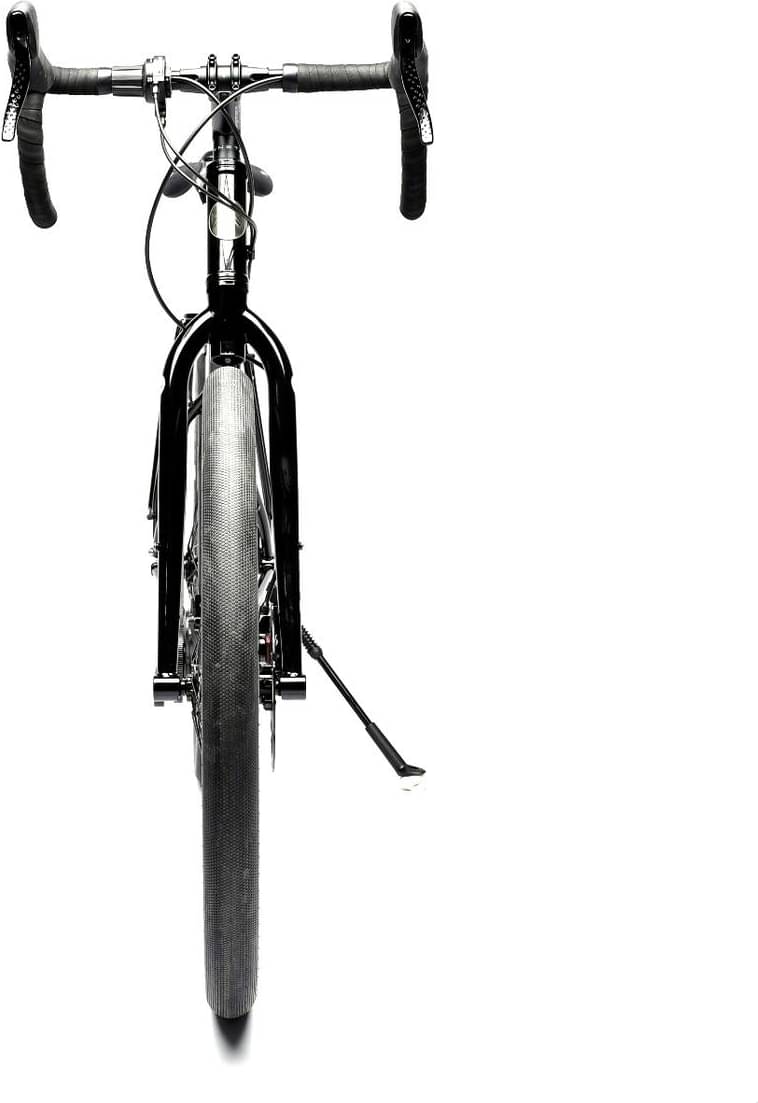

Suspension Fork
RACING STEEL Steel Fork Syntace X-15 x 110mm BOOST
Drivetrain
Rear Derailleur
Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without

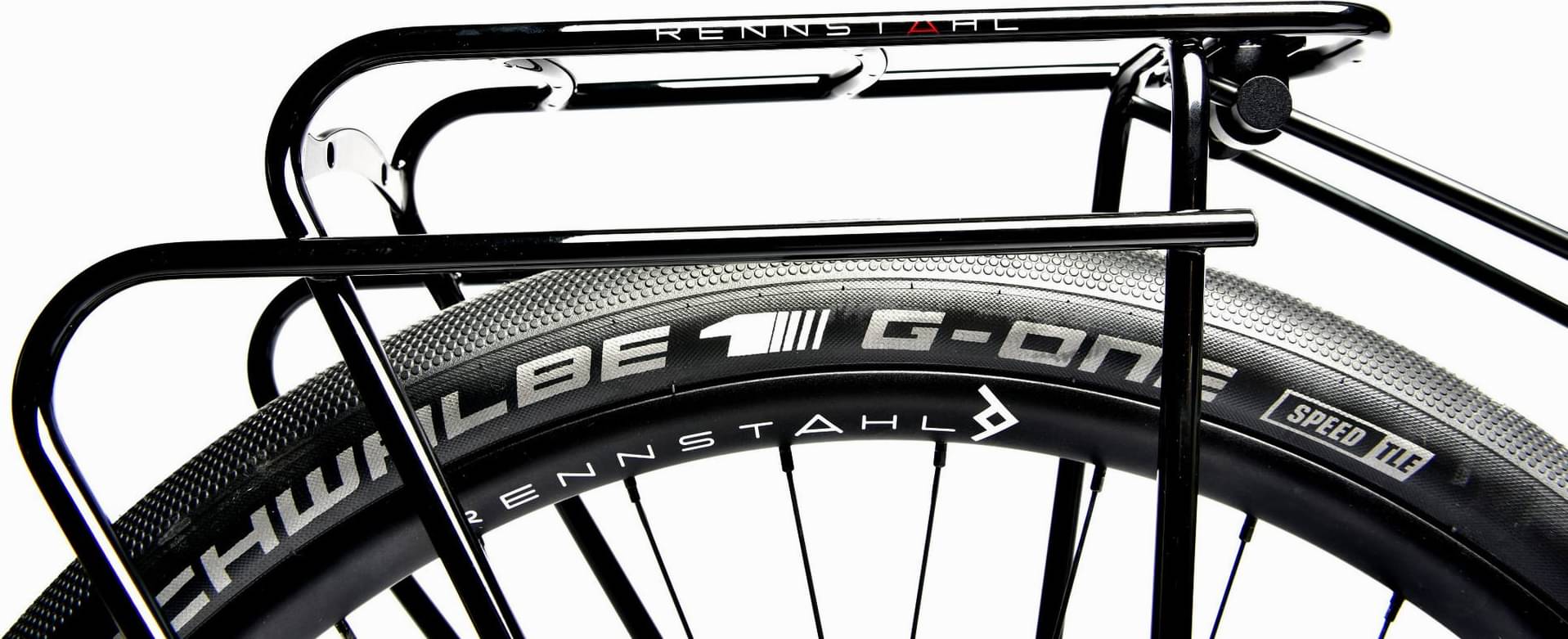

Wheels
Rims
RED /Tune King 15 BOOST 110mm / RACING STEEL-Tune Singlespeeder 148mm x 12mm BOOST (sold out)
Brakes

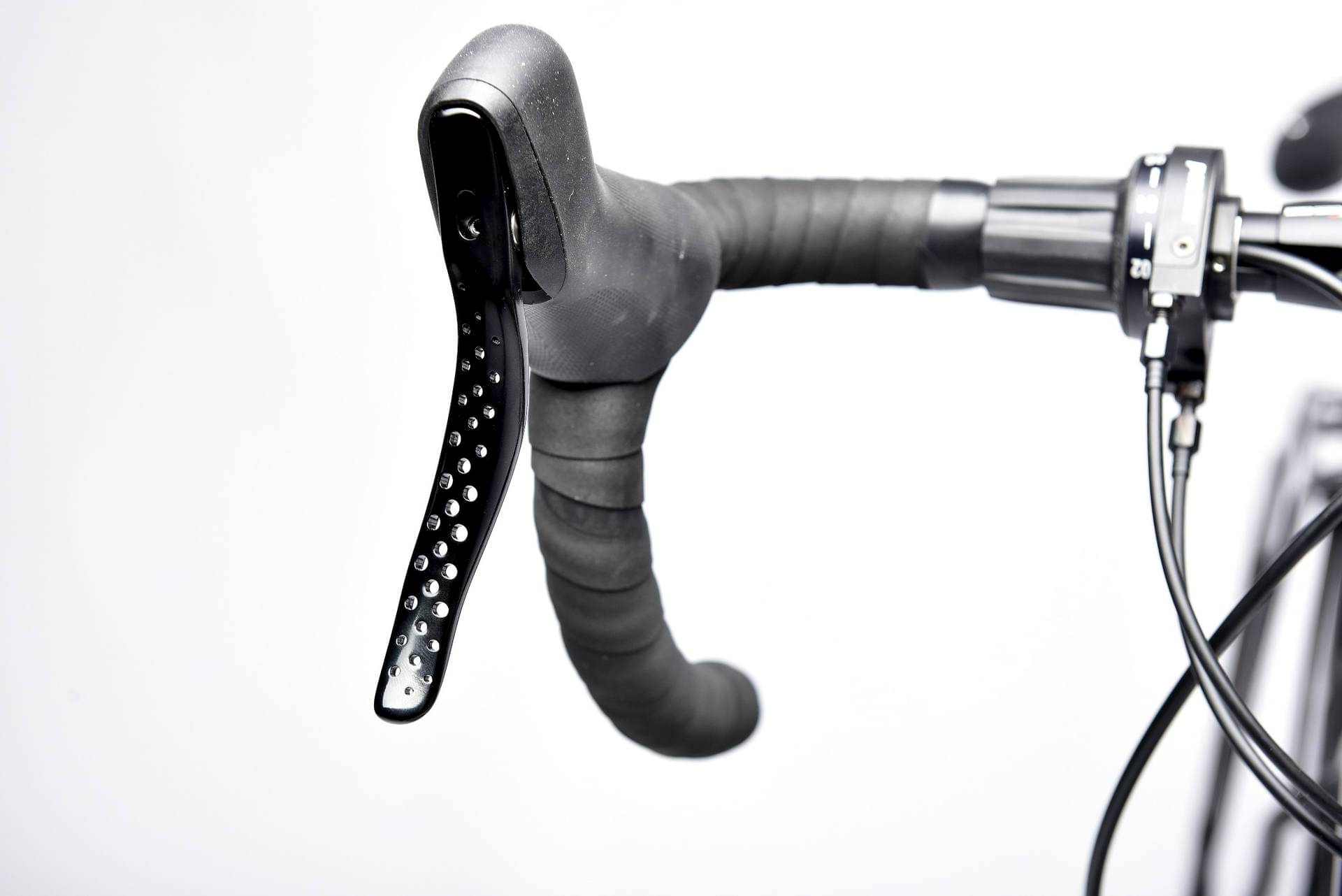

Brakes
TRP Hylex

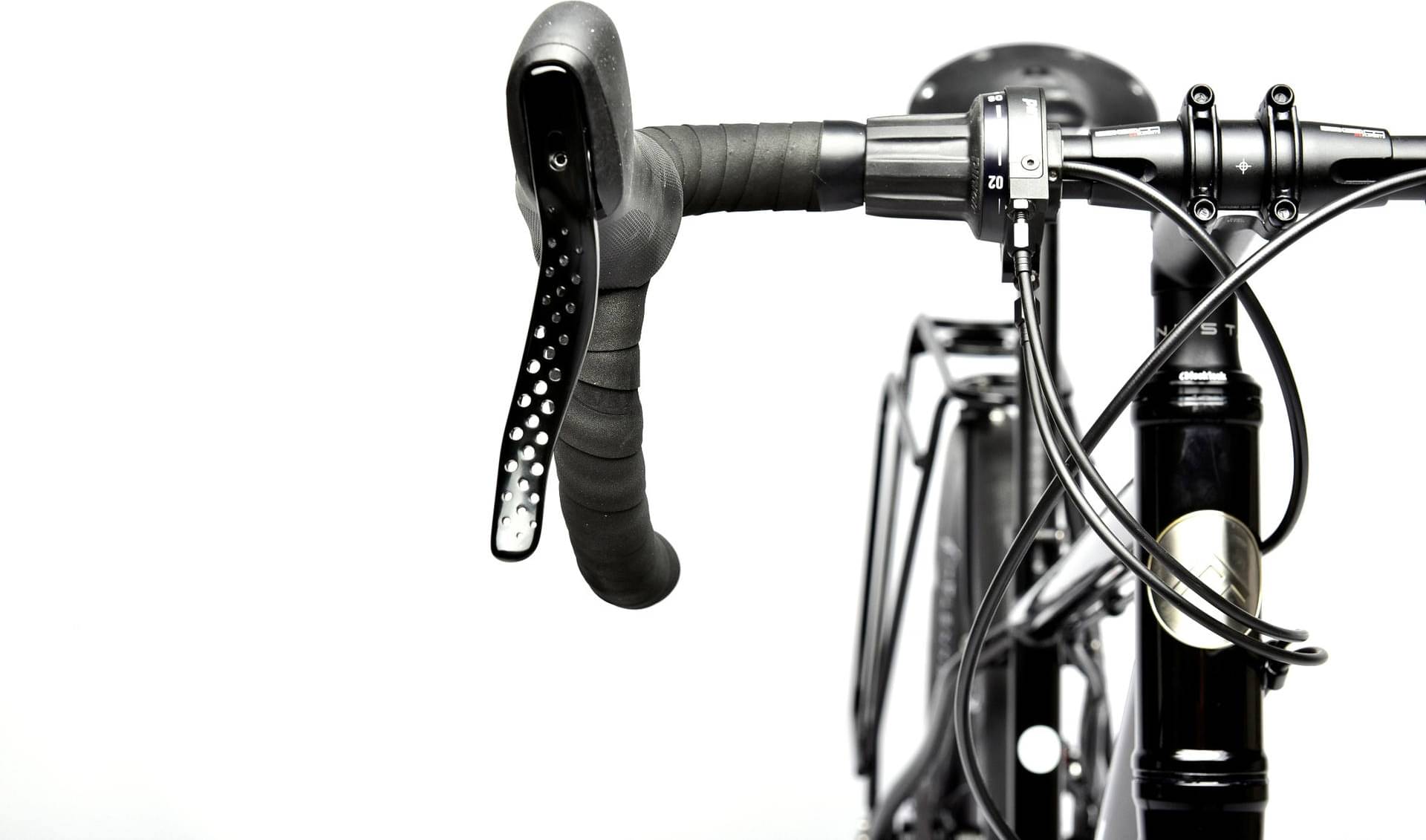

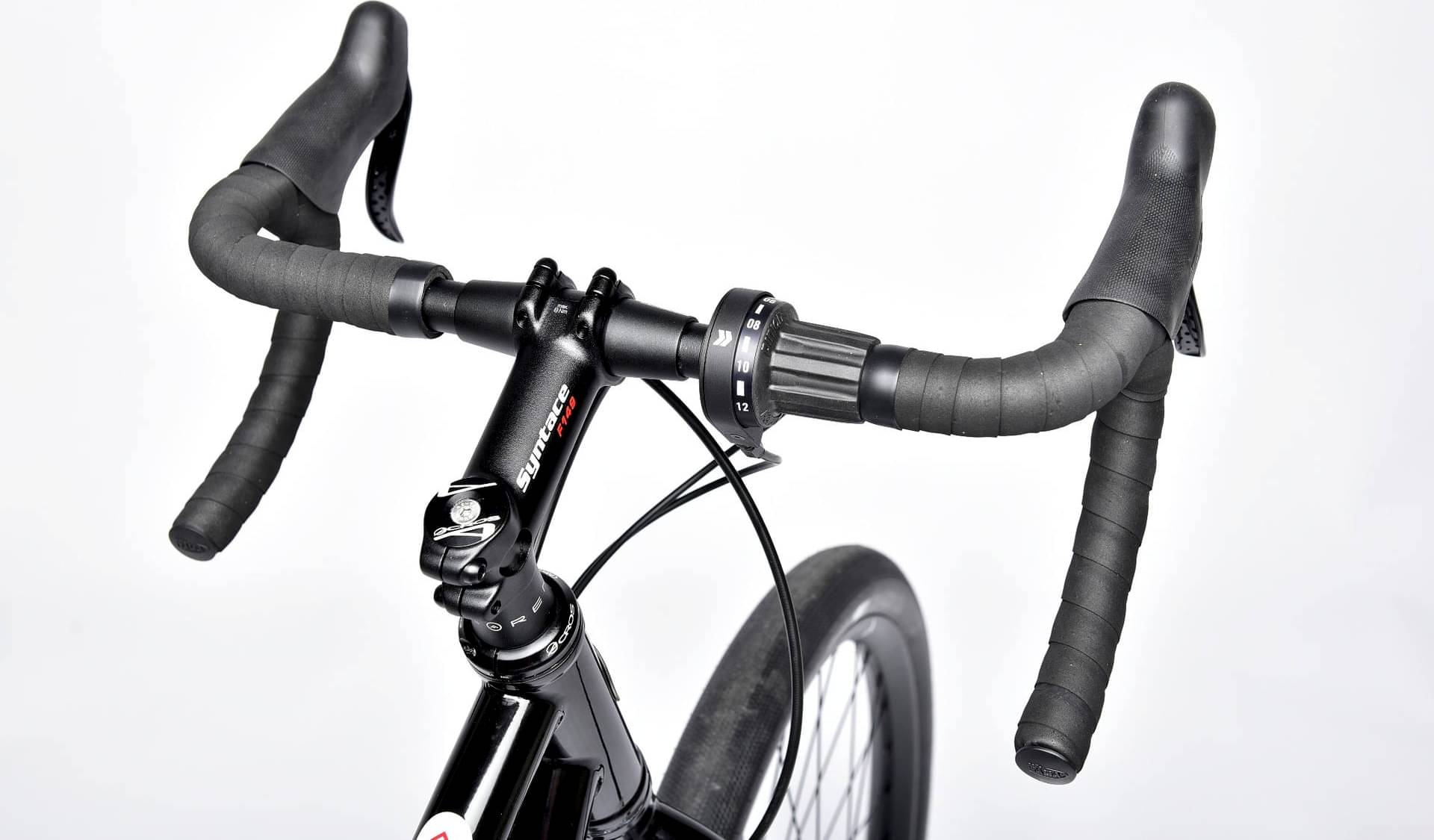

Cockpit
Stem
RACING STEEL Race light Black
Handlebar
VNT divisible 420mm
Seat
Saddle
without
Seatpost
Ergotec Scalar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.735 mm | 1.686 mm | 1.645 mm | 1.603 mm | 1.571 mm |
| Front Center | 650 | 671 mm | 689 mm | 710 mm | 725 mm |
| Rake | 52 mm | 54 mm | 52 mm | 53 mm | 49 mm |
| Trail | 60 mm | 58 mm | 60 mm | 59 mm | 63 mm |
| Stack | 656 mm | 666 mm | 676 mm | 686 mm | 696 mm |
| Reach | 378 mm | 395 mm | 411 mm | 428 mm | 443 mm |
| Top Tube Length | 585 mm | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm | 555 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1089 mm | 1111 mm | 1129 mm | 1150 mm | 1165 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
