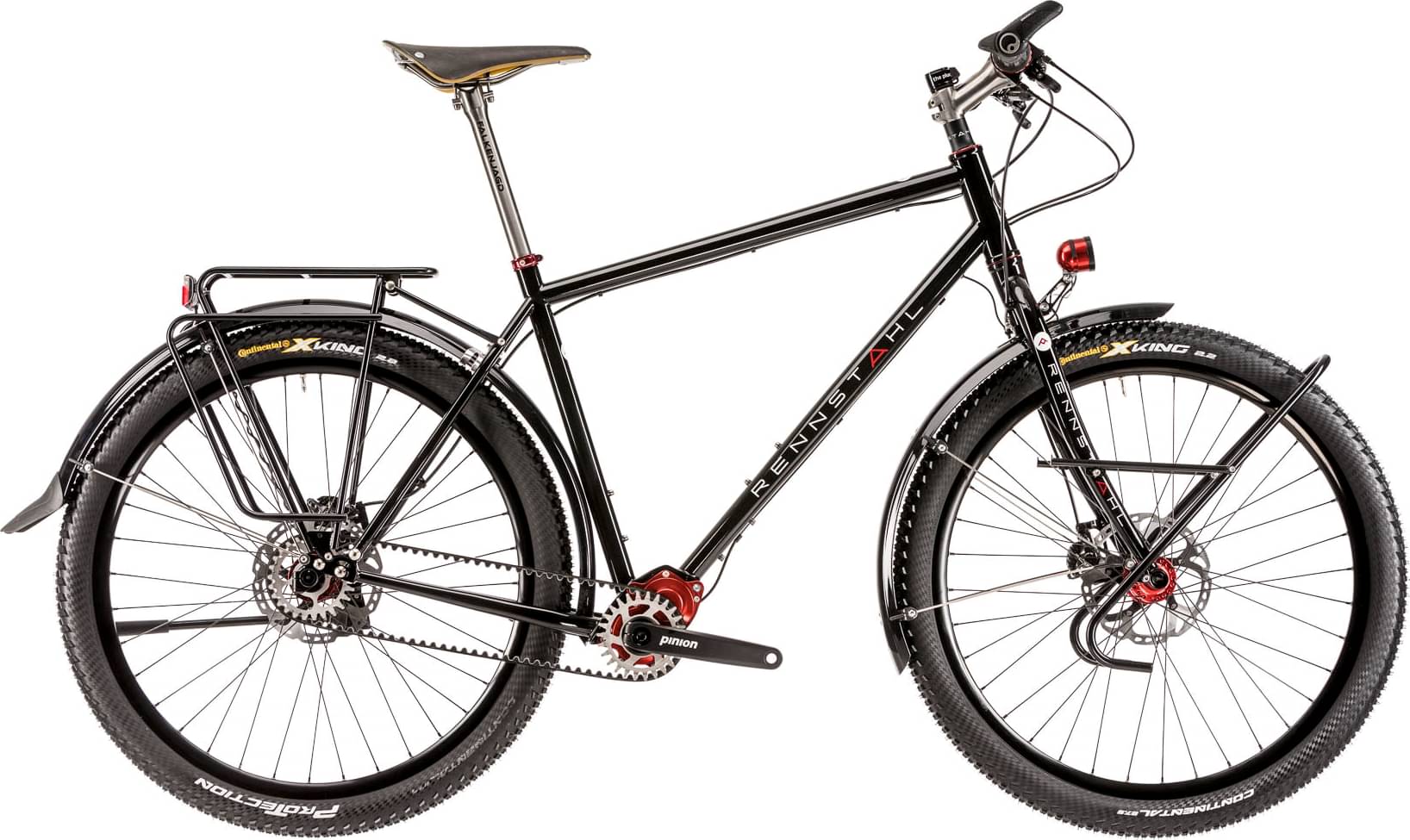

rennstahl 853 Reiserad Pinion 2024
2024 Road
Estimate price |
6,419$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Pinion -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

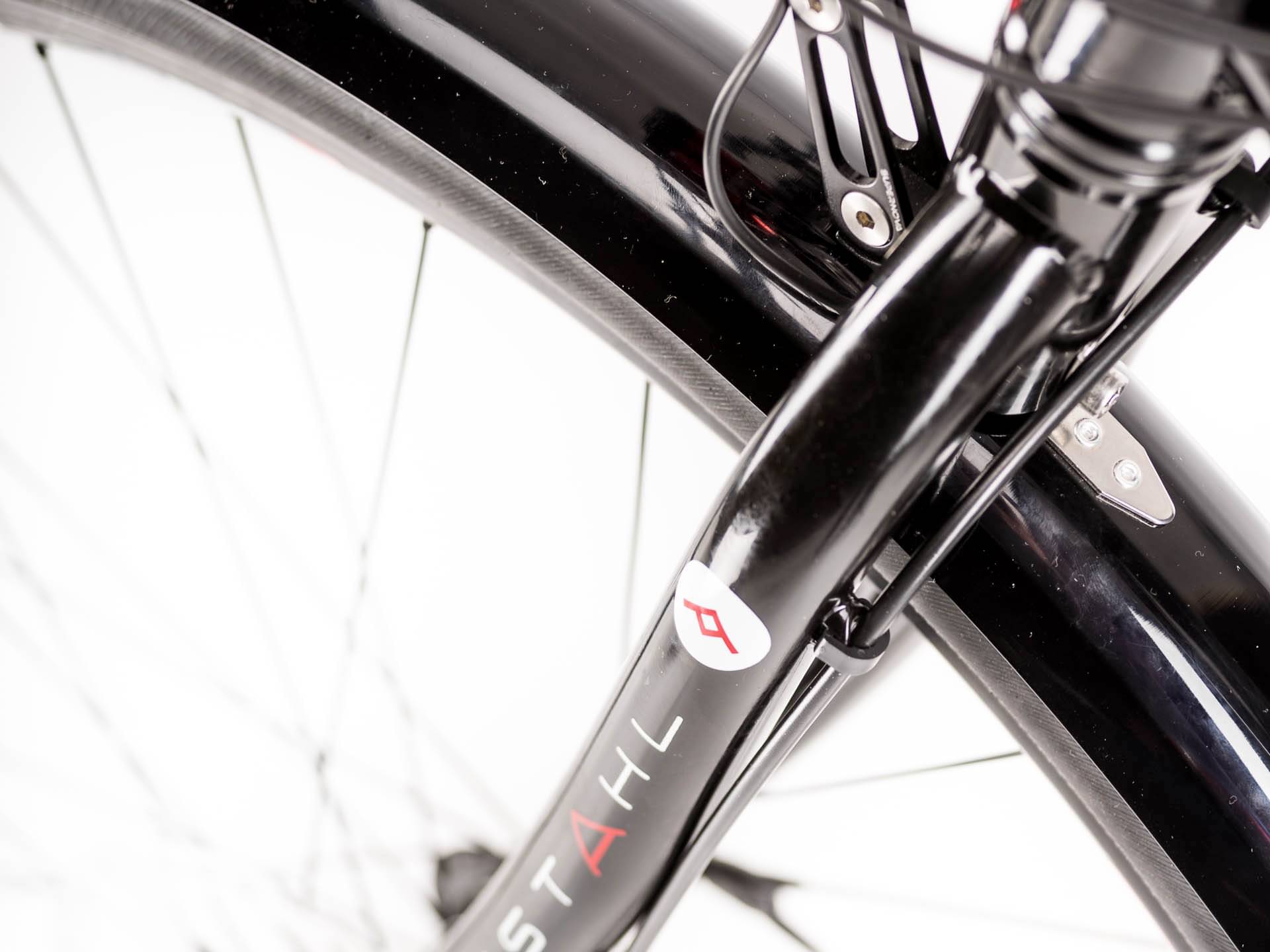

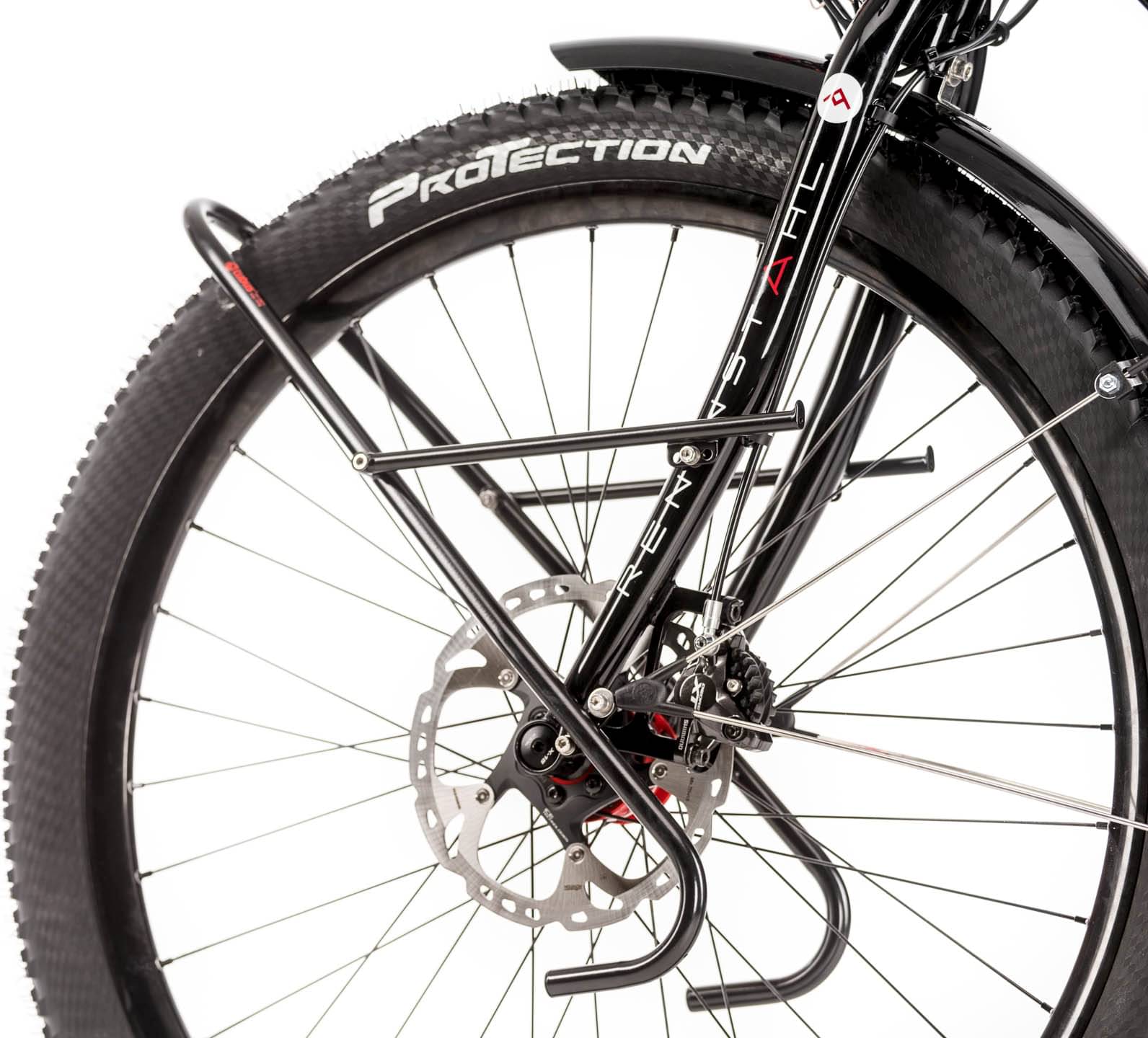

Suspension Fork
Racing steel steel fork Syntace X-15 x 110mm BOOST
Drivetrain
Rear Derailleur

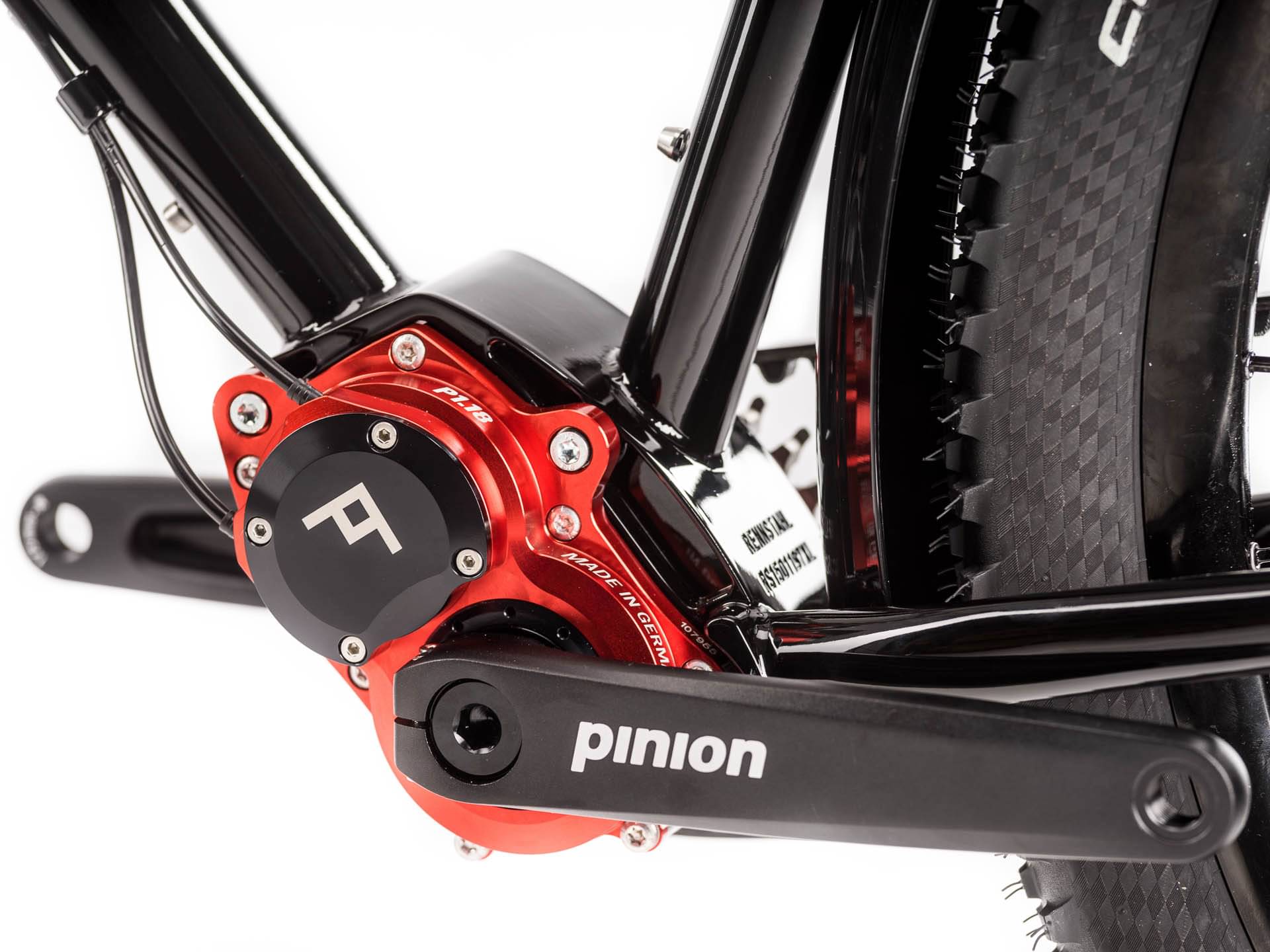

Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without
Wheels
Rims
Mavic/Tune 36L. 148x 12mm BLACK /front SON 28 15-110 Boost
Tires
Schwalbe Marathon Almotion 27.5 x 2.15
Brakes
Brakes
Magura MT5 4 piston brake
Cockpit

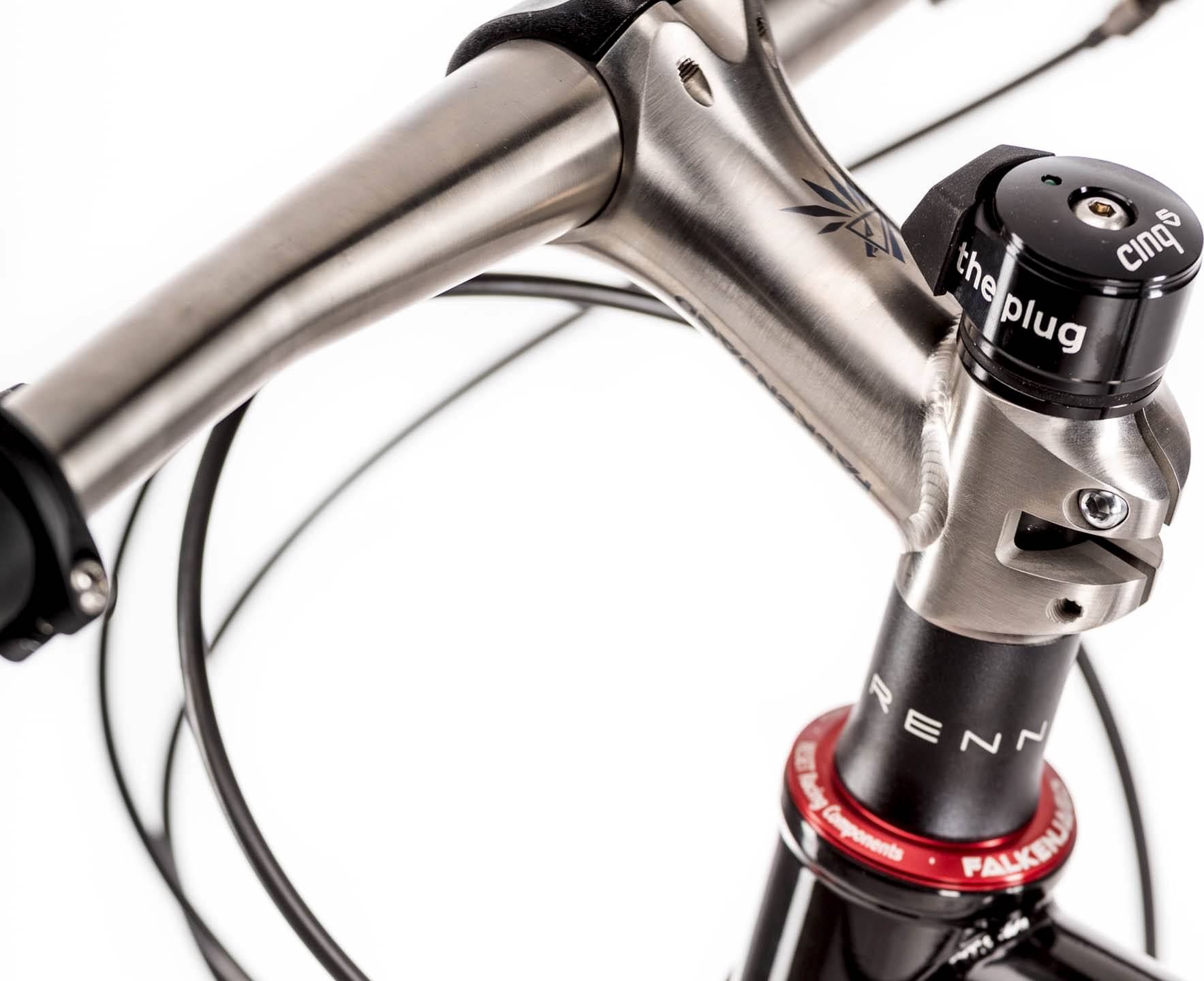

Stem
Ergotec Swell XR adjustable
Handlebar
Ergotec Rizer 660mm, height 30mm, setback 12 degrees
Seat
Saddle
without
Seatpost
Ergotec Scalar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Top Tube Length | 585 mm | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 755 mm | 785 mm | 815 mm | 845 mm | 865 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
