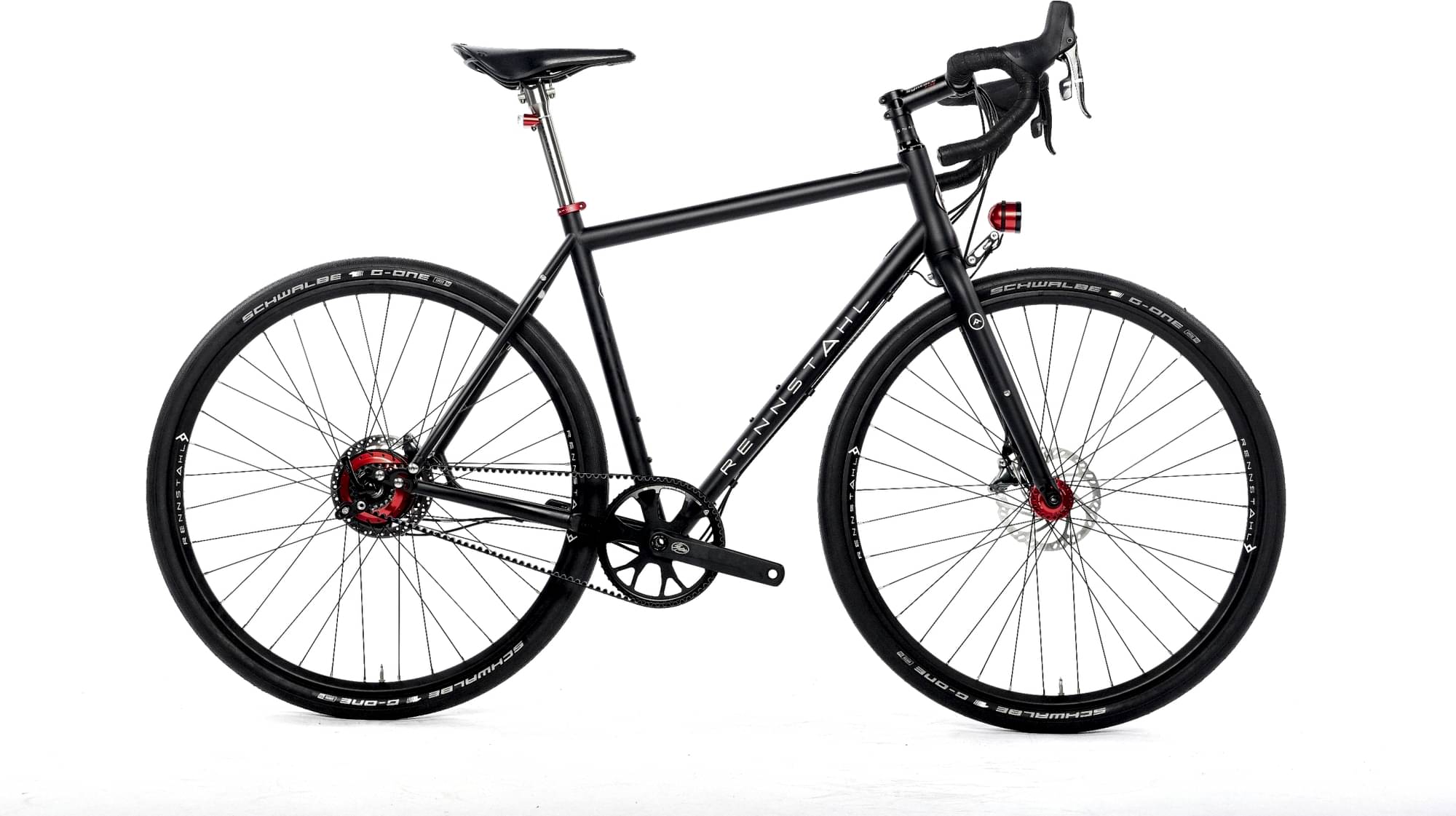

rennstahl 853 Rohloff Gravel 2024
2024 Road
Estimate price |
6,097$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Gates -
Suspension Rigid -

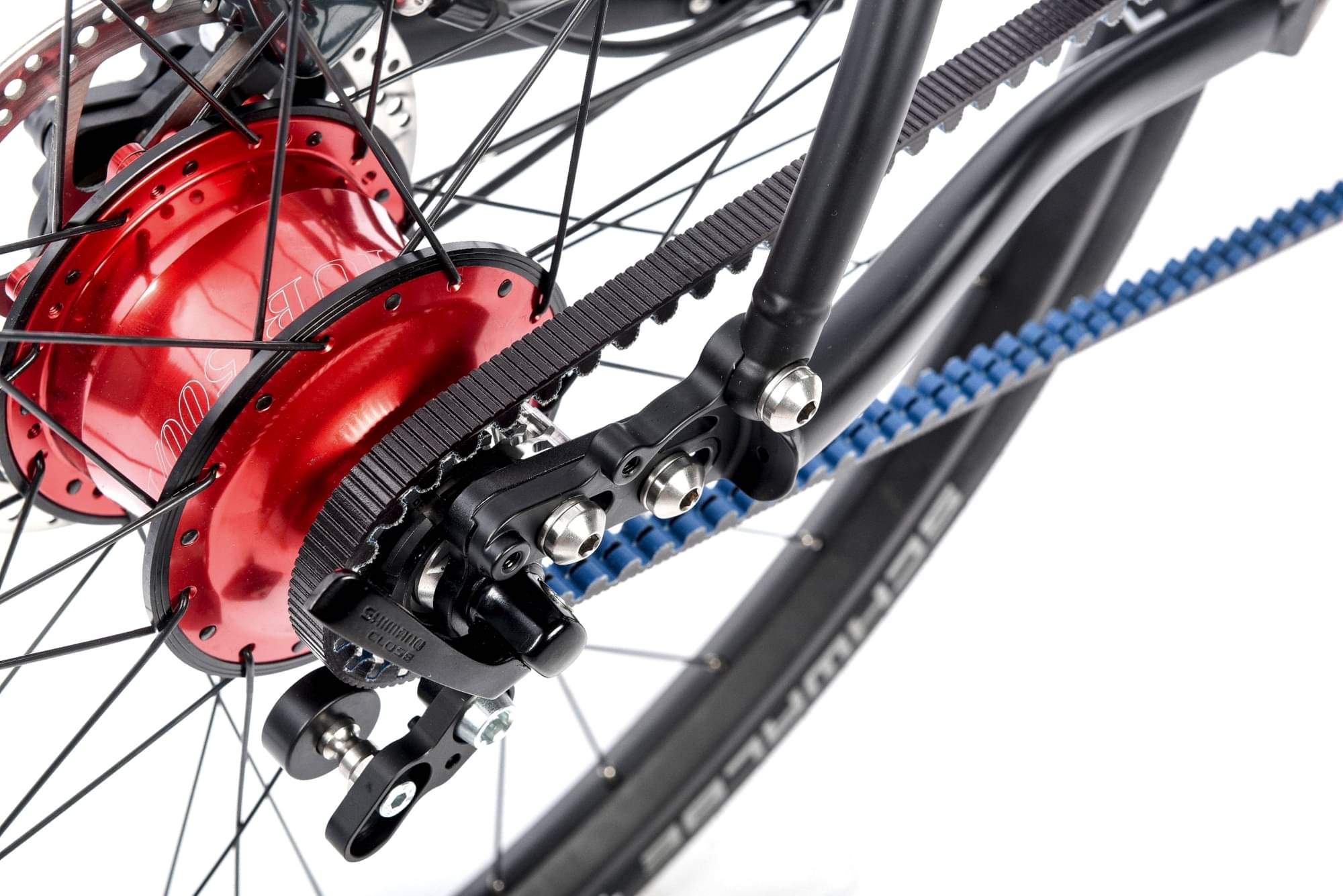

Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Parapera Gravel Carbon (not suitable for lowriders)
Drivetrain
Cassette
CDX pulley

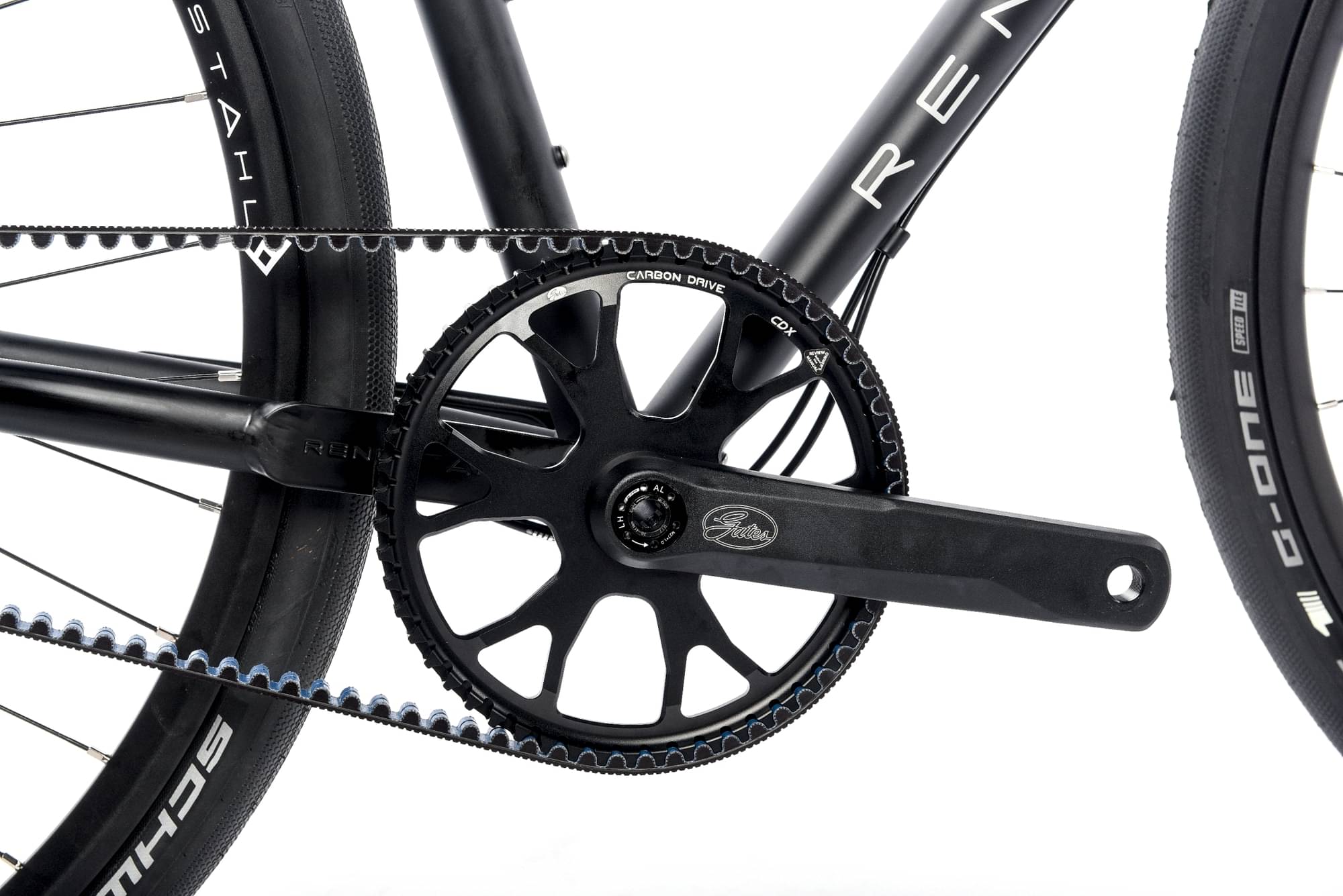

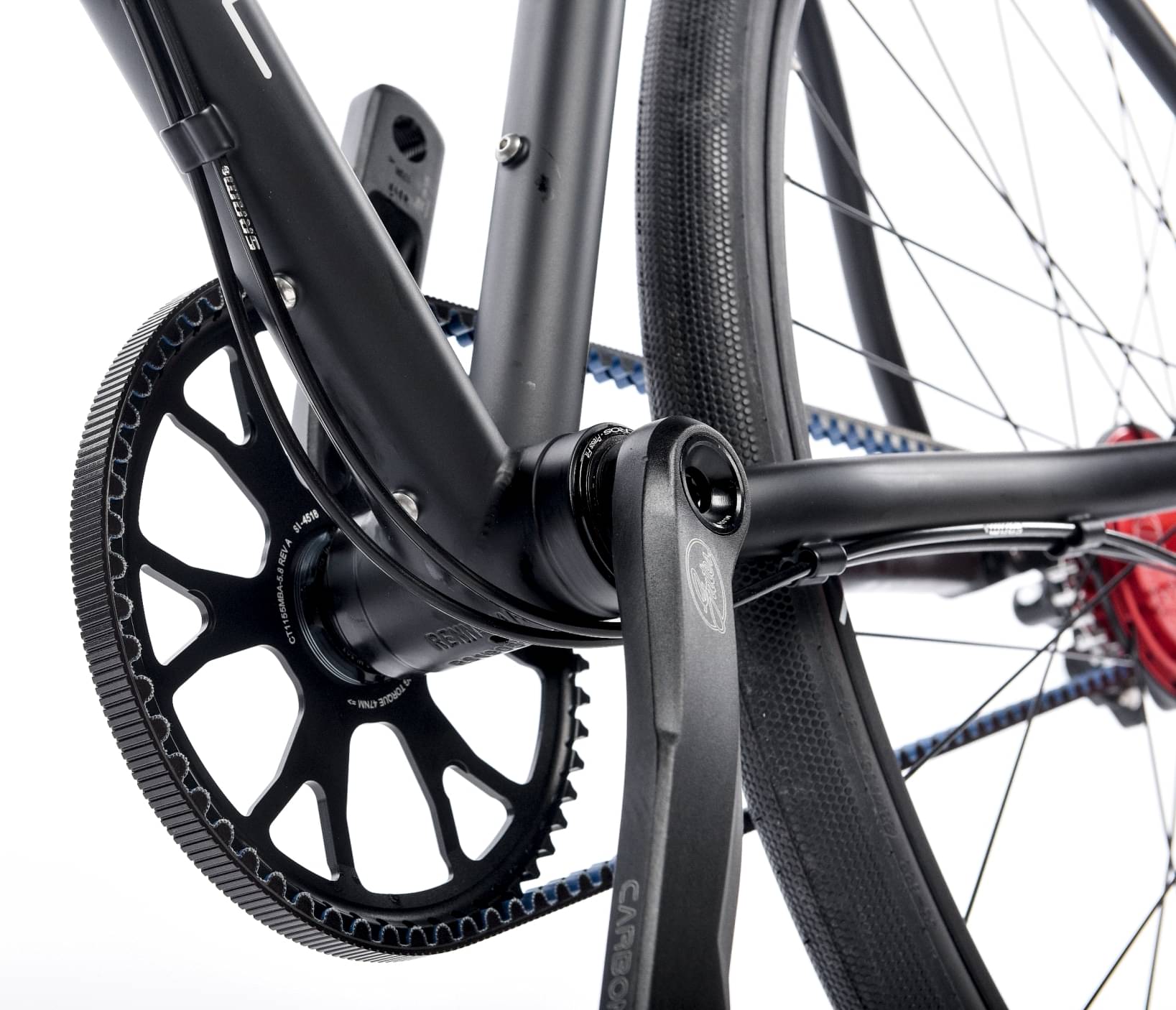

Crank
Gates SS550 Carbondrive crankset (175mm)
Pedals
without
Wheels

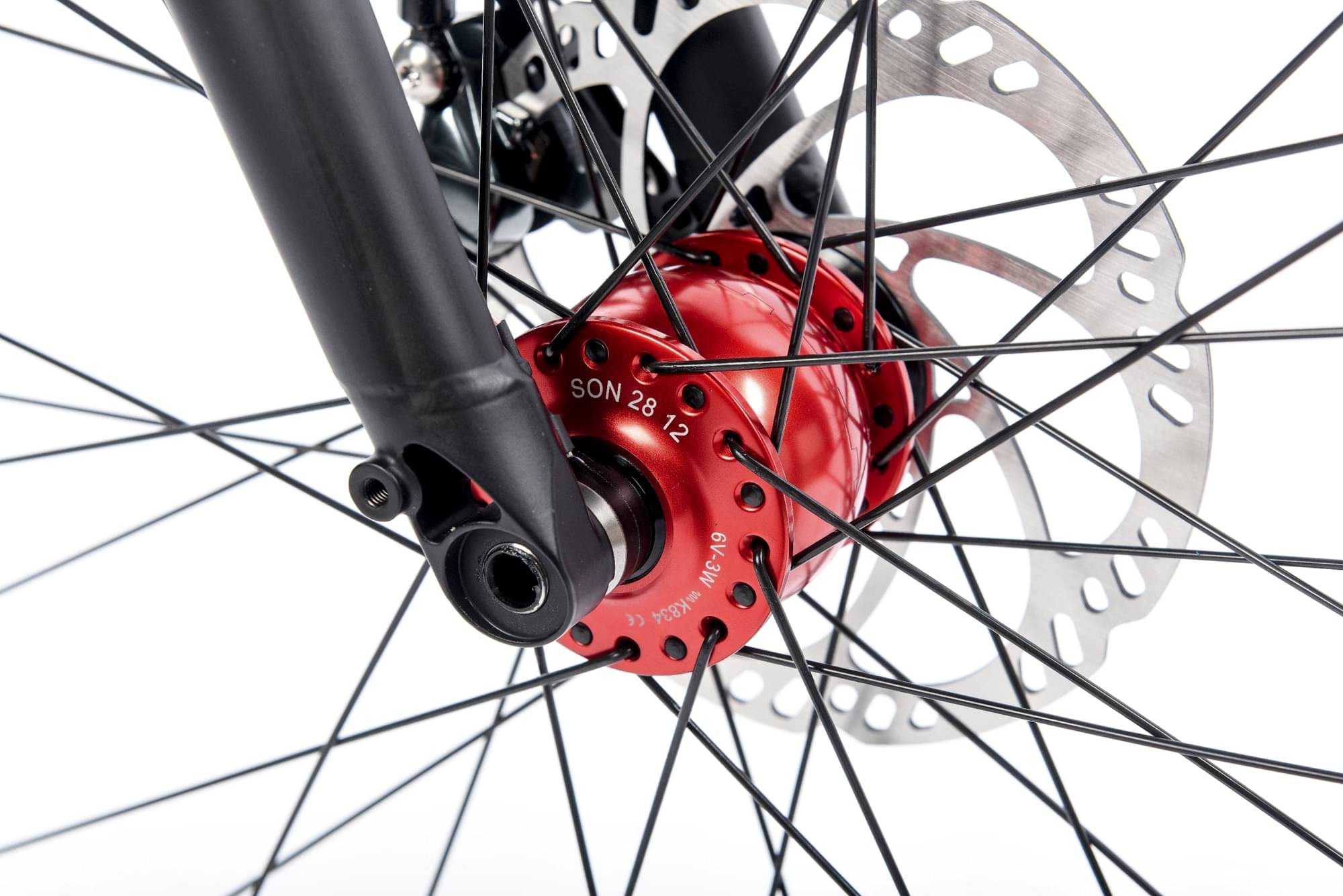

Rims

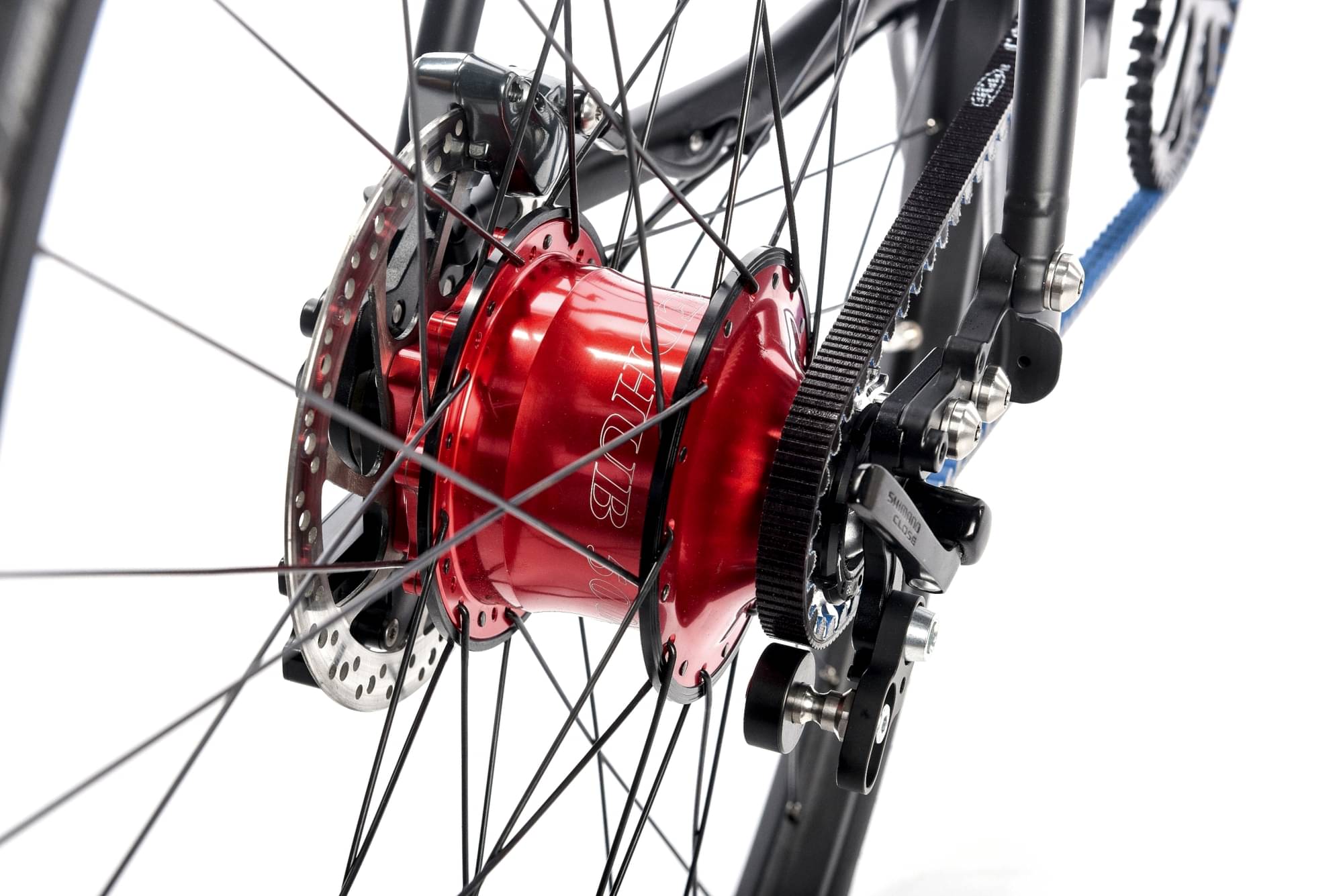

28 inch BLACK: Tune Killhill 12/rear Rohloff/rim Mavic 1025

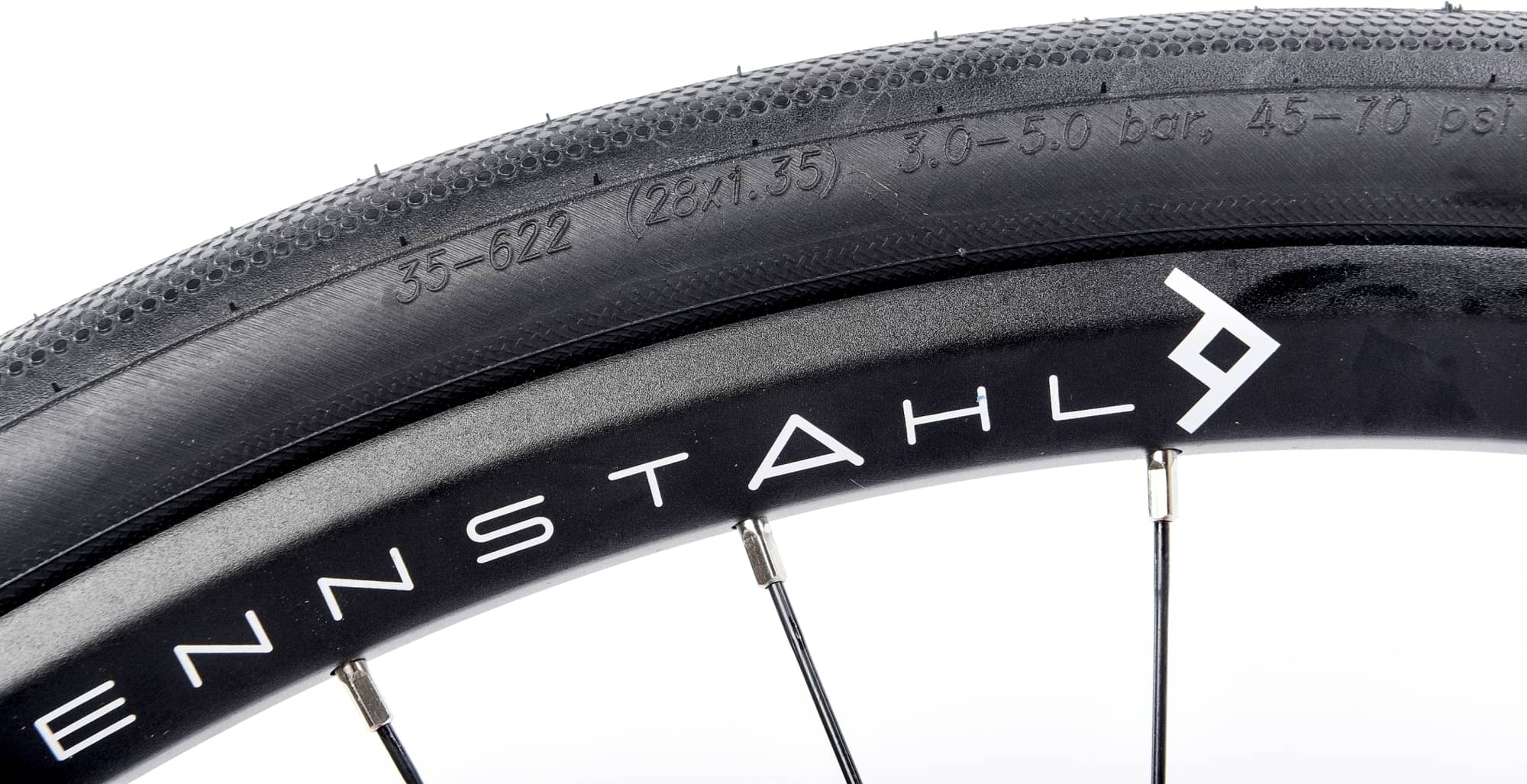

Tires
Schwalbe G-One Allround 622-35

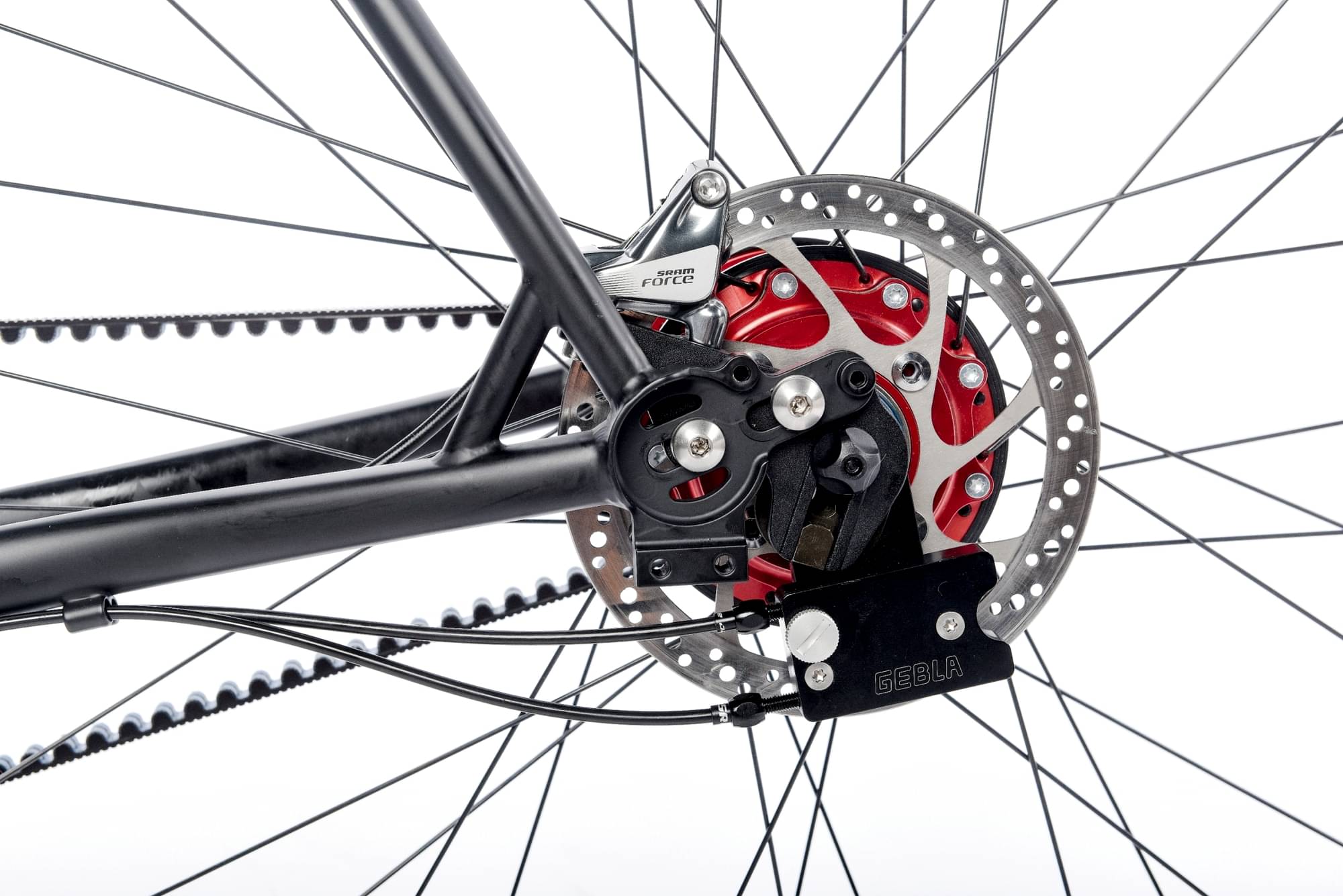

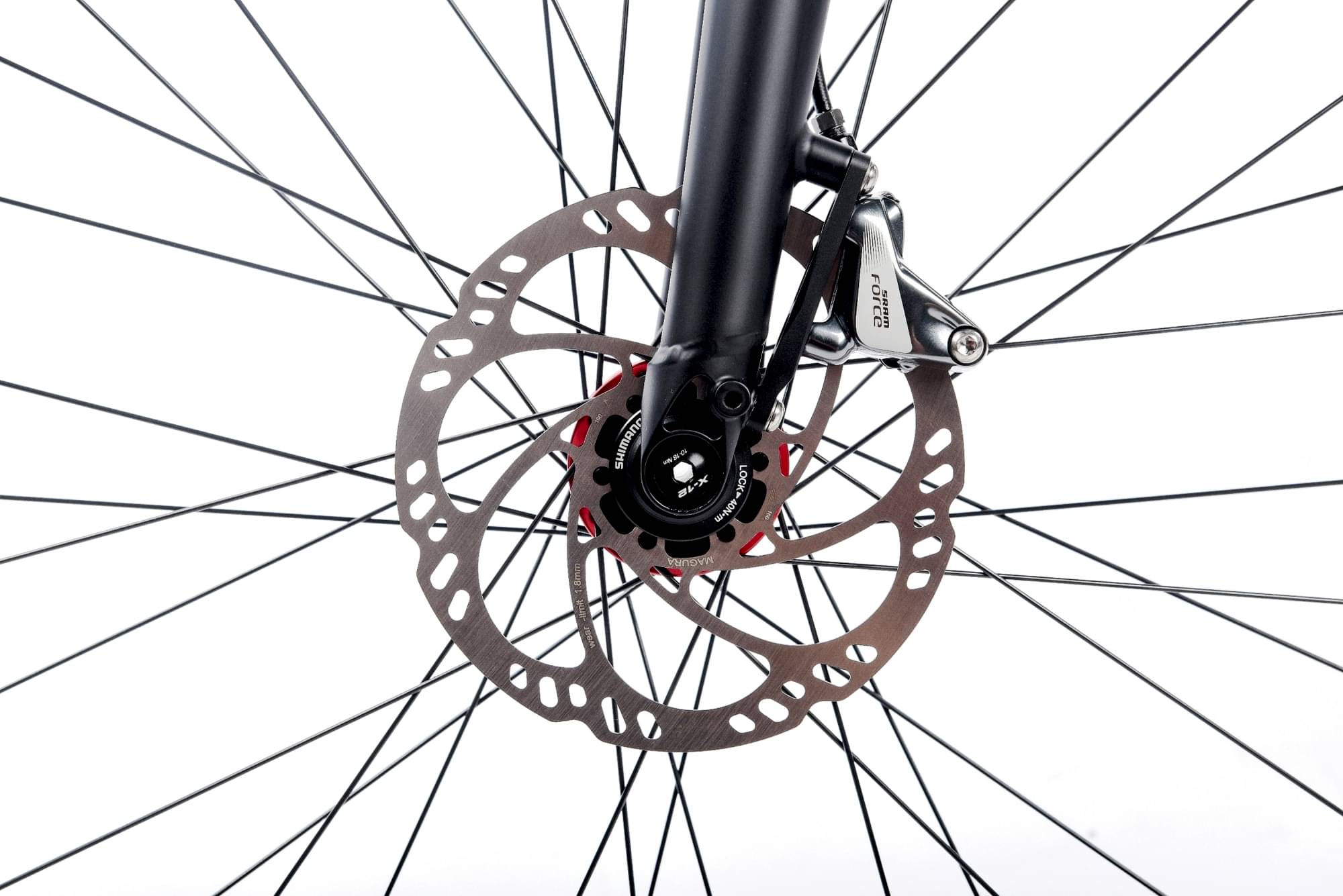

Brakes
Brakes
Shimano GRX

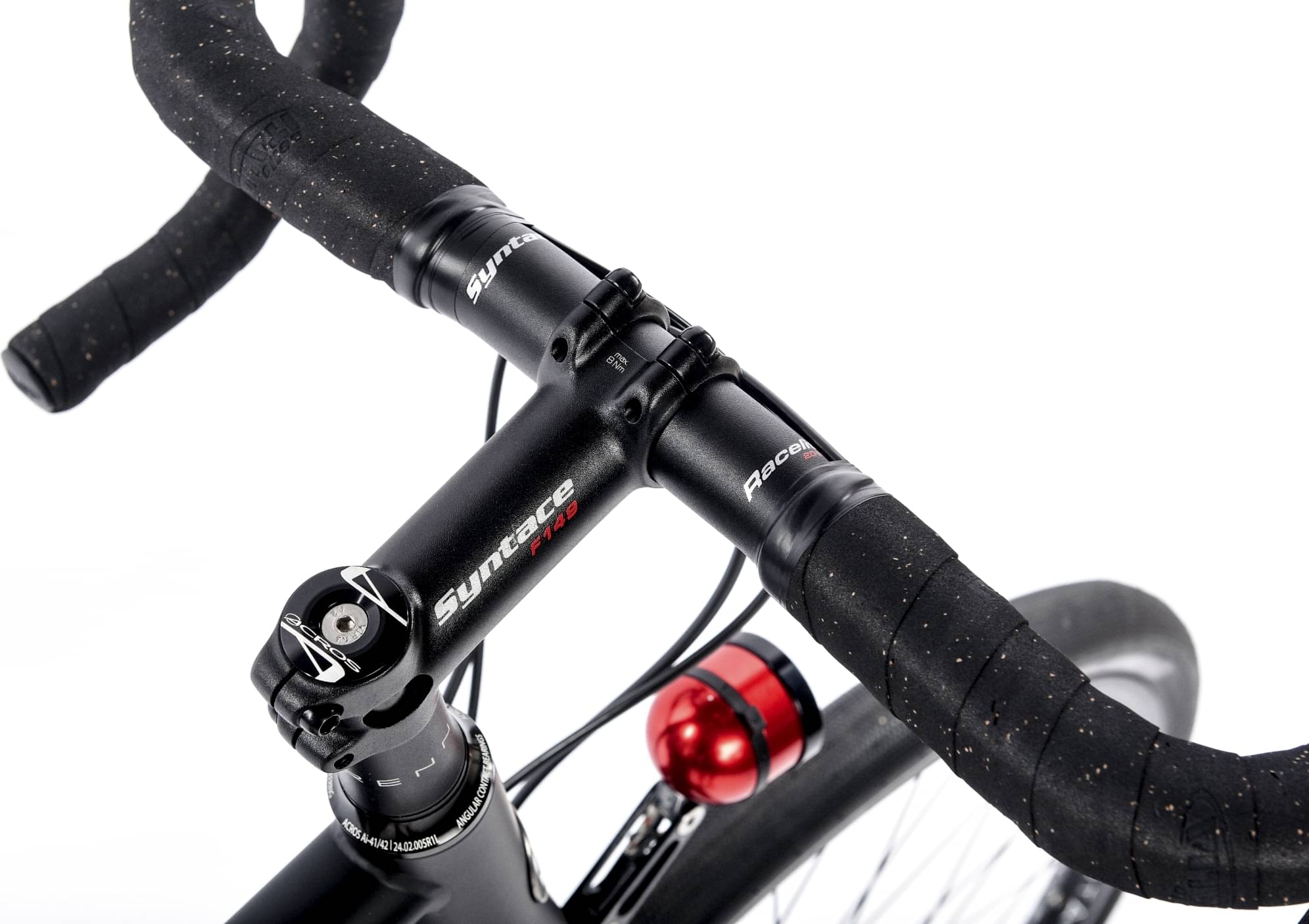

Cockpit
Stem
Racing steel Race light Black

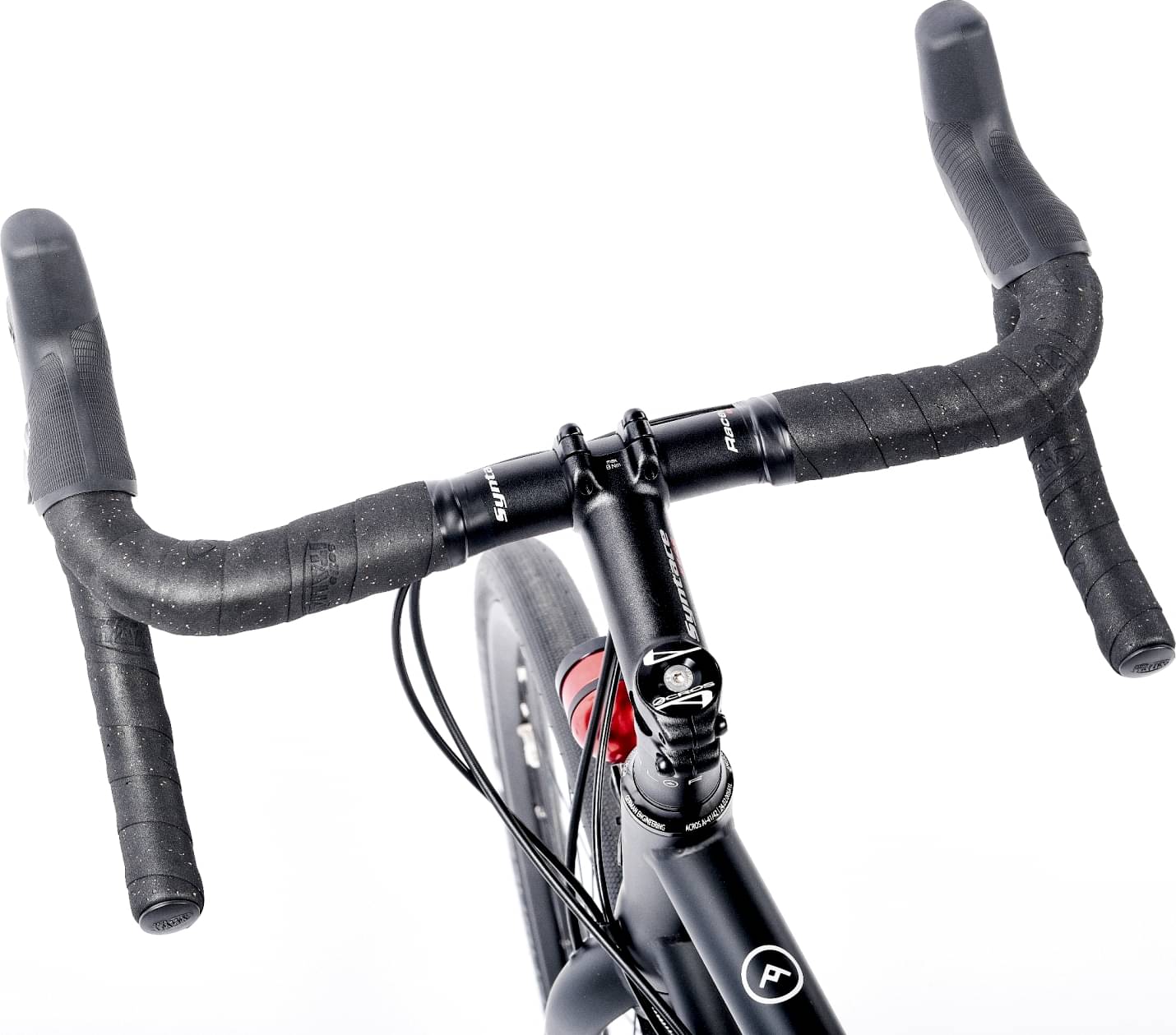

Handlebar
DXC Gravel
Seat
Saddle
without

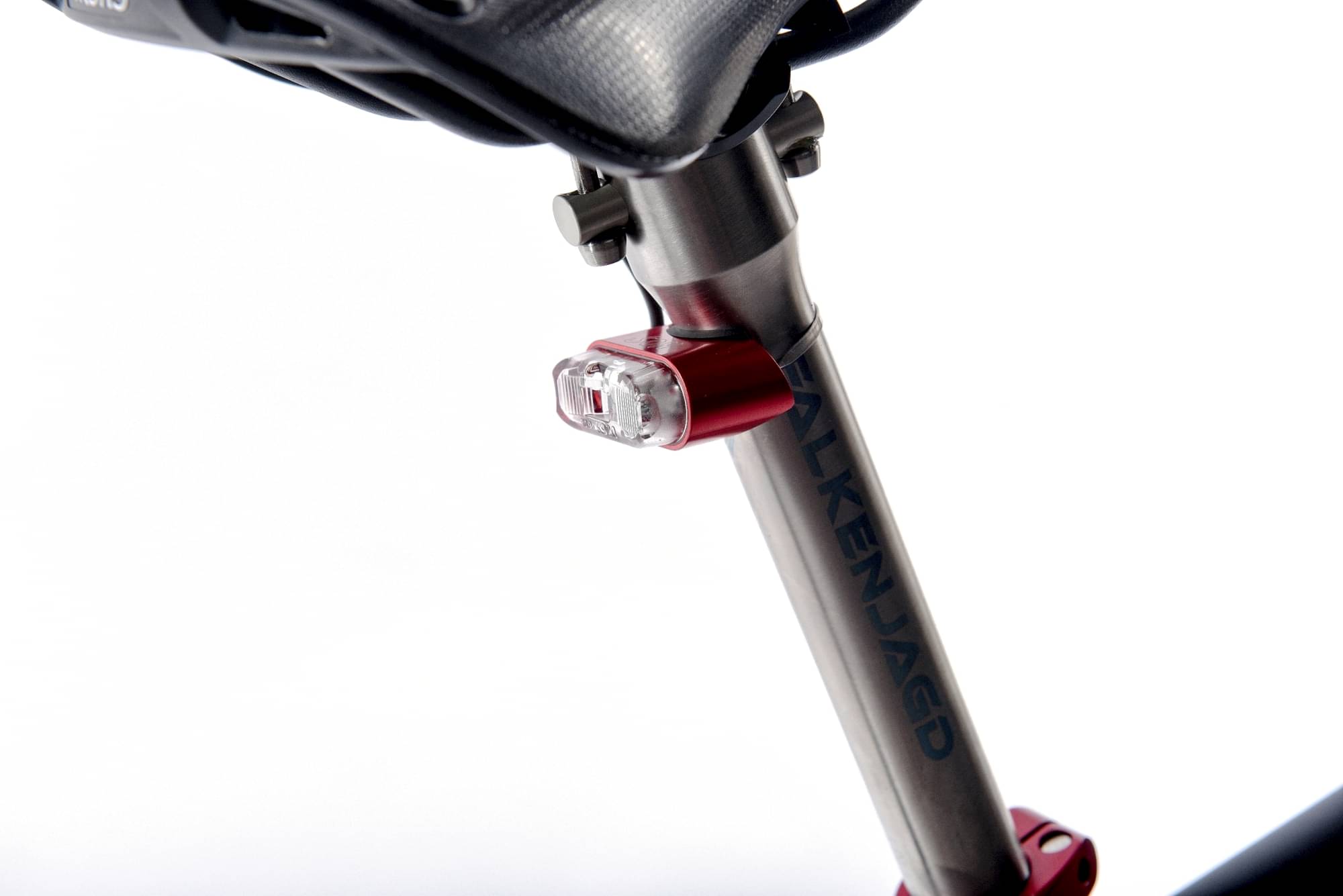

Seatpost
Ergotec Scalar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 271 mm | 271 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 625 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 530 mm | 545 mm | 565 mm | 610 mm |
| Head Tube Angle | 72.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm | 185 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 427 mm | 430 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
