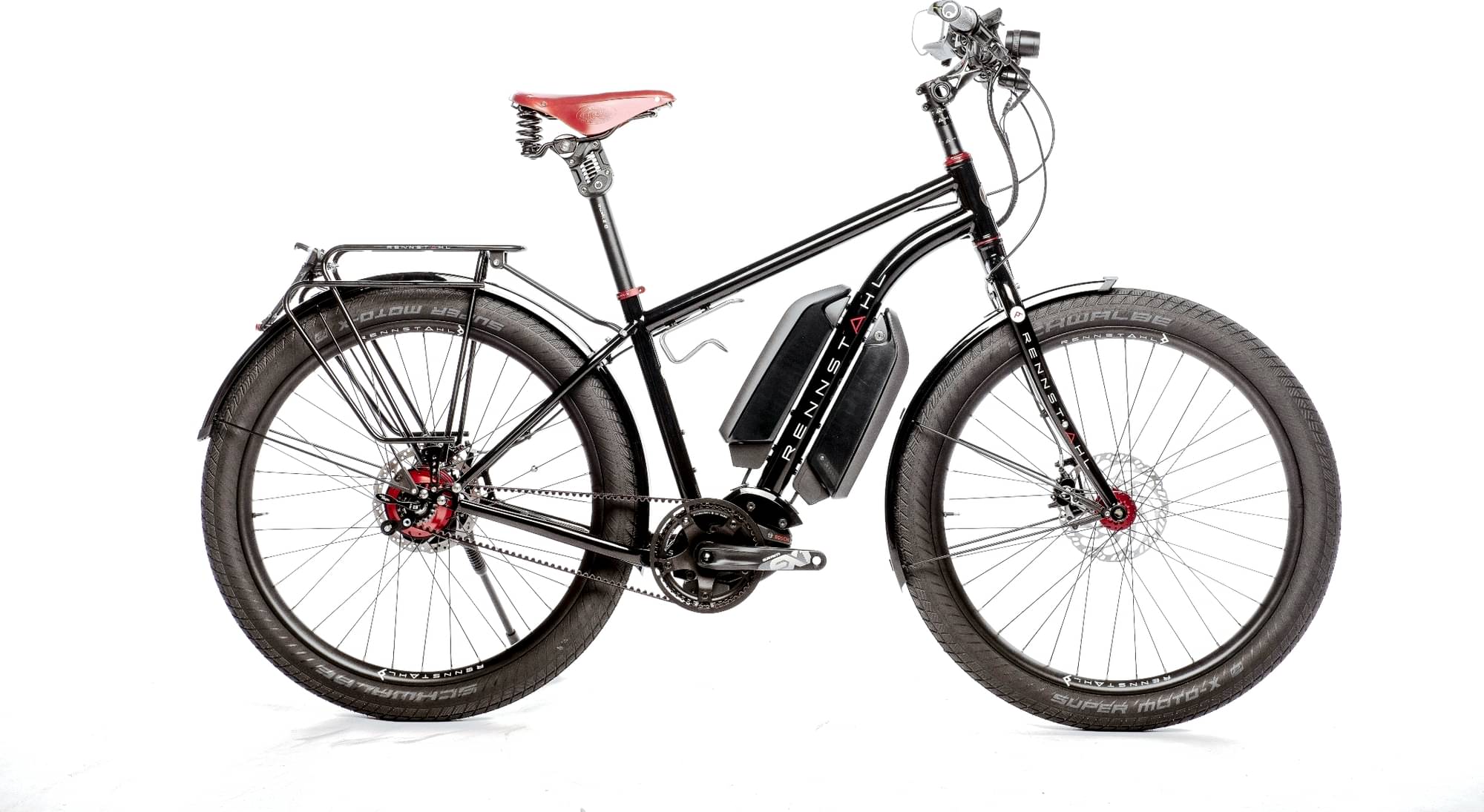

rennstahl 853 Speed Rohloff E-14 2024
2024 E-bike
Estimate price |
11,162$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset RED, SRAM -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch 500W as a mono version -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Racing steel steel fork Syntace X-15 x 110mm BOOST
Drivetrain

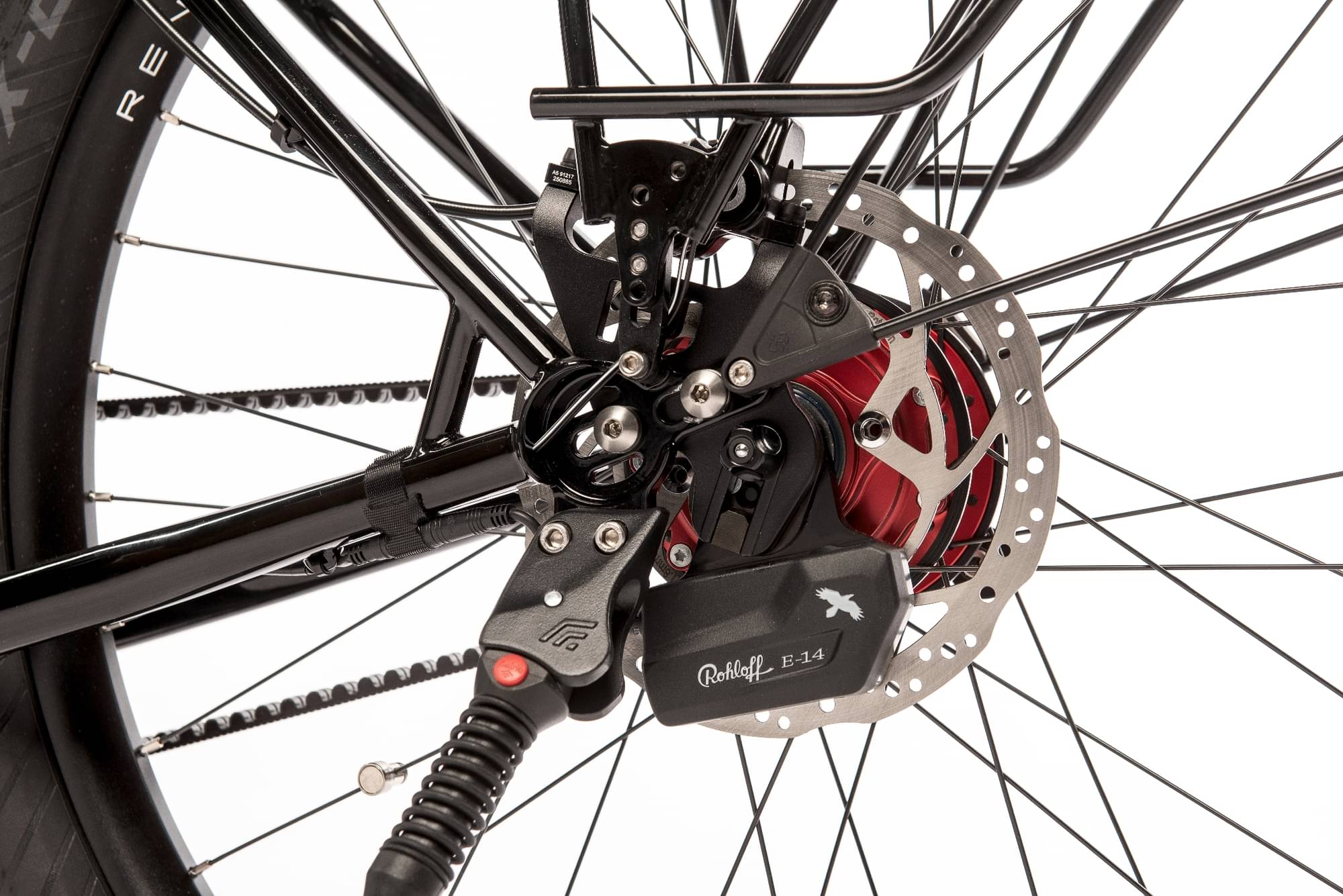

Rear Derailleur
Rohloff E-14 red
Crank
SRAM EX 1
Pedals
without
Wheels
Rims
Rohloff E-14 black, Tune King 15/rim Mavic 1030 with 36 holes (sold out)
Tires
Schwalbe Marathon Almotion 28x2.15
Brakes
Brakes
Magura MT5-e 4 piston brake
Cockpit
Stem
Ergotec Swell XR adjustable

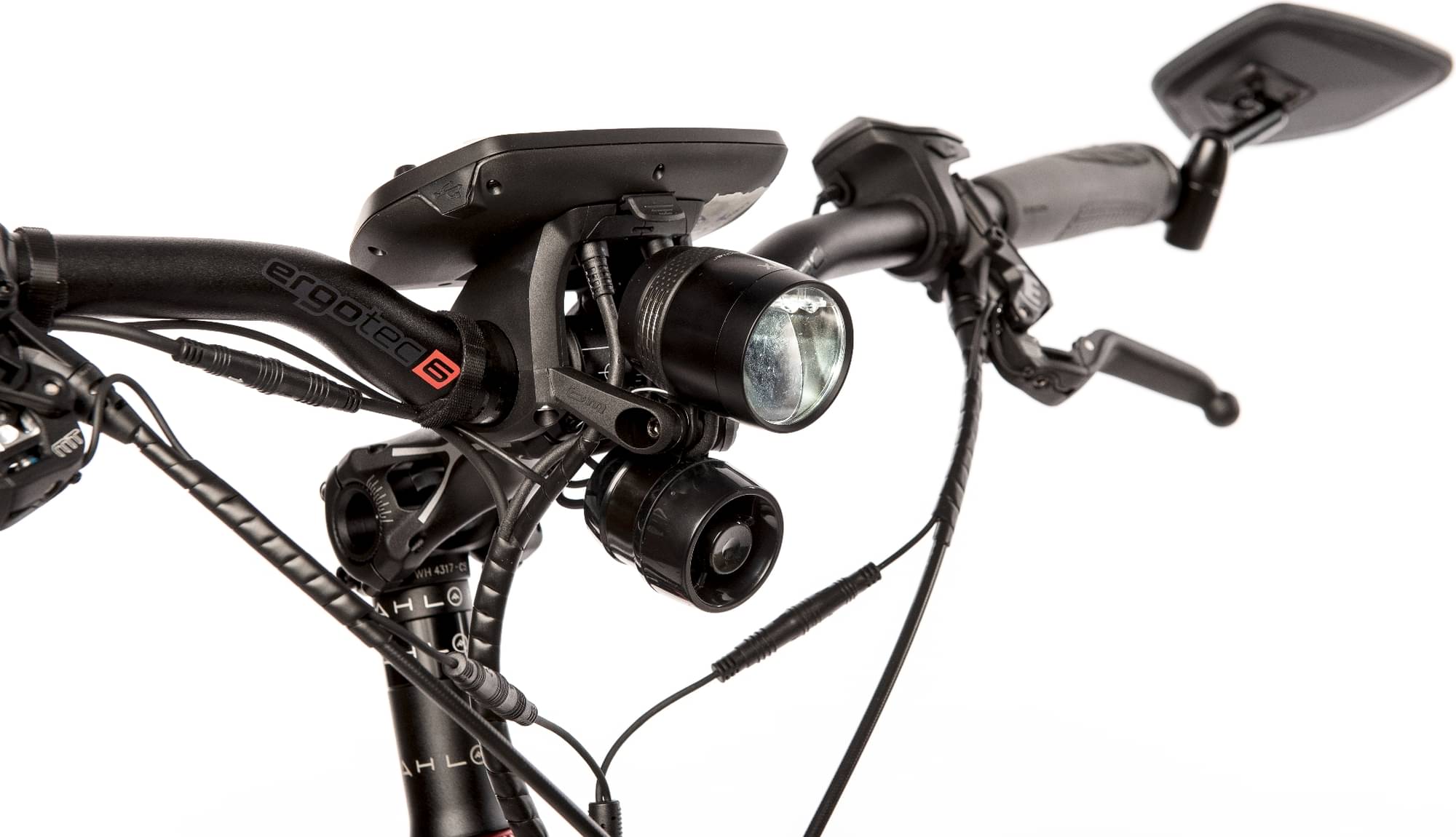

Handlebar
Ergotec Rizer 660mm, height 30mm, setback 12 degrees
Seat
Saddle
without

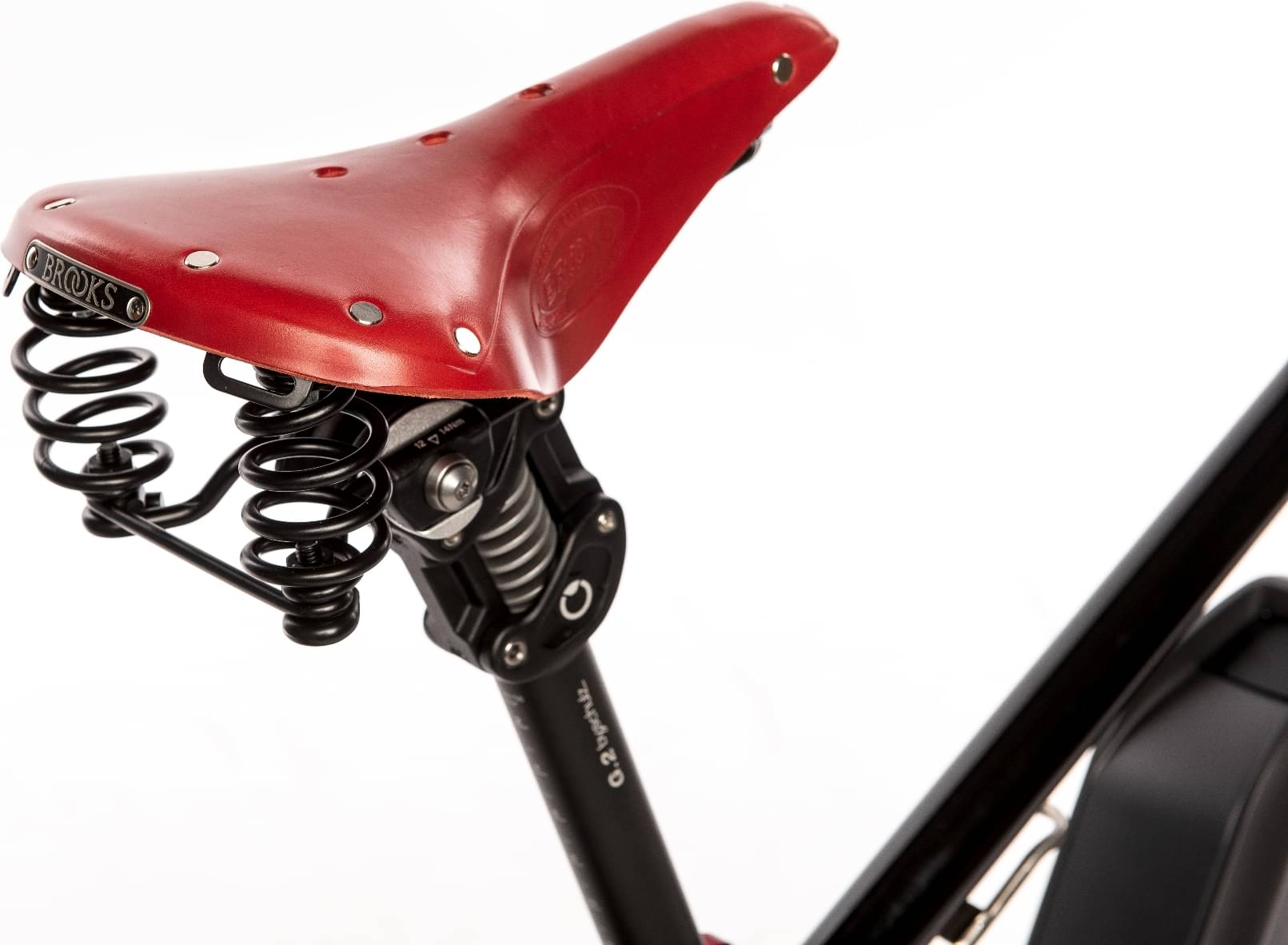

Seatpost
By Schulz G2 spring support
Motor & Battery

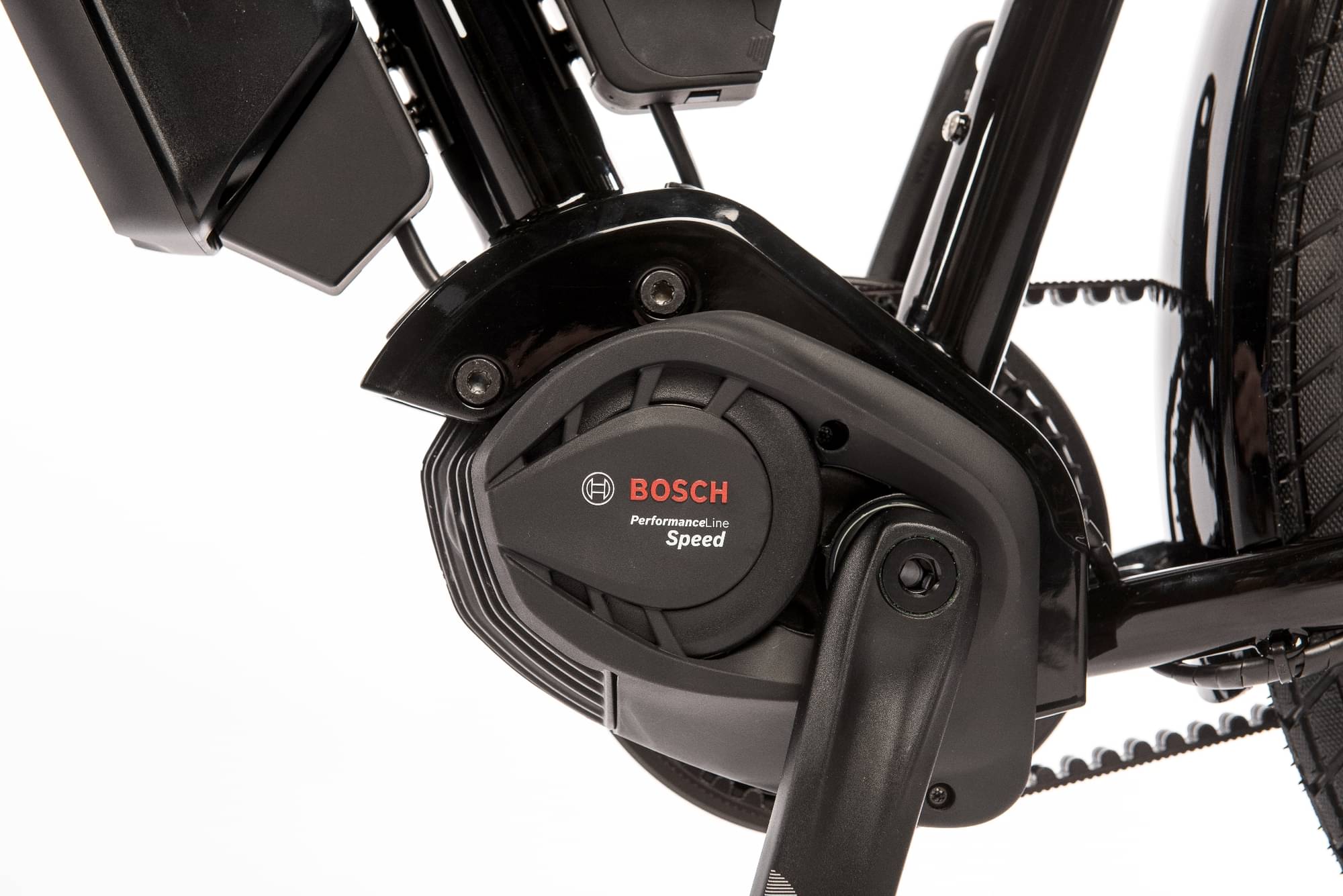

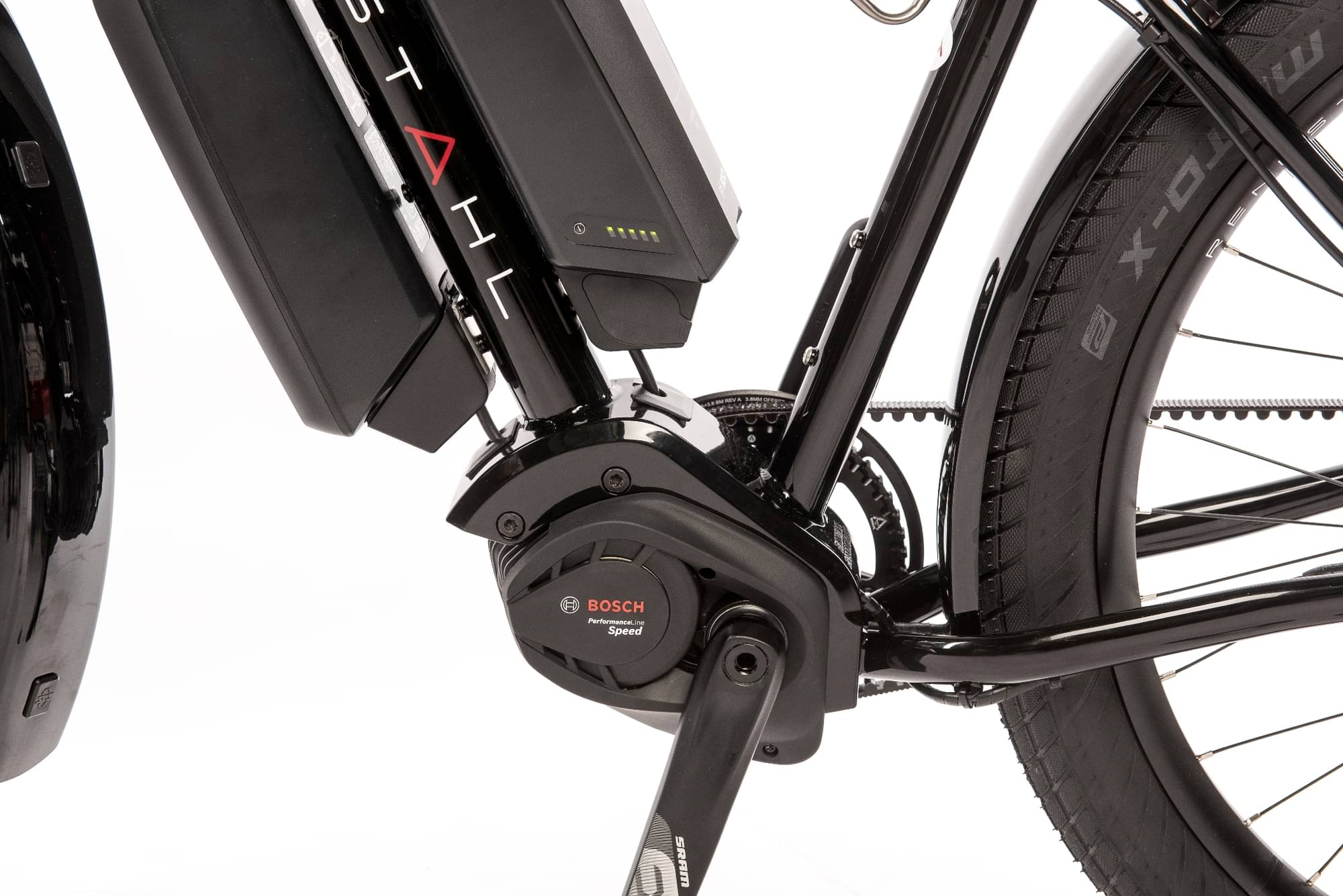

Motor

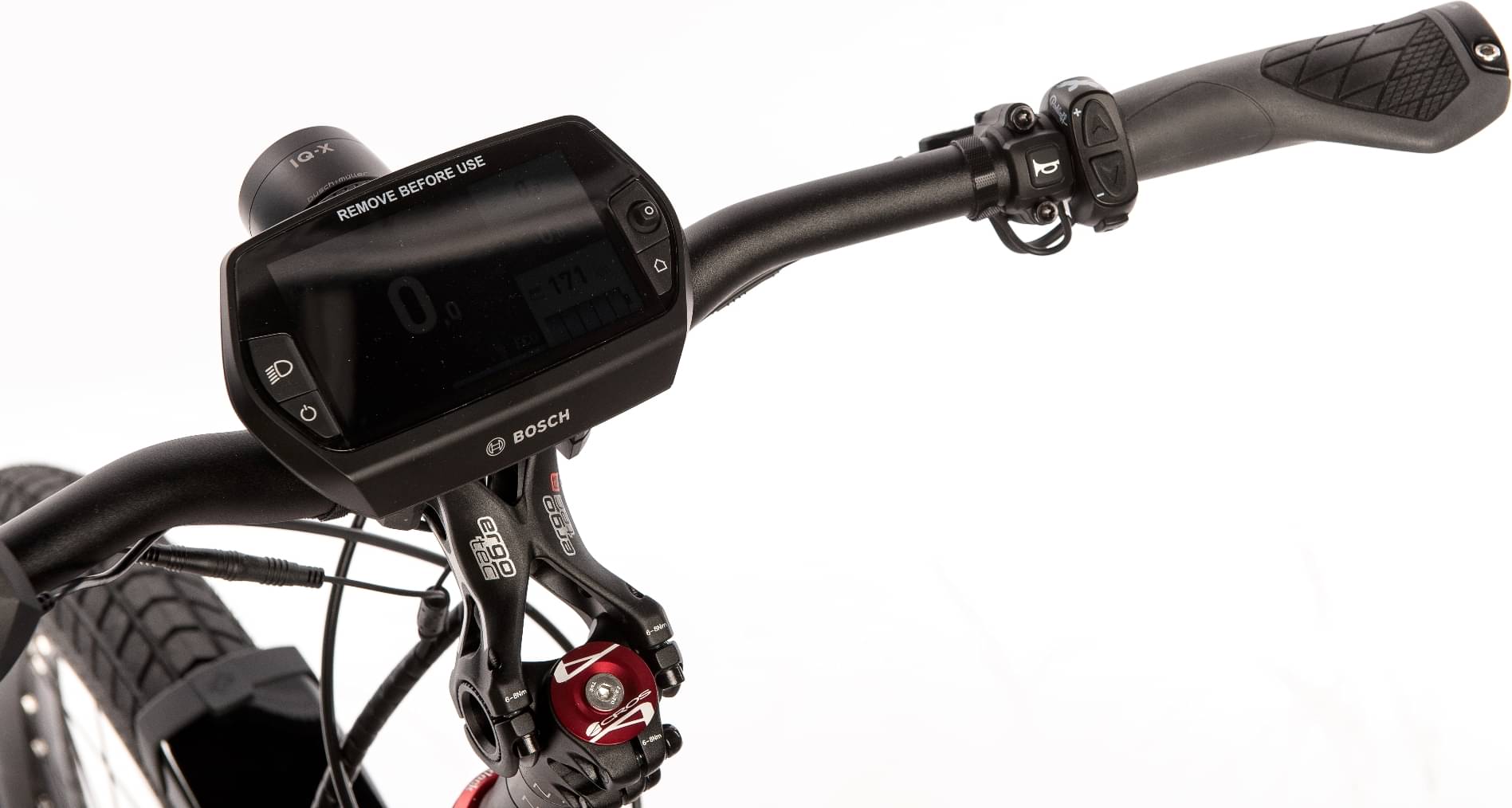

Bosch Performance Speed with 45km/h, KIOX color display
Battery
Bosch 500W as a mono version
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | LG | LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 600 mm | 603 mm | 603 mm | 603 mm | 622 mm | 622 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 785 mm | 450 mm | 745 mm | 785 mm | 450 mm | 748 mm | 815 mm | 845 mm | 865 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
