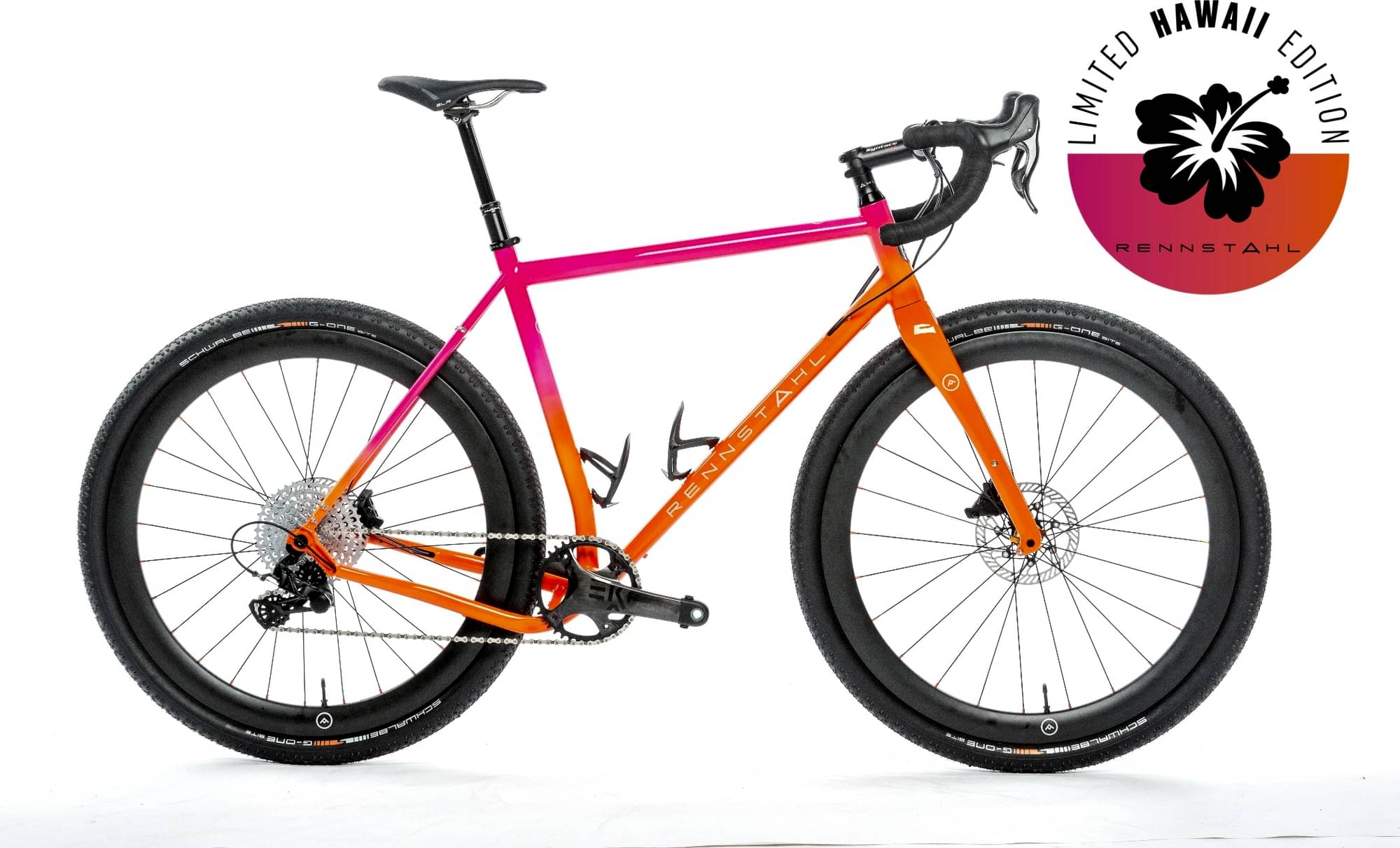

rennstahl 853 Trail Gravel 2024
2024 Mountain
Estimate price |
5,428$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

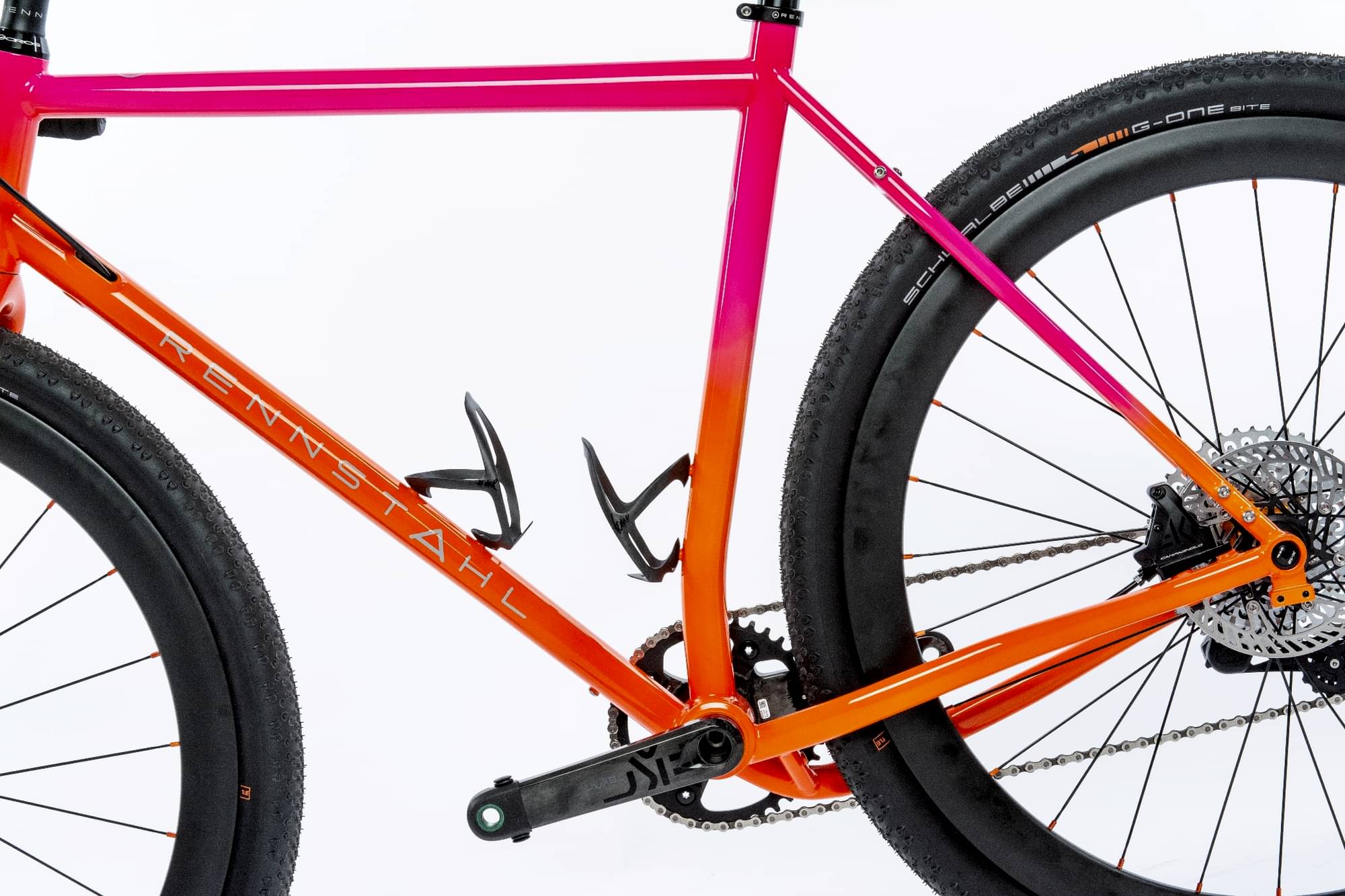

Frame

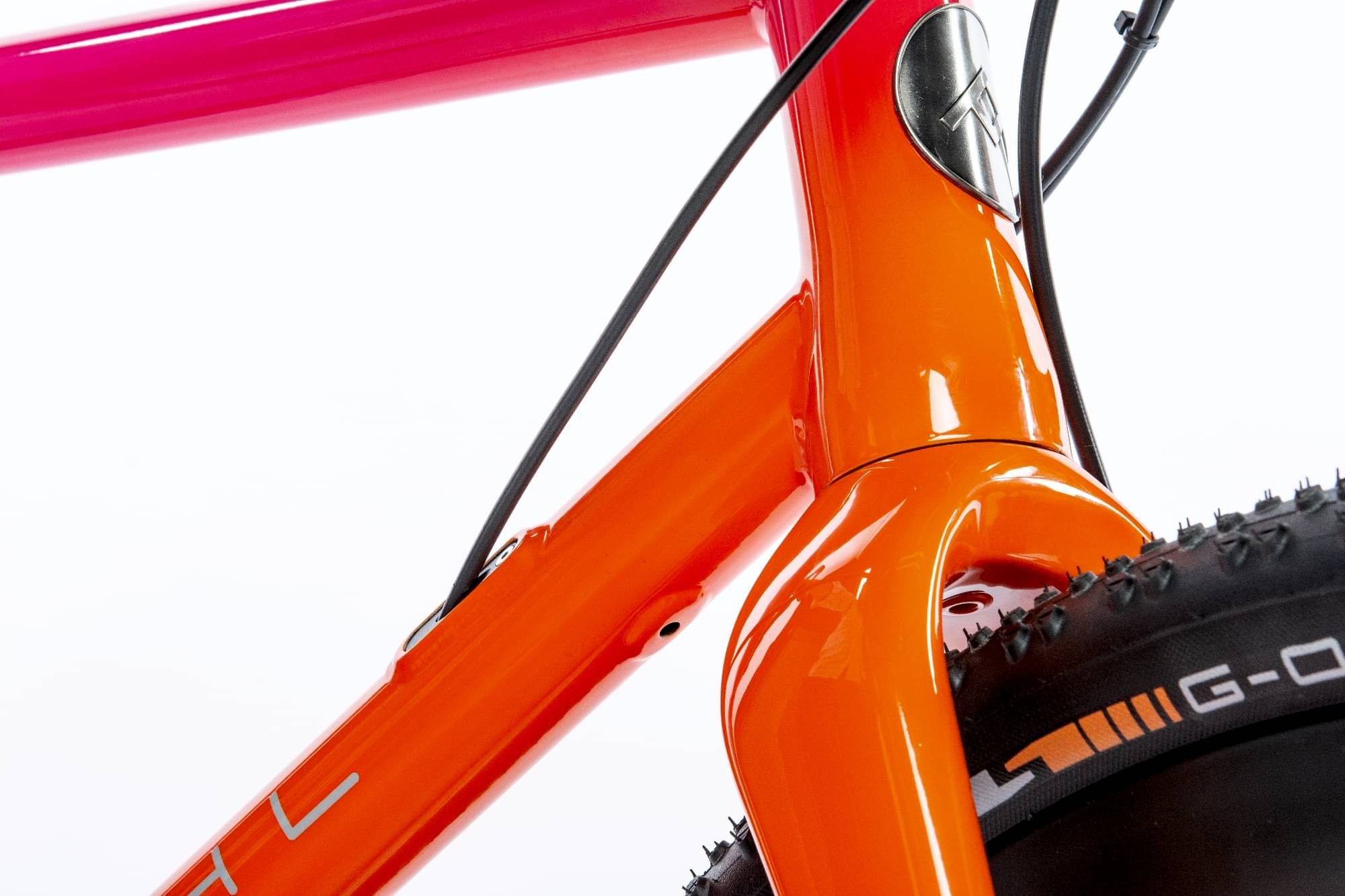

Suspension Fork

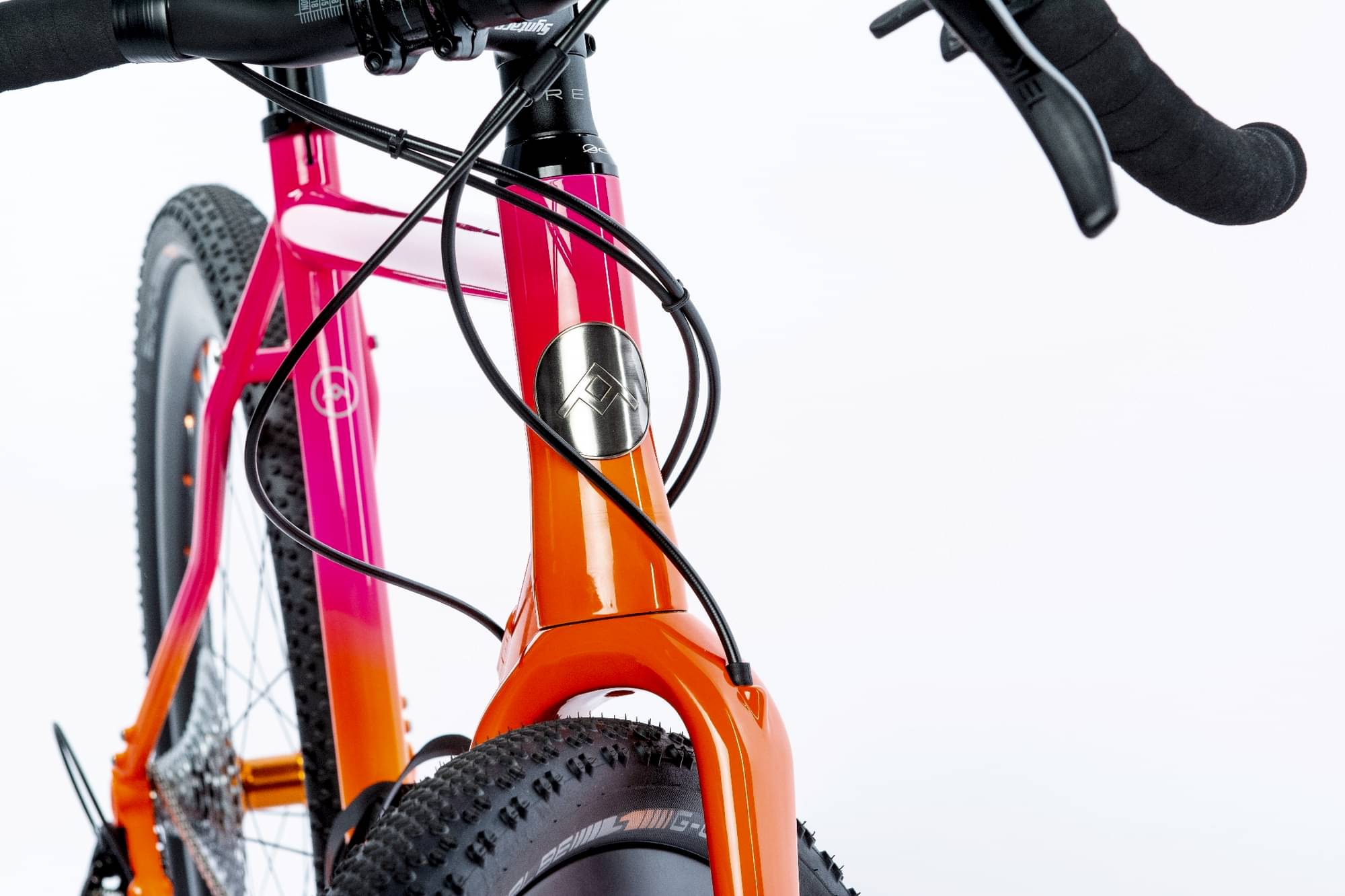

Rennstahl Adventure Carbon Gravel with 12mm thru axle and flat-mount standard

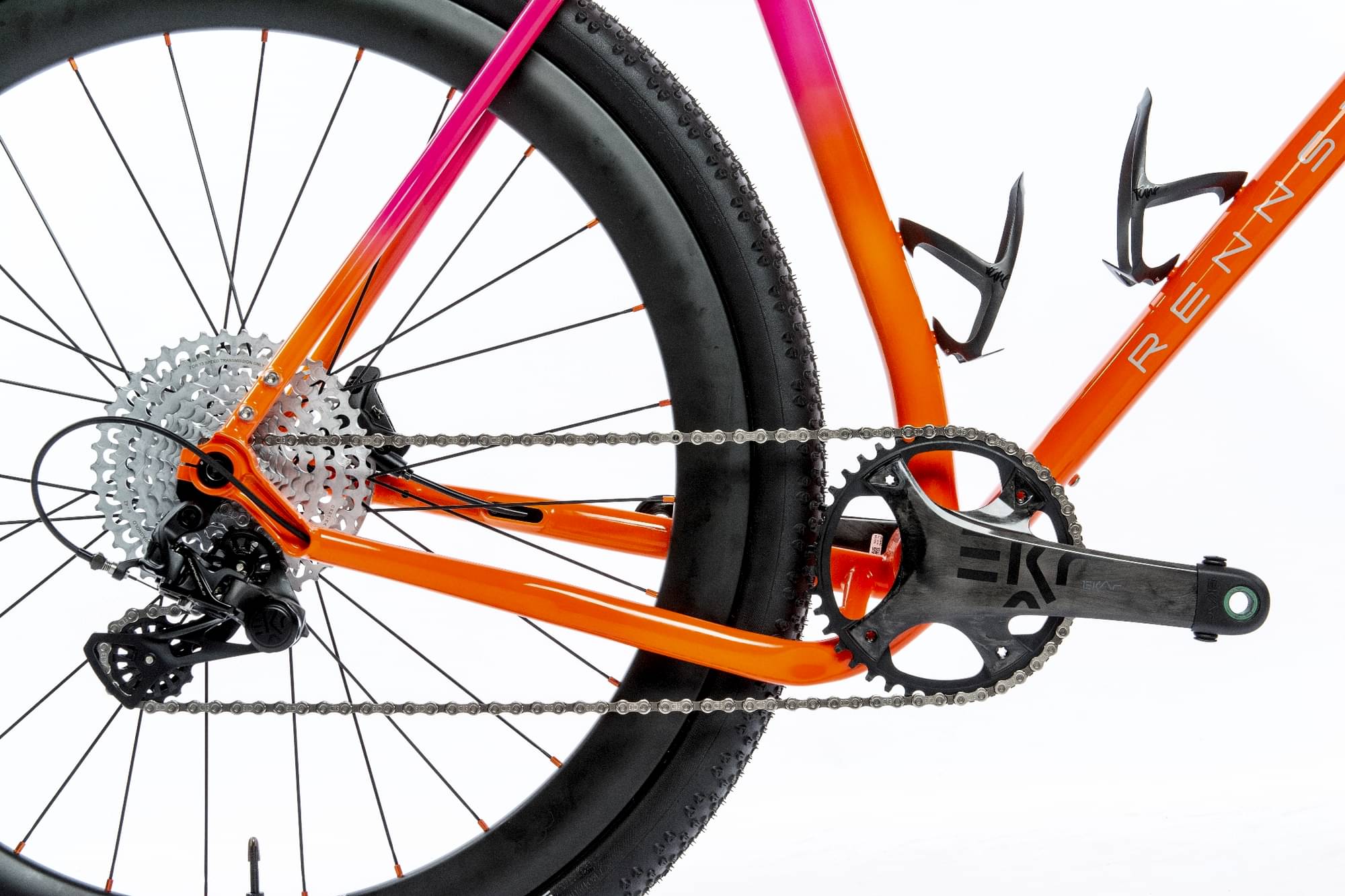

Drivetrain

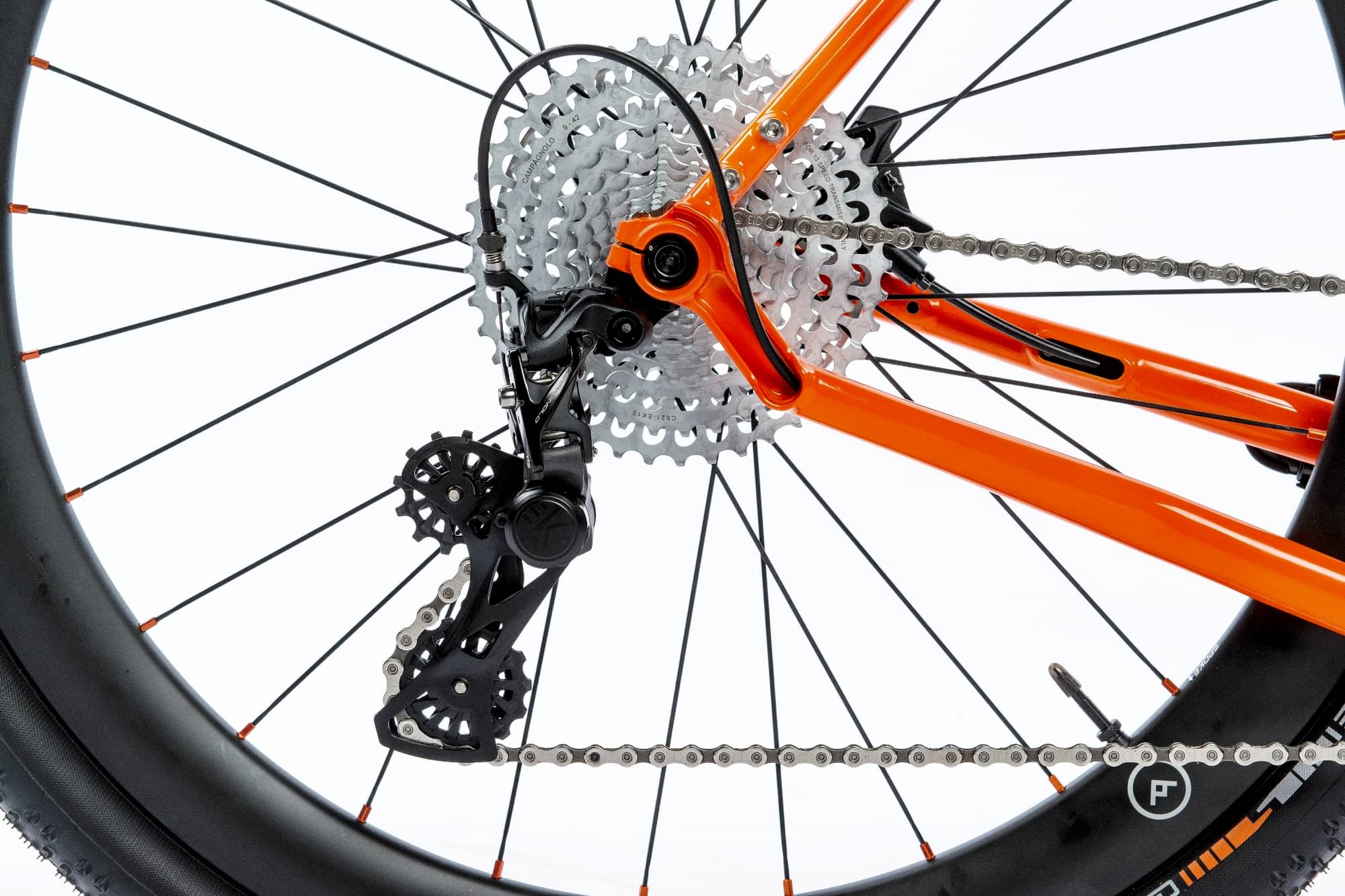

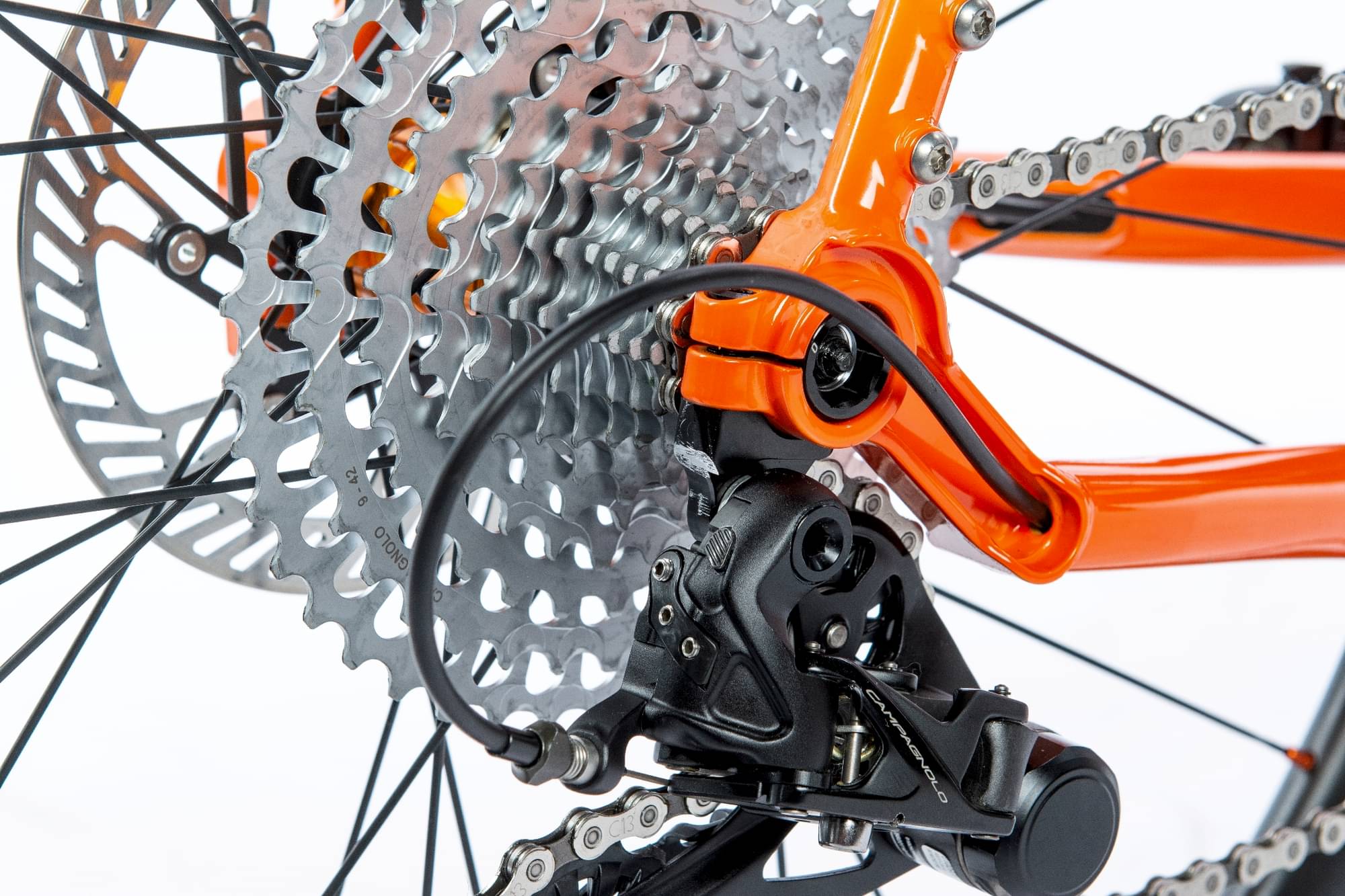

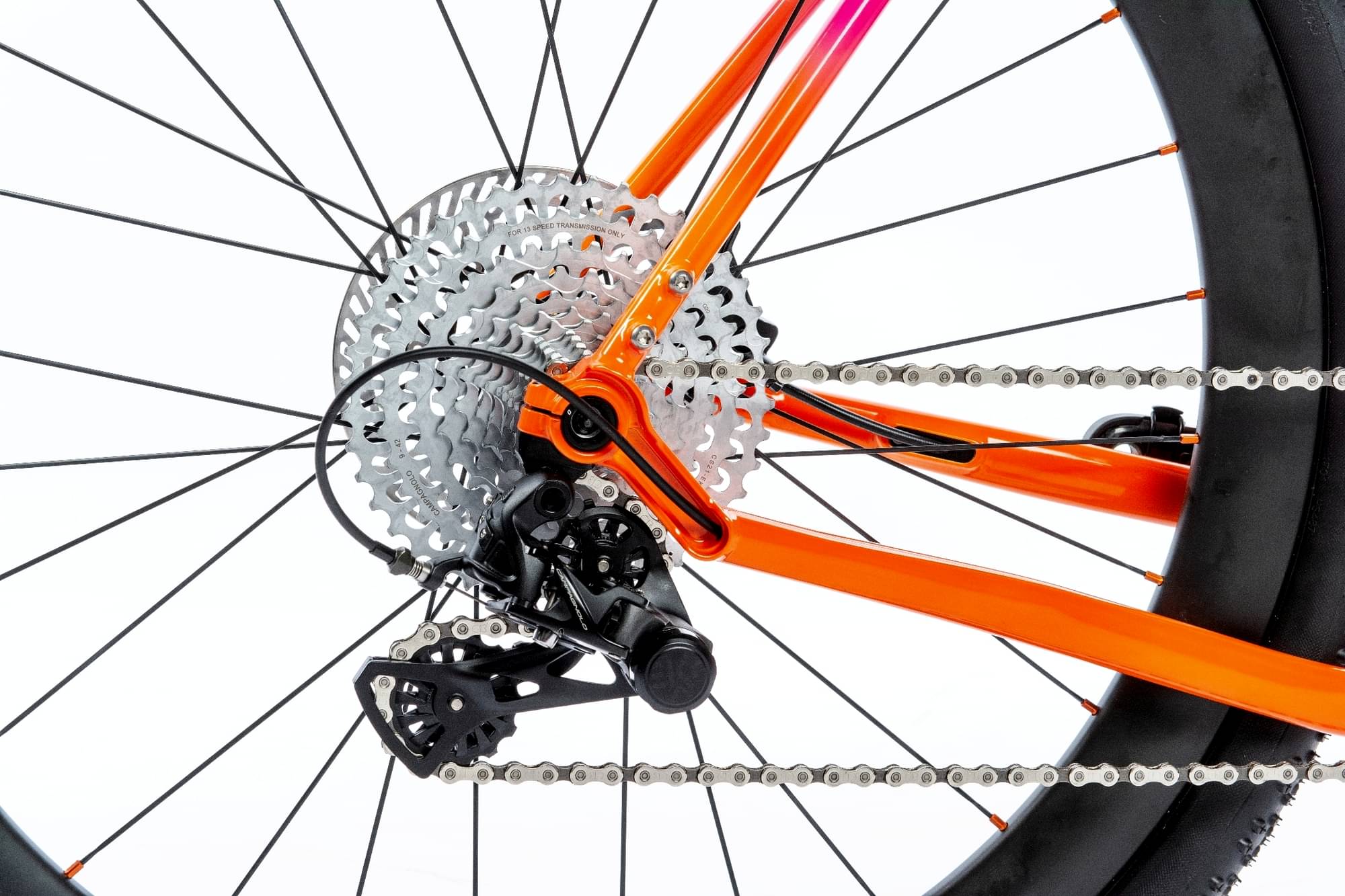

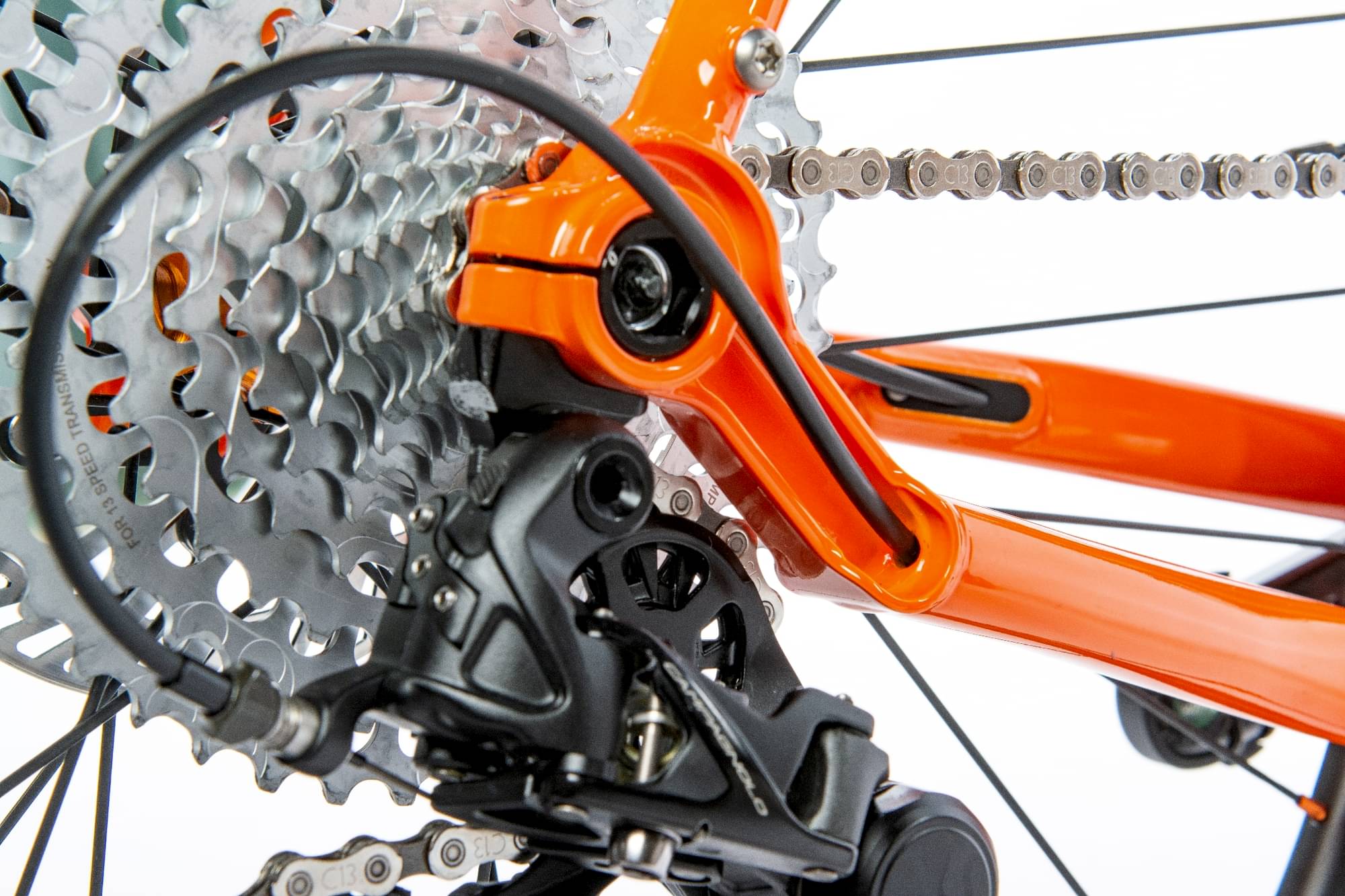

Rear Derailleur
Campagnolo EKAR 1x 13

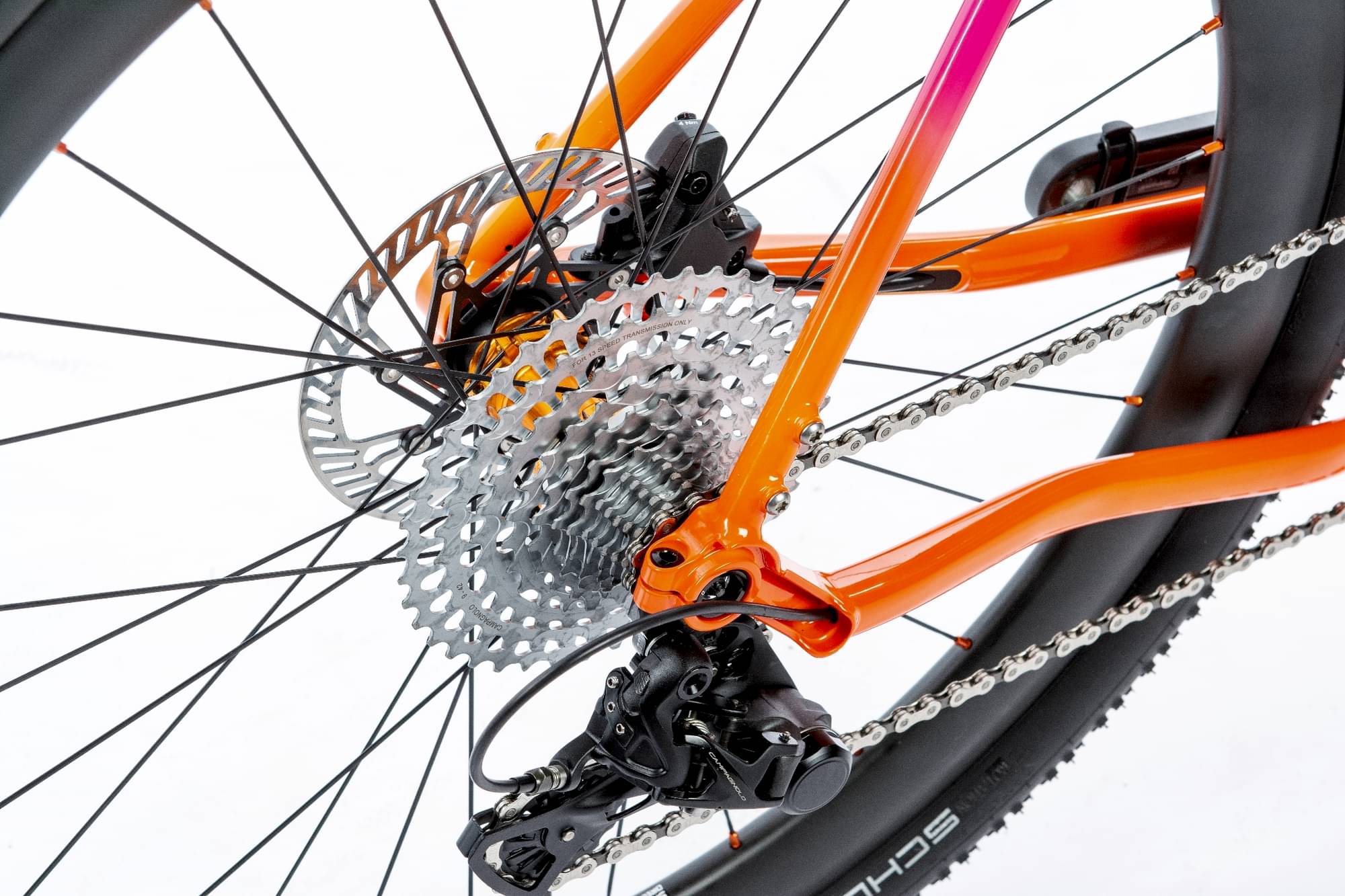

Cassette
Campagnolo EKAR 9-42 teeth

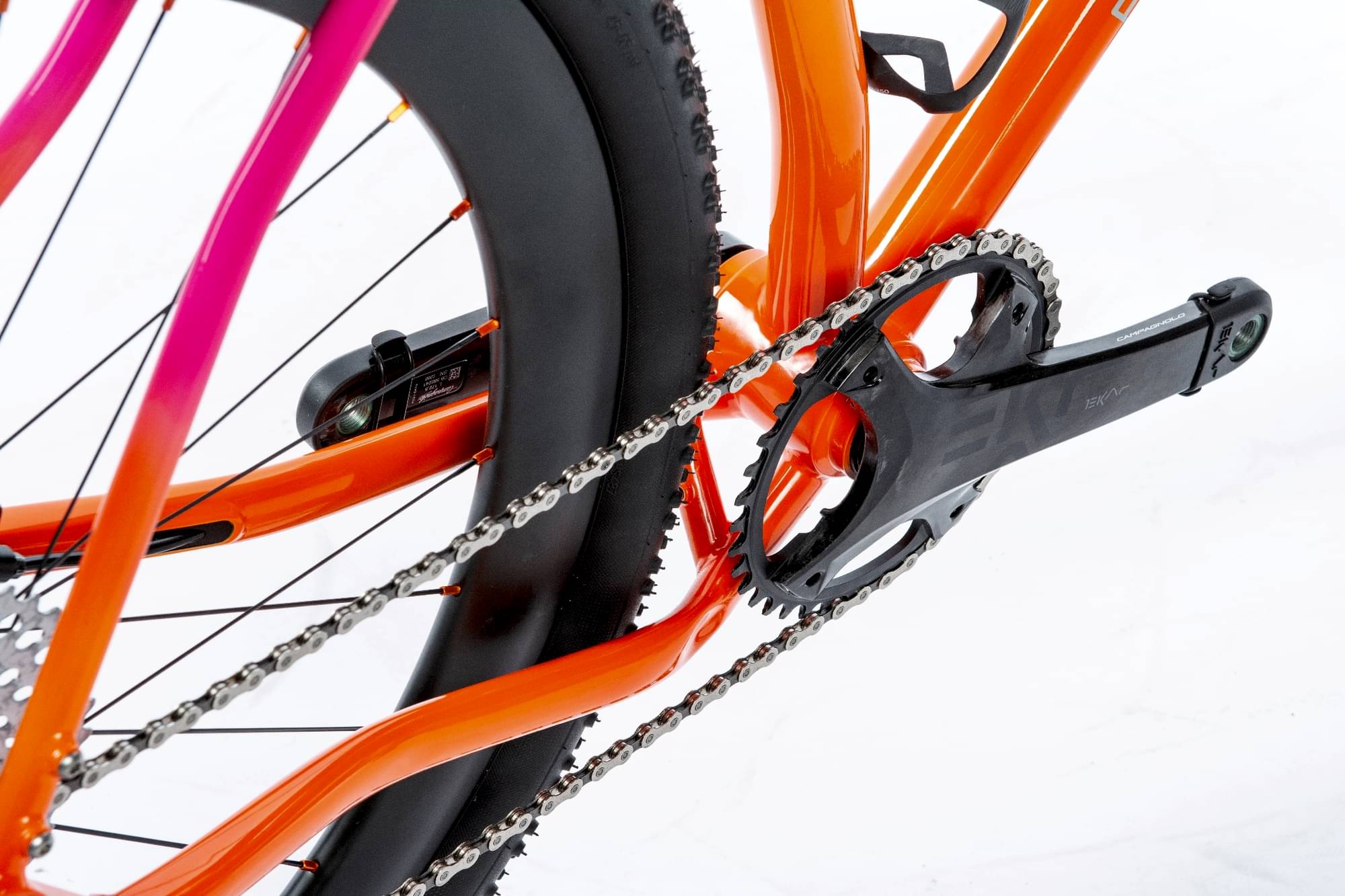

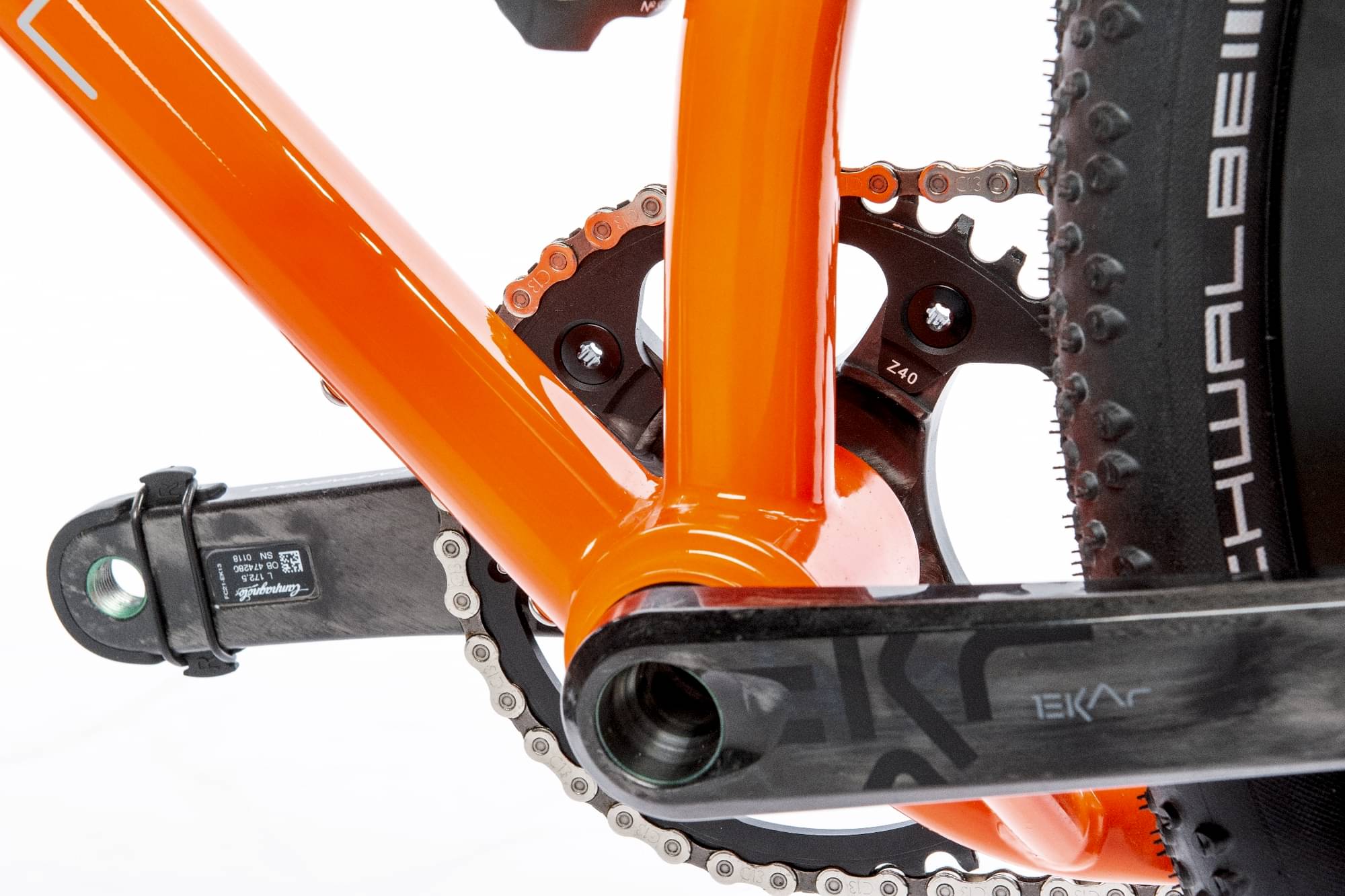

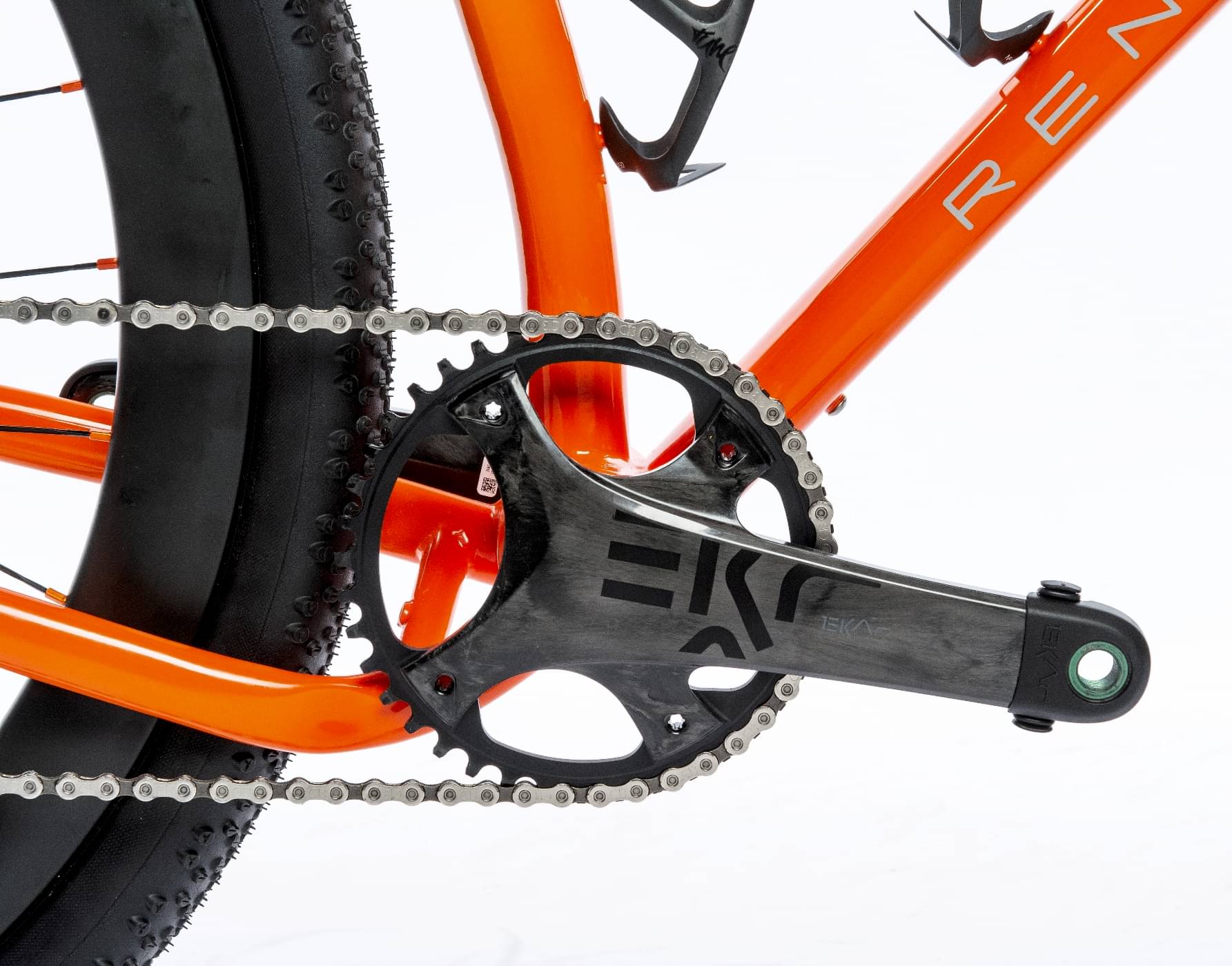

Crank
Campagnolo EKAR 40 teeth
Pedals
without
Wheels
Rims
Mavic Allroad S Gravel

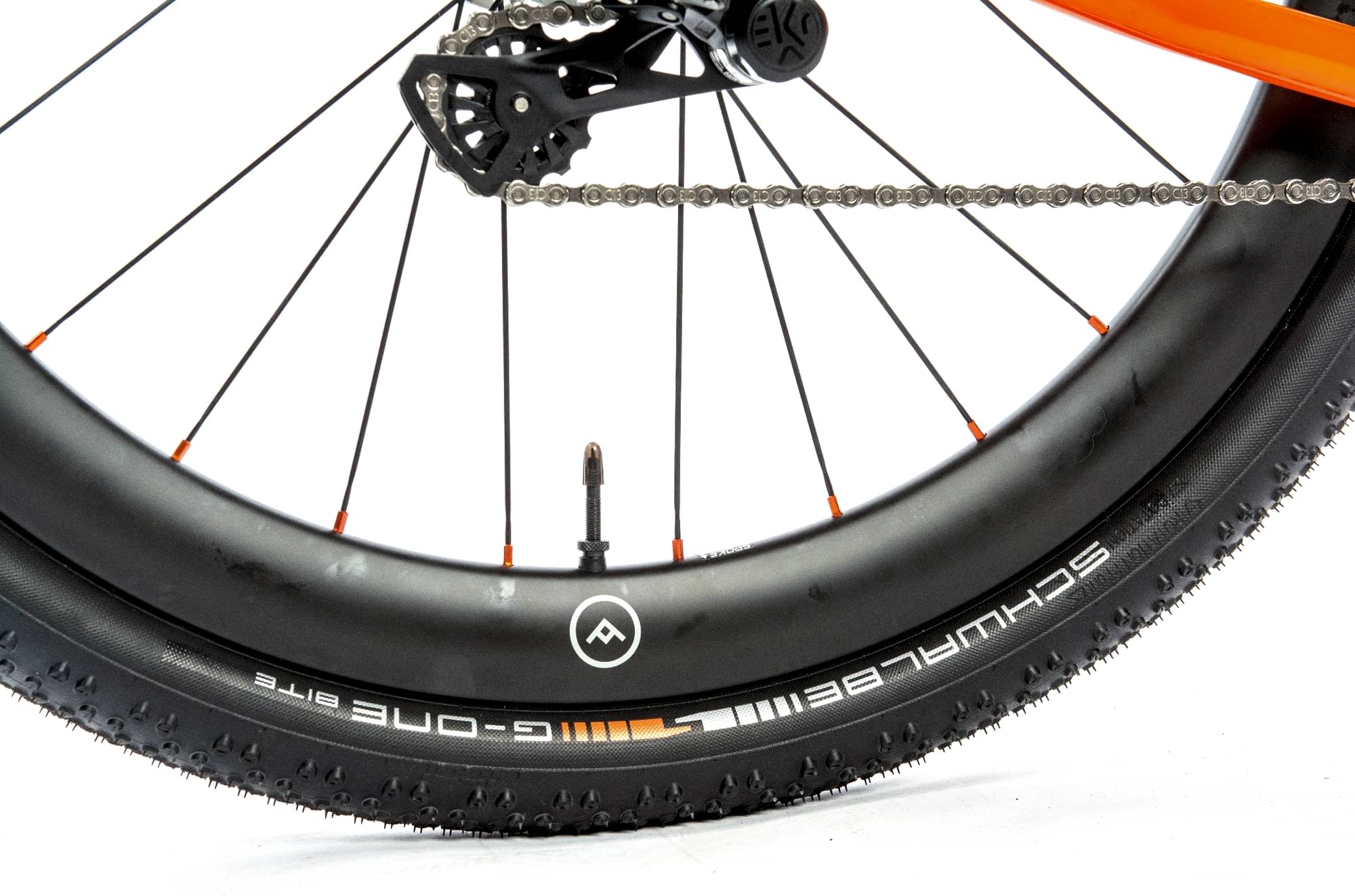

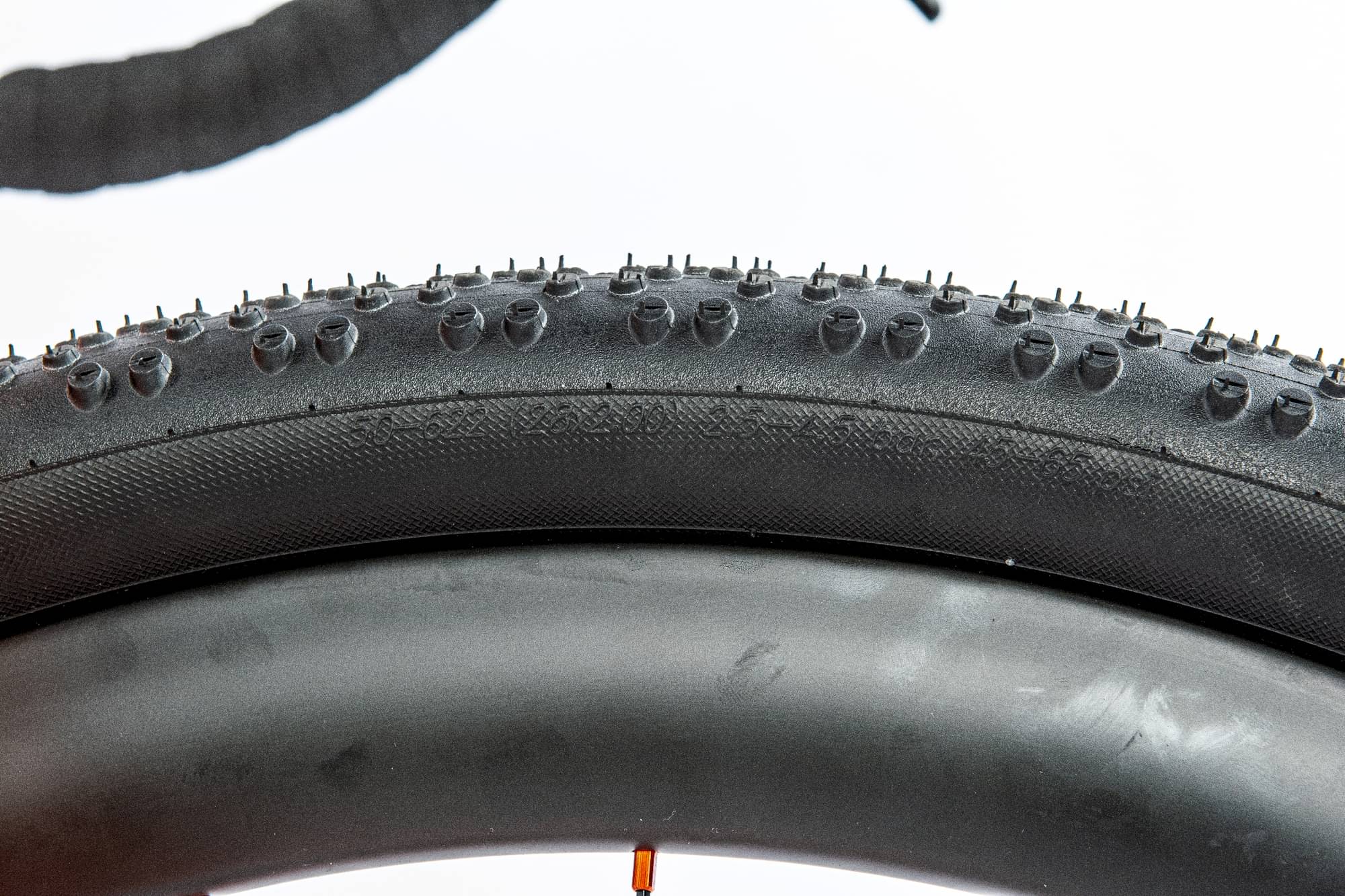

Tires
Schwalbe G-One Allround 622-40

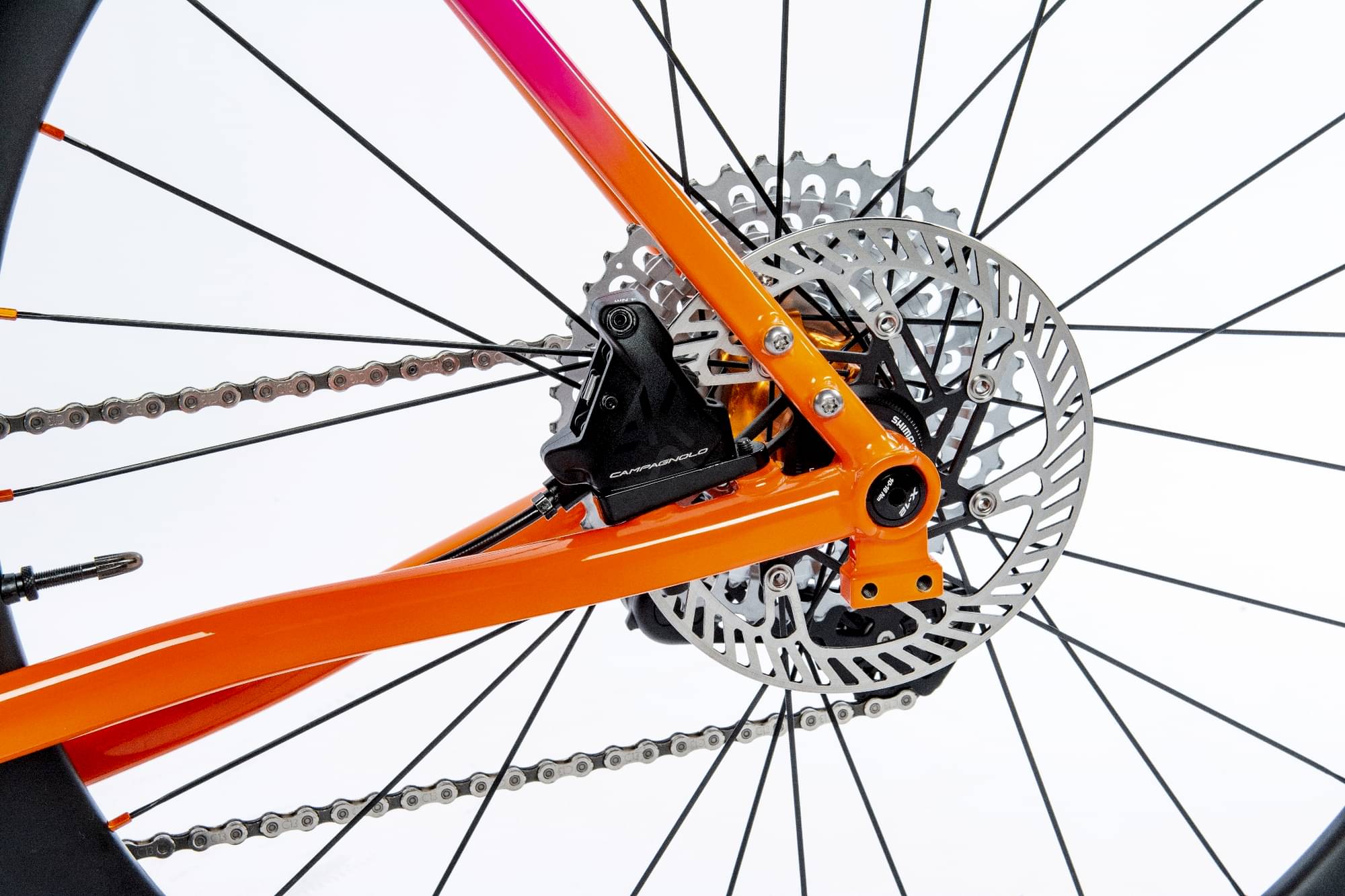

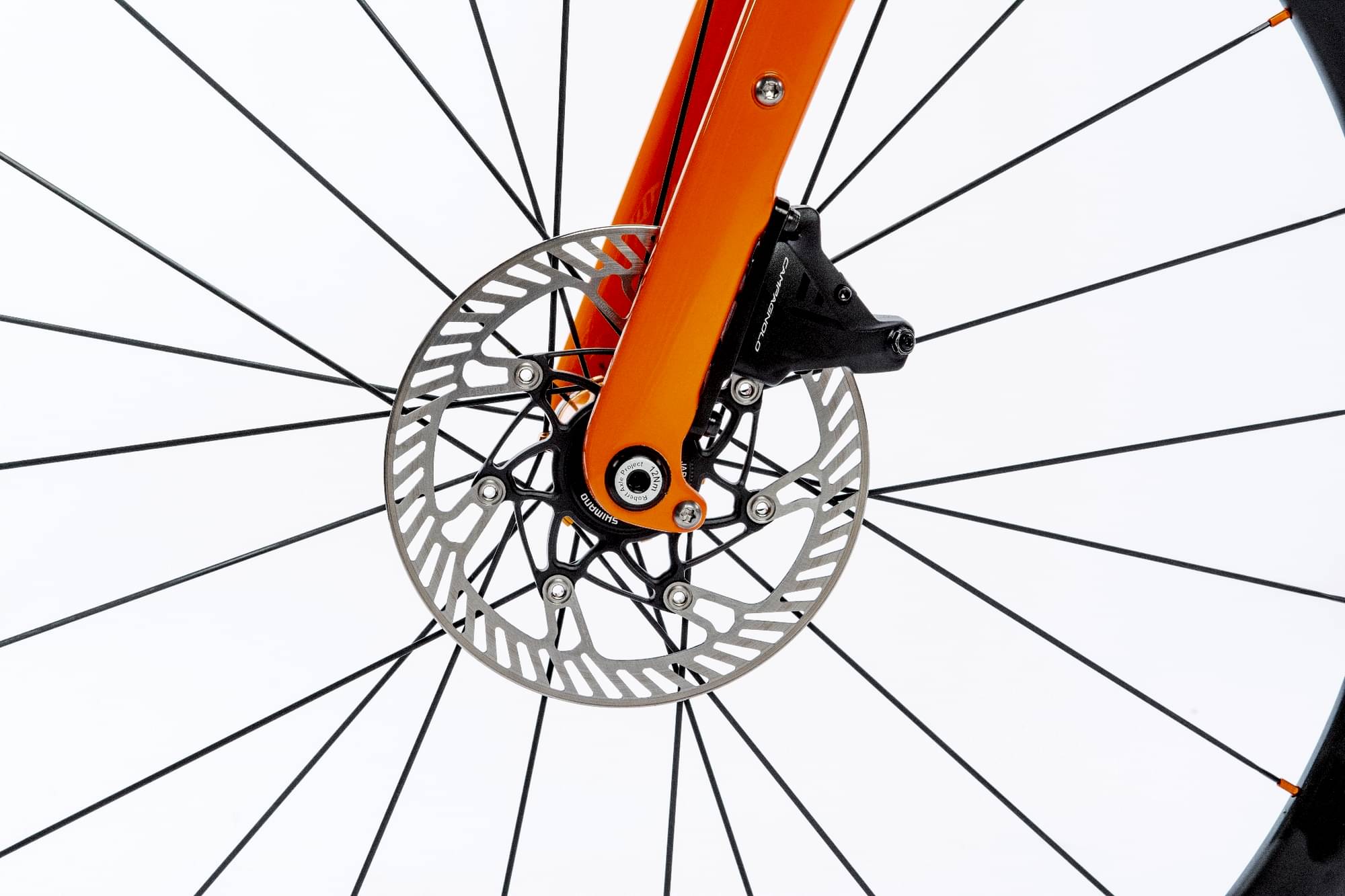

Brakes
Brakes
Campagnolo EKAR

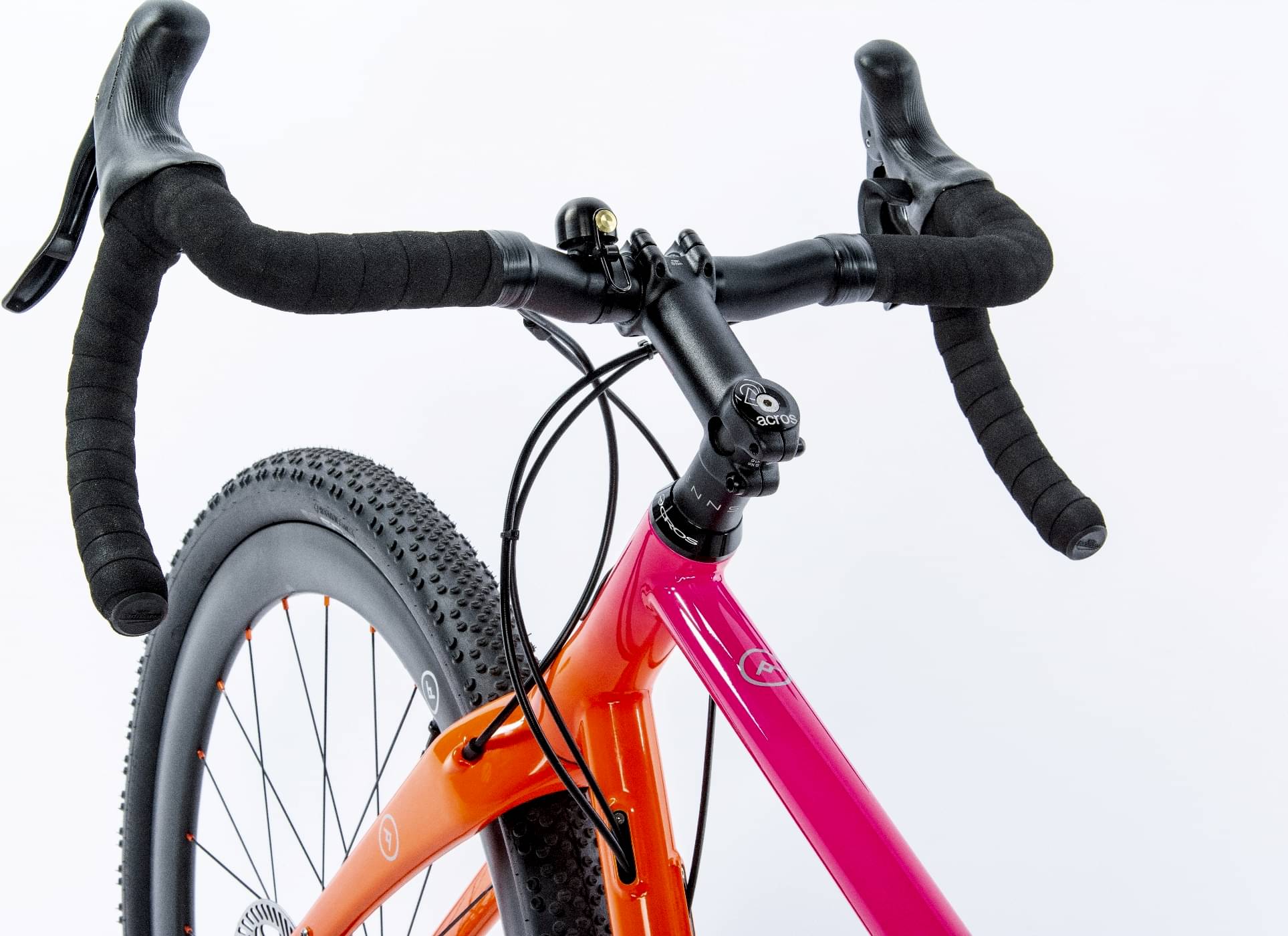

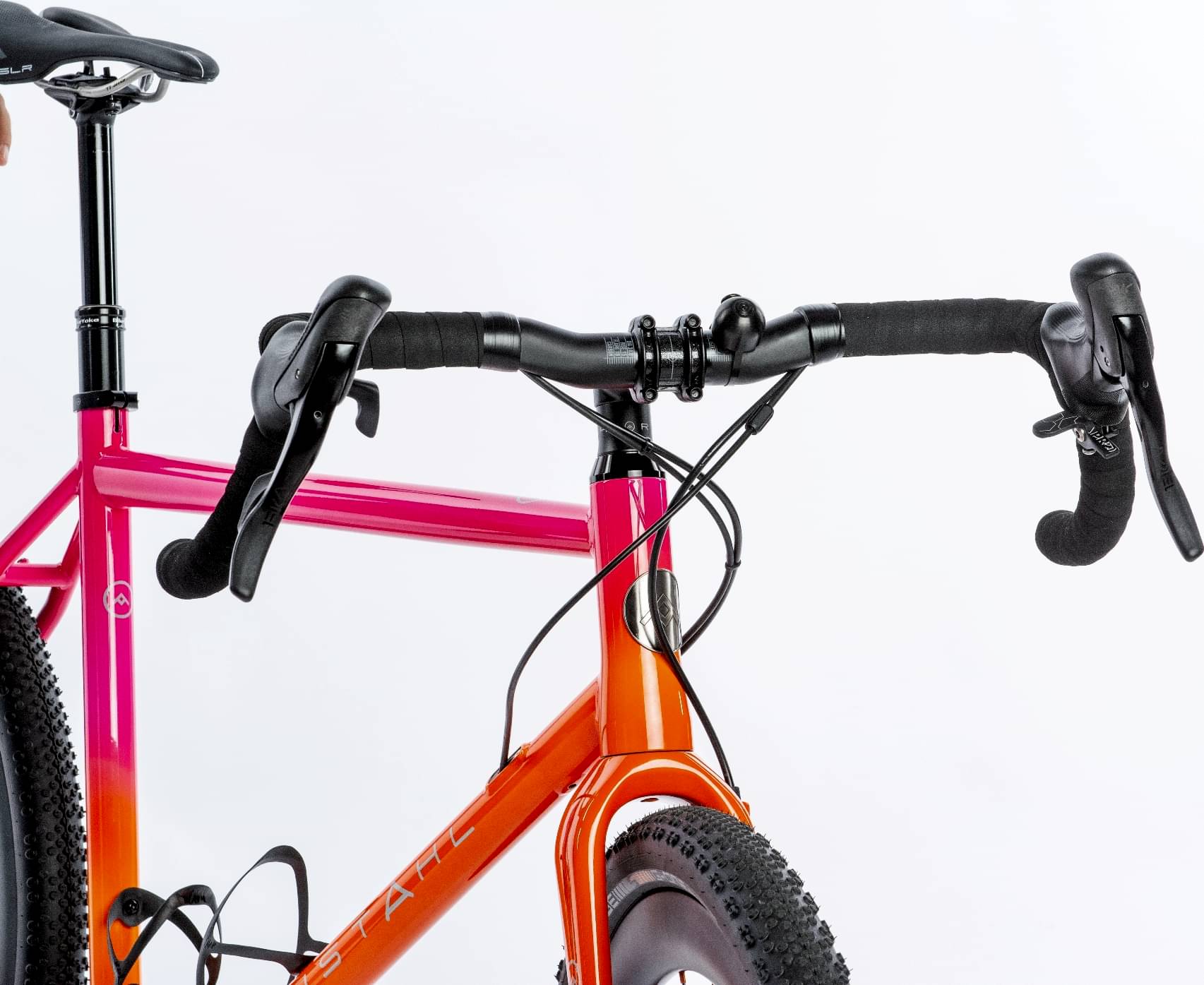

Cockpit
Stem
Rennstahl Extralight by Syntace
Handlebar
DXC Gravel
Seat
Saddle
without
Seatpost
Parapera Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Top Tube Length | 540 mm | 565 mm | 585 mm | 605 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 155 mm | 170 mm | 185 mm | 210 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 98 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Standover Height | 739 mm | 756 mm | 784 mm | 795 mm | 820 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
