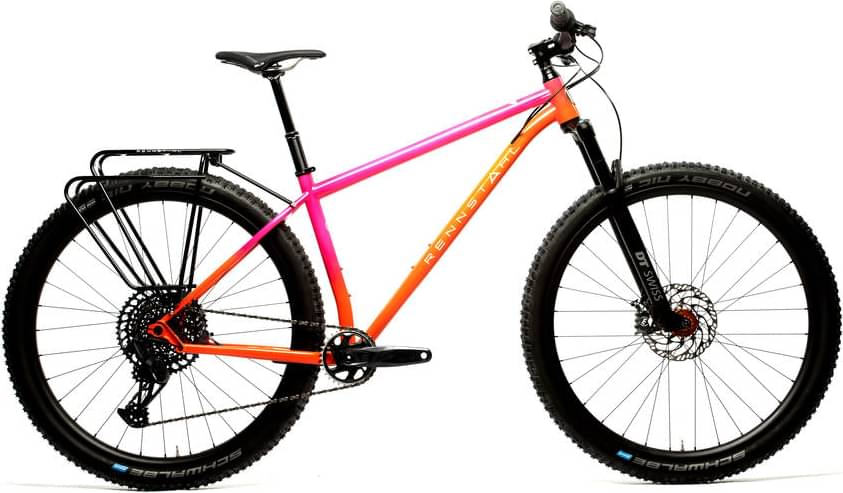

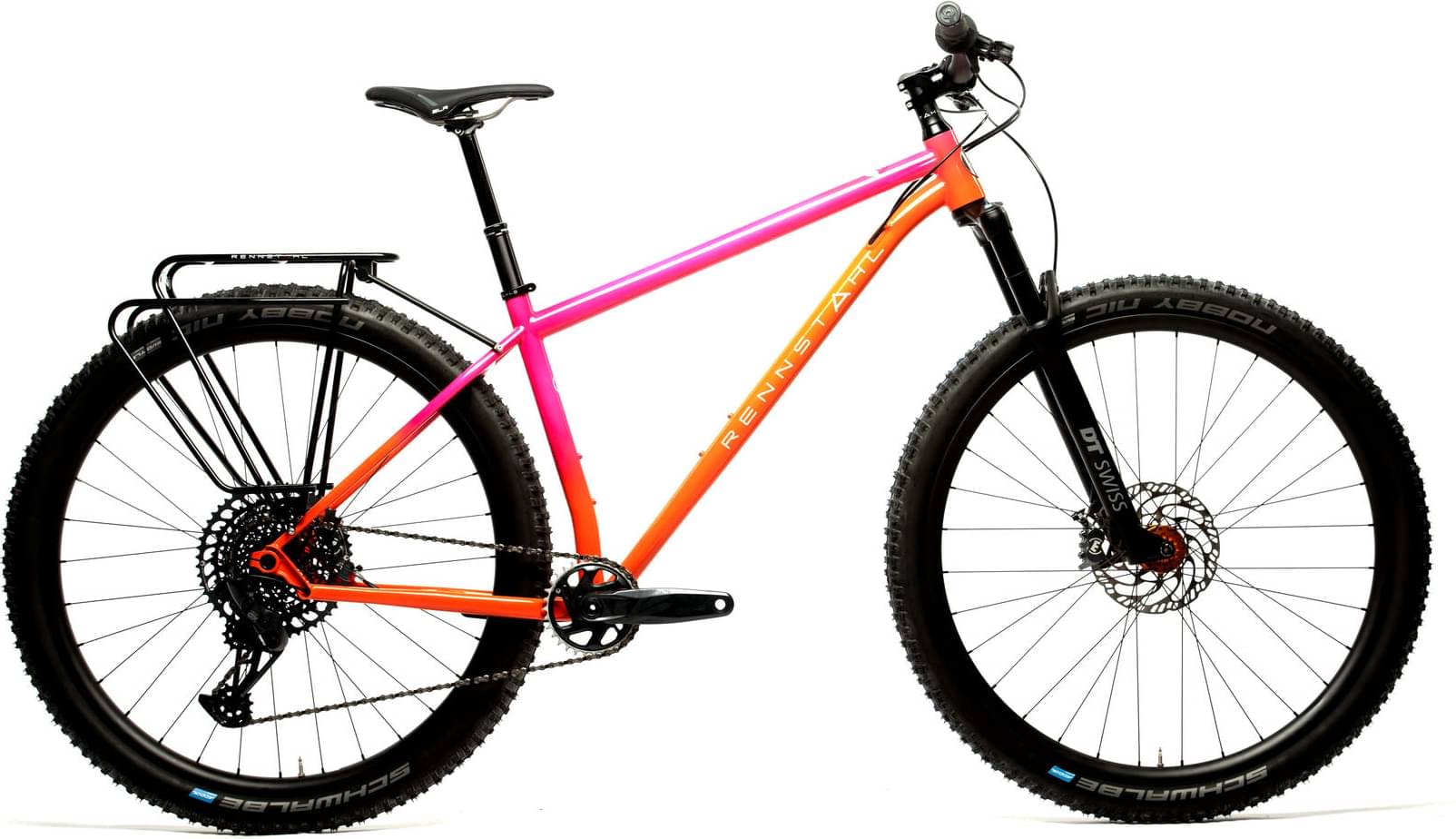

rennstahl 853 Trail MTB Hawaii Edition 2024
2024 Mountain
Estimate price |
5,362$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

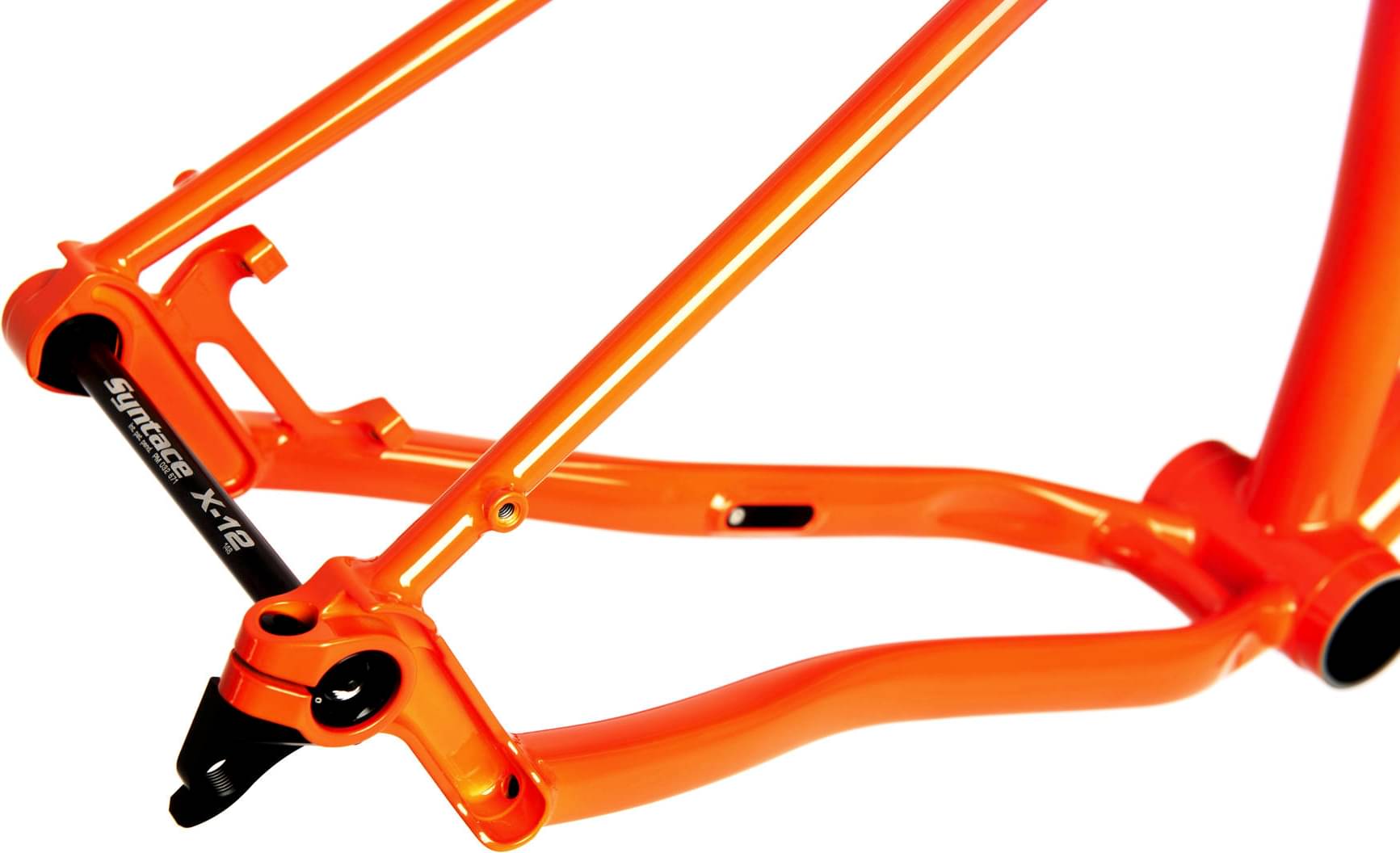

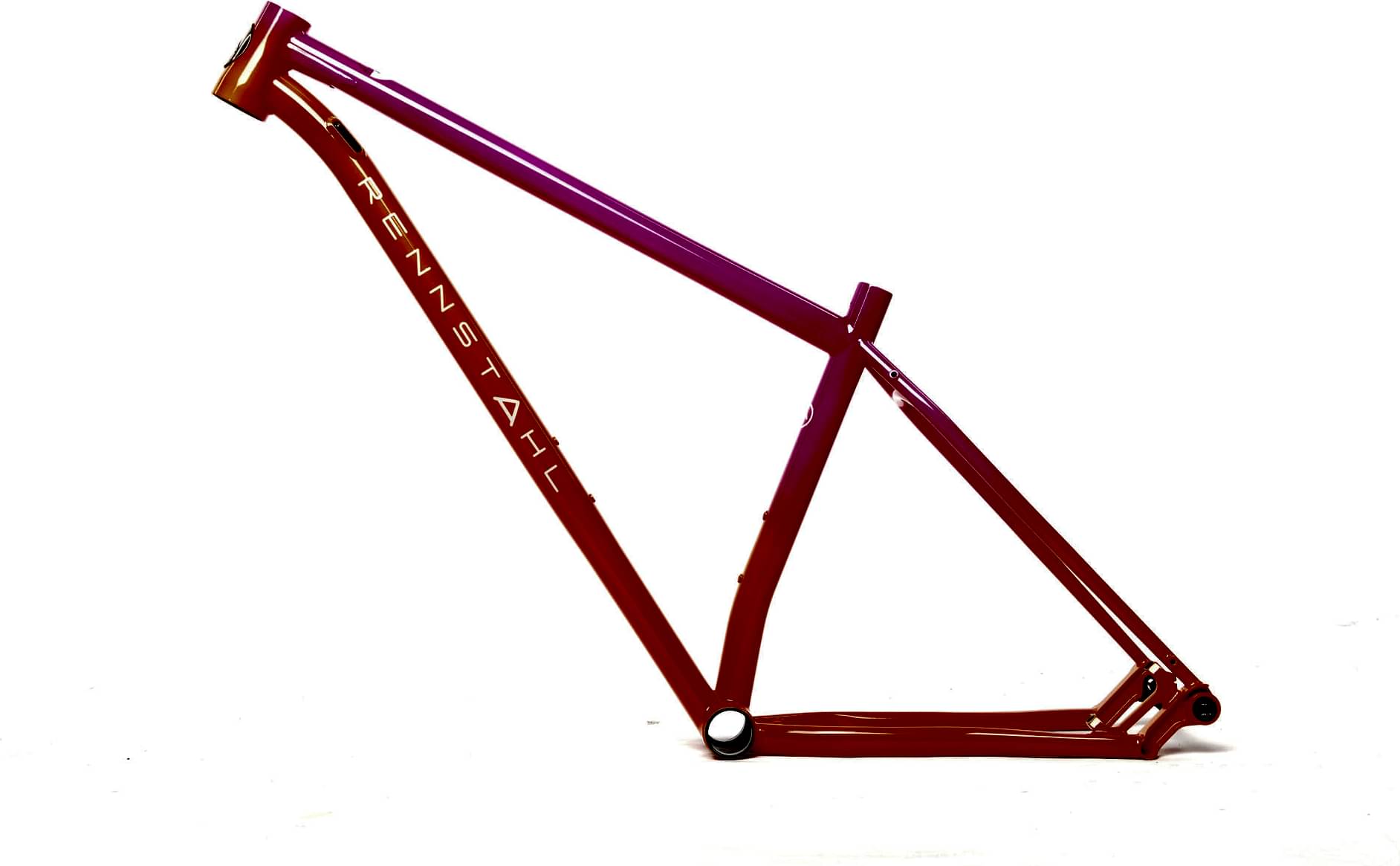

Frame Steel -
Travel Front 130mm -
Fork DT Swiss F 535 ONE
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
DT SWISS F535 - 130mm
Drivetrain

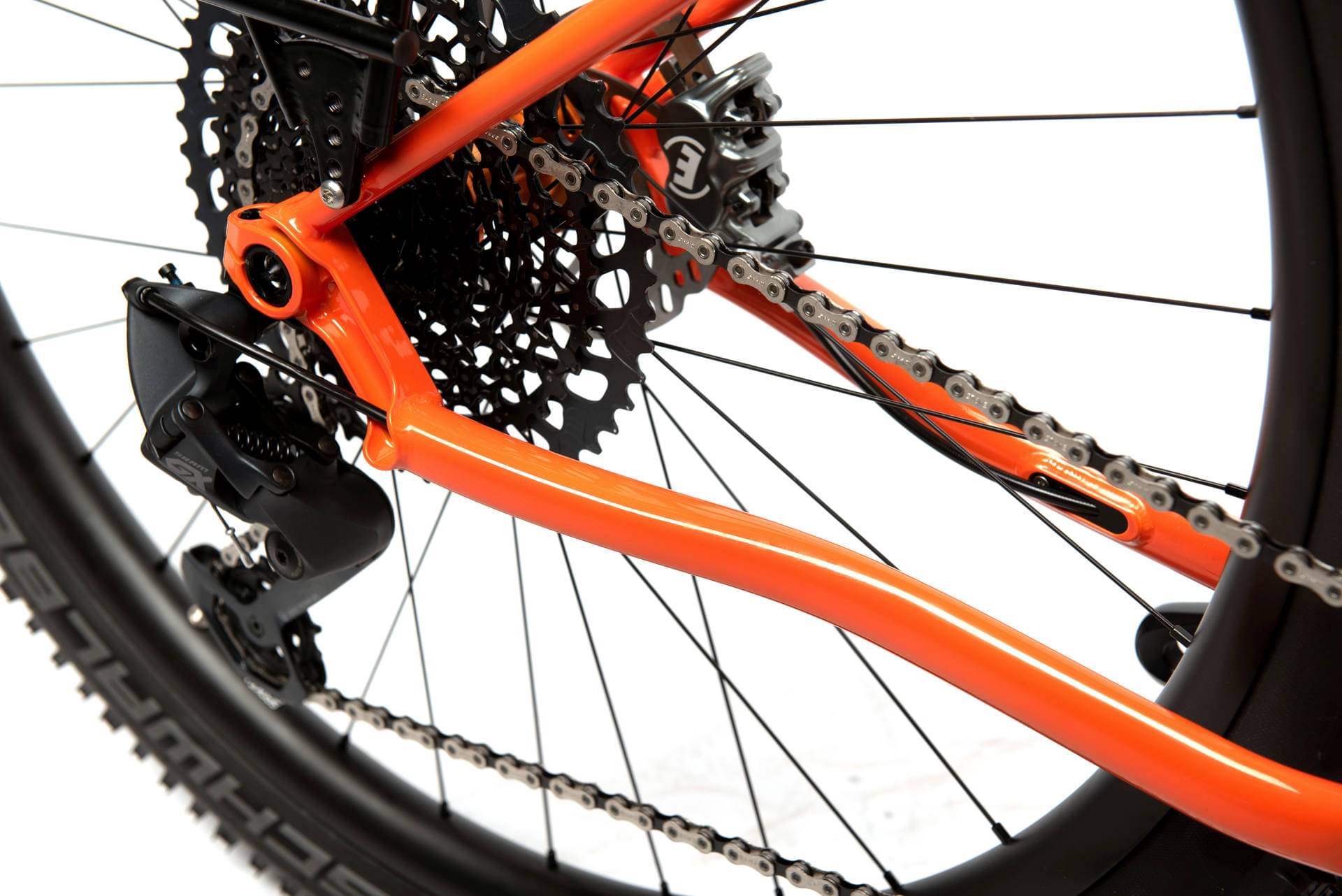

Rear Derailleur
SRAM GX Eagle 1 x 12 Modell 2024
Cassette
12x Eagle 10-52

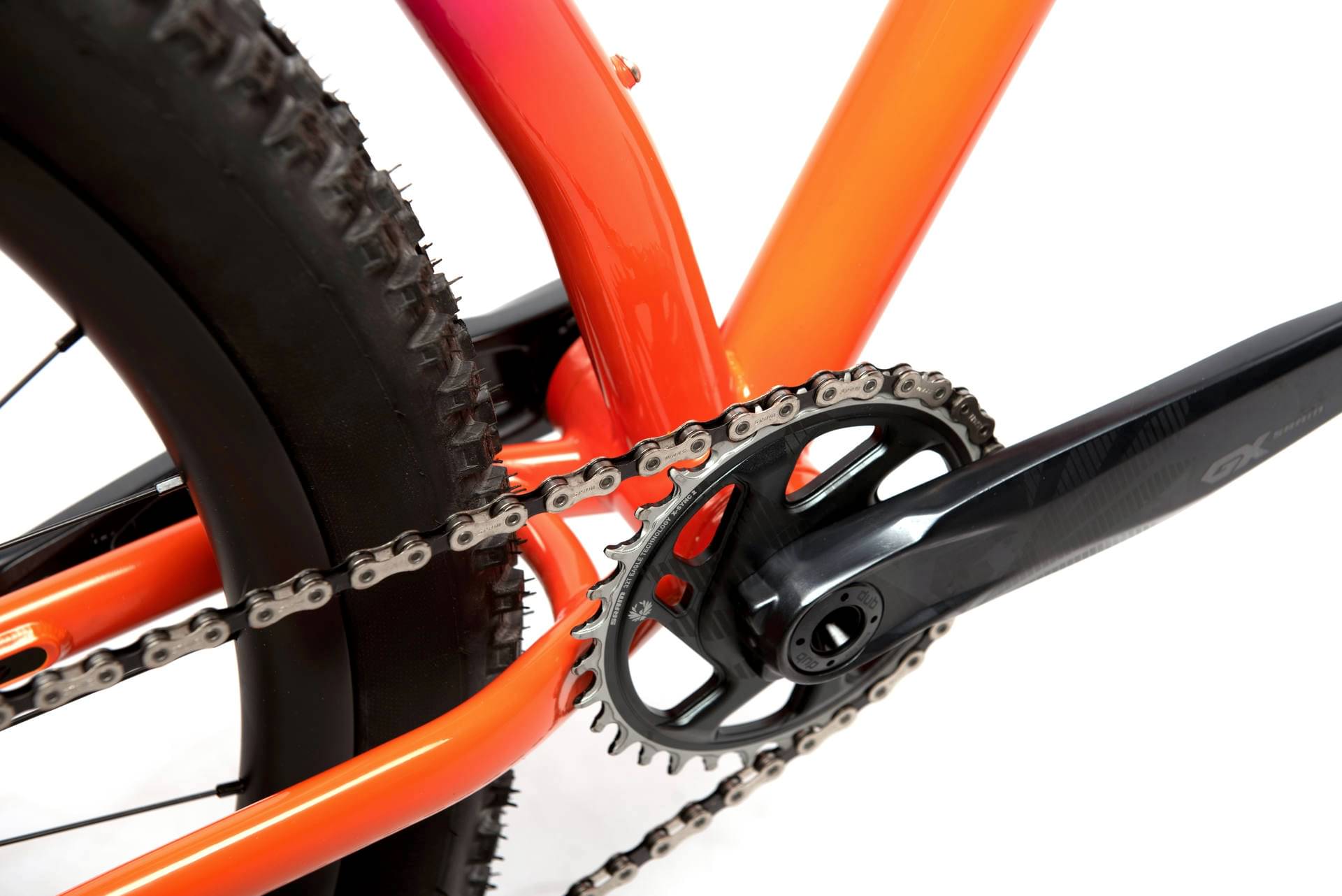

Crank
1x 32
Pedals
without
Wheels
Rims
Tune Race Endurance 29er KING 15/KONGX-12/SAPIM D-Light
Brakes

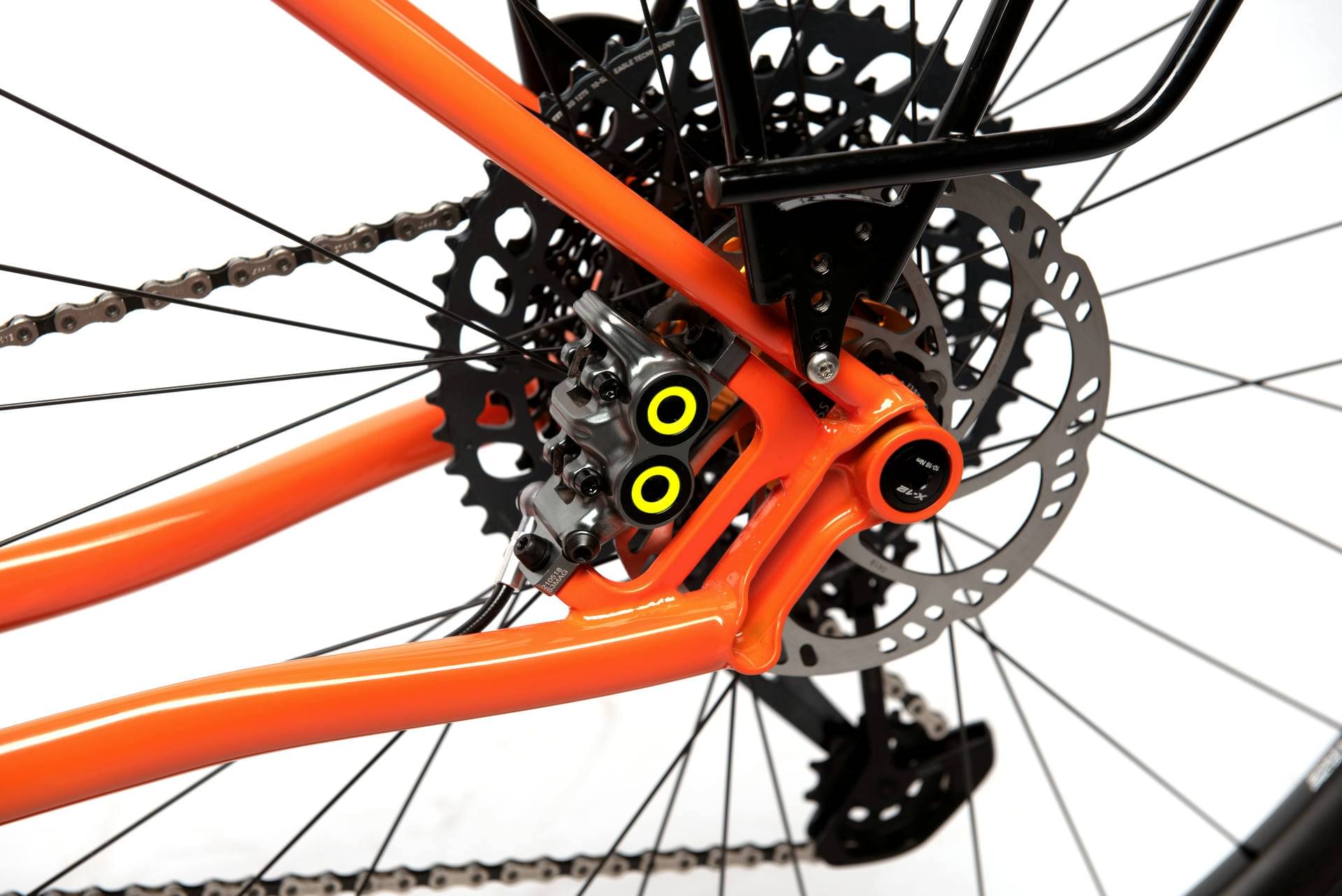

Brakes
Magura MT5

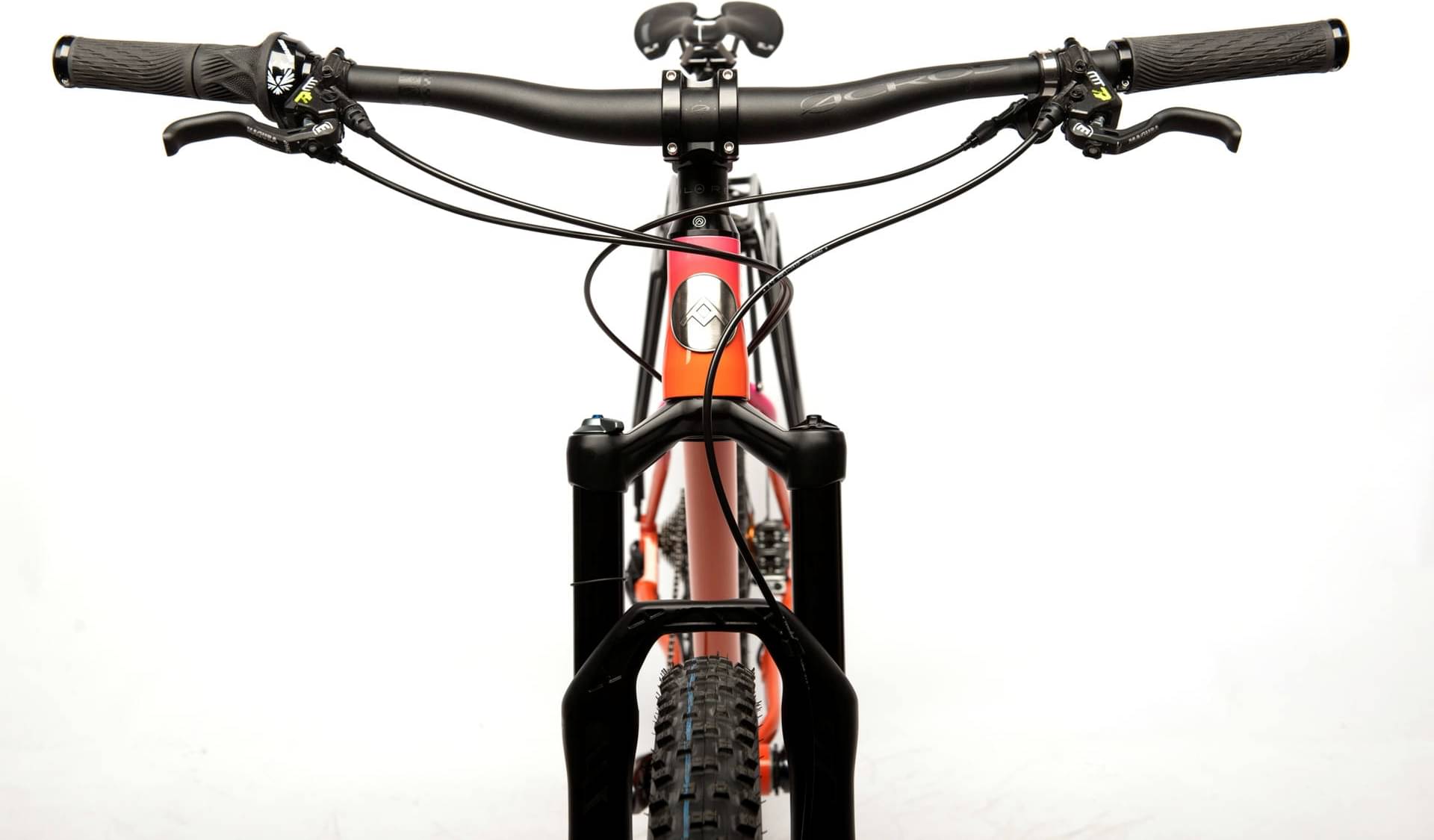

Cockpit
Stem
Acros Gothic 35mm
Handlebar
Acros Gothic Rizer 780mm 35mm diameter - can be shortened, height 15mm, setback 8 degrees, upsweep 5°
Seat
Saddle
without
Seatpost
Syntace P6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.441 mm | 1.424 mm | 1.388 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 732 mm | 757 mm | 781 mm | 804 mm |
| Rake | 41 mm | 49 mm | 55 mm | 54 mm |
| Trail | 118 mm | 109 mm | 103 mm | 104 mm |
| Stack | 635 mm | 644 mm | 655 mm | 666 mm |
| Reach | 435 mm | 447 mm | 460 mm | 480 mm |
| Top Tube Length | 600 mm | 625 mm | 650 | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1155 mm | 1180 mm | 1204 mm | 1228 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm |
