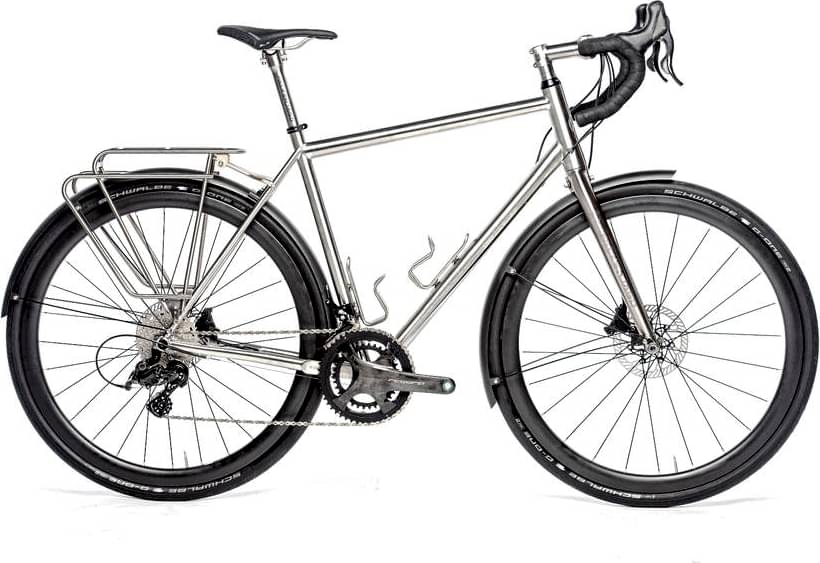

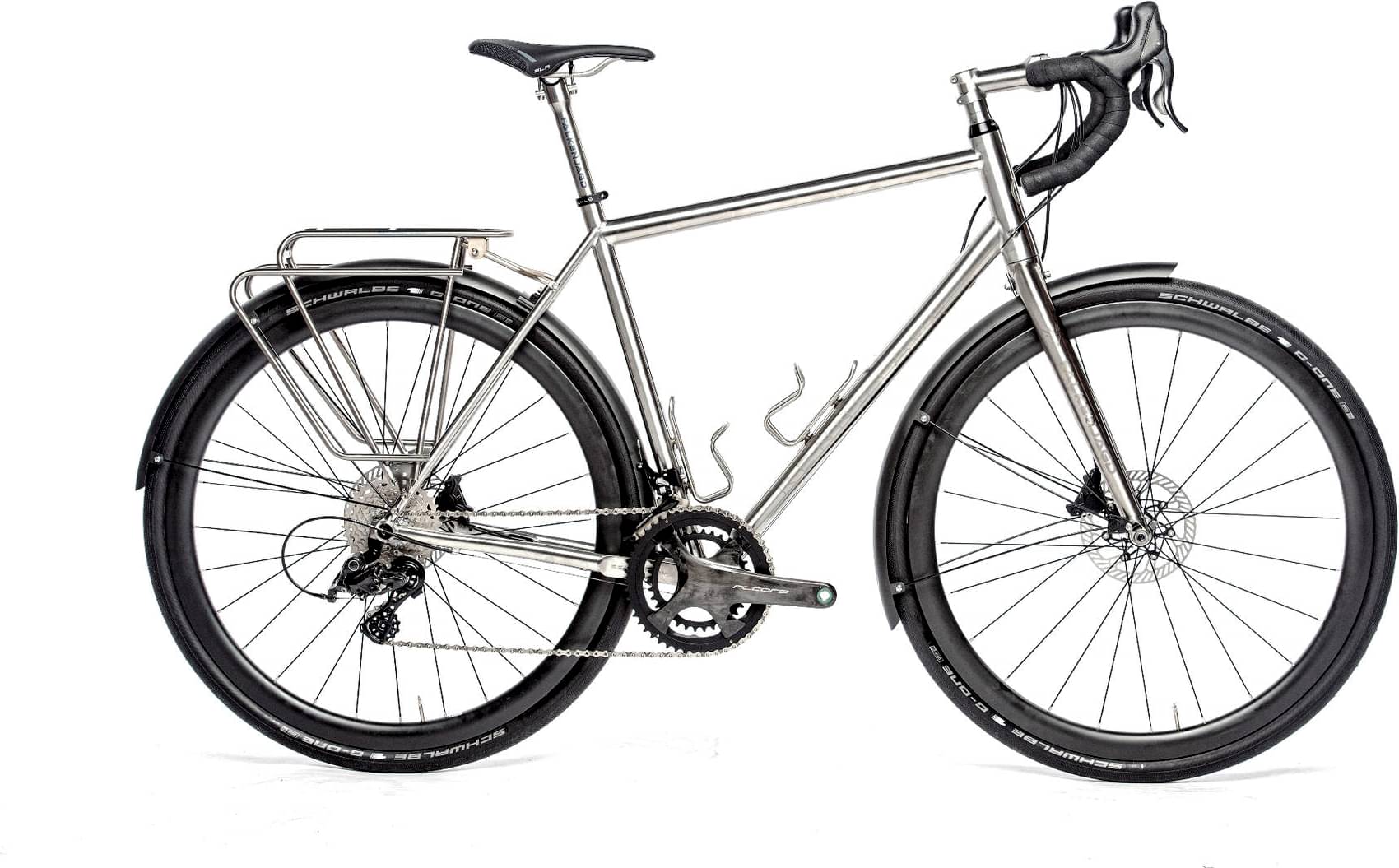

rennstahl 991 Randonneur Touring 2024
2024 Road
Estimate price |
8,254$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

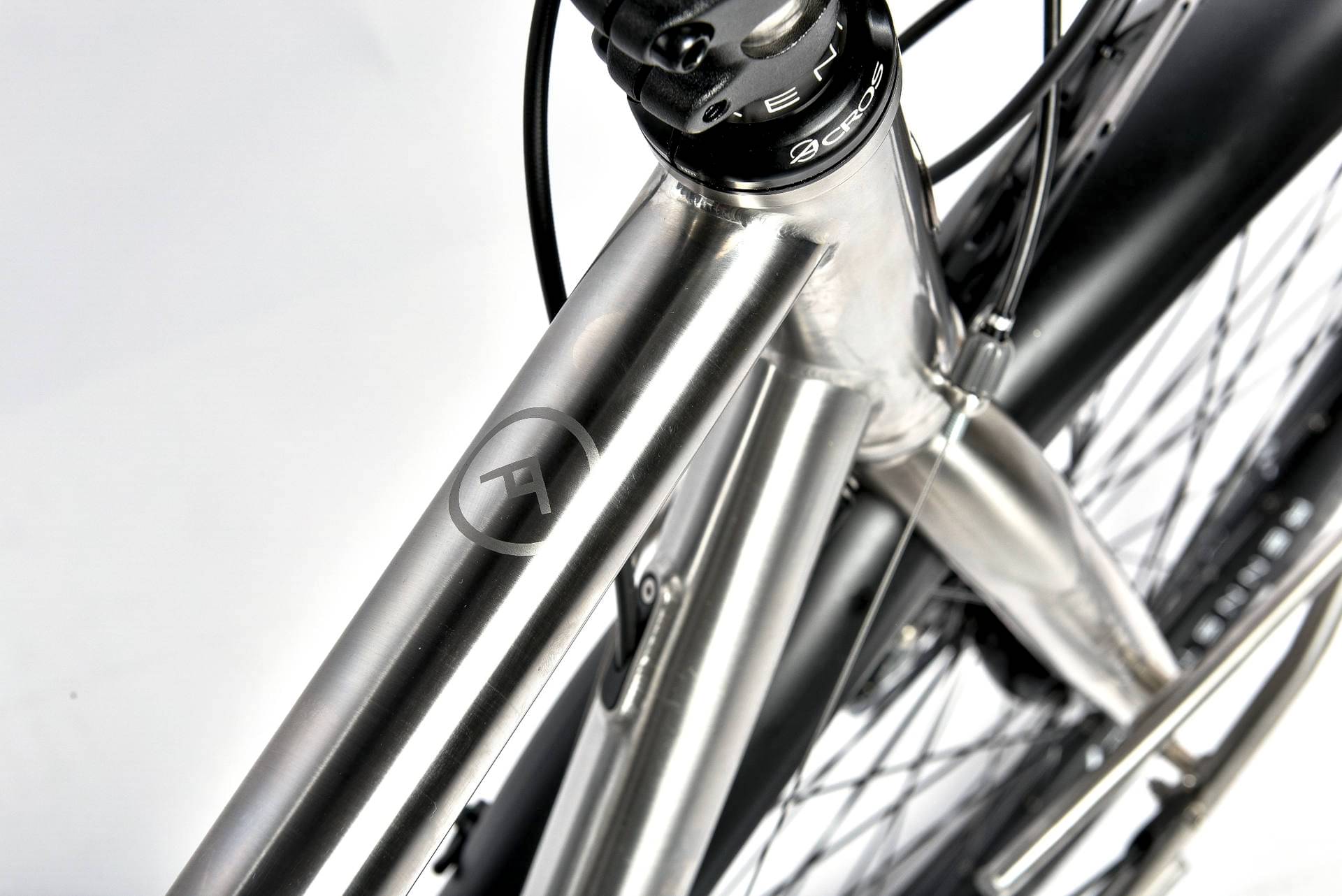

Frame Steel -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FALKENJAGD Titan Cross NEW X-12 standard FLAT-Mount
Drivetrain
Rear Derailleur
Campagnolo Ekar 1x 13

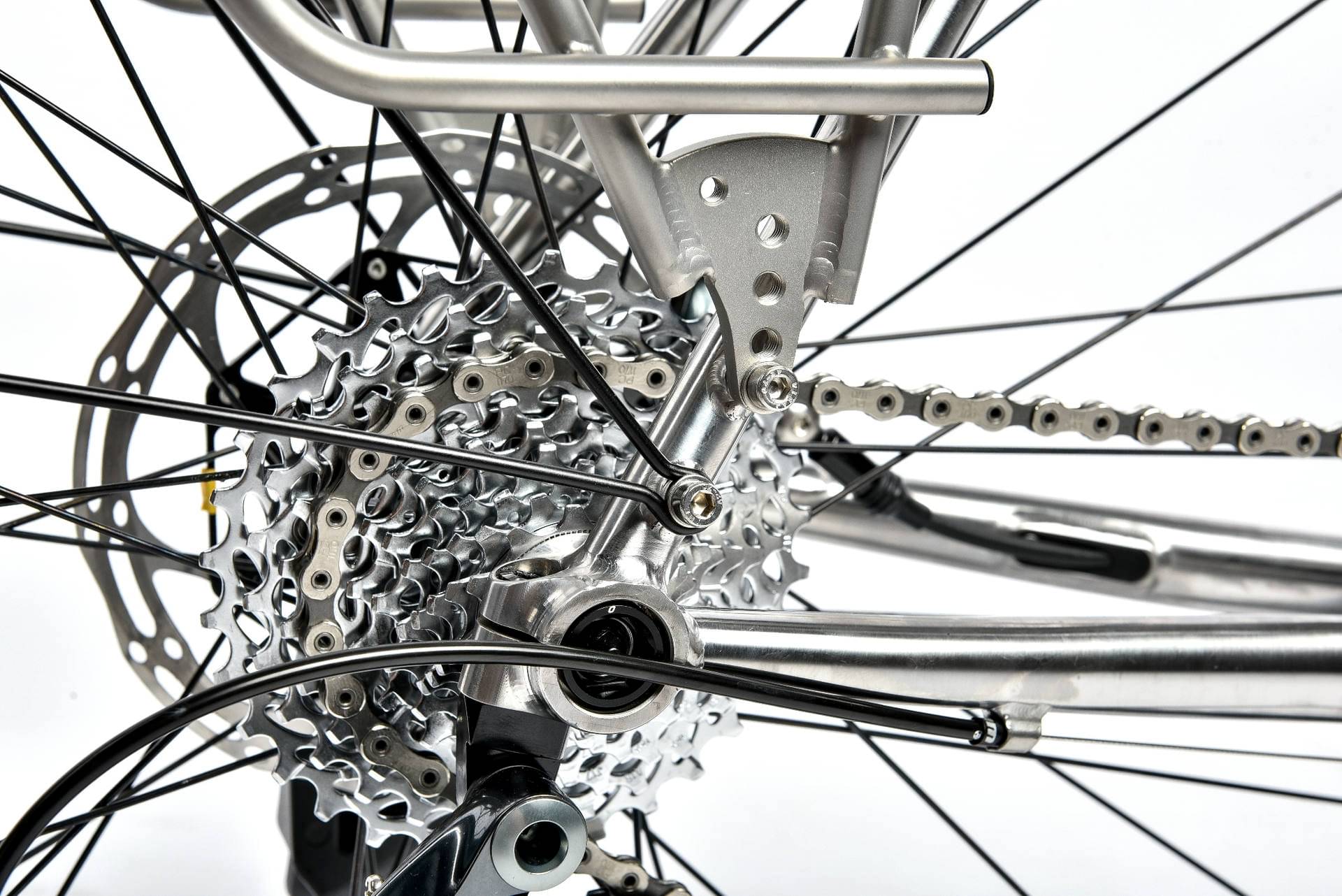

Cassette
EKAR 13-speed 10-44 teeth
Crank

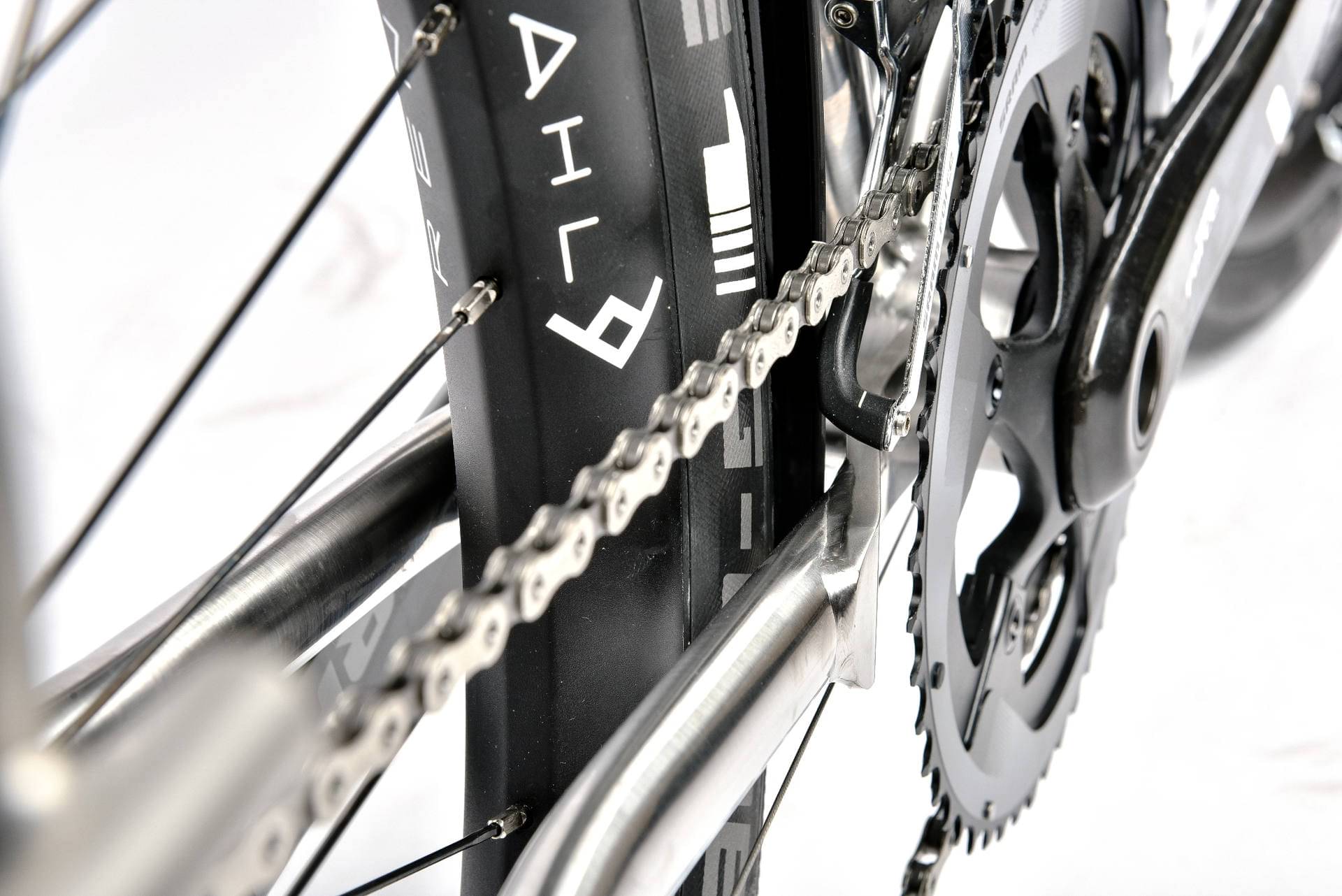

EKAR 13-speed 38T.
Pedals
without
Wheels
Rims

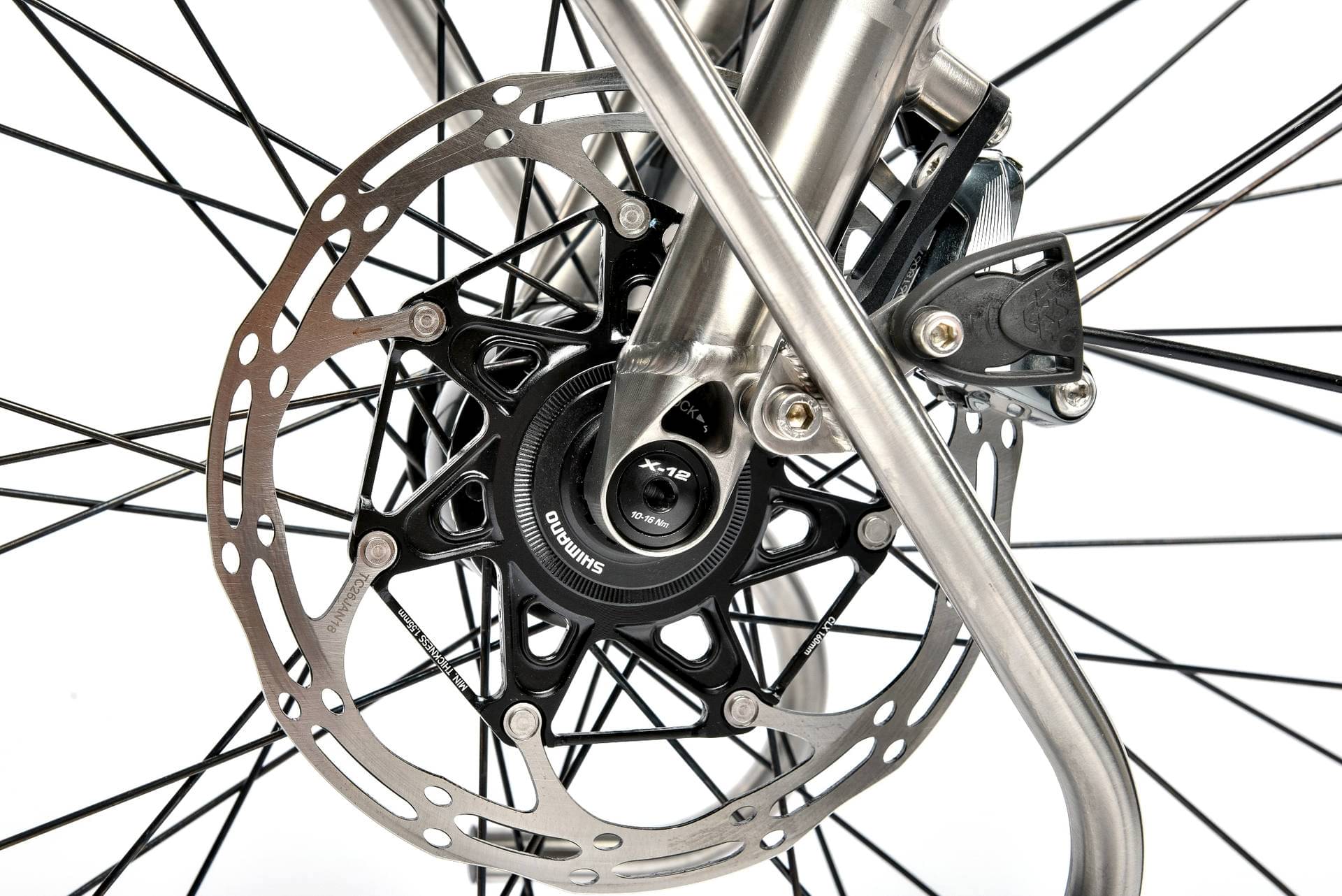

28 inch Mavic 1025 Disc 32L. BLACK: front SON 28 with Tune Climbhill X-12
Brakes
Brakes
Depending on the Campa group you choose
Cockpit

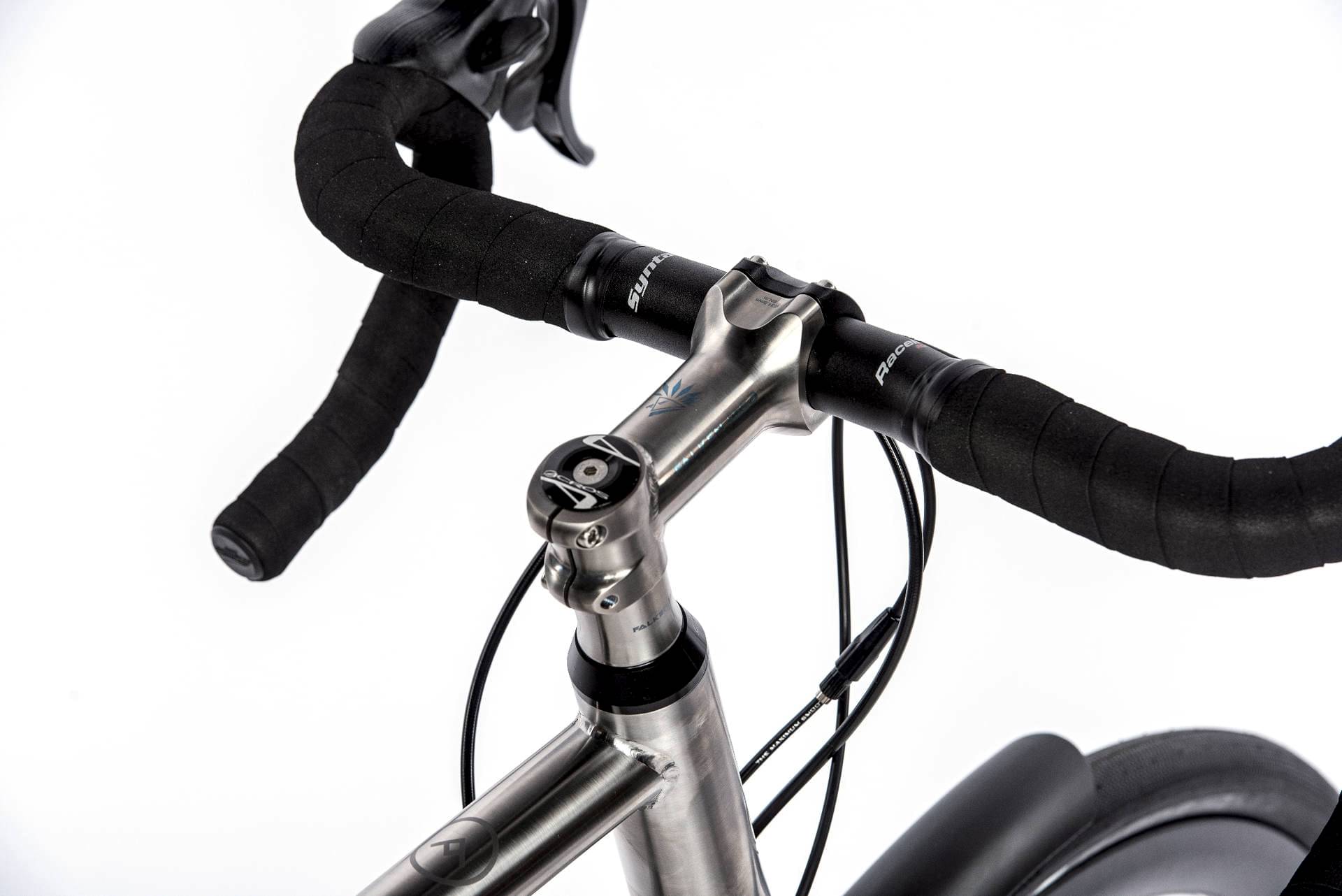

Stem
RACING STEEL Race light Black
Handlebar
Syntace Racelite 420mm
Seat
Saddle
without
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.735 mm | 1.686 mm | 1.645 mm | 1.603 mm | 1.571 mm |
| Bottom Bracket Height | 276 mm | 278 mm | 279 mm | 280 mm | 280 mm |
| Front Center | 691 mm | 696 mm | 713 mm | 732 mm | 744 mm |
| Stack | 656 mm | 666 mm | 676 mm | 686 mm | 696 mm |
| Reach | 378 mm | 395 mm | 411 mm | 428 mm | 443 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 625 mm |
| Seat Tube Angle | 74 ° | 73.25 ° | 73.25 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 72.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm | 185 mm | 230 mm |
| Chainstay Length | 408 mm | 425 mm | 425 mm | 427 mm | 430 mm |
| Wheelbase | 1089 mm | 1111 mm | 1129 mm | 1150 mm | 1165 mm |
| Bottom Bracket Drop | 73 mm | 71 mm | 70 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
