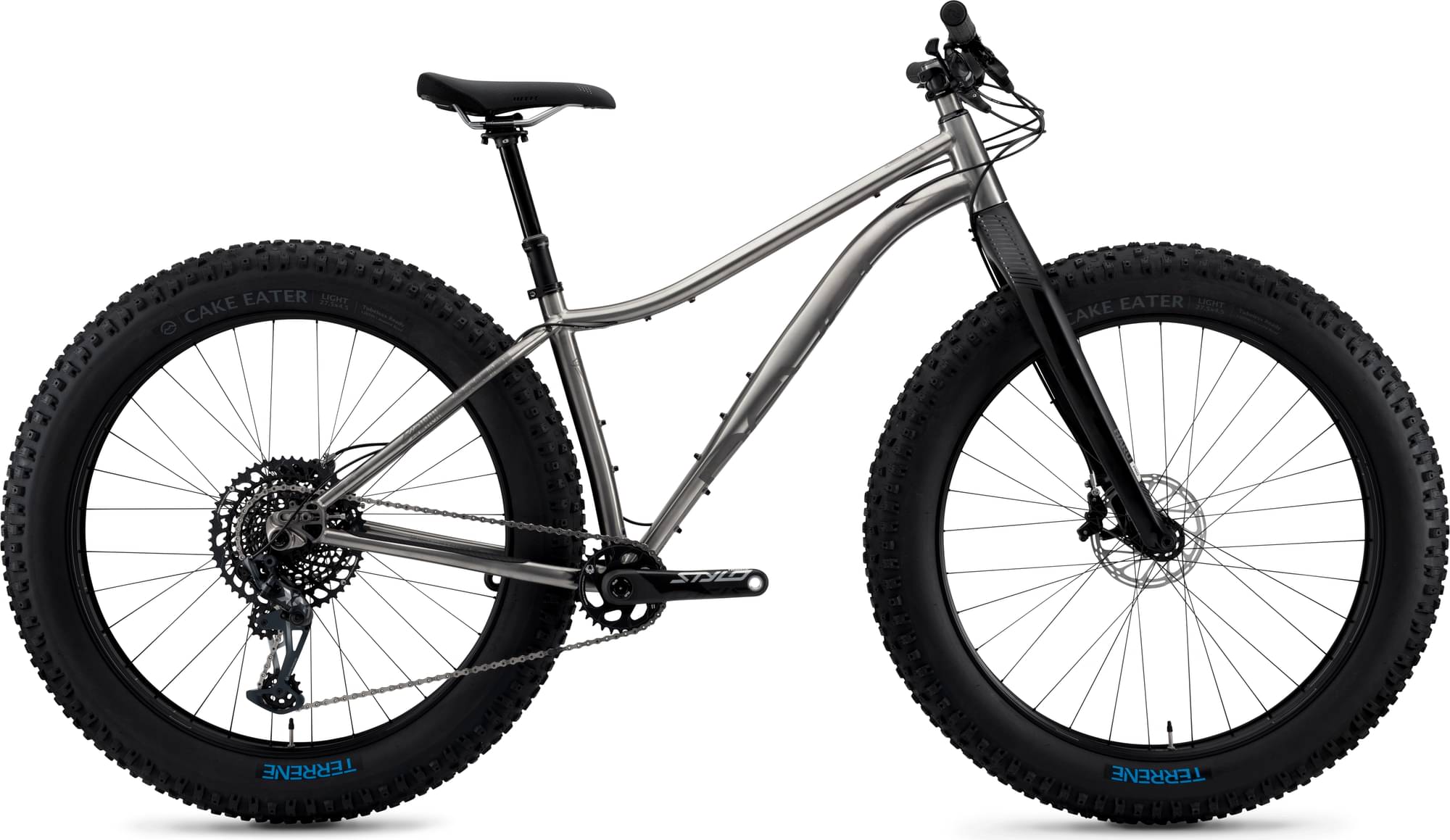

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Fork ENVE -
Groupset GX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Big Iron Fatbike Hardtail
Suspension Fork
ENVE Carbon Fat Bike Fork
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52
Crank
SRAM GX Eagle alloy DUB Fatbike 170mm 30t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM GX Eagle
Wheels
Rims
Sun Ringle MuleFut 80 27.5
Tires
Terrene Cake Eater Light 27.5" x 4.5" Front and Rear
Brakes
Brakes
SRAM G2 R
Cockpit
Stem
Trail 1 Viking 31.8 40mm
Handlebar
Trail 1 Crockett Alloy, 31.8 x 25
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-AlloySDG Bel-Air Lux-Alloy
Seatpost
Crank Brothers Highline 7, SM/MD/LG (31.6mm x 125mm), XL (31.6mm x 150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.431 mm | 1.407 mm | 1.34 mm | 1.316 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 685 mm | 712 mm | 734 mm | 757 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 611 mm | 622 mm | 627 mm | 637 mm |
| Reach | 427 mm | 442 mm | 468 mm | 484 mm |
| Top Tube Length | 574 mm | 614 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 407 mm | 457 mm | 492 mm |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 116 mm | 127 mm | 132 mm | 143 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1122 mm | 1149 mm | 1172 mm | 1195 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 680 mm | 720 mm | 740 mm | 775 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 198 cm |
