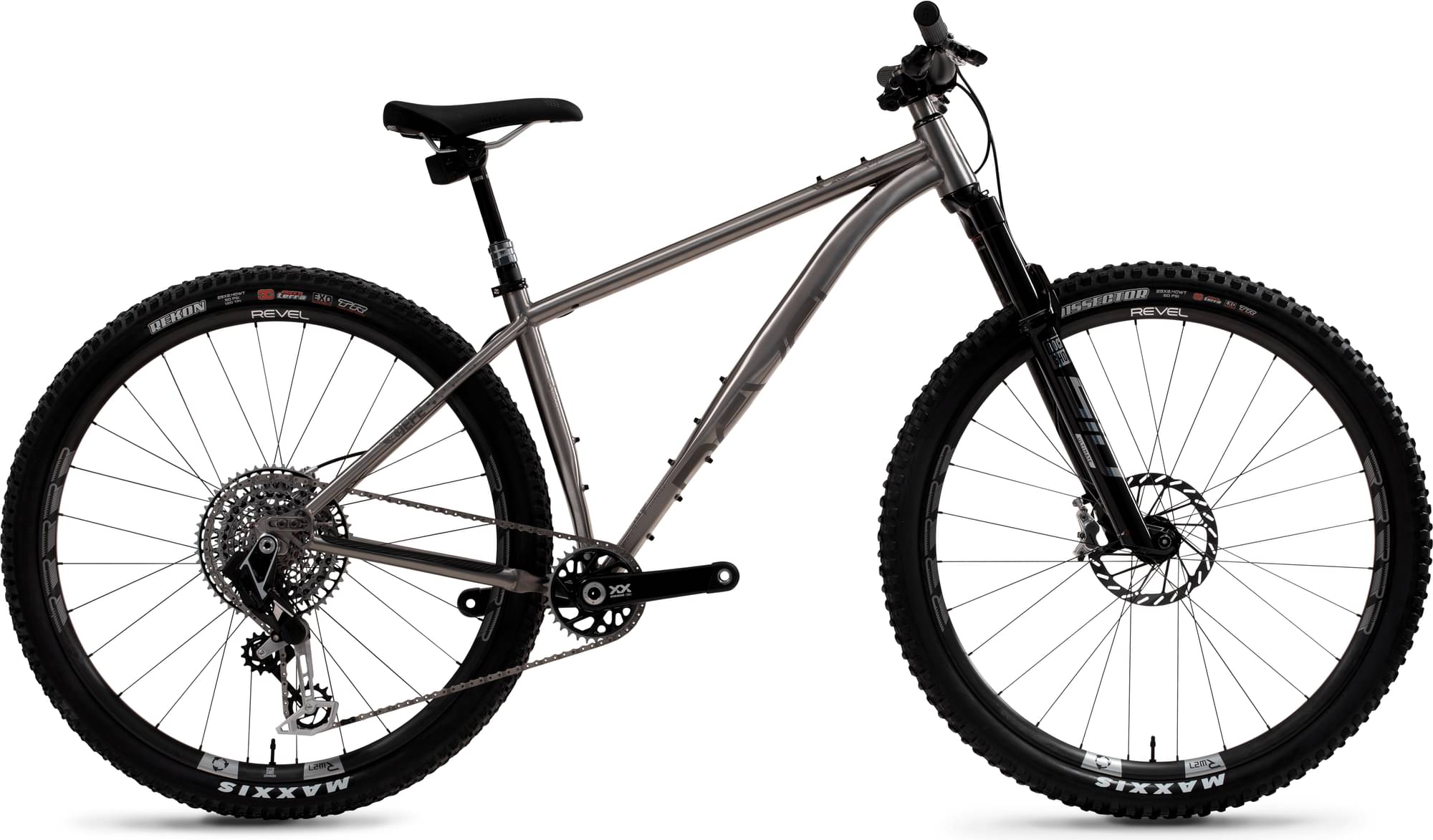

Revel El Jefe XX Eagle Transmission 2024
2024 Mountain
Estimate price |
9,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Travel Front 120mm -
Fork RockShox SID Ultimate
-
Groupset XX, XX Eagle Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel El Jefe 29" Hardtail
Suspension Fork
RockShox SID Ultimate 120mm
Drivetrain
Rear Derailleur
SRAM XX ET
Shift Levers
SRAM AXS Shifter Pod Ultimate
Cassette
SRAM XX ET T-Type
Crank
SRAM XX Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB BSA Wide
Chain
SRAM XX ET T-Type
Wheels
Rims
Zipp 1ZERO HiTOP SW Carbon
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM Level Ultimate Stealth
Cockpit
Stem
Trail 1 Viking 35 40mm
Handlebar
Trail 1 Crockett Carbon, 35 x 20
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-Alloy
Seatpost
Rockshox Reverb AXS, SM (31.6mm x 125mm), MD (31.6mm x 125mm), LG (31.6mm x 150mm), XL (31.6 x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.377 mm | 1.334 mm | 1.297 mm | 1.257 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 710 mm | 735 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 599 mm | 607 mm | 615 mm | 627 mm |
| Reach | 435 mm | 455 mm | 474 mm | 499 mm |
| Top Tube Length | 590 mm | 615 mm | 640 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 374 mm | 420 mm | 460 mm | 485 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 86 mm | 96 mm | 106 mm | 116 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1121 mm | 1146 mm | 1167 mm | 1199 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 700 | 735 mm | 770 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 198 cm |
