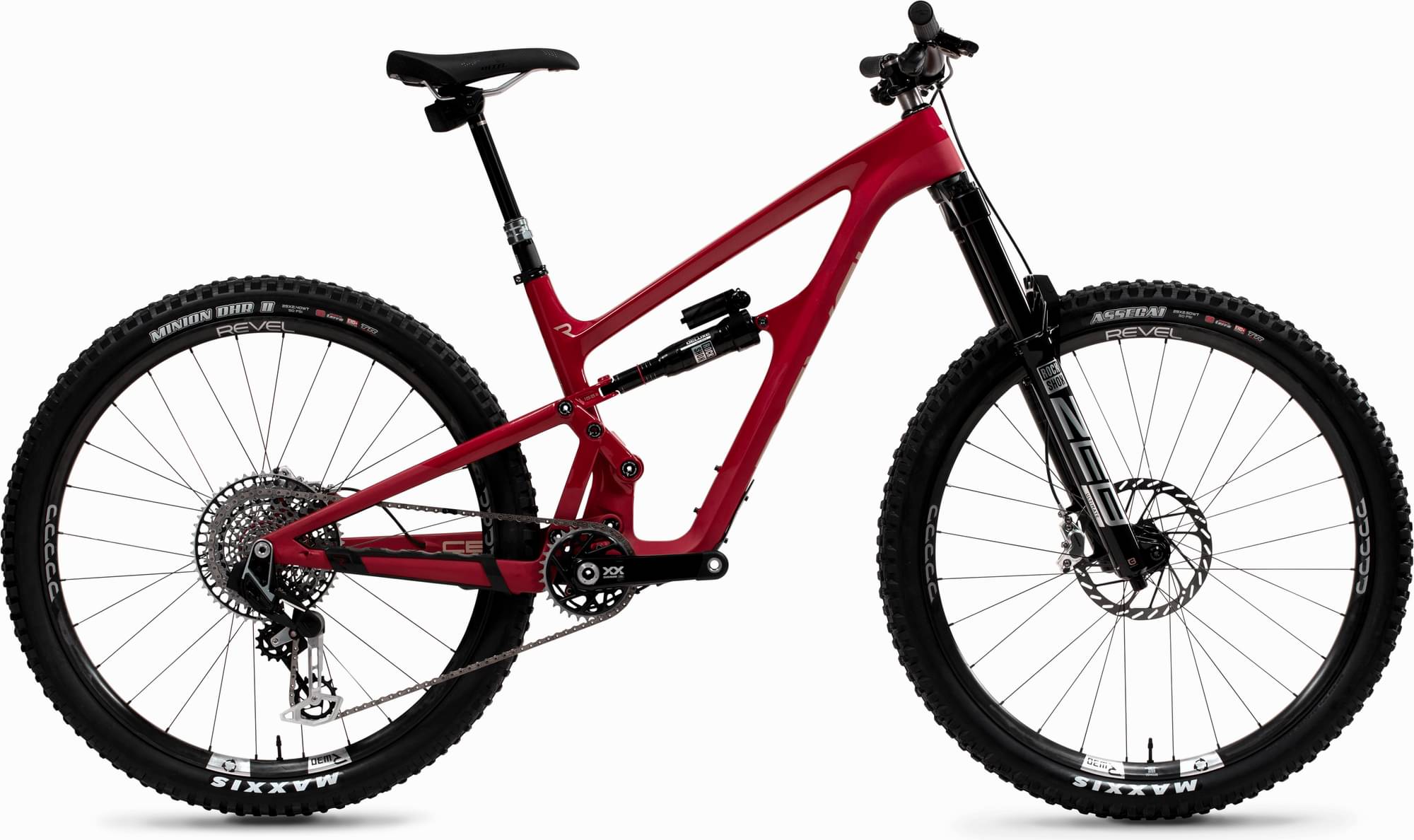

Revel Rail29 160mm GX Eagle 2024
2024 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 155mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
DVO Diamond D1 160mm – Black
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52
Crank
SRAM GX Eagle Alloy DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM GX Eagle
Wheels
Rims
Crank Bros. Synthesis Enduro Rims, Industry Nine 1/1 Hubs
Tires
Maxxis Minion DHF 29×2.5 EXO TR Front, Maxxis Minion DHR ll 29×2.4 3CT EXO+ TR Rear
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Trail 1 Viking 31.8 40mm
Handlebar
Trail 1 Crockett Alloy, 31.8 x 25
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SM/M: SDG Radar Lux-Alloy L/XL: SDG Bel-Air Lux-Alloy
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL (31.6 x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.405 mm | 1.358 mm | 1.308 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 747 mm | 768 mm | 794 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 625 mm | 628 mm | 637 mm | 646 mm |
| Reach | 427 mm | 447 mm | 469 mm | 494 mm |
| Top Tube Length | 585 mm | 606 mm | 630 mm | 658 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1181 mm | 1202 mm | 1228 mm | 1257 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 716 mm | 719 mm | 728 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
