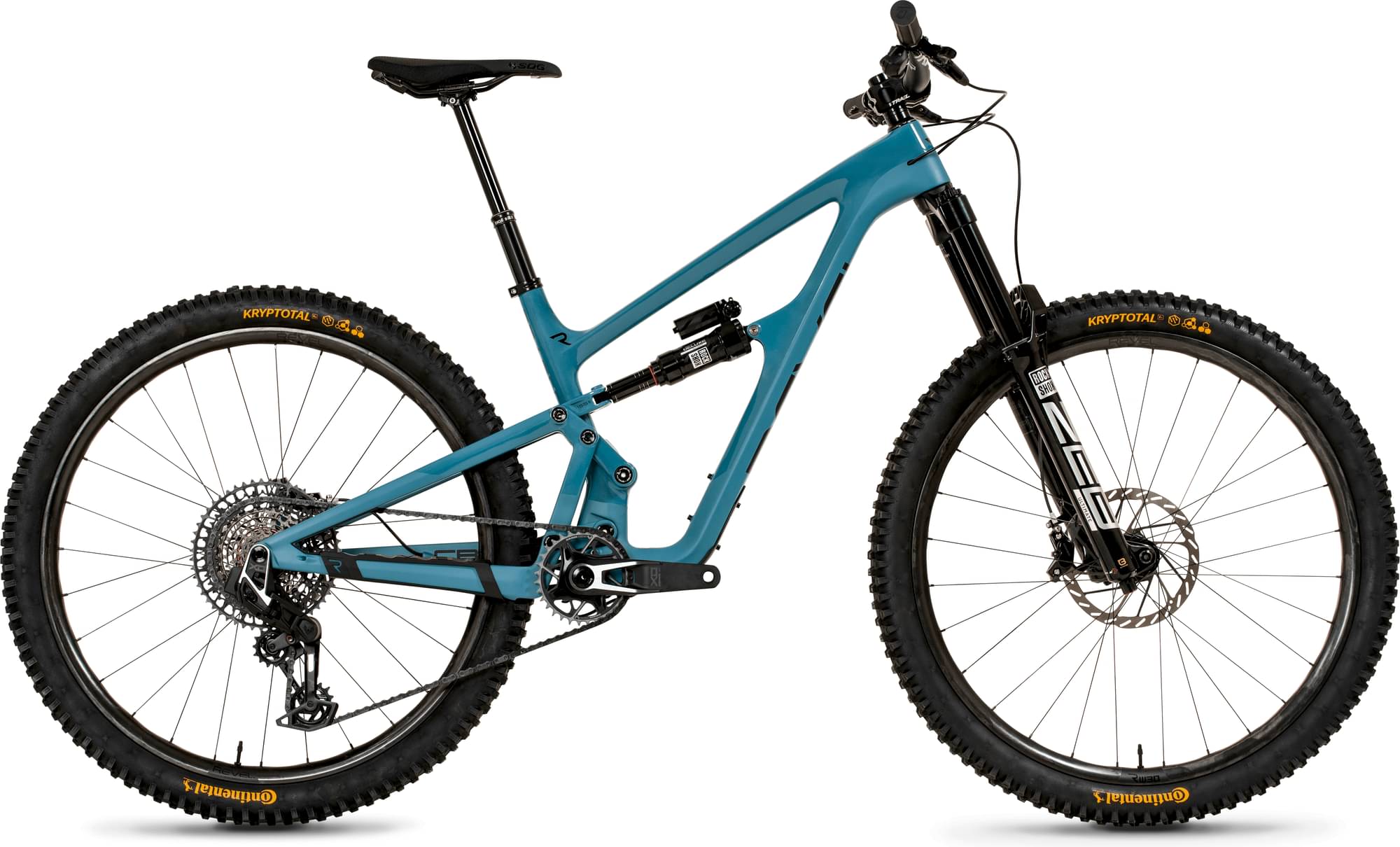

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 155mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
RockShox ZEB Select + 170mm 44 A2
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52
Crank
SRAM GX Eagle Alloy DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM GX Eagle
Wheels
Rims
Crank Bros. Synthesis Enduro Rims, Industry Nine 1/1 Hubs
Tires
Continental Kryptotal 29" x 2.4" Enduro-F Soft Front, Continental Kryptotal 29" x 2.4" Enduro-R Soft Rear
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Trail 1 Viking 31.8 40mm
Handlebar
Trail 1 Crockett Alloy 31.8x25
Grips
Trail 1 Farlow Gap Grip - Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Saddle Bel Air V3 Lux-Alloy Black
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL (31.6 x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.428 mm | 1.379 mm | 1.329 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 758 mm | 779 mm | 805 mm | 835 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 628 mm | 631 mm | 640 mm | 650 |
| Reach | 422 mm | 442 mm | 464 mm | 489 mm |
| Top Tube Length | 585 mm | 606 mm | 630 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1193 mm | 1214 mm | 1240 mm | 1270 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 719 mm | 723 mm | 732 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
