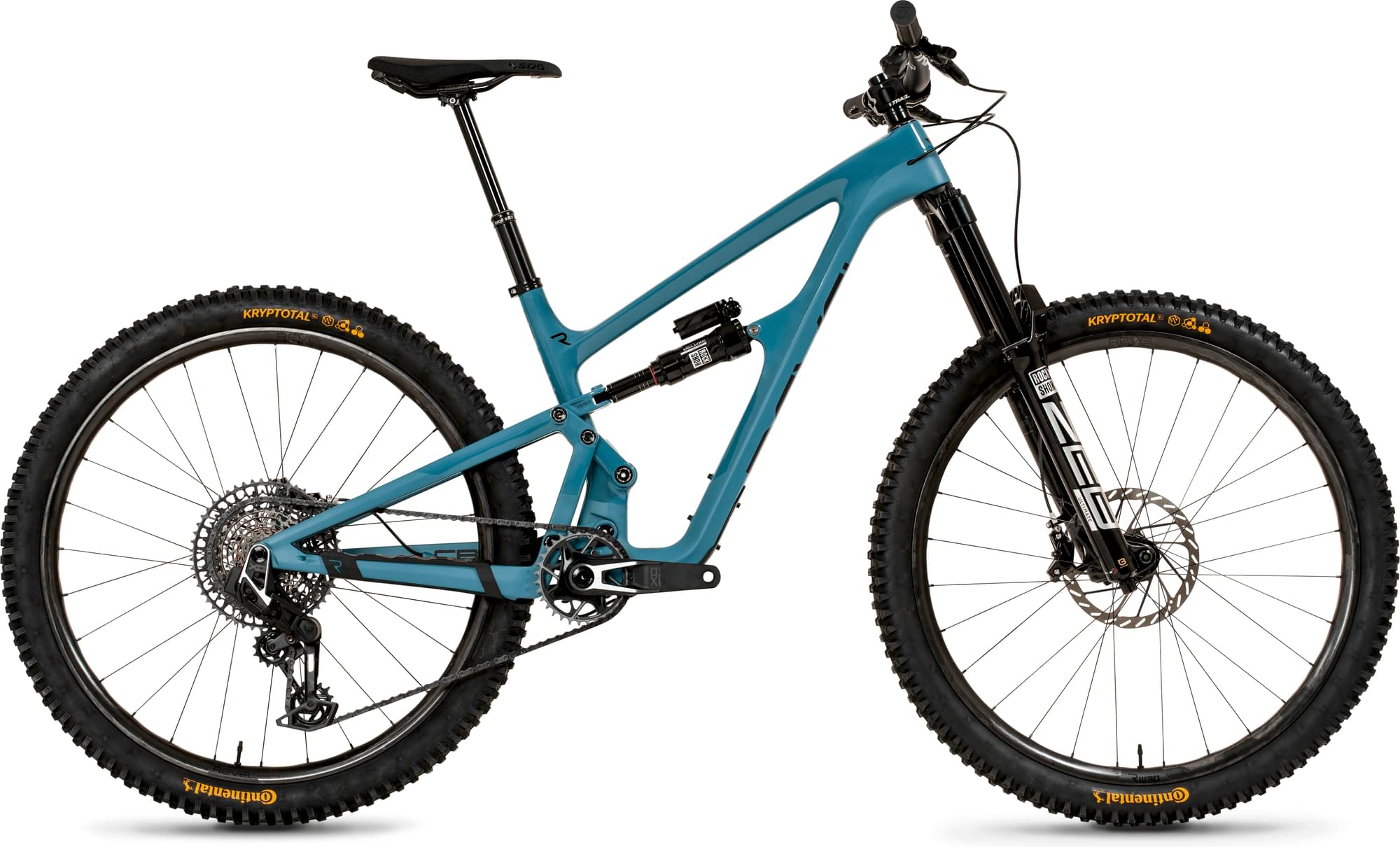

Revel Rail29 XX Eagle Transmission 2024
2024 Mountain
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 155mm -
Fork RockShox ZEB Ultimate
-
Groupset XX, XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
RockShox ZEB Ultimate 170mm 44 A2
Rear Shock
Rockshox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX ET
Shift Levers
SRAM AXS Shifter Pod Ultimate
Cassette
SRAM XX ET T-Type
Crank
SRAM XX Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB BSA Wide
Chain
SRAM XX ET T-Type
Wheels
Rims
Revel RW30 28h Rims, Industry Nine Hydra Hubs
Tires
Continental Kryptotal 29" x 2.4" Enduro-F Soft Front, Continental Kryptotal 29" x 2.4" Enduro-R Soft Rear
Brakes
Brakes
SRAM Code Ultimate Stealth
Cockpit
Stem
Trail 1 Viking 35 40mm
Handlebar
Trail 1 Crockett Carbon, 35 x 20mm
Grips
Trail 1 Farlow Gap Grip - Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Saddle Bel Air V3 Lux-Alloy Black
Seatpost
Bike Yoke Revive 2.0, SM (31.6mm x 125mm), MD (31.6mm x 160mm), LG (31.6mm x 185mm), XL/XXL(31.6mm x 213mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.428 mm | 1.379 mm | 1.329 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 758 mm | 779 mm | 805 mm | 835 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 628 mm | 631 mm | 640 mm | 650 |
| Reach | 422 mm | 442 mm | 464 mm | 489 mm |
| Top Tube Length | 585 mm | 606 mm | 630 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1193 mm | 1214 mm | 1240 mm | 1270 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 719 mm | 723 mm | 732 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
