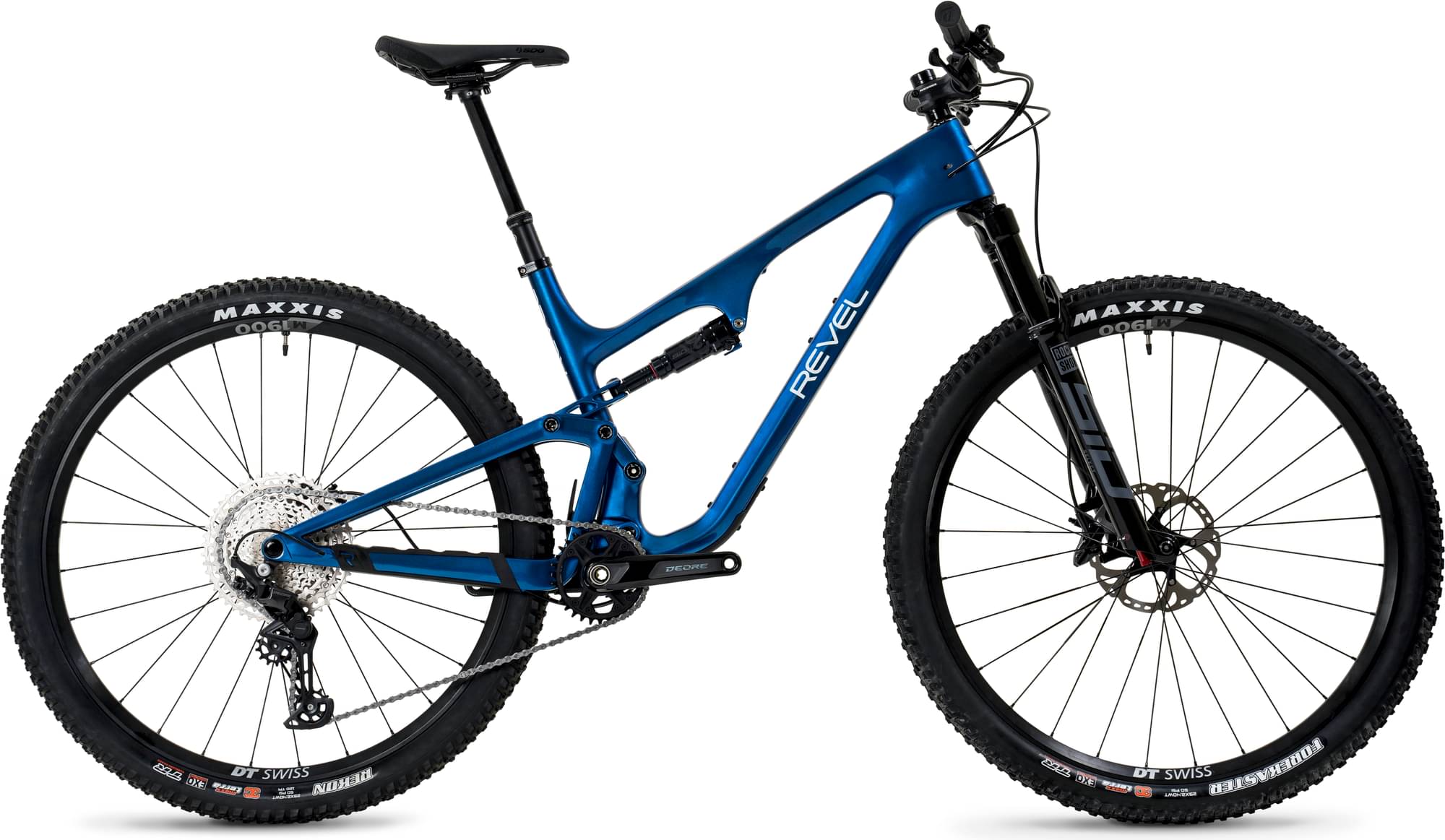

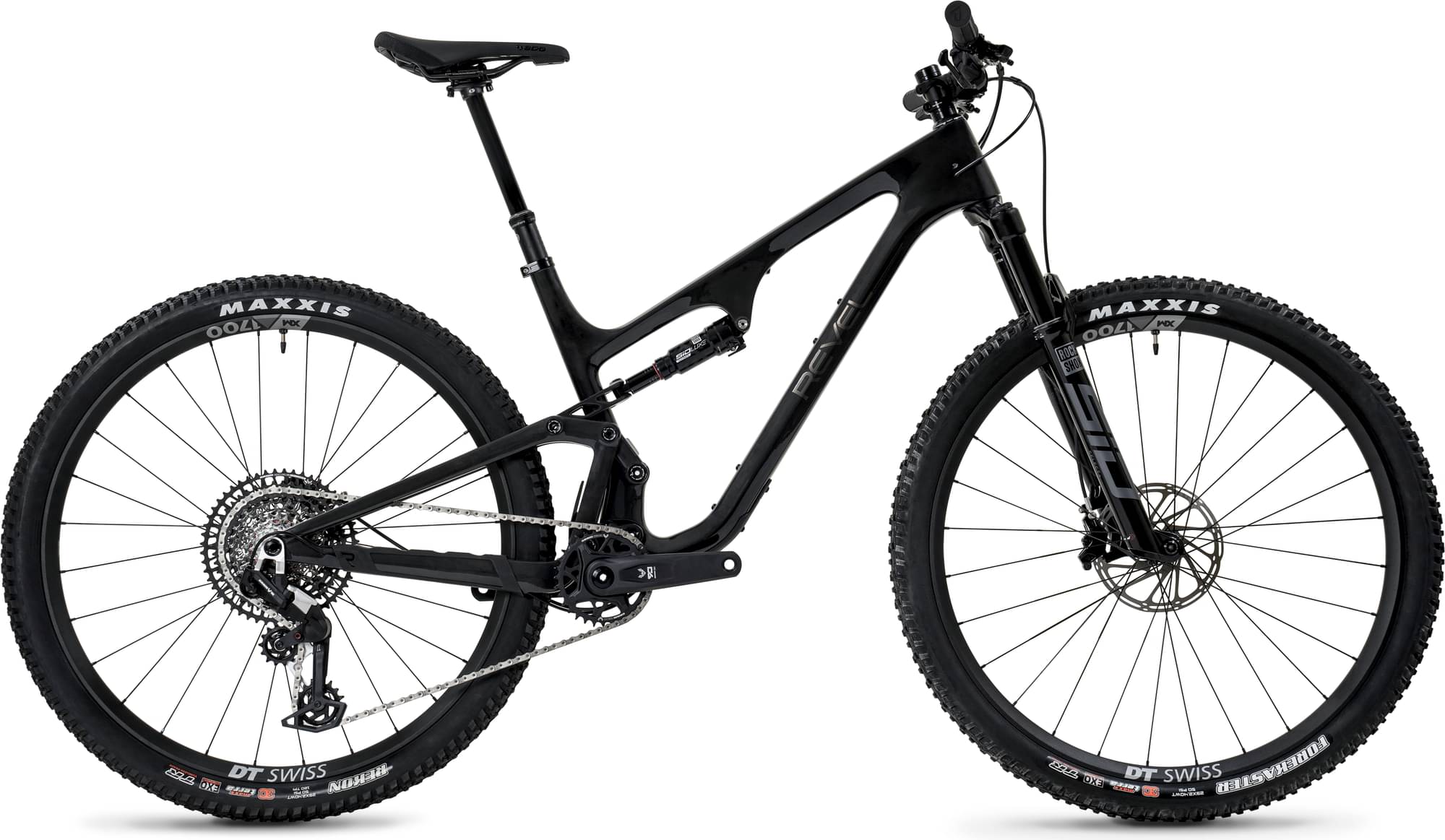

Revel Ranger Shimano Deore 2025
2025 Mountain
Estimate price |
4,999$
Weight | 13.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Select
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Ranger Carbon 115mm
Suspension Fork
RockShox SID Select 3P 120mm
Rear Shock
RockShox SID Luxe SEL+, 190x45
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100 10-51t
Crank
Shimano Deore M6120 170mm 32t
Bottom Bracket
Shimano BB MT501 73mm Threaded
Chain
Shimano Deore M6100
Wheels
Front Hub
DT Swiss 370 XD 36t ratchet
Rear Hub
DT Swiss 370 XD 36t ratchet
Rims
(1)DT Swiss M1900 Spline 30 Alloy, (2) Novatech Diablo XL 29
Tires
Front: Maxxis Forekaster 29? x 2.4? 3C EXO Rear, Rear: Maxxis Rekon 3C EXO 29"x 2.4
Brakes
Brakes
Shimano Deore M6120 4-Piston
Cockpit
Stem
RaceFace Aeffect 35x50mm
Handlebar
RaceFace Aeffect Alloy, 35x760 20mm
Grips
RaceFace Chester
Headset
Cane Creek 40-series IS52/42
Seat
Saddle
SDG Bel-Air Lux
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL (31.6mm x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.344 mm | 1.309 mm | 1.263 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 600 mm | 609 mm | 619 mm | 629 mm |
| Reach | 430 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 594 mm | 616 mm | 639 mm | 667 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1146 mm | 1170 mm | 1194 mm | 1223 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 699 mm | 699 mm | 699 mm | 700 |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
