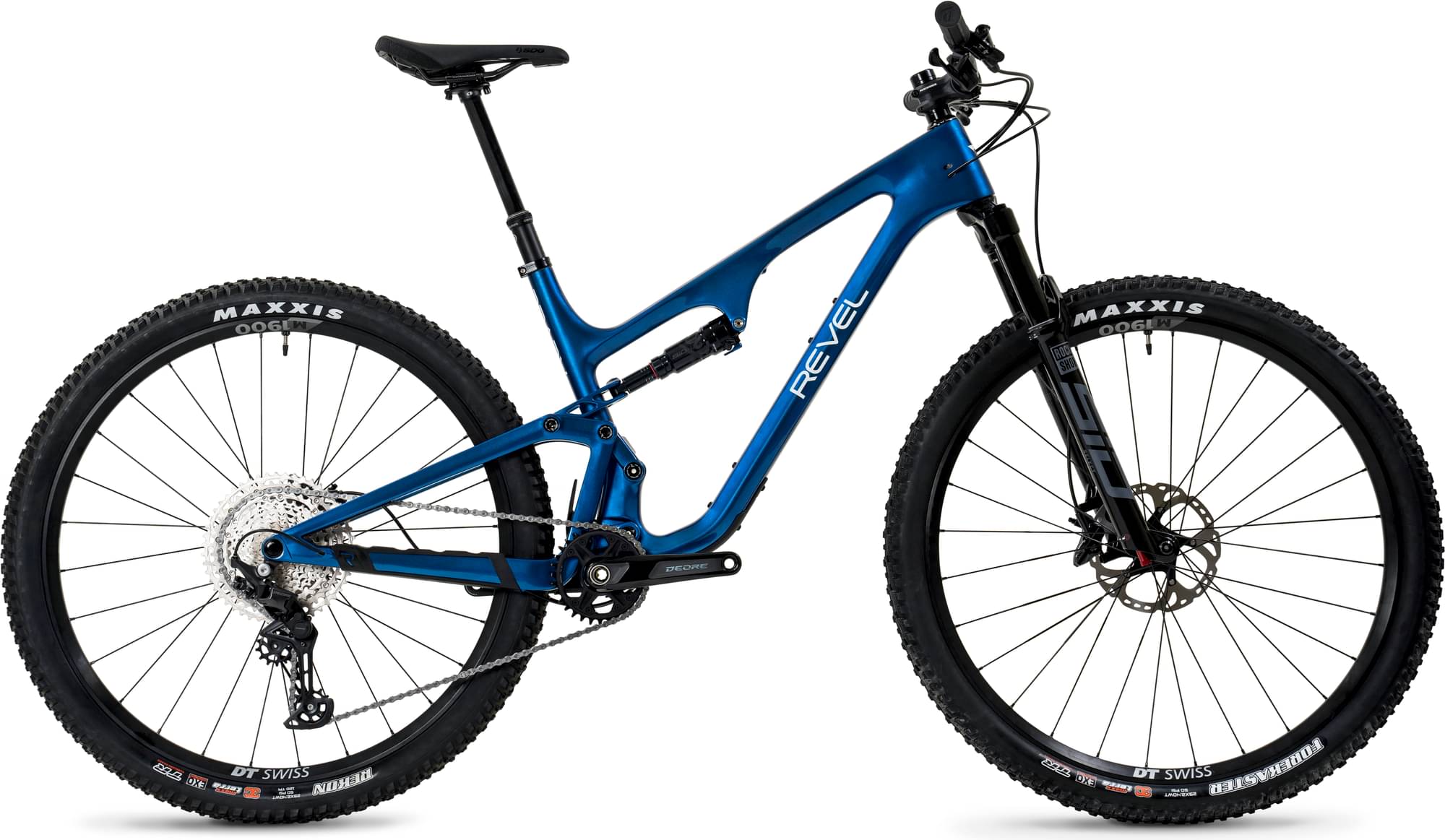

Revel Ranger SRAM Eagle 90 2025
2025 Mountain
Estimate price |
4,999$
Weight | 12.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID
-
Groupset Eagle 90 Transmission -
Suspension Full -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Ranger Carbon 115mm
Suspension Fork
RockShox SID SEL+ 3P 120mm
Rear Shock
RockShox SID Luxe Ultimate, 190x45
Drivetrain
Rear Derailleur
SRAM Eagle 90 T-Type
Shift Levers
SRAM Eagle 90
Cassette
SRAM Eagle 90 T-Type XS1275 10-52t
Crank
SRAM Eagle 90 T-Type 170mm 32t
Bottom Bracket
SRAM DUB 73mm MTB Wide Threaded
Chain
SRAM Eagle 90 T-Type 116L
Wheels
Front Hub
DT Swiss 350 XD 36t ratchet
Rear Hub
DT Swiss 350 XD 36t ratchet
Rims
DT Swiss XM1700 Spline 30 Alloy
Tires
Front: Maxxis Forekaster 29? x 2.4? 3C EXO Rear, Rear: Maxxis Rekon 3C EXO 29"x 2.4
Brakes
Brakes
SRAM Motive Silver
Cockpit
Stem
RaceFace Turbine 35x50mm
Handlebar
RaceFace Turbine Alloy, 35x760 20mm
Grips
Trail 1 x Revel Farlow Gap
Headset
Cane Creek 40-series IS52/42
Seat
Saddle
SDG Bel-Air Lux
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL (31.6mm x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.344 mm | 1.309 mm | 1.263 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 600 mm | 609 mm | 619 mm | 629 mm |
| Reach | 430 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 594 mm | 616 mm | 639 mm | 667 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1146 mm | 1170 mm | 1194 mm | 1223 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 699 mm | 699 mm | 699 mm | 700 |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
