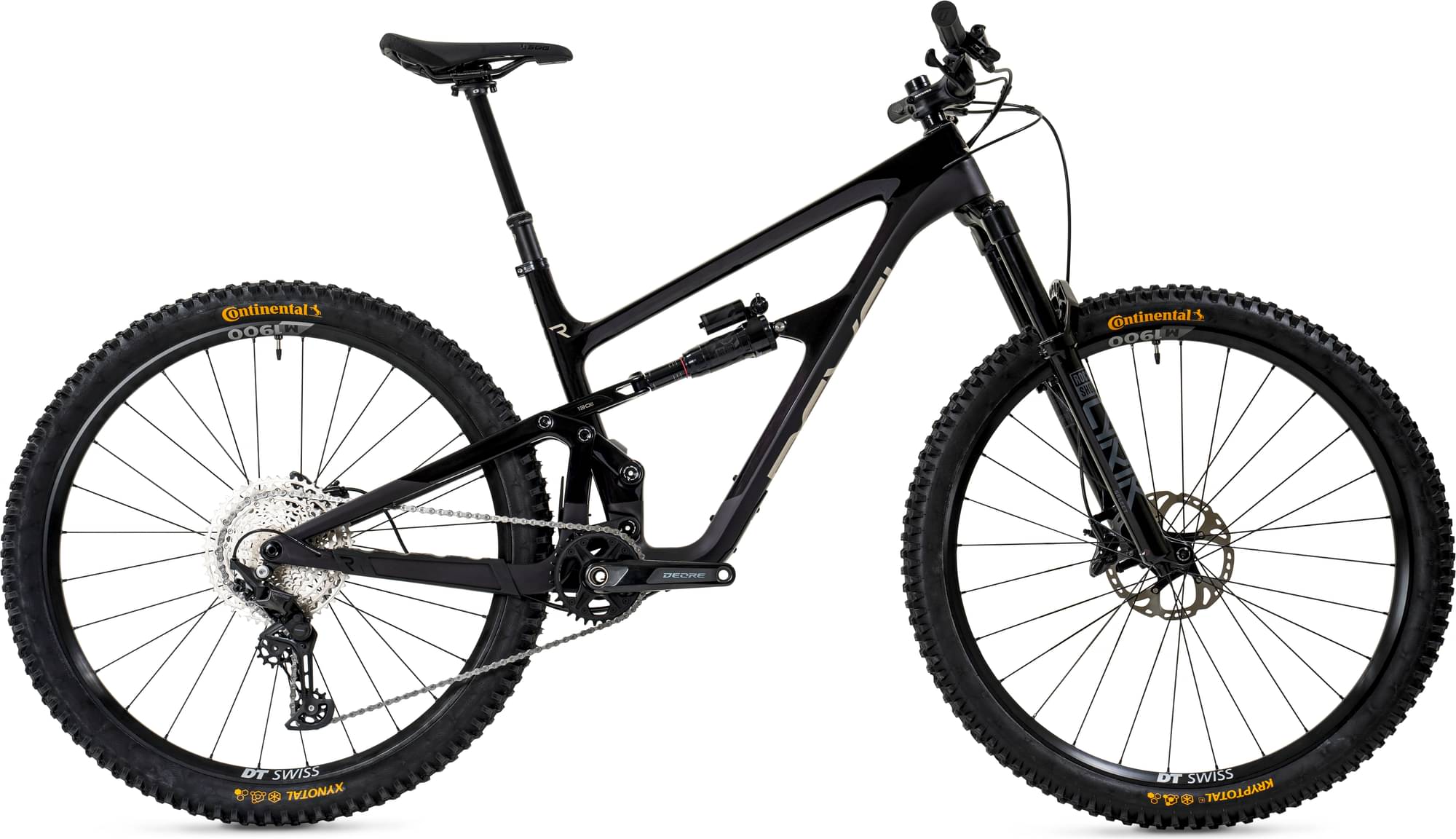

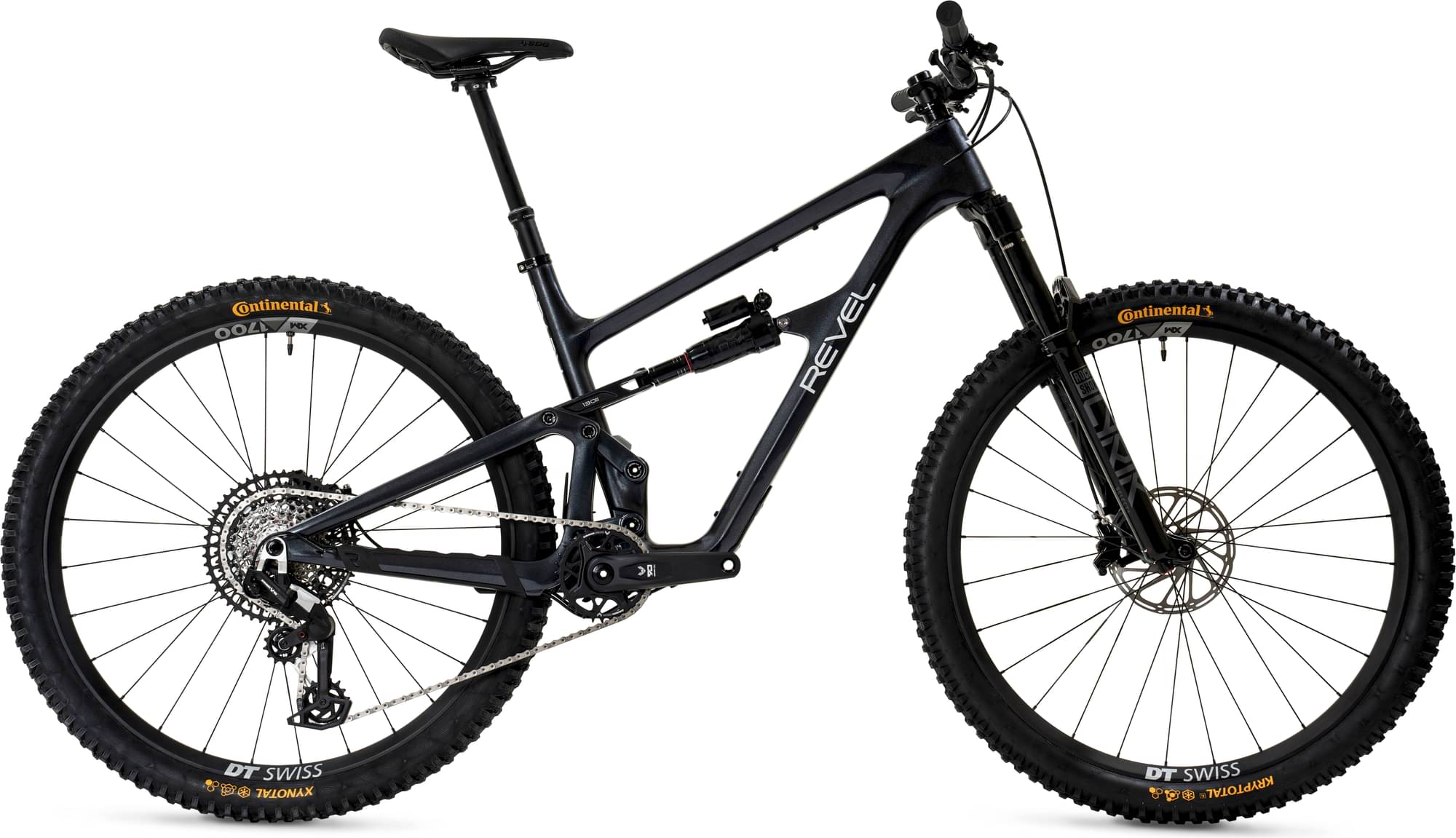

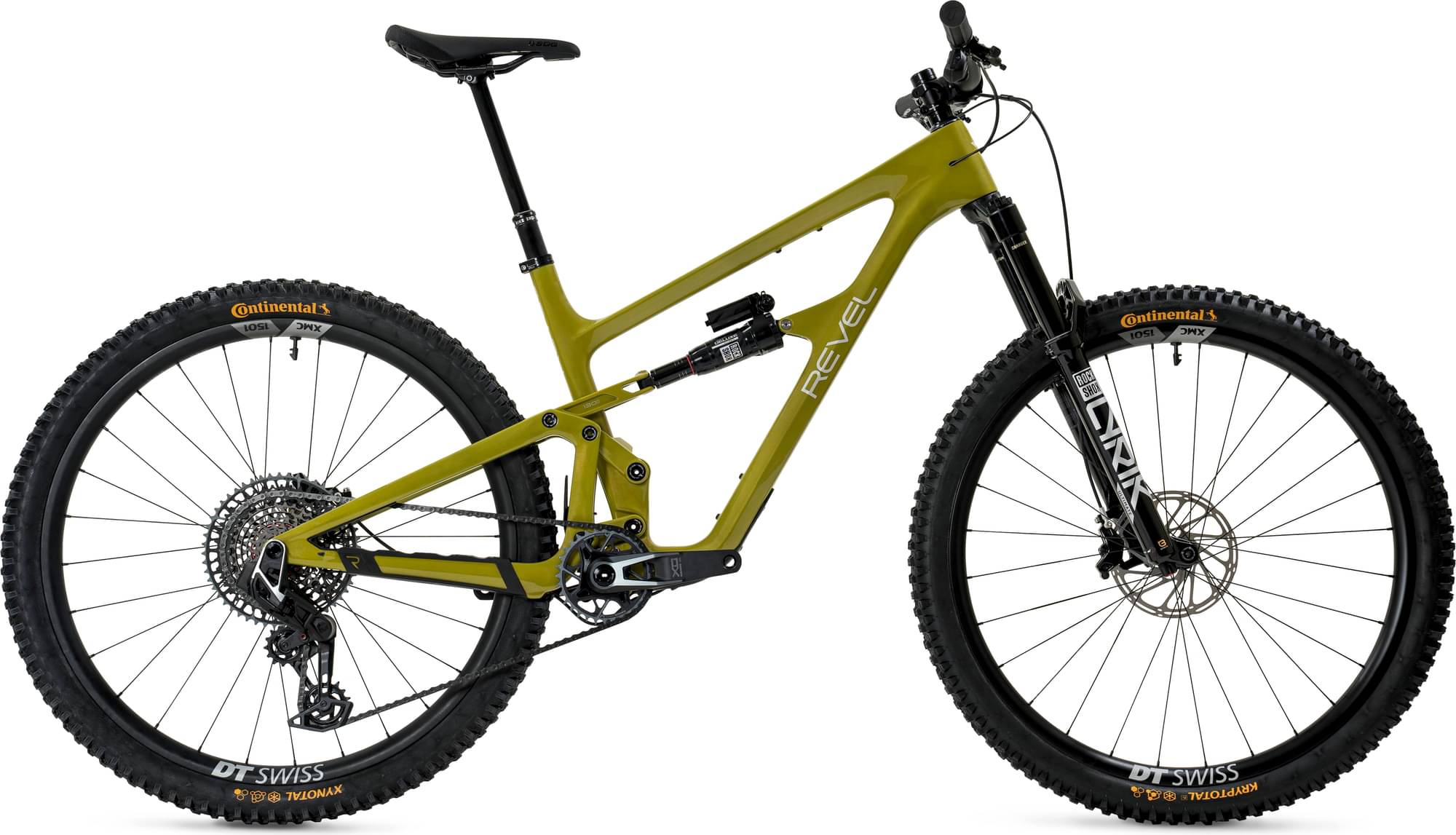

Revel Rascal Basecamp 2025
2025 Mountain
Estimate price |
5,199$
Weight | 14.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Lyrik
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rascal V2 Carbon Pinot Gnar
Suspension Fork
RockShox Lyrik SEL 140mm
Rear Shock
RockShox Super Deluxe SEL+, 130mm (210x50)
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100, 10-51t
Crank
Shimano Deore M6120, 170mm 32t
Bottom Bracket
Shimano BB MT501 73mm threaded
Chain
Shimano Deore M6100
Wheels
Front Hub
DT Swiss 370 XD 36t Ratchet
Rear Hub
DT Swiss 370 XD 36t Ratchet
Rims
DT Swiss M1900, Spline 30 Alloy
Tires
Continental Kryptotal 29" x 2.4" Trail Soft Front, Continental Xynotal 29" x 2.4" Trail Endurance Rear
Brakes
Brakes
Shimano Deore M6120
Cockpit
Stem
RaceFace Aeffect 35x50
Handlebar
RaceFace Aeffect R 35x780mm, 20mm Rise
Grips
RaceFace Chester
Headset
Cane Creek 40-series, IS52/42
Seat
Saddle
SDG Bel-Air
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL/XXL (31.6mm x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.353 mm | 1.312 mm | 1.275 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 741 mm | 764 mm | 788 mm | 822 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 604 mm | 610 mm | 618 mm | 635 mm |
| Reach | 431 mm | 451 mm | 471 mm | 498 mm |
| Top Tube Length | 582 mm | 603 mm | 625 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 101 mm | 110 mm | 129 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1256 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 717 mm | 720 mm | 728 mm | 742 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm |
