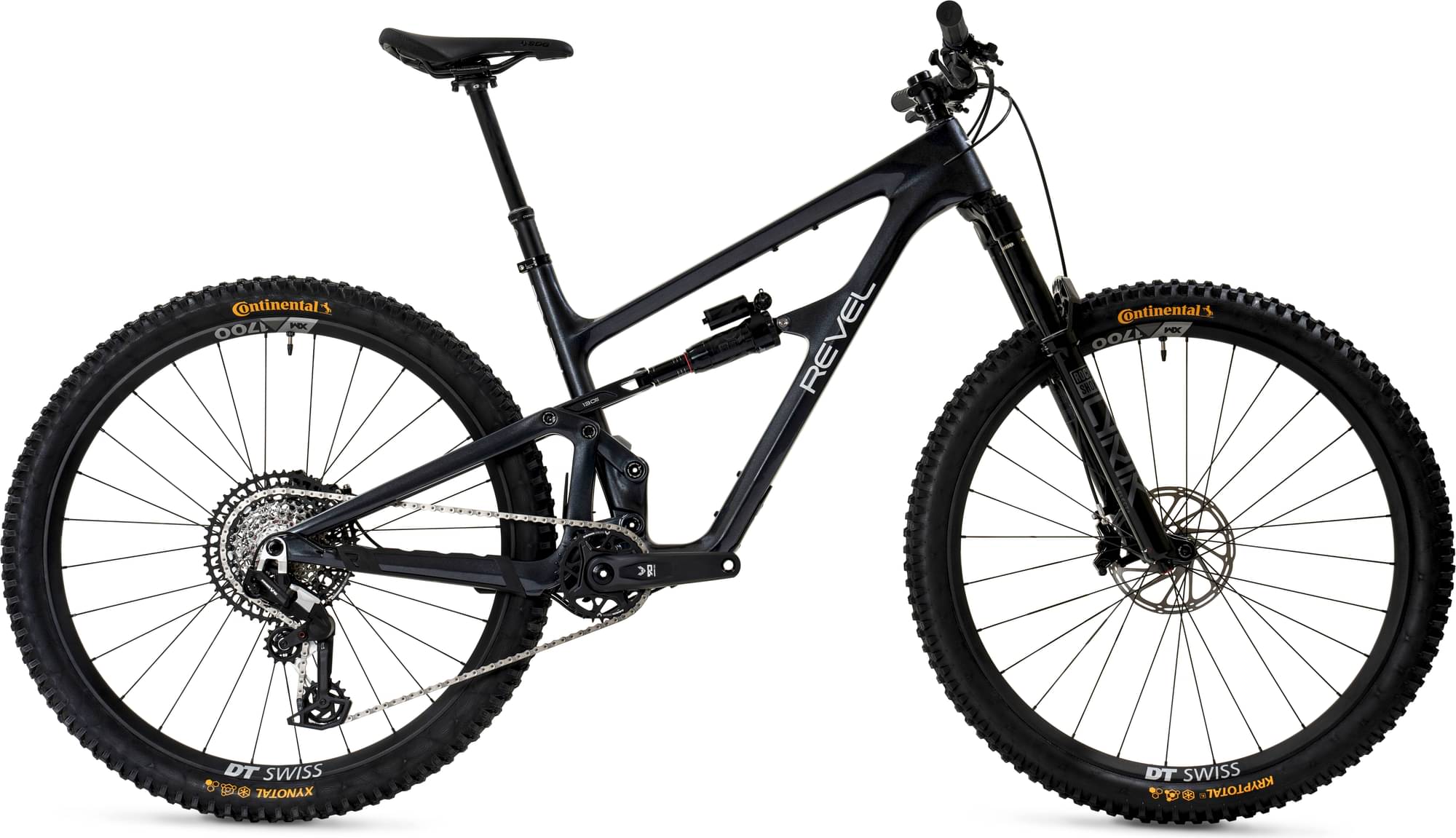

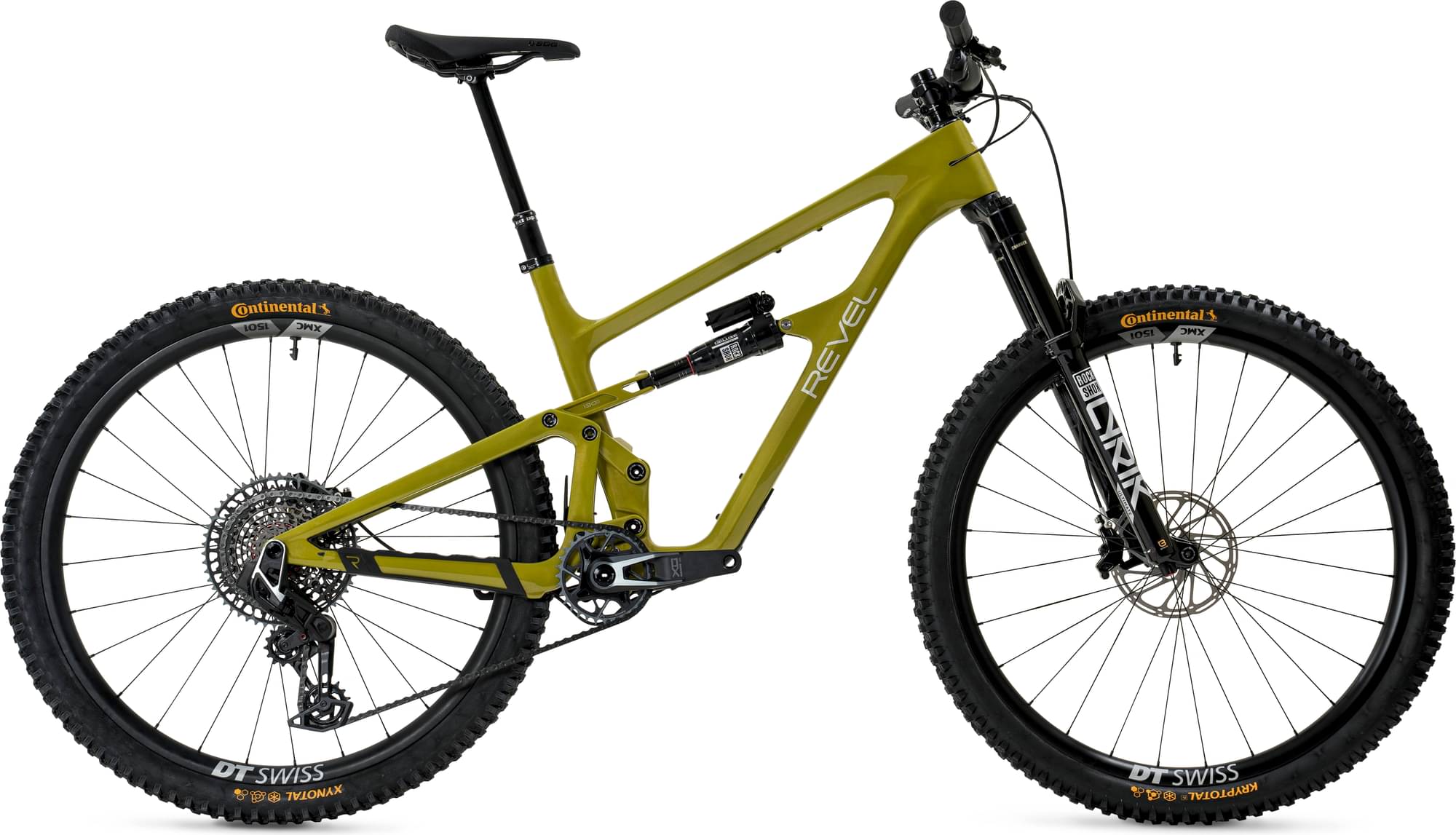

Revel Rascal SRAM Eagle 90 2025
2025 Mountain
Estimate price |
4,999$
Weight | 14.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Lyrik
-
Groupset Eagle 90 Transmission -
Suspension Full -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rascal SL
Suspension Fork
RockShox Lyrik SEL+ 140mm
Rear Shock
RockShox Super Deluxe SEL+, 130mm (210x50)
Drivetrain
Rear Derailleur
SRAM Eagle 90 T-Type
Shift Levers
SRAM Eagle 90
Cassette
SRAM Eagle 90 T-Type XS1275, 10-52t
Crank
SRAM Eagle 90 T-Type, 170mm 32t
Bottom Bracket
SRAM DUB 73mm MTB WIDE threaded
Chain
SRAM Eagle 90 T-Type 116L
Wheels
Front Hub
DT Swiss 350 XD 36t Ratchet
Rear Hub
DT Swiss 350 XD 36t Ratchet
Rims
DT Swiss XM1700, Spline 30 Alloy
Tires
Continental Kryptotal 29" x 2.4" Trail Soft Front, Continental Xynotal 29" x 2.4" Trail Endurance Rear
Brakes
Brakes
SRAM Motive Silver
Cockpit
Stem
RaceFace Turbine 35x50
Handlebar
RaceFace Turbine R 35x780mm, 20mm Rise
Grips
Trail 1 x Revel Farlow Gap - Black
Headset
Cane Creek 40-series, IS52/42
Seat
Saddle
SDG Bel-Air
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 170mm), XL/XXL (31.6mm x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.353 mm | 1.312 mm | 1.275 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 741 mm | 764 mm | 788 mm | 822 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 604 mm | 610 mm | 618 mm | 635 mm |
| Reach | 431 mm | 451 mm | 471 mm | 498 mm |
| Top Tube Length | 582 mm | 603 mm | 625 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 101 mm | 110 mm | 129 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1256 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 717 mm | 720 mm | 728 mm | 742 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm |
