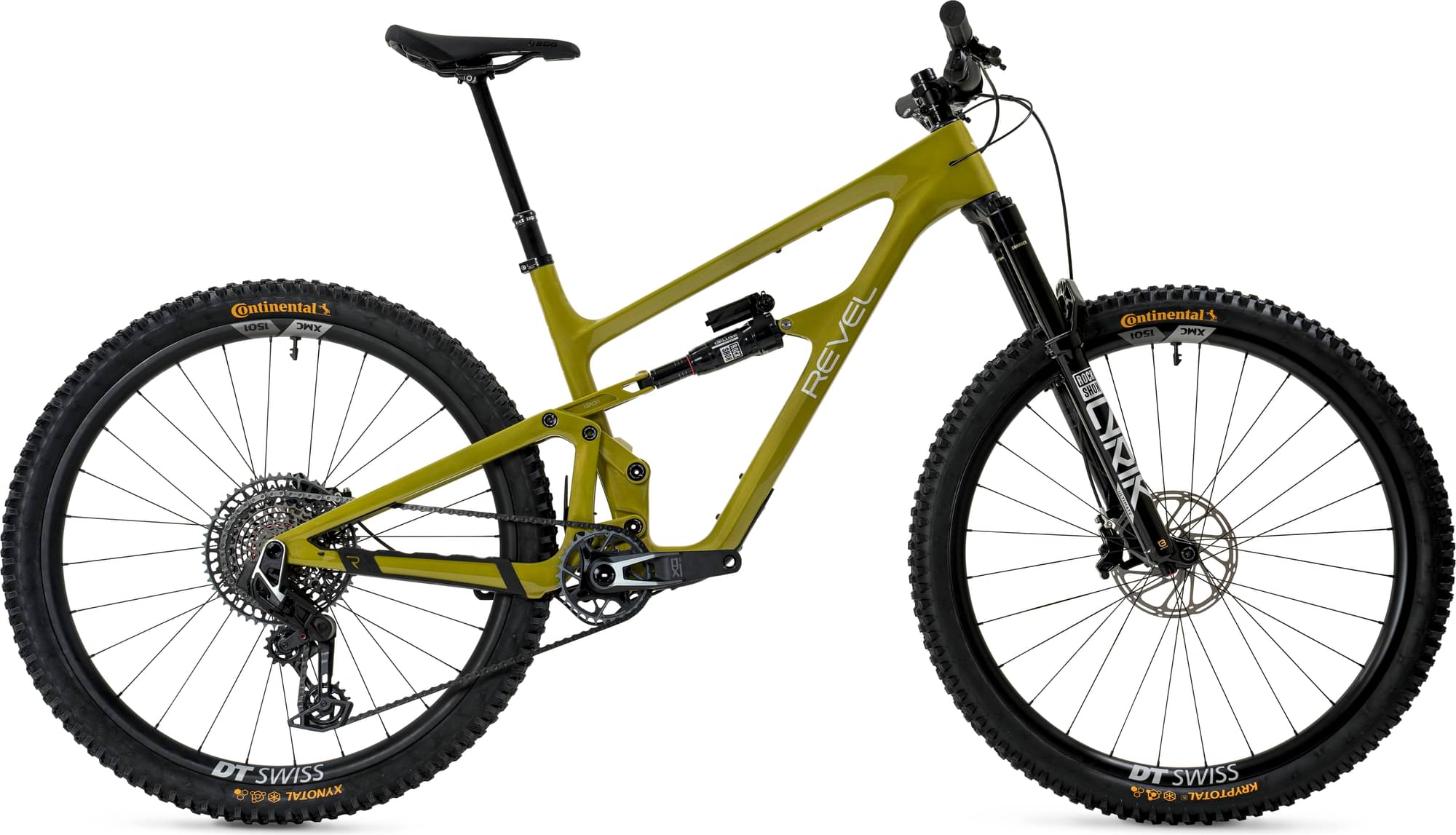

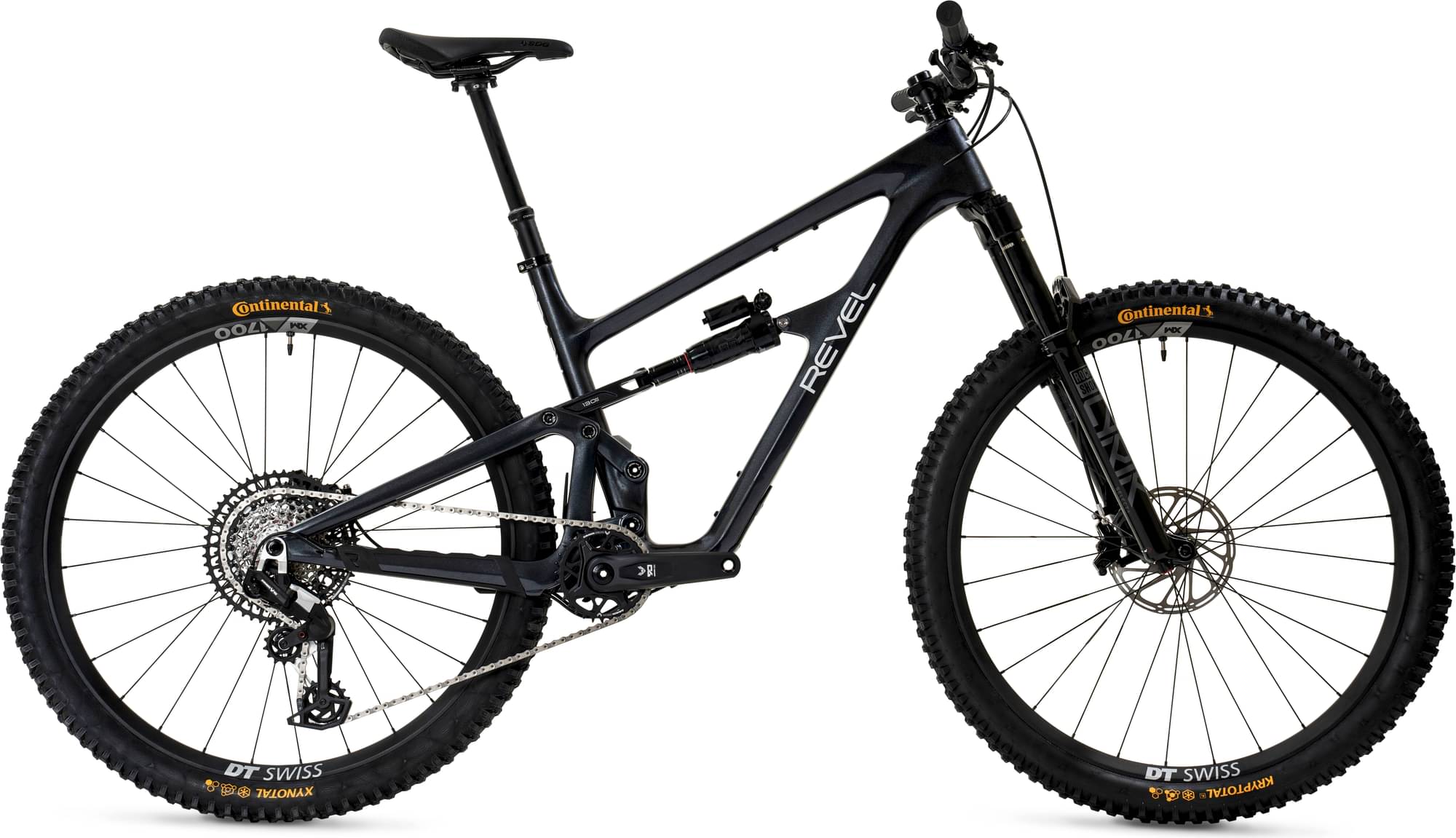

Revel Rascal SRAM X0 Transmission 2025
2025 Mountain
Estimate price |
6,899$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rascal SL
Suspension Fork
RockShox Lyrik Ultimate 140mm
Rear Shock
RockShox SDLX Ultimate, 130mm (210x50)
Drivetrain
Rear Derailleur
SRAM X0 T-Type
Shift Levers
SRAM AXS Shifter Pod
Cassette
SRAM X0 T-Type XS1295, 10-52t
Crank
SRAM X0 Eagle T-Type, 170mm 32t
Bottom Bracket
SRAM DUB 73mm MTB WIDE threaded
Chain
SRAM X0 T-Type 116L
Wheels
Front Hub
DT Swiss 240 XD 36t Ratchet, DEG 90
Rear Hub
DT Swiss 240 XD 36t Ratchet, DEG 90
Rims
DT Swiss XMC1501 Spline, ONE Carbon
Tires
Continental Kryptotal 29" x 2.4" Trail Soft Front, Continental Xynotal 29" x 2.4" Trail Endurance Rear
Brakes
Brakes
SRAM Motive Silver
Cockpit
Stem
RaceFace Turbine 35x50
Handlebar
RaceFace ERA Carbon 35x780mm, 20mm Rise
Grips
Trail 1 x Revel Farlow Gap - Black
Headset
Cane Creek 40-series, IS52/42
Seat
Saddle
SDG Bel-Air
Seatpost
Bike Yoke Revive 2.0, SM (31.6mm x 125mm), MD (31.6mm x 160mm), LG (31.6mm x 185mm), XL/XXL(31.6mm x 213mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.353 mm | 1.312 mm | 1.275 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 741 mm | 764 mm | 788 mm | 822 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 604 mm | 610 mm | 618 mm | 635 mm |
| Reach | 431 mm | 451 mm | 471 mm | 498 mm |
| Top Tube Length | 582 mm | 603 mm | 625 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 101 mm | 110 mm | 129 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1256 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 717 mm | 720 mm | 728 mm | 742 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm |
