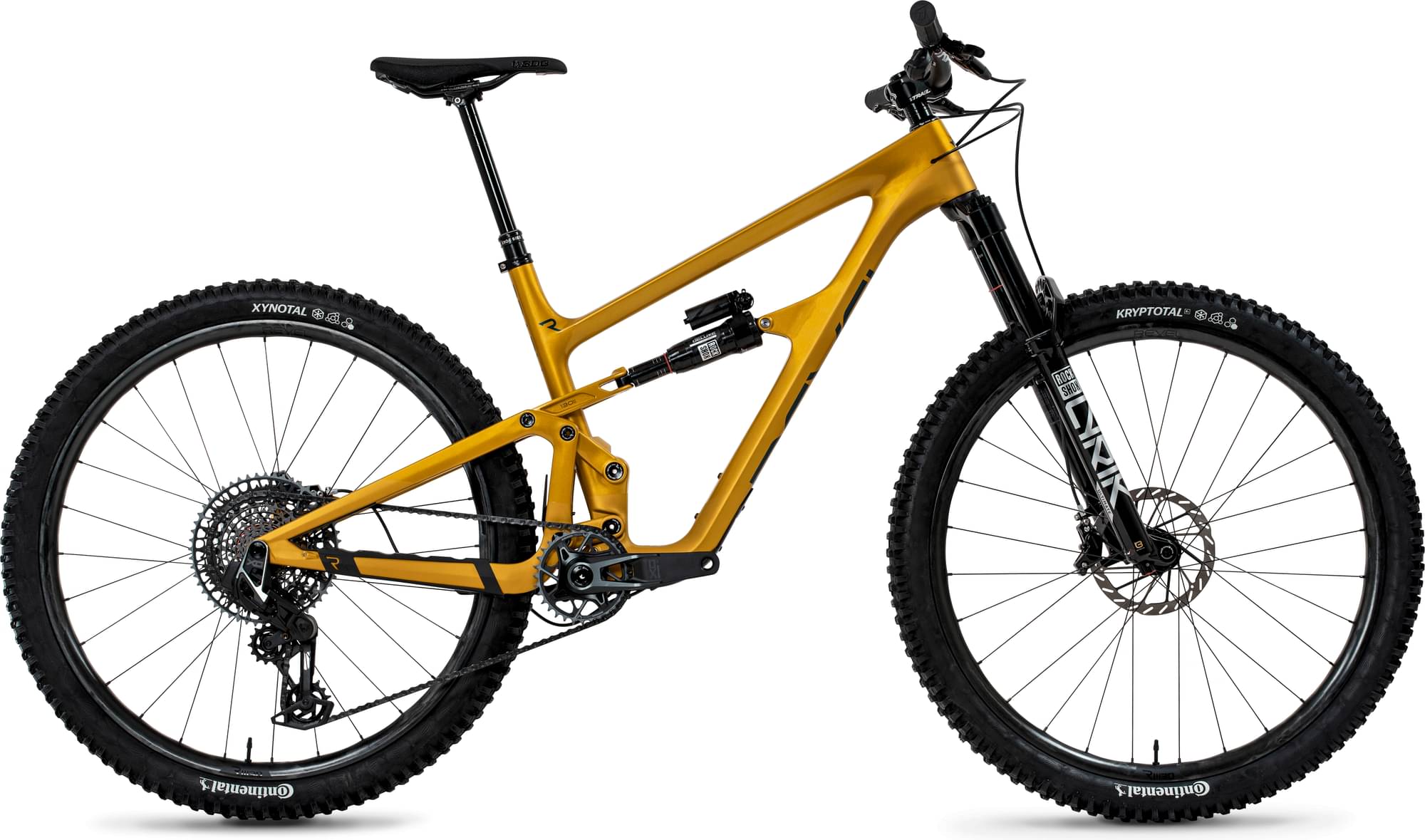

Revel Rascal SRAM XX Transmission 2024
2024 Mountain
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
XXL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rascal 29? 130mm Travel
Suspension Fork
RockShox Lyrik Ultimate 140mm
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX ET
Shift Levers
SRAM AXS Shifter Pod
Cassette
SRAM XX ET T-Type
Crank
SRAM XX Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB WIDE BSA
Chain
SRAM XX ET T-Type
Wheels
Rims
Revel RW30 V2 Rims, Industry Nine Hydra Hubs
Tires
Continental Kryptotal 29" x 2.4" Trail Soft Front, Continental Xynotal 29" x 2.4" Trail Endurance Rear
Brakes
Brakes
SRAM Code Ultimate Stealth
Cockpit
Stem
Trail 1 The Viking Stem 35x40mm
Handlebar
Trail 1 The Crockett Carbon 35, 800x20mm Rise
Grips
Trail 1 Farlow Gap Grip - Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Radar Lux-Alloy
Seatpost
Bike Yoke Revive 2.0, SM (31.6mm x 125mm), MD (31.6mm x 160mm), LG (31.6mm x 185mm), XL/XXL(31.6mm x 213mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.353 mm | 1.312 mm | 1.275 mm | 1.231 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 741 mm | 764 mm | 788 mm | 822 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 604 mm | 610 mm | 618 mm | 635 mm | 650 |
| Reach | 431 mm | 451 mm | 471 mm | 498 mm | 528 mm |
| Top Tube Length | 582 mm | 603 mm | 625 mm | 650 | 678 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm | 505 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 101 mm | 110 mm | 129 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1256 mm | 1293 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 717 mm | 720 mm | 728 mm | 742 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm | 203 cm |
