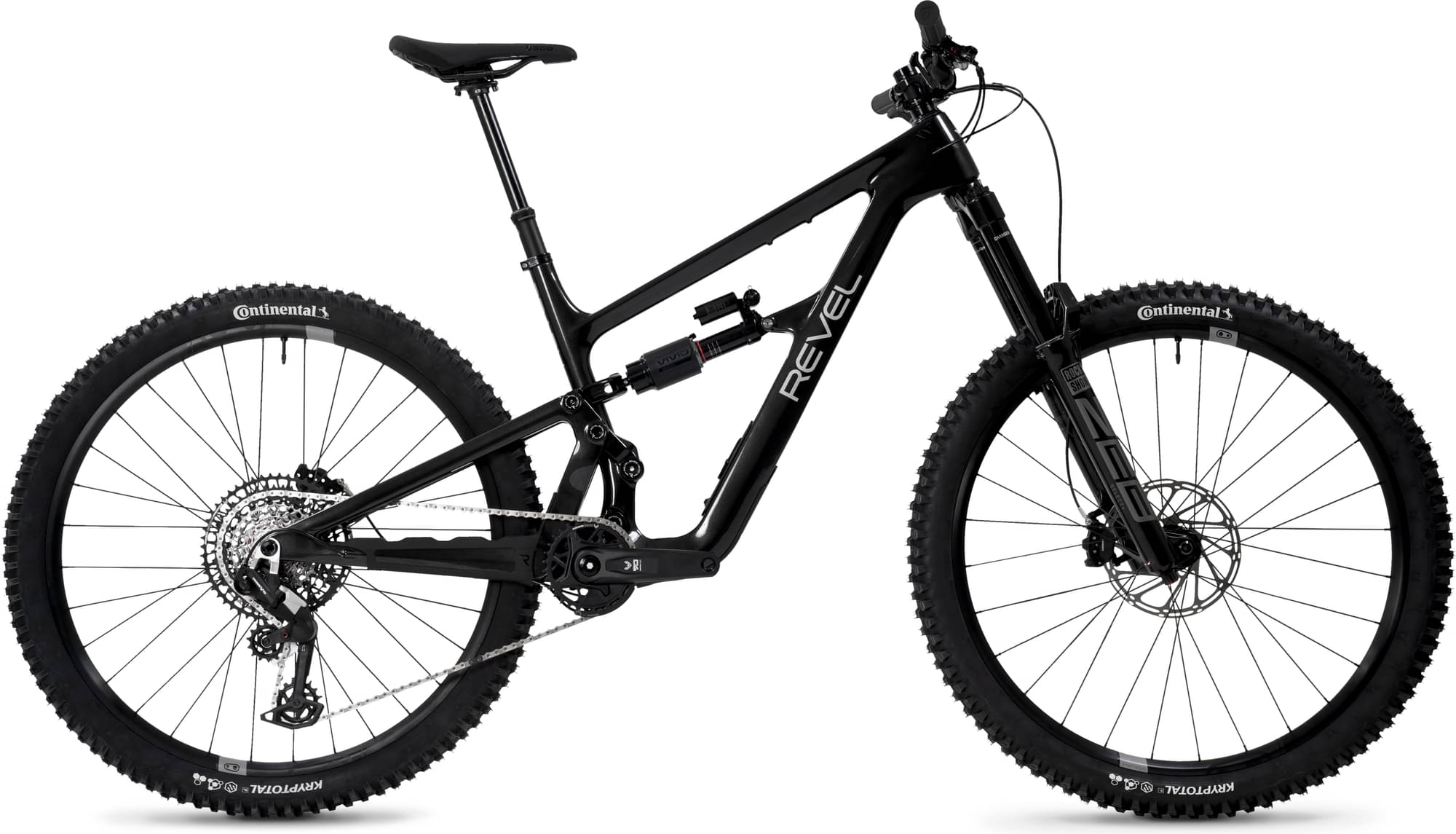

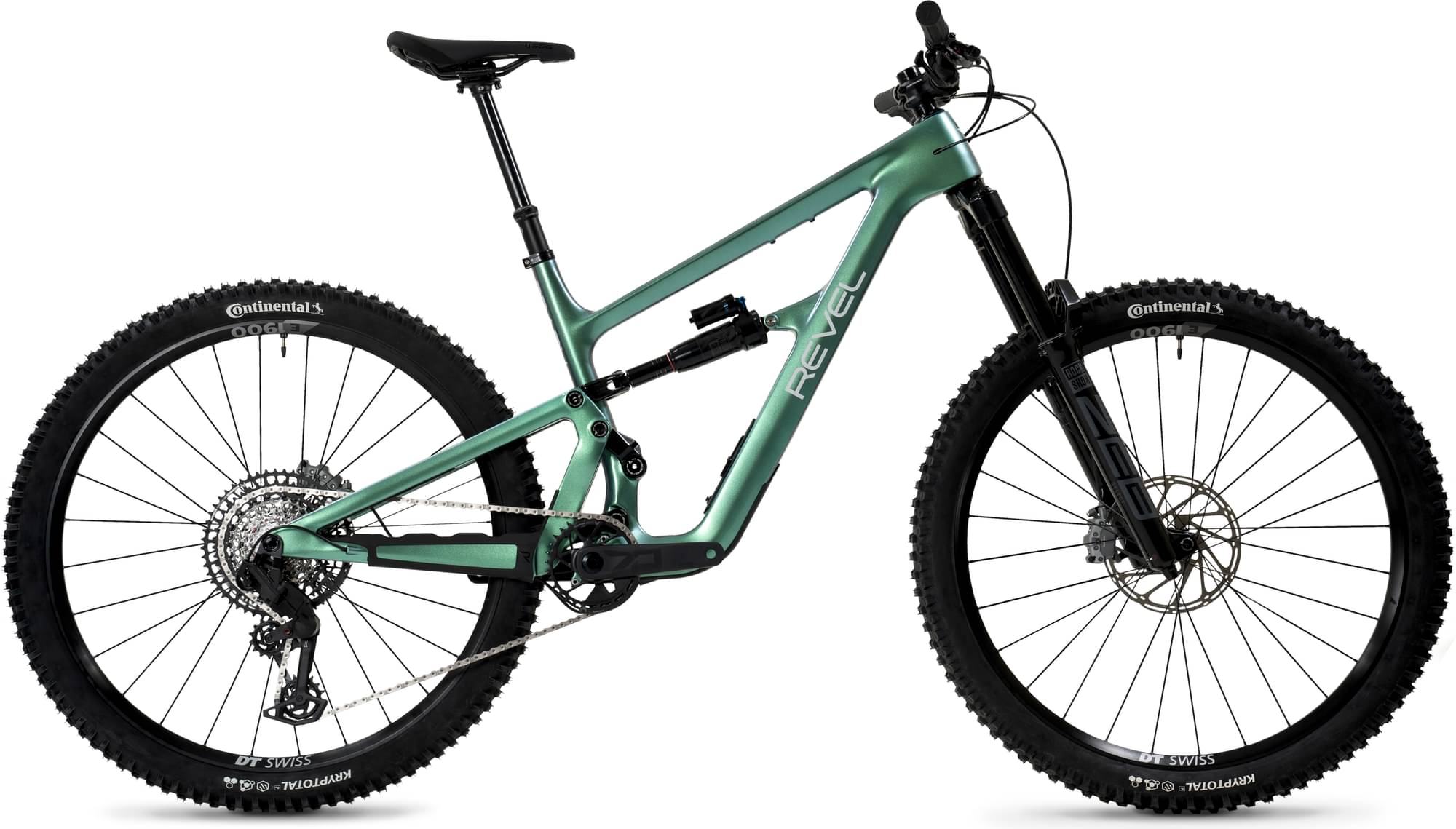

Revel Ritual SRAM Eagle 70 2025
2025 Mountain
Estimate price |
4,299$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Select
-
Groupset Eagle 70 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Maven Bronze Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ritual Carbon
Suspension Fork
RockShox ZEB SEL, 170mm
Rear Shock
RockShox SDLX SEL+, 230x65 165mm
Drivetrain
Rear Derailleur
SRAM Eagle 70 T-Type
Shift Levers
SRAM Eagle 70
Cassette
SRAM Eagle 90 T-Type, XS1275 10-52t
Crank
SRAM Eagle 70 T-Type, 165mm 32t w/guard
Bottom Bracket
SRAM DUB 73mm MTB, WIDE threaded
Chain
SRAM Eagle 90 T-Type 118L
Wheels
Front Hub
DT Swiss 370 XD, 36t ratchet
Rear Hub
DT Swiss 370 XD, 36t ratchet
Rims
DT Swiss E1900 SPLINE (S & M), Crank Bros Synthesis Enduro Alloy (L & XL)
Tires
Front: Continental Kryptotal F, Enduro Soft 2.6, Rear: Continental Kryptotal R, Enduro Soft 2.4
Brakes
Brakes
SRAM Maven Bronze
Cockpit
Stem
RaceFace Aeffect 35x40mm
Handlebar
RaceFace Aeffect 35x780 20mm, Alloy
Grips
Trail 1 x Revel Farlow Gap
Headset
Cane Creek 40 Series, ZS56/44
Seat
Saddle
SDG Bel-Air 3 LUX
Seatpost
Crank Bros Highline 7, SM (125mm), MD (150mm), LG (170mm), XL (200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.38 mm | 1.323 mm | 1.27 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 771 mm | 796 mm | 826 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 622 mm | 628 mm | 635 mm | 645 mm |
| Reach | 433 mm | 455 mm | 480 mm | 508 mm |
| Top Tube Length | 588 mm | 606 mm | 627 mm | 657 mm |
| Seat Tube Angle | 76 ° | 76.5 ° | 77 ° | 77 ° |
| Seat Tube Length | 415 mm | 425 mm | 445 mm | 475 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 96 mm | 104 mm | 115 mm |
| Chainstay Length | 434 mm | 436 mm | 438 mm | 441 mm |
| Wheelbase | 1205 mm | 1232 mm | 1263 mm | 1298 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 29 mm | 29 mm |
| Standover Height | 731 mm | 731 mm | 731 mm | 731 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm |
