Bike details
Overview
Key information split into simple groups.

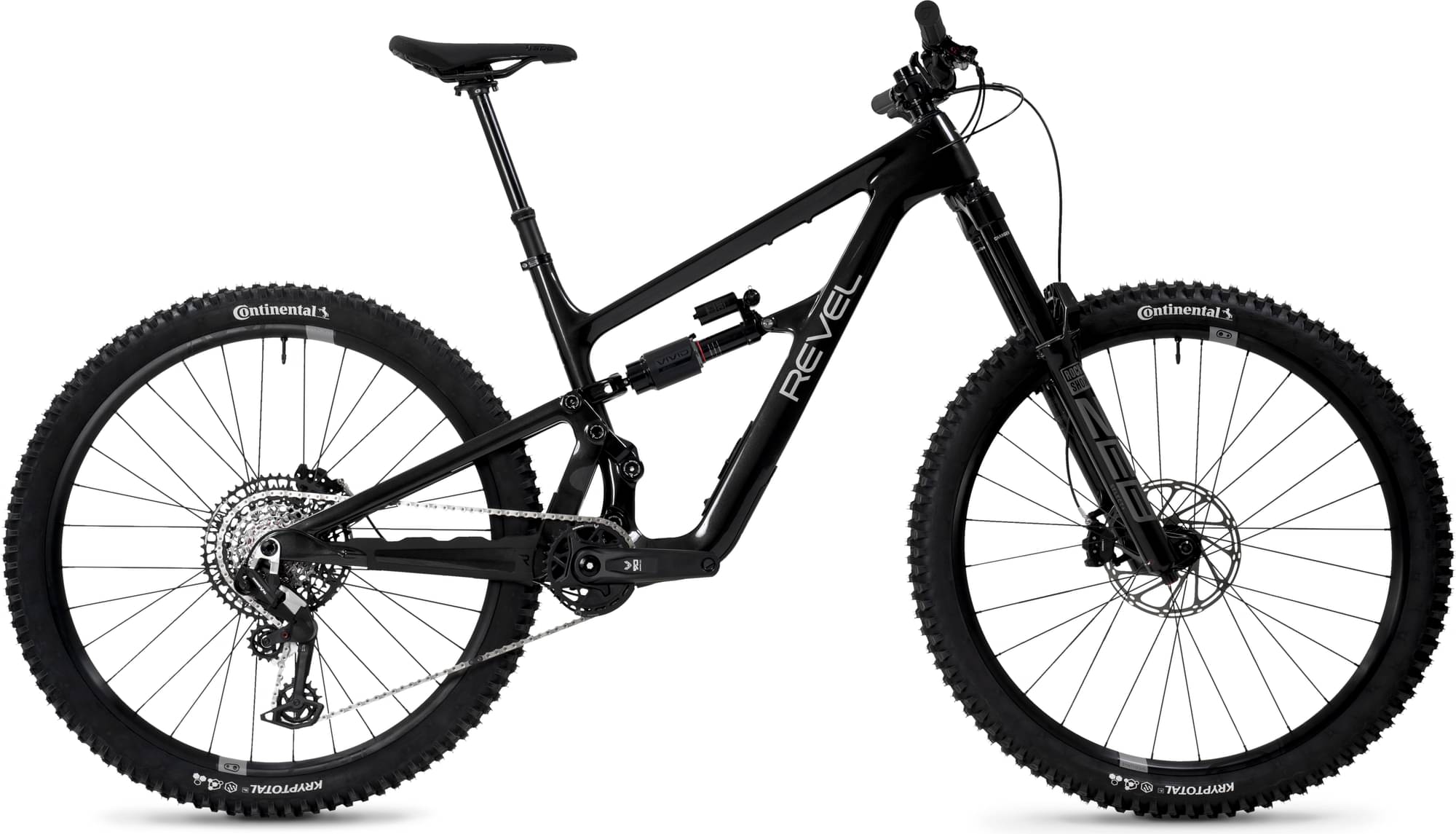

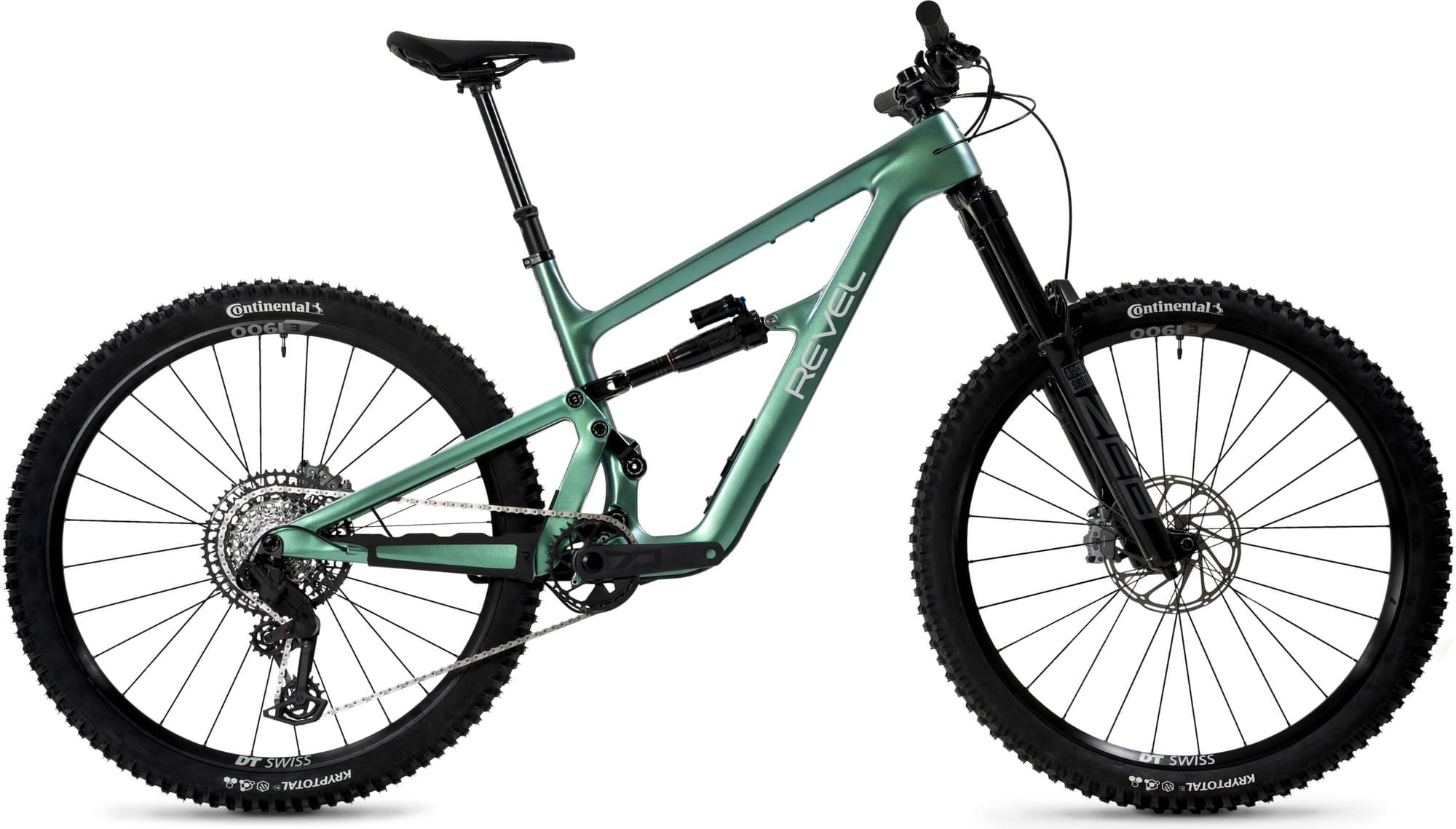

Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ritual Carbon
Suspension Fork
RockShox ZEB Ultimate, 170mm
Rear Shock
RockShox Vivd Ultimate, 230x65 165mm
Drivetrain
Rear Derailleur
SRAM X0 T-Type
Shift Levers
SRAM POD
Cassette
SRAM X0 T-Type, XS1295 10-52t
Crank
SRAM X0 T-Type 165mm, 32t w/guard
Bottom Bracket
SRAM DUB 73mm MTB, WIDE threaded
Chain
SRAM X0 T-Type 118L
Wheels
Front Hub
Industry Nine 1/1 XD
Rear Hub
Industry Nine 1/1 XD
Rims
Crank Bros Synthesis, Enduro Carbon
Tires
Front: Continental Kryptotal F, Enduro Soft 2.6, Rear: Continental Kryptotal R, Enduro Soft 2.4
Brakes
Brakes
SRAM Maven Silver
Cockpit
Stem
RaceFace Turbine 35x40mm
Handlebar
RaceFace ERA 35x780 20mm, Carbon
Grips
Trail 1 x Revel Farlow Gap
Headset
Cane Creek 40 Series, ZS56/44
Seat
Saddle
SDG Bel-Air 3 LUX
Seatpost
Bike Yoke Revive 3, SM (125mm), MD (150mm), LG (170mm), XL (200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.38 mm | 1.323 mm | 1.27 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 771 mm | 796 mm | 826 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 622 mm | 628 mm | 635 mm | 645 mm |
| Reach | 433 mm | 455 mm | 480 mm | 508 mm |
| Top Tube Length | 588 mm | 606 mm | 627 mm | 657 mm |
| Seat Tube Angle | 76 ° | 76.5 ° | 77 ° | 77 ° |
| Seat Tube Length | 415 mm | 425 mm | 445 mm | 475 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 96 mm | 104 mm | 155 mm |
| Chainstay Length | 434 mm | 436 mm | 438 mm | 441 mm |
| Wheelbase | 1205 mm | 1232 mm | 1263 mm | 1298 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 29 mm | 29 mm |
| Standover Height | 731 mm | 731 mm | 731 mm | 731 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
