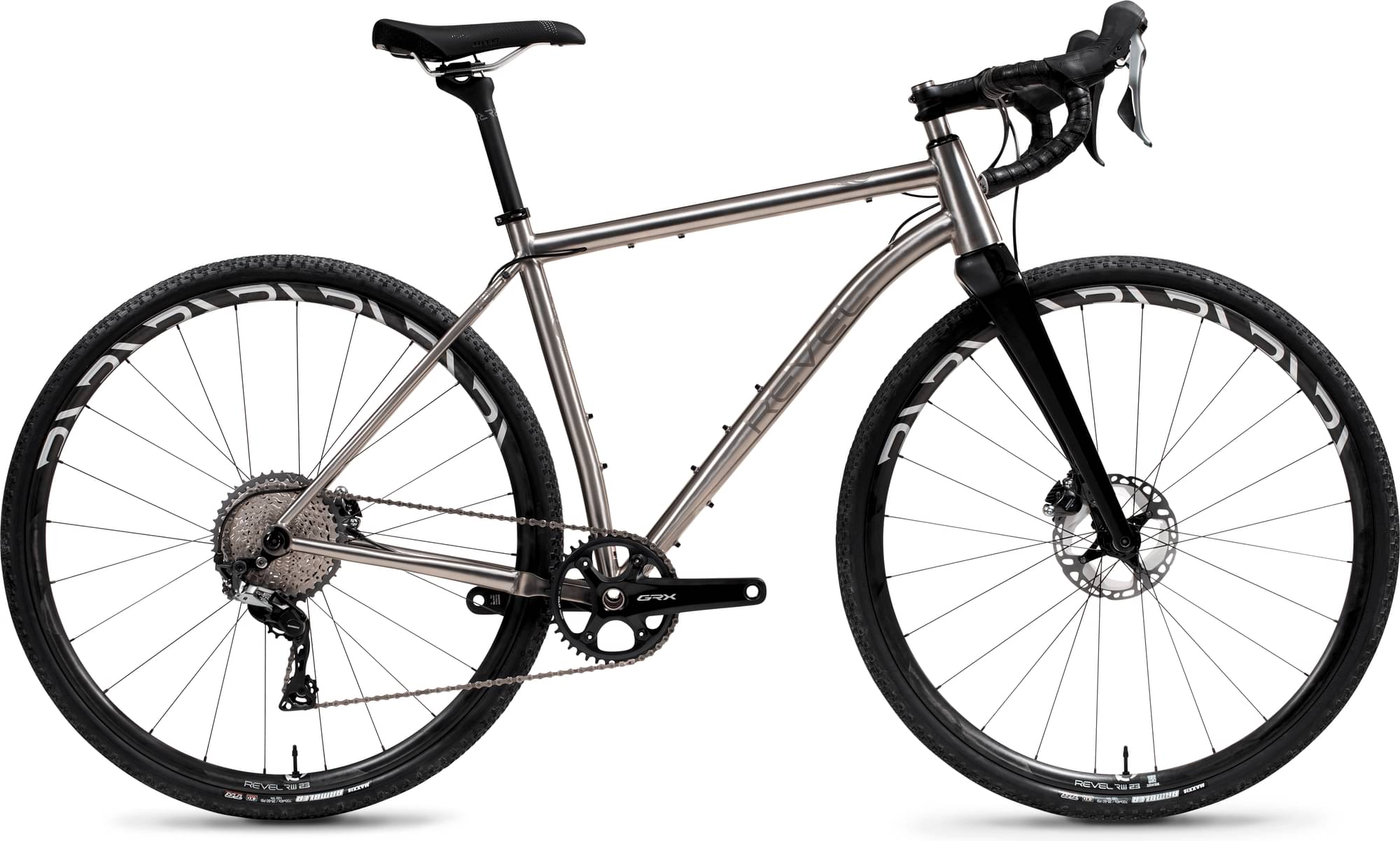

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
XXL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel R+
Suspension Fork
Revel Gravel Fork 12×100 47mm
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR 12spd
Shift Levers
SRAM Rival AXS 12spd
Cassette
SRAM XPLR XG1251 10-44
Crank
SRAM Rival AXS DUB 172.5 42t
Bottom Bracket
SRAM DUB Wide BSA 68 Road
Chain
SRAM Rival 12spd
Wheels
Rims
Industry Nine 1/1 GRCX 700c Centerlock
Tires
Maxxis Rambler 700x40c
Brakes
Brakes
SRAM Rival AXS
Cockpit
Stem
Zipp Service Course SL 90mm
Handlebar
Zipp Service Course SL 70 XPLR 44cm
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-Alloy
Seatpost
FSA Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.348 mm | 1.376 mm | 1.398 mm | 1.418 mm | 1.443 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 606 mm | 624 mm | 639 mm | 654 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 535 mm | 560 mm | 580 mm | 600 mm | 625 mm |
| Reach | 397 mm | 407 mm | 415 mm | 423 mm | 433 mm |
| Top Tube Length | 540 mm | 557 mm | 570 mm | 583 mm | 600 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 136 mm | 157 mm | 178 mm | 205 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1016 mm | 1034 mm | 1049 mm | 1064 mm | 1082 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 760 mm | 775 mm | 795 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm | 203 cm |
