Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Tweedy Dirt Jumper
Suspension Fork
Marzocchi Bomber DJ 26? 100mm Matte Black
Drivetrain
Crank
SRAM GX Eagle 170mm 30t
Bottom Bracket
SRAM DUB BSA
Chain
Single Speed
Wheels
Rims
Spank Spoon 26?
Tires
Maxxis DTH 26×2.3 EXO/TW Wire
Brakes
Brakes
TRP Slate T4 / TRP R1 1.8 160mm
Cockpit
Stem
Spank Spoon 31.8x43mm Black
Handlebar
Spank Spoon 40mm Black
Grips
Lizard Skins Charger Evo Black
Headset
Cane Creek 40-Series
Seat
Saddle
Spank Spoon
Seatpost
Alloy Seatpost 27.2x350mm Matte Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.31 mm |
| Bottom Bracket Height | 318 mm |
| Front Center | 683 mm |
| Rake | 40 mm |
| Trail | 123 mm |
| Stack | 554 mm |
| Reach | 423 mm |
| Top Tube Length | 611 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 325 mm |
| Head Tube Angle | 68.7 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 375 mm |
| Wheelbase | 1057 mm |
| Bottom Bracket Drop | 24 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model

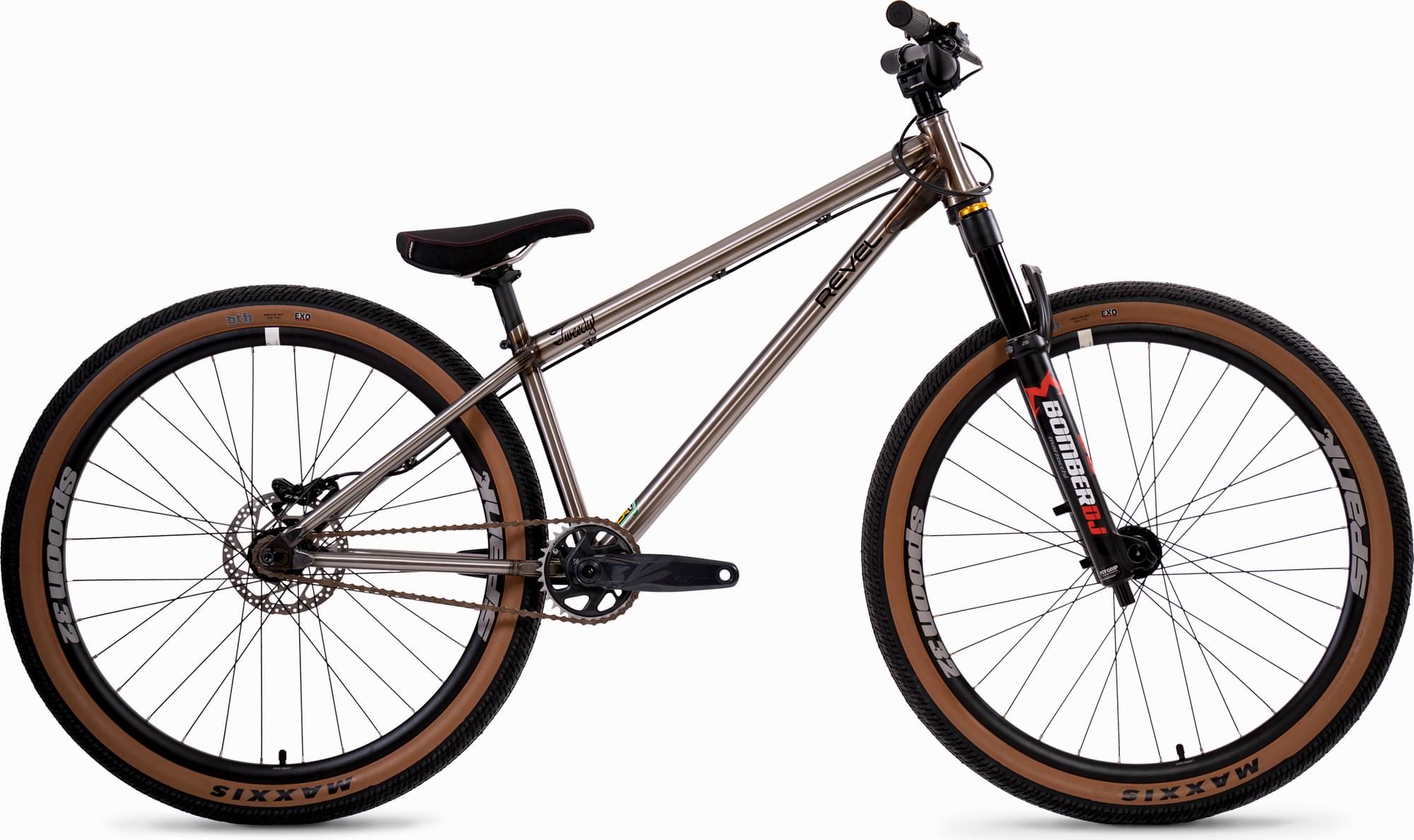

Tweedy Complete DJ Build is a Revel Tweedy model. There are 2 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Dirt Jump bikes average price
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, even though the average price of a Dirt Jump bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Revel Tweedy Complete DJ Build 2022 bike is equipped with the Marzocchi Bomber DJ fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Tweedy Complete DJ Build 2022 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Tweedy Complete DJ Build is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
