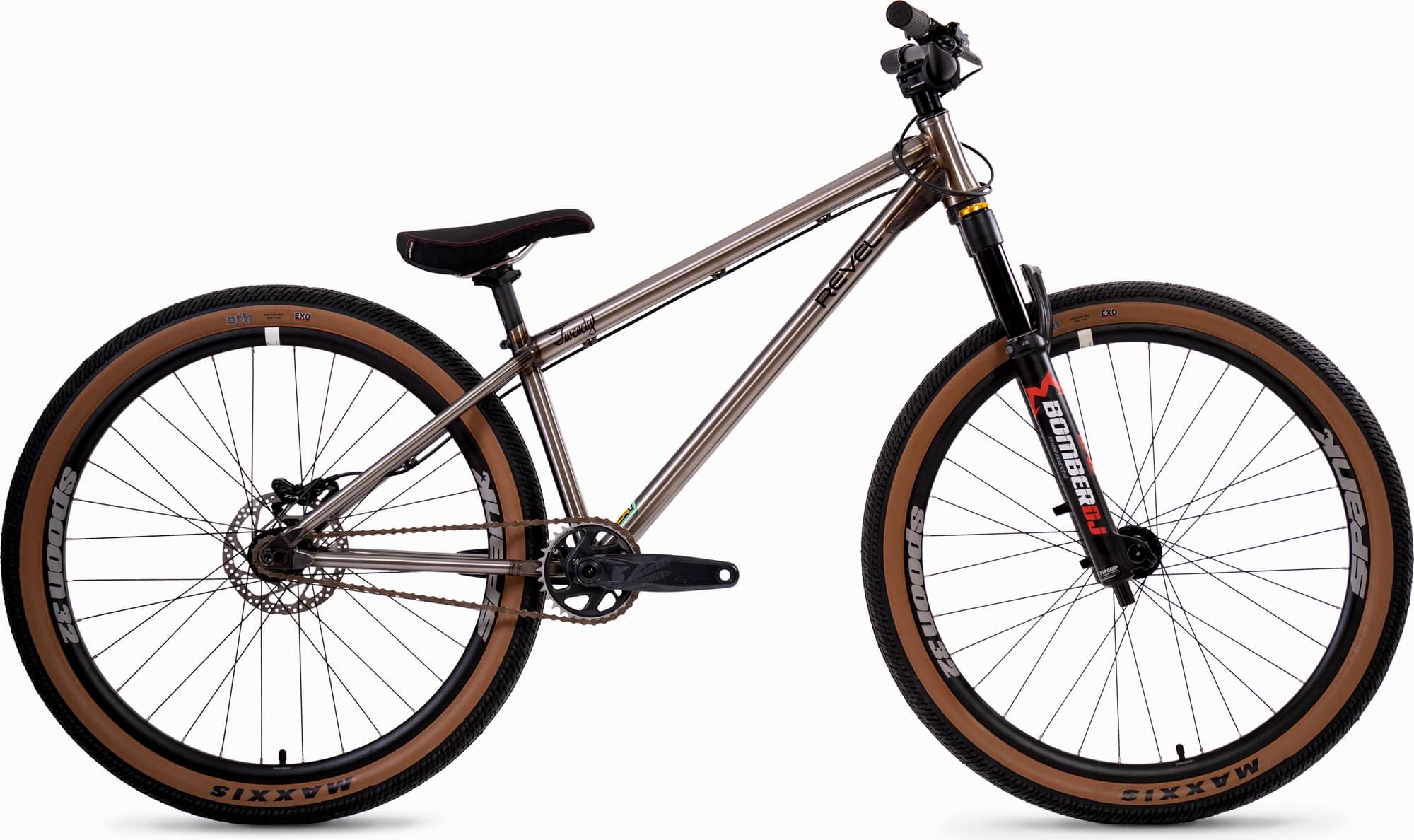

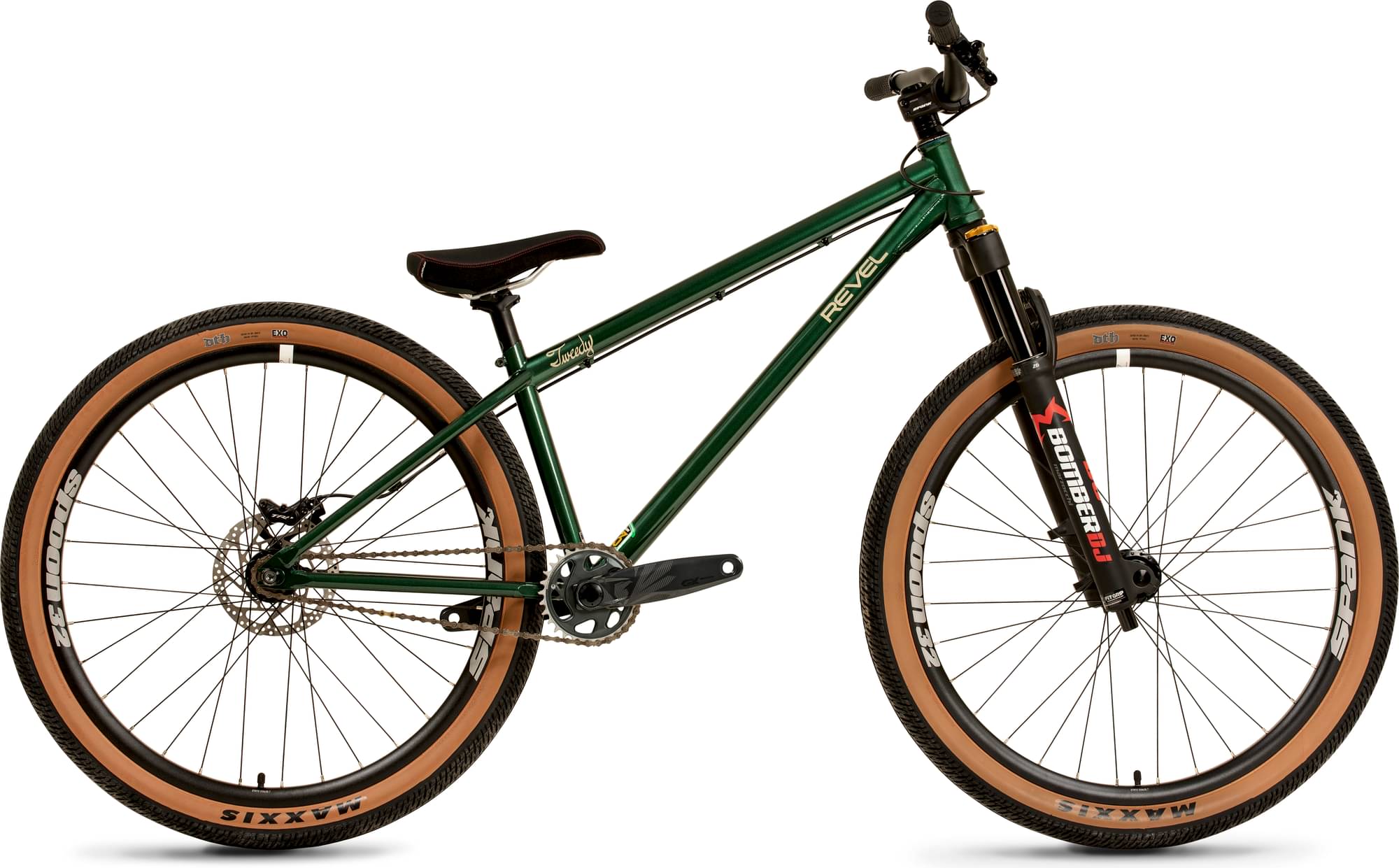

Revel Tweedy Complete DJ Build 2023
2023 Mountain
Estimate price |
2,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Tweedy Dirt Jumper
Suspension Fork
Marzocchi Bomber DJ 26? 100mm Matte Black
Drivetrain
Crank
SRAM GX Eagle 170mm 30t
Bottom Bracket
SRAM DUB BSA
Chain
Single Speed
Wheels
Rims
Spank Spoon 26?
Tires
Maxxis DTH 26×2.3 EXO/TW Wire
Brakes
Brakes
TRP Slate T4 / TRP R1 1.8 160mm
Cockpit
Stem
Spank Spoon 31.8x43mm Black
Handlebar
Spank Spoon 40mm Black
Grips
Lizard Skins Charger Evo Black
Headset
Cane Creek 40-Series
Seat
Saddle
Spank Spoon
Seatpost
Alloy Seatpost 27.2x350mm Matte Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.31 mm |
| Bottom Bracket Height | 318 mm |
| Front Center | 683 mm |
| Rake | 40 mm |
| Trail | 123 mm |
| Stack | 554 mm |
| Reach | 423 mm |
| Top Tube Length | 611 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 325 mm |
| Head Tube Angle | 68.7 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 375 mm |
| Wheelbase | 1057 mm |
| Bottom Bracket Drop | 24 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Tweedy Complete DJ Build is a Revel Tweedy model. There are 2 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. If we compare this with the average Dirt Jump bike cost we notice that the price is 189.57% higher.
Tweedy Complete DJ Build components
Fork
The Marzocchi Bomber DJ is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Tweedy Complete DJ Build 2023 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
