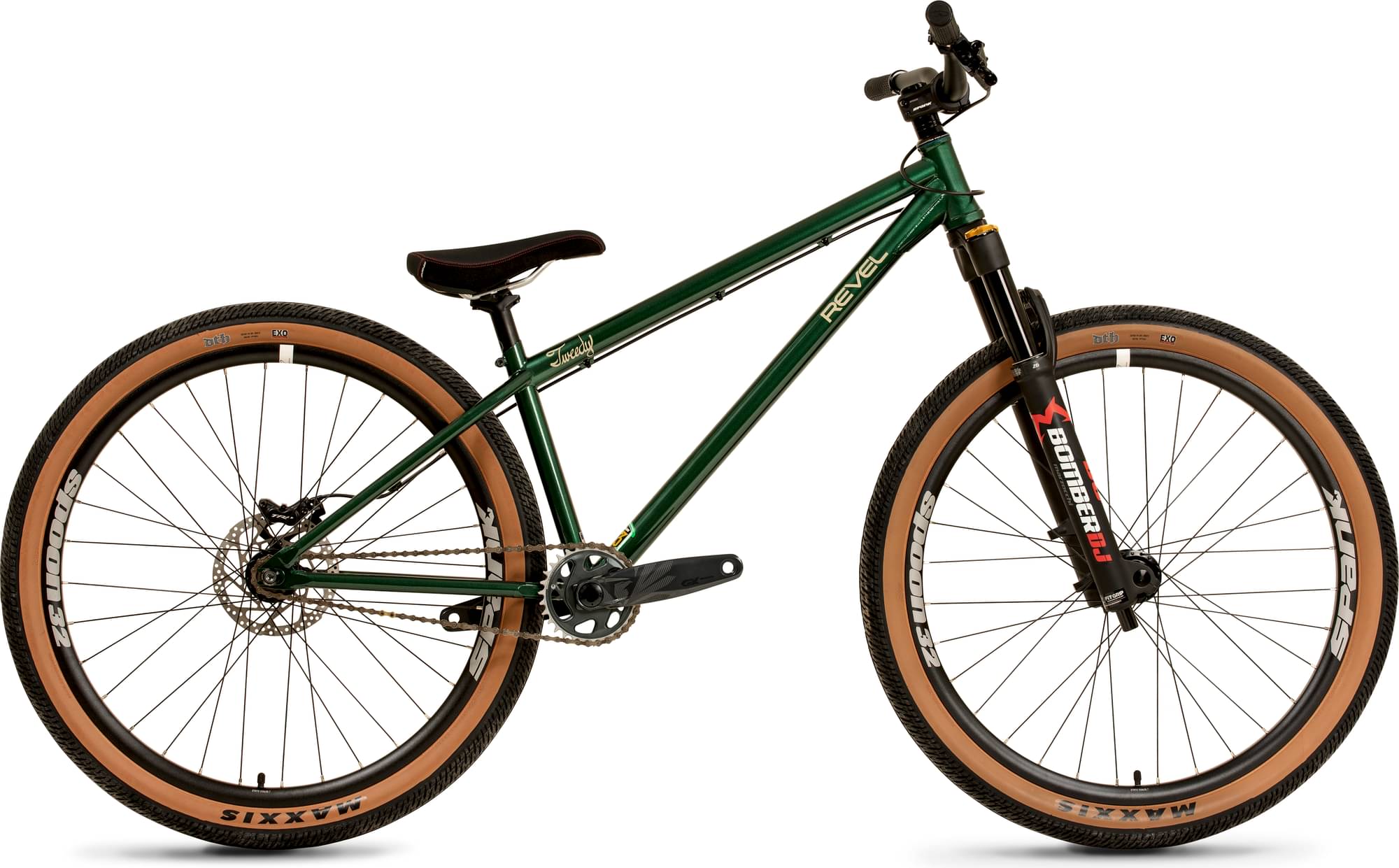

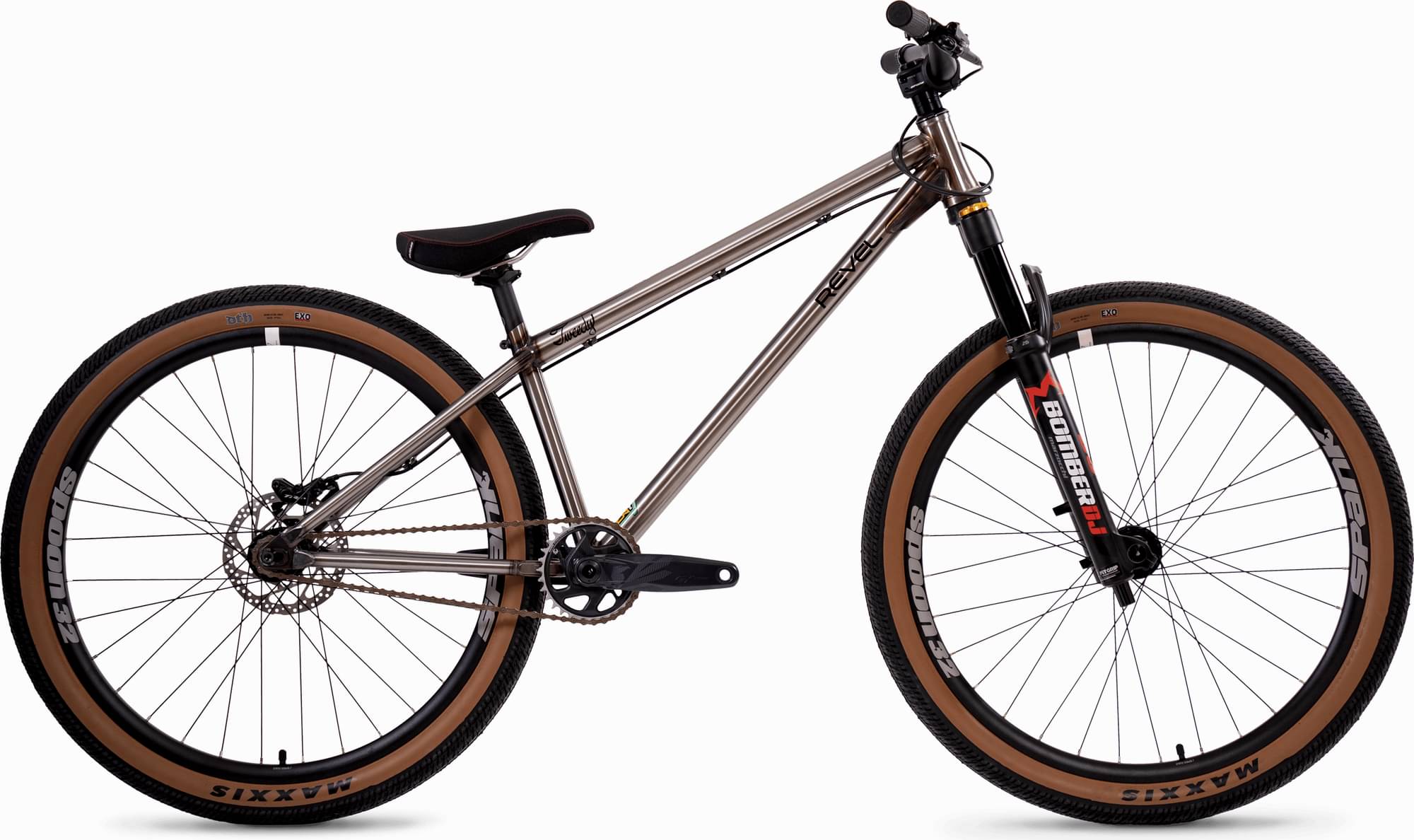

Revel Tweedy Complete DJ Build 2024
2024 Mountain
Estimate price |
2,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Tweedy Dirt Jumper
Suspension Fork
Marzocchi Bomber DJ 26? 100mm Matte Black
Drivetrain
Crank
SRAM GX Eagle 170mm 30t
Bottom Bracket
SRAM DUB BSA
Chain
Single Speed
Wheels
Rims
Spank Spoon 26?
Tires
Maxxis DTH 26×2.3 EXO/TW Wire
Brakes
Brakes
TRP Slate T4 / TRP R1 1.8 160mm
Cockpit
Stem
Spank Spoon 31.8x43mm Black
Handlebar
Spank Spoon 40mm Black
Grips
Lizard Skins Charger Evo Black
Headset
Cane Creek 40-Series
Seat
Saddle
Spank Spoon
Seatpost
Alloy Seatpost 27.2x350mm Matte Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.305 mm |
| Bottom Bracket Height | 318 mm |
| Front Center | 683 mm |
| Rake | 40 mm |
| Trail | 123 mm |
| Stack | 561 mm |
| Reach | 430 mm |
| Top Tube Length | 618 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 325 mm |
| Head Tube Angle | 68.7 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 382 mm |
| Wheelbase | 1064 mm |
| Bottom Bracket Drop | 24 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
