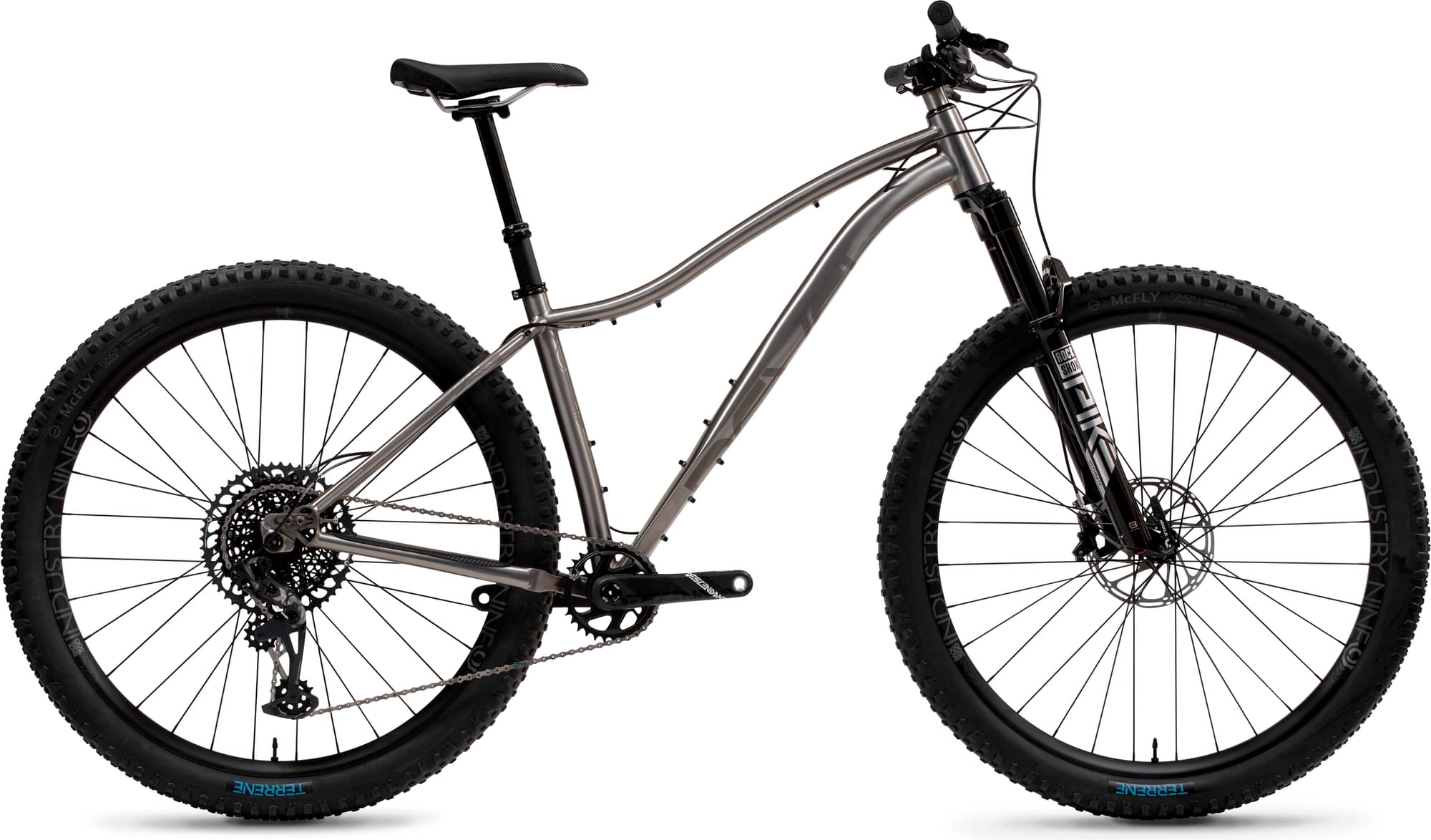

Revel Wayward Frame Only 2024
2024 Mountain
Estimate price |
2,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Wayward 29"+ Hardtail
Cockpit
Headset
Cane Creek 40-Series
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.345 mm | 1.287 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm |
| Front Center | 730 mm | 753 mm | 773 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 636 mm | 639 mm | 642 mm |
| Reach | 455 mm | 475 mm | 499 mm |
| Top Tube Length | 621 mm | 643 mm | 664 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 460 mm | 485 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 116 mm | 118 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1160 mm | 1183 mm | 1203 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 720 mm | 745 mm | 760 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
