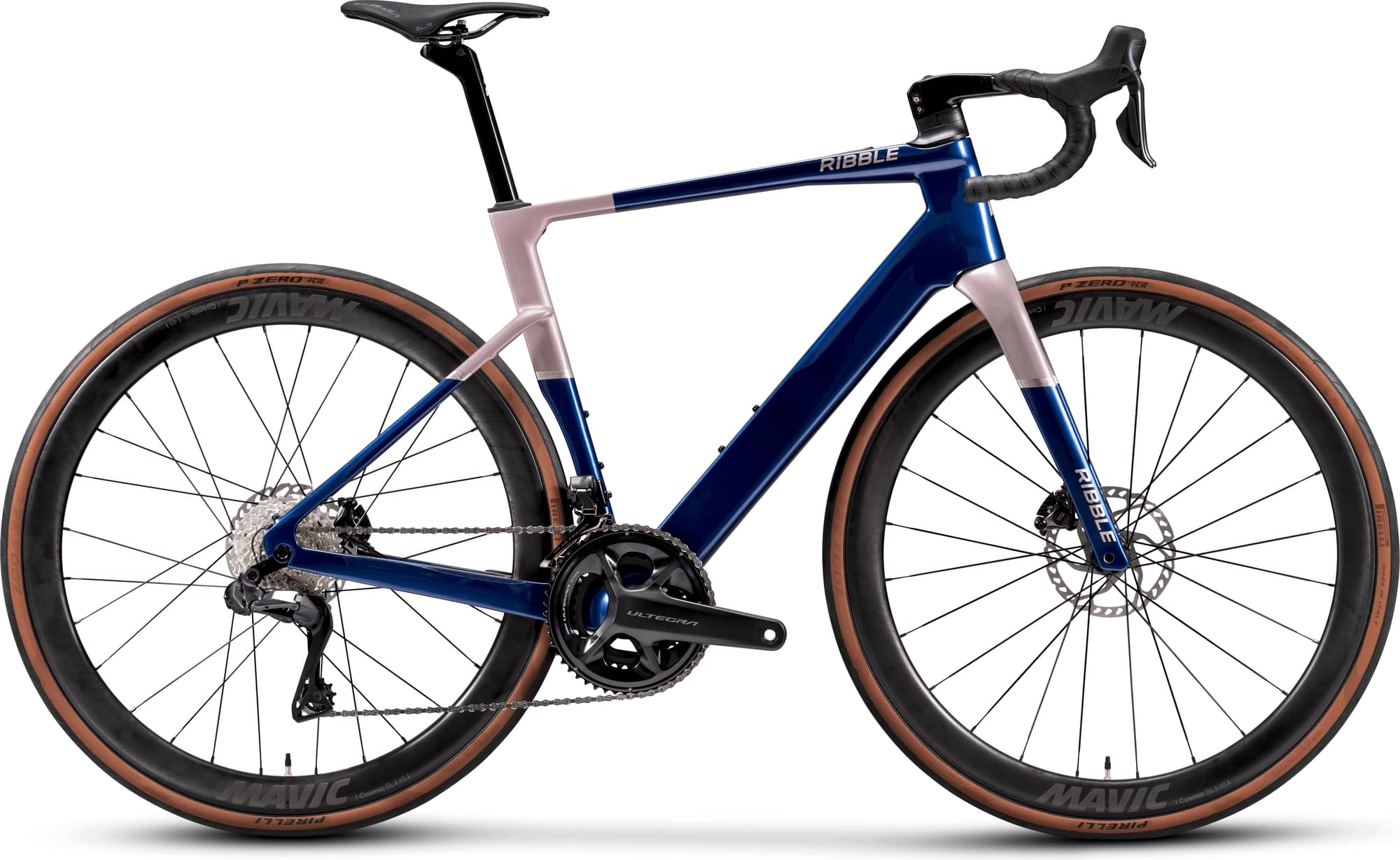

Ribble Allroad SL R e – Pro 2025
2025 E-bike
Estimate price |
8,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -

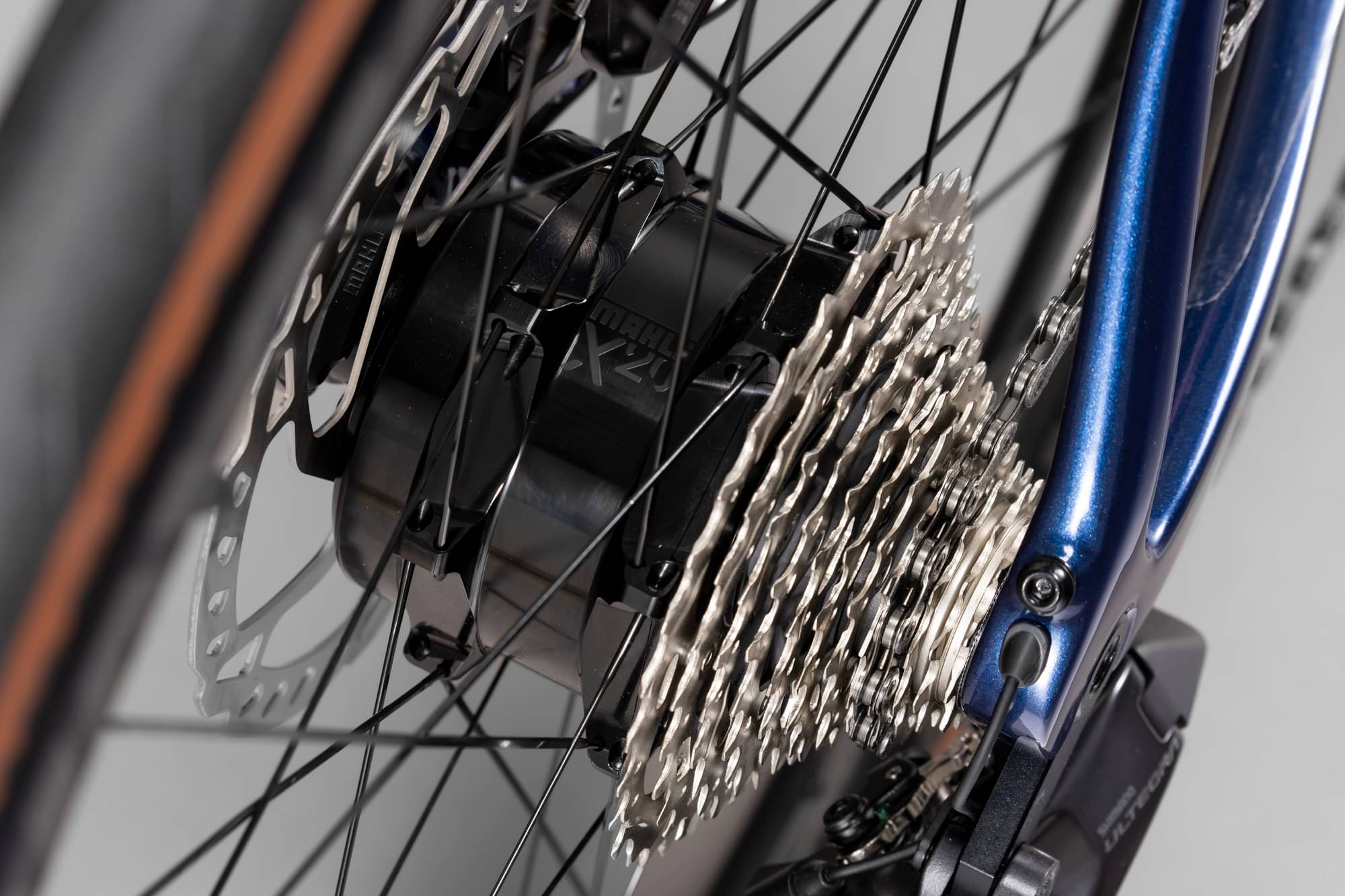

Motor MAHLE 55Nm hub-drive -
Battery X20 iX3+ Battery Pack -
Drivetrain 2 × 12 Electronic -

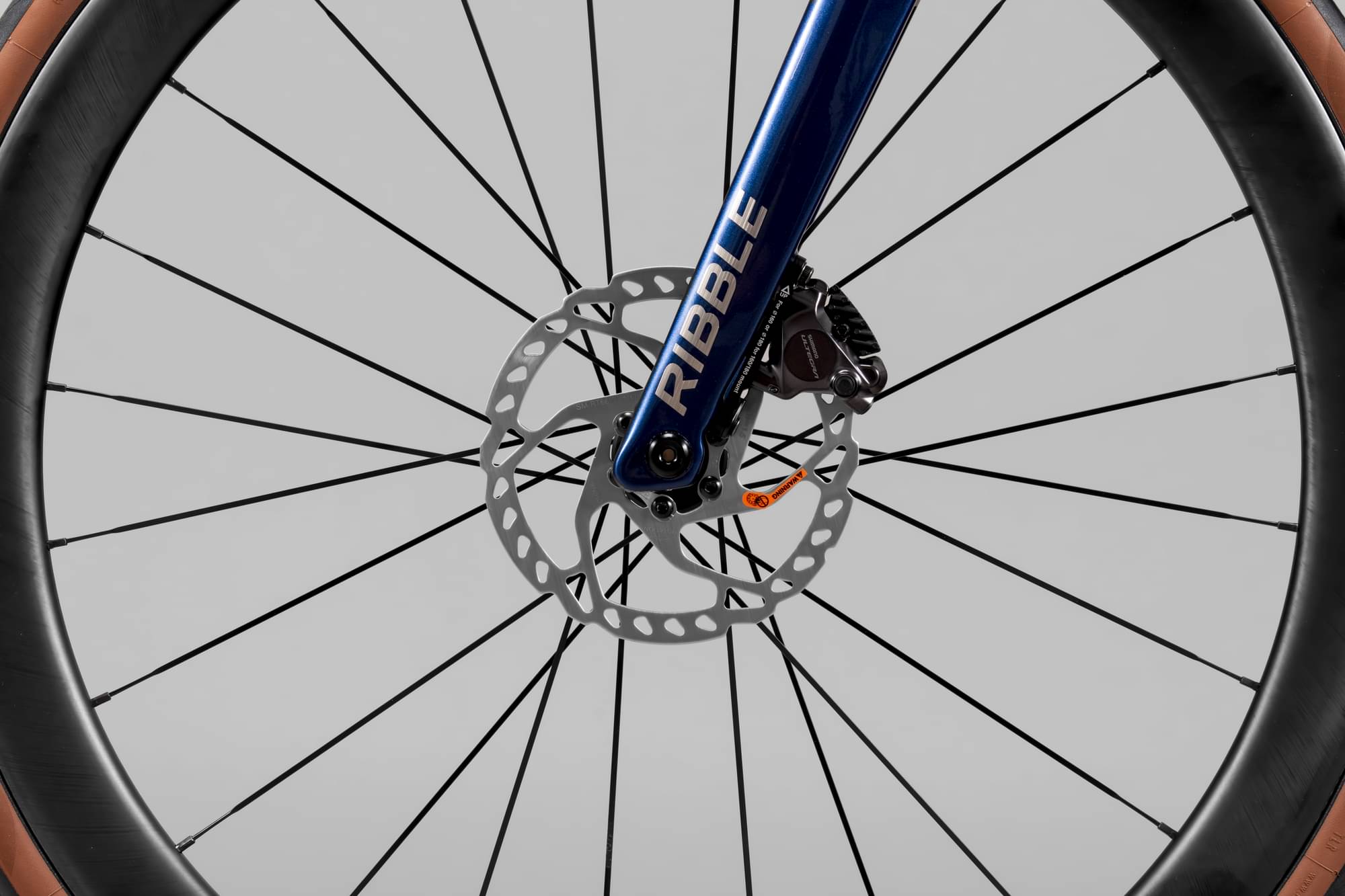

Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 169cm
SM
167cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Allroad SL R e Frame Midnight Blue/Pink XSM 45cm
Suspension Fork
Allroad SL R e Carbon Fork Midnight Blue/Pink

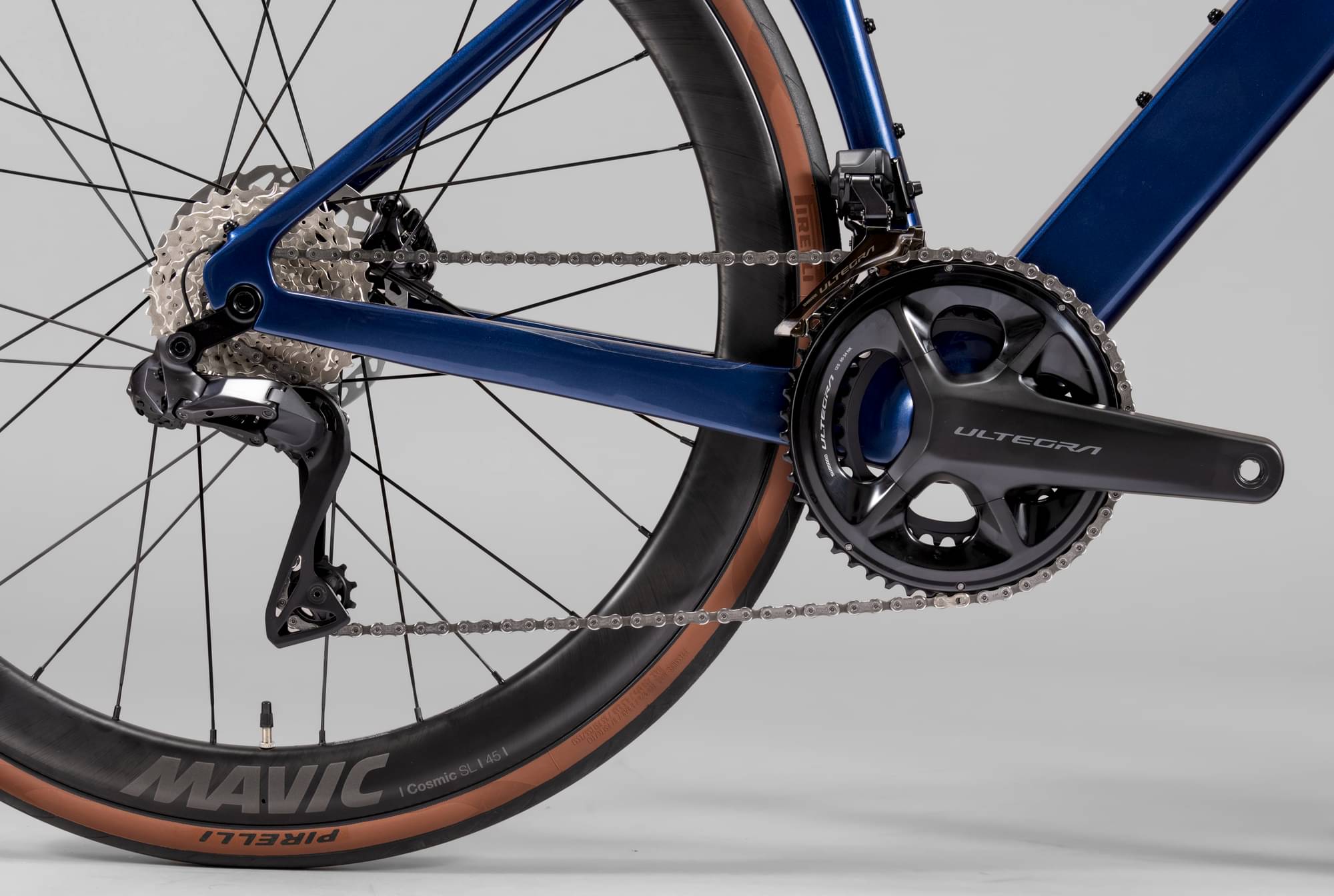

Drivetrain
Rear Derailleur
RD-R8150 Ultegra Di2 12spd Rear Derailleur
Front Derailleur
FD-R8150 Ultegra Di2 12spd FR Derailleur Braze On

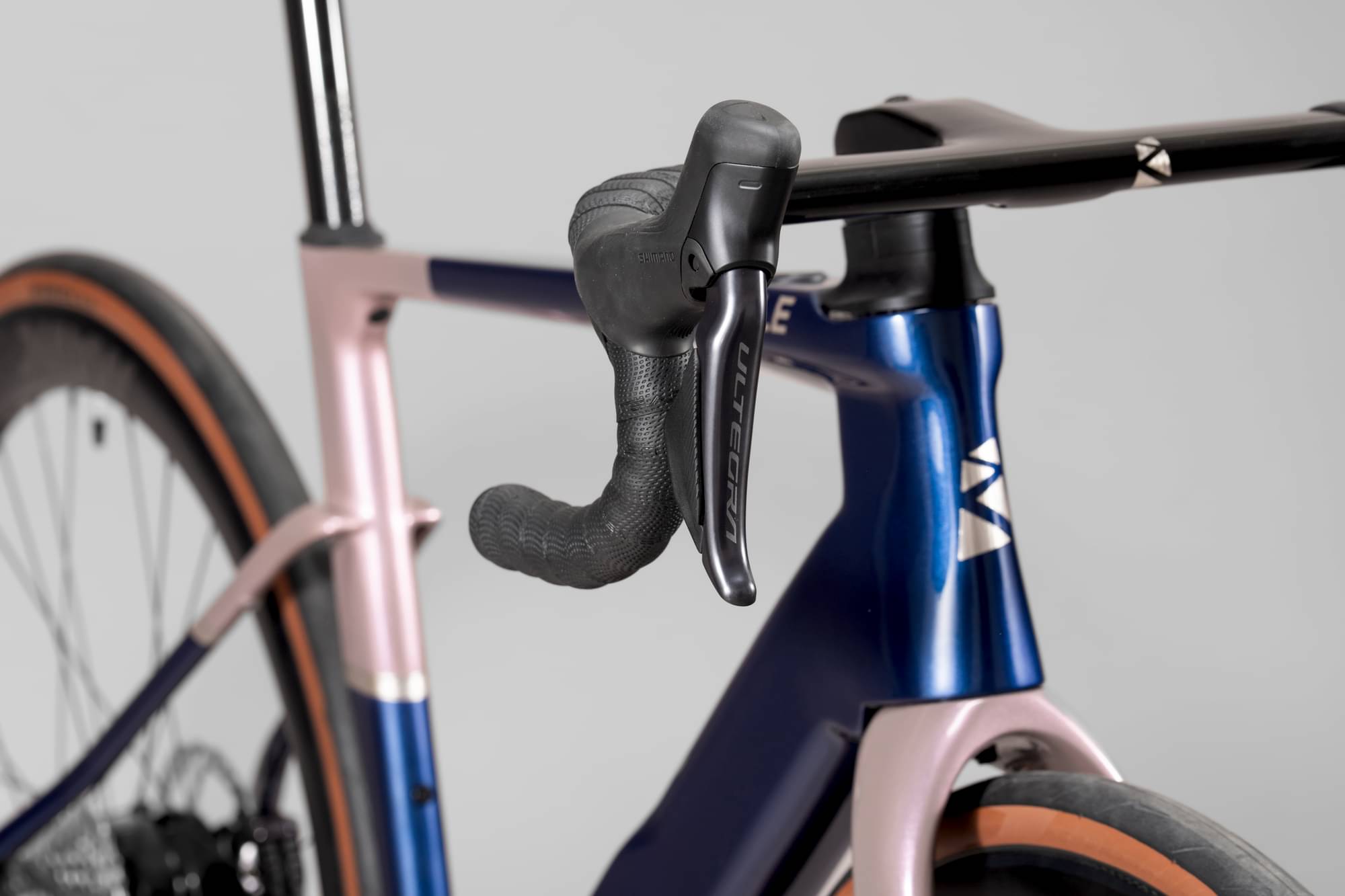

Shift Levers
ST-R8170 Ultegra Di2 Hyd STI Lever 2X LH
Cassette
CS-R8101 Ultegra 12spd Cassette HG 11-34T
Crank
FC-R8100 Ultegra 12spd Chainset 165mm 50-34T
Bottom Bracket
X20 TCS PF 46x24mm Bottom Bracket
Chain
CN-M8100 XT Chain 126 Links
Wheels

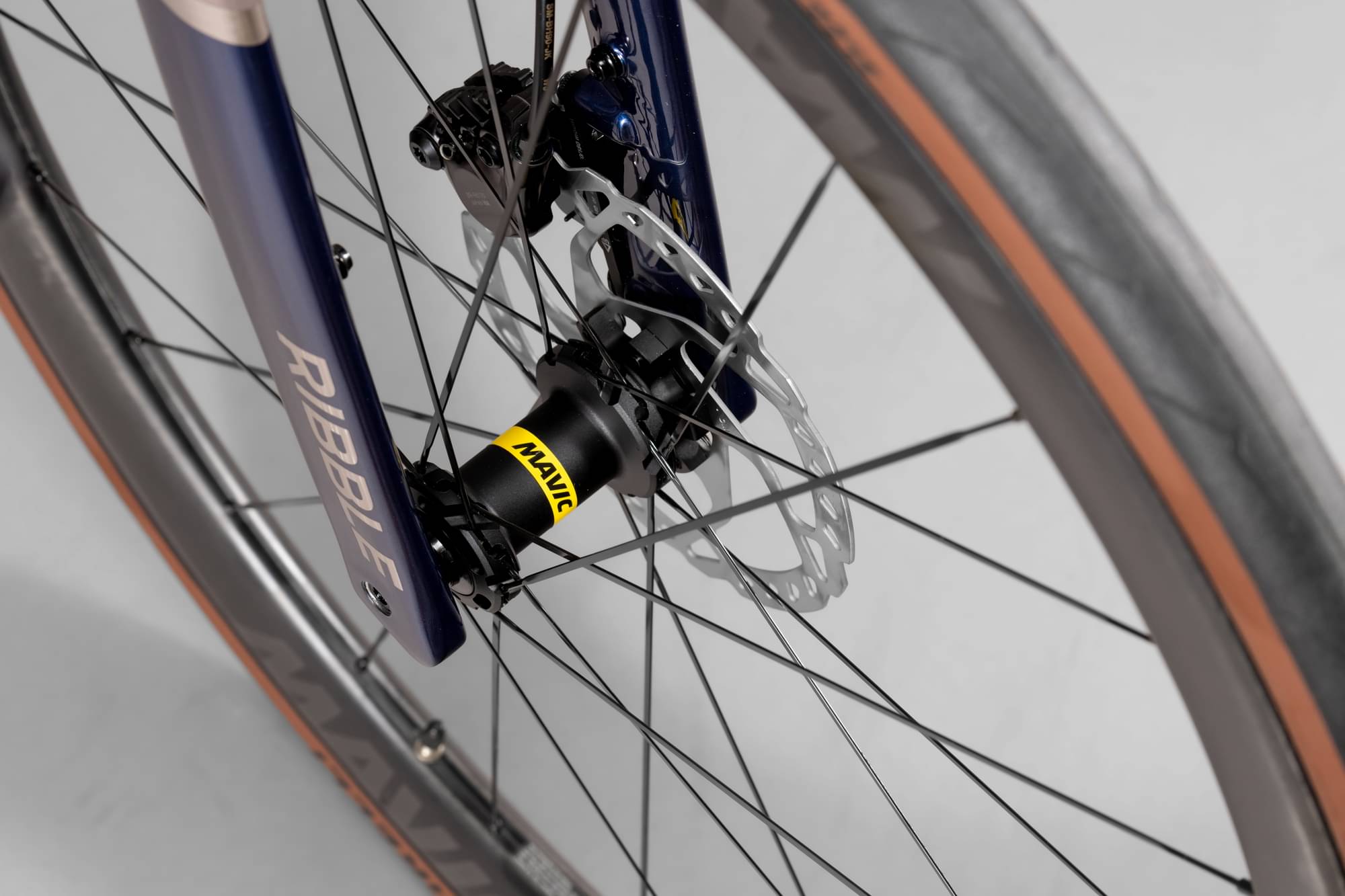

Front Hub
Allroad Front Thru-Axle
Rear Hub
Allroad SL/SL R/SL R e Rear Thru-Axle
Rims

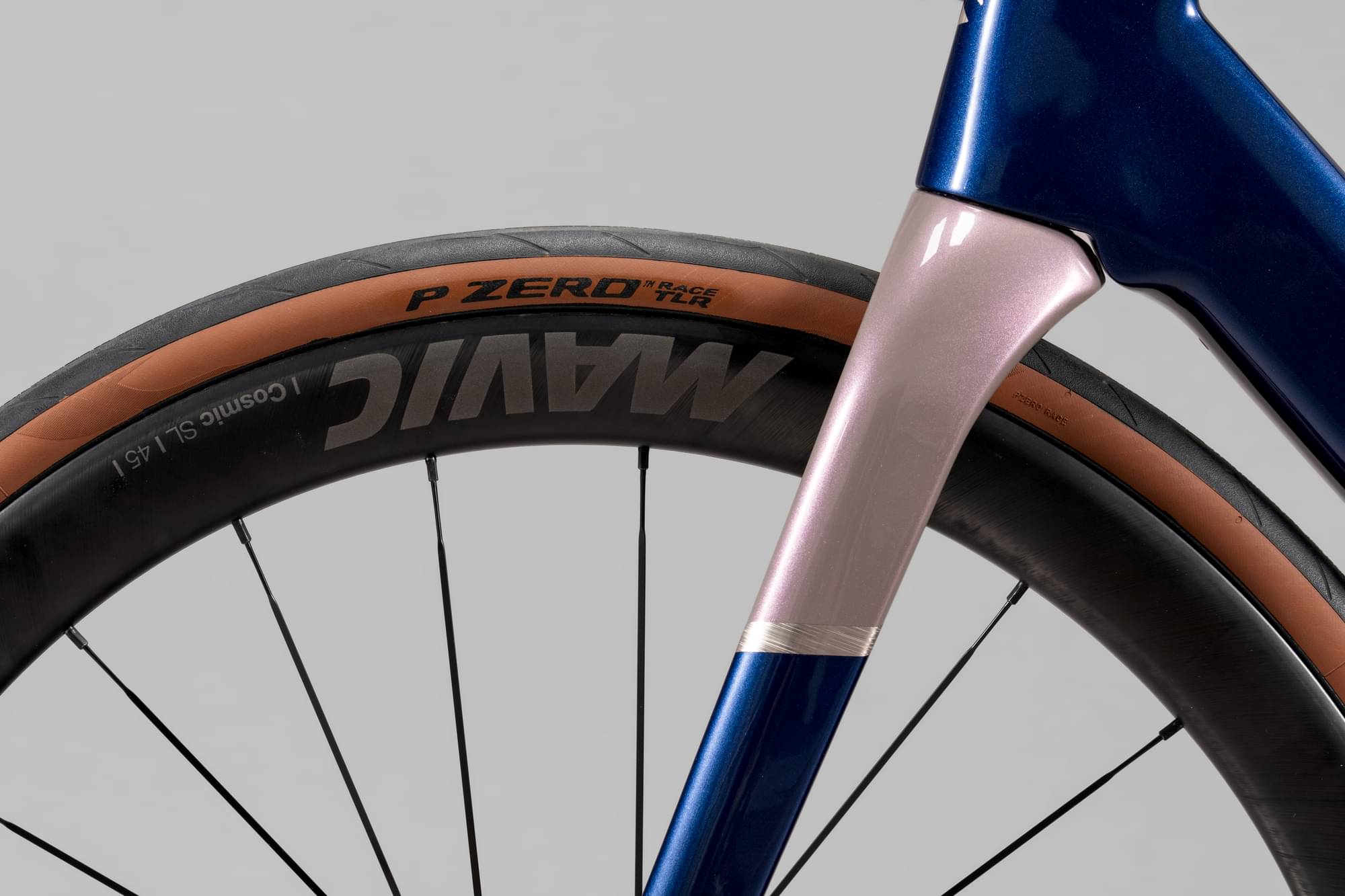

Cosmic SL45 MAH X20 Front Wheel 700c 6B
Tires
P Zero Race TLR Tan 700x32mm

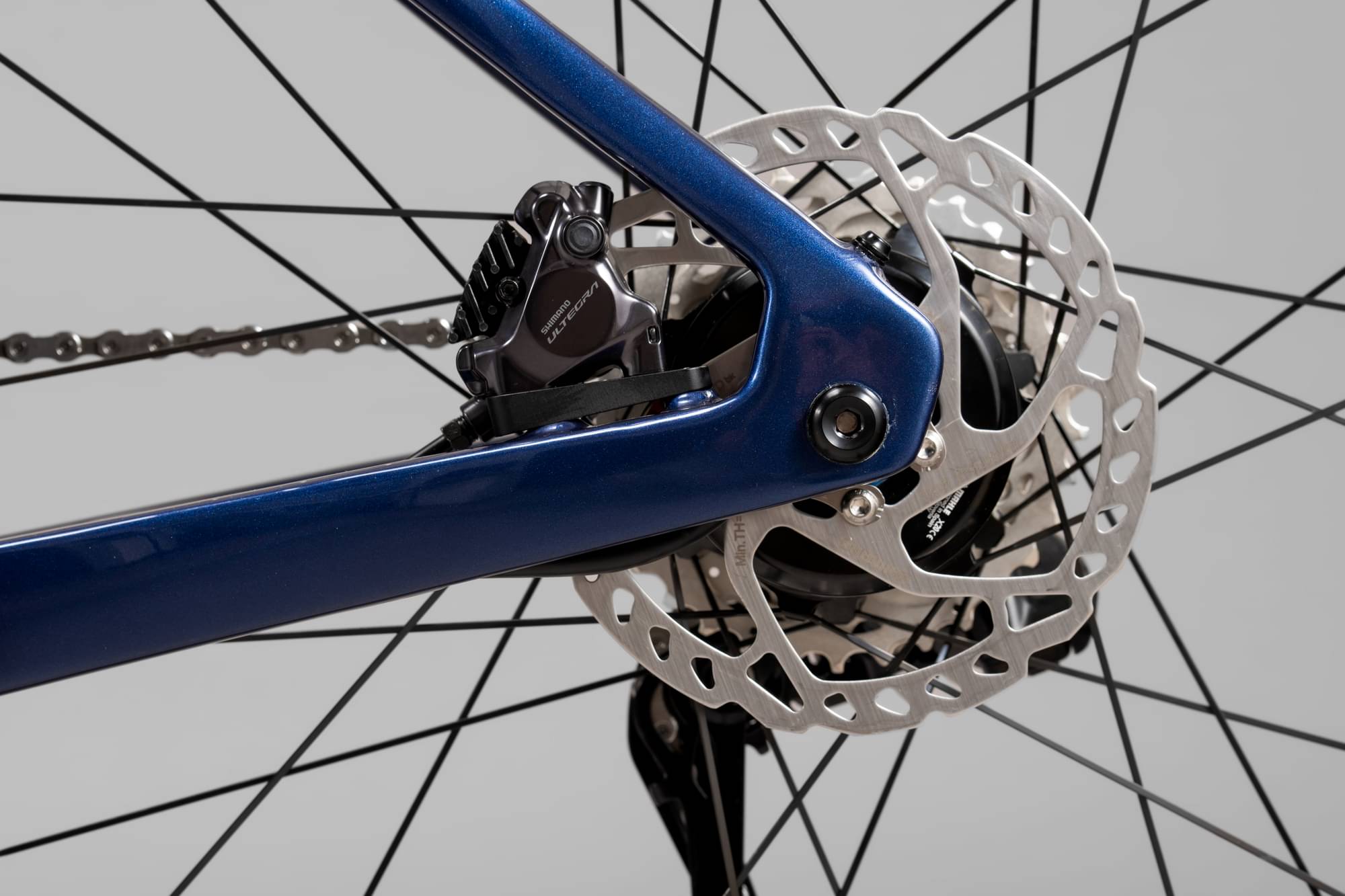

Brakes
Brakes
Disc Caliper Bolt Black 27mm For Alloy Frames
Cockpit

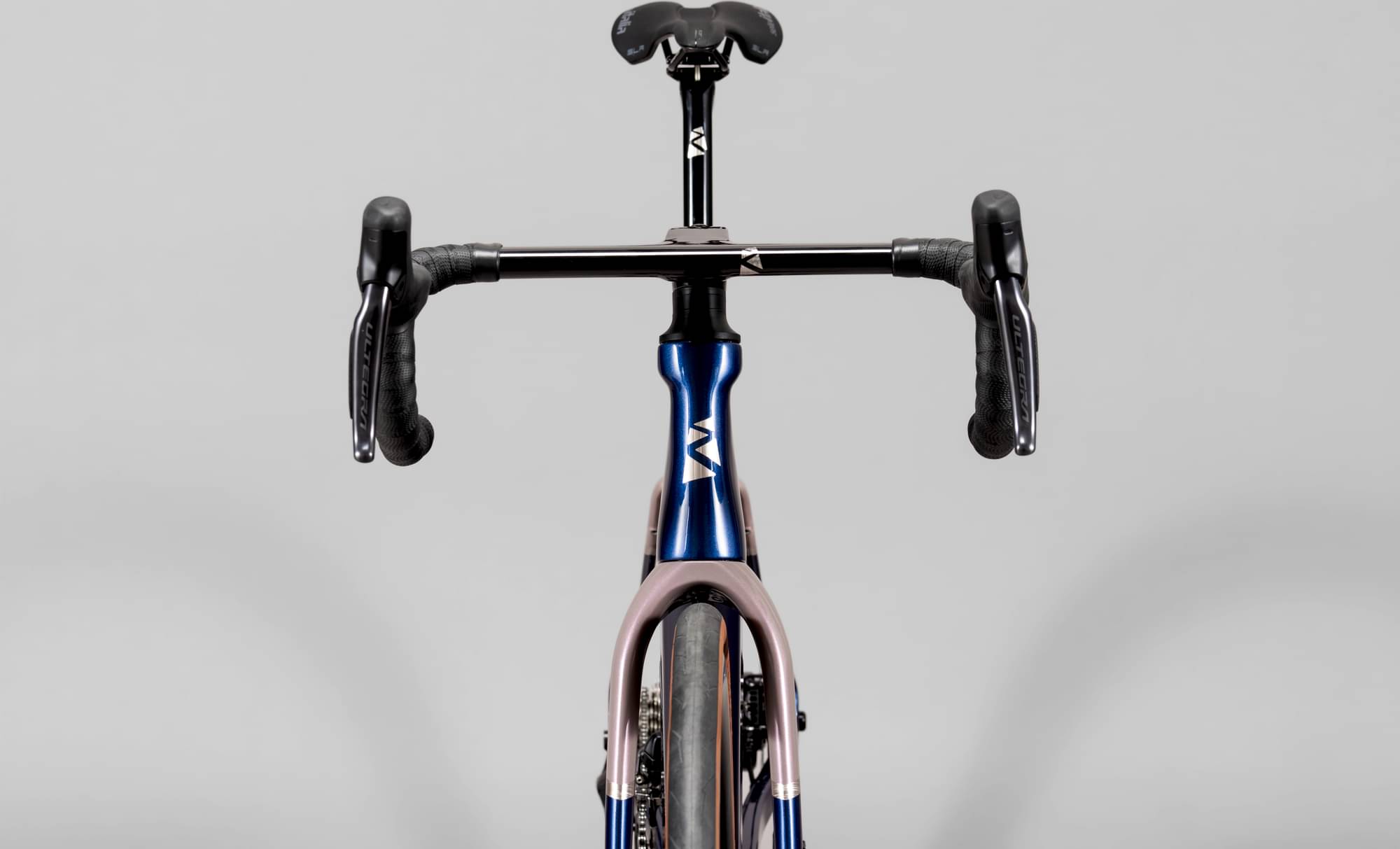

Handlebar

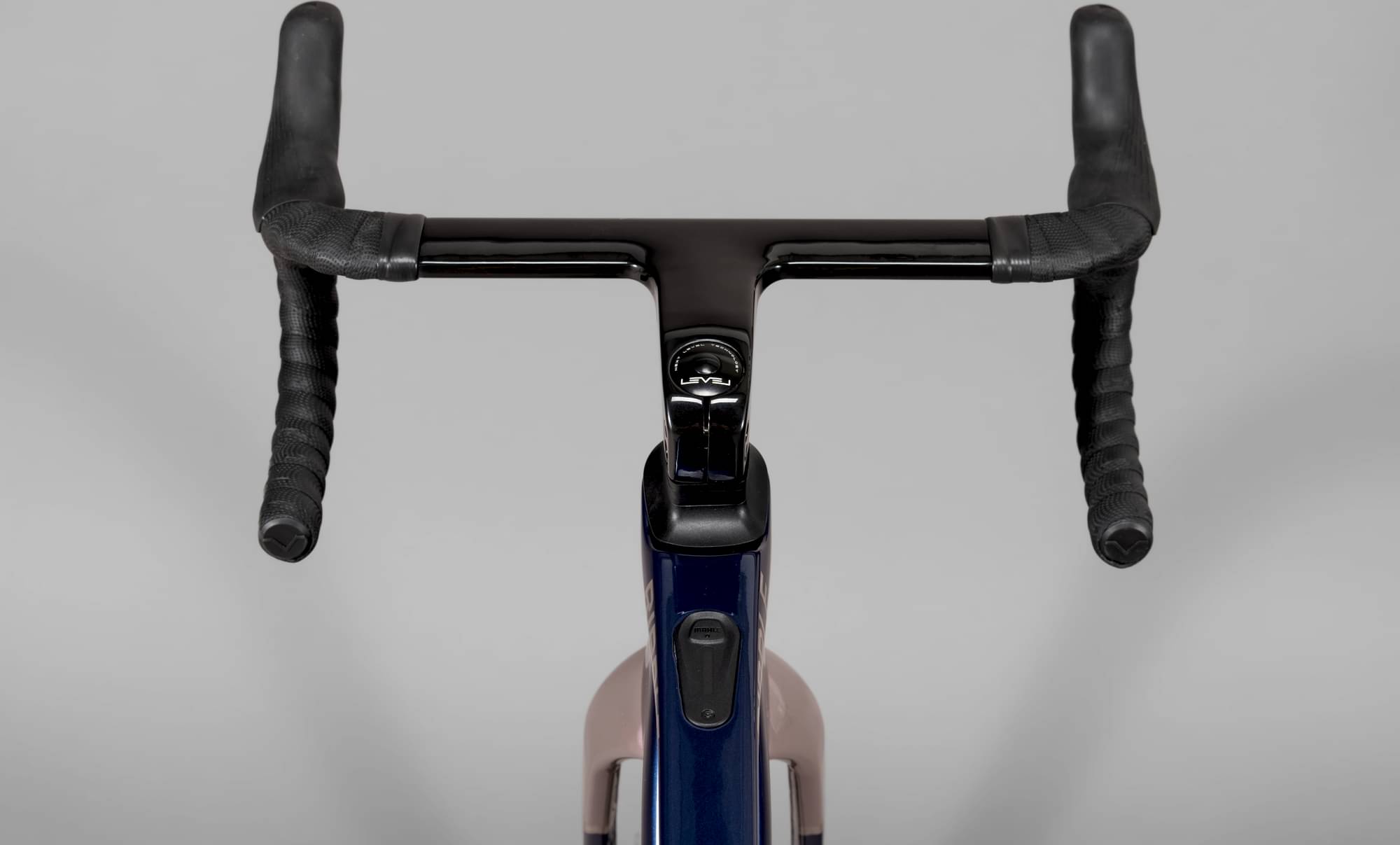

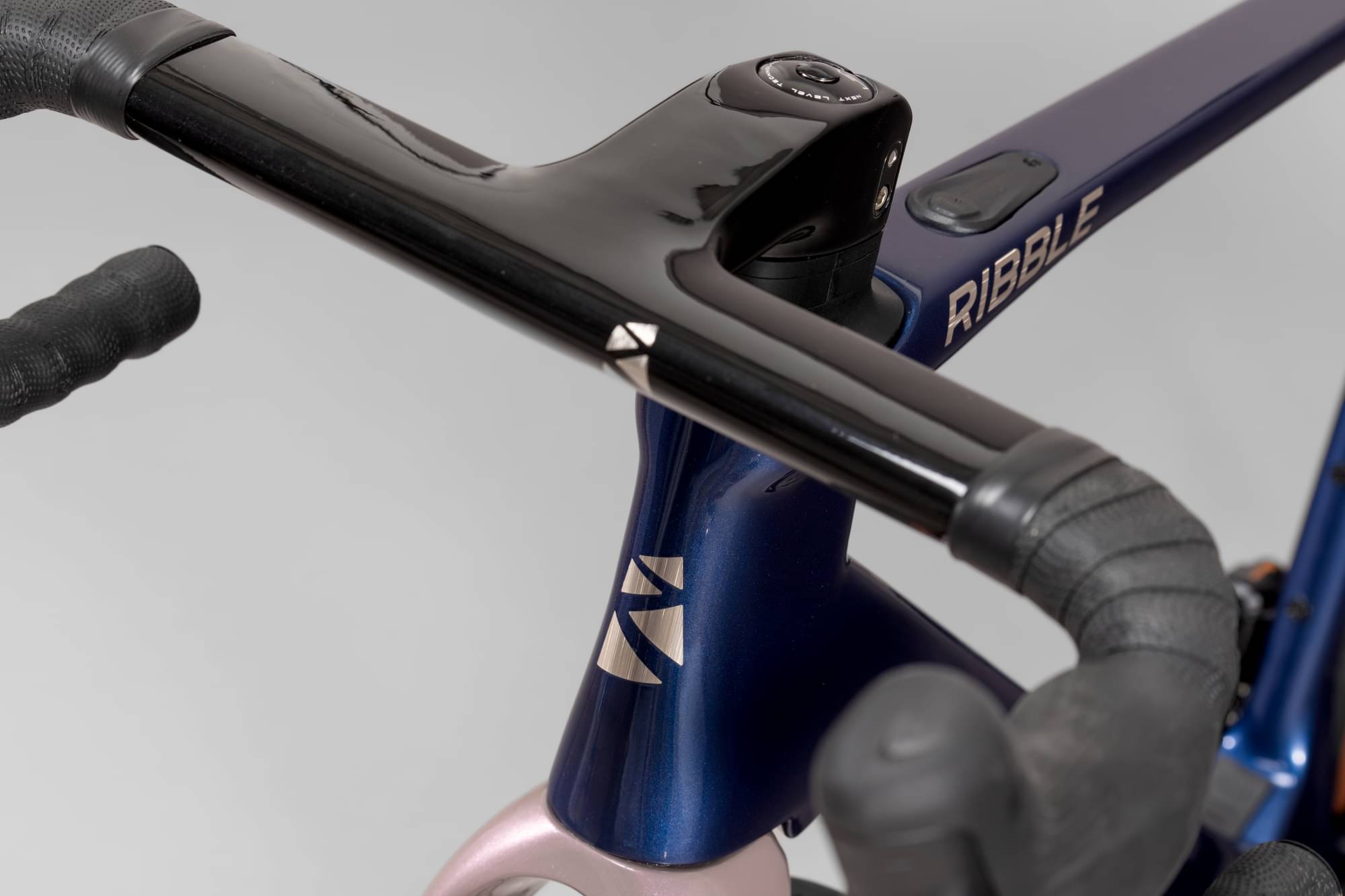

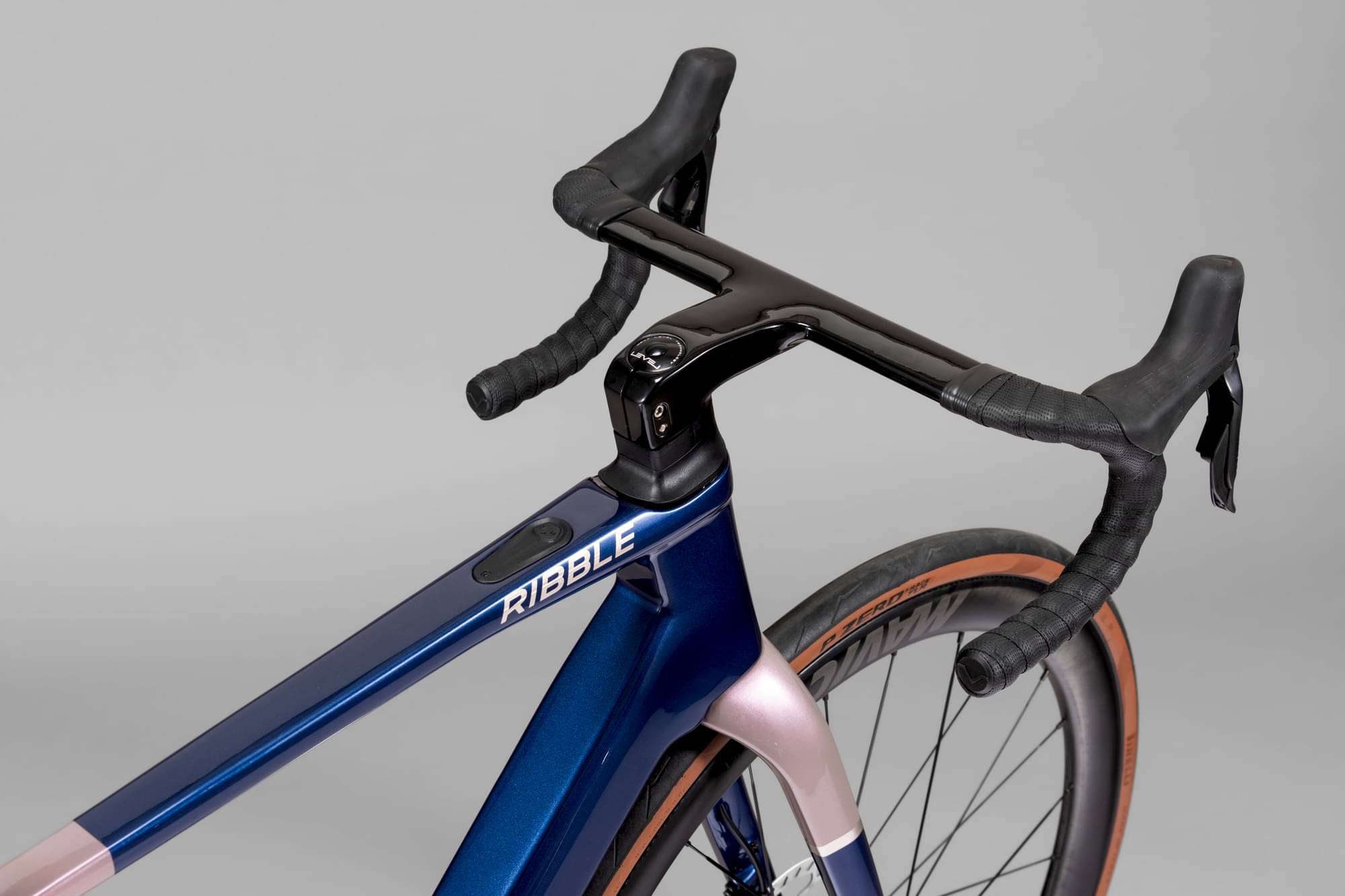

RI-2 Carbon Integrated Bar & Stem 38cm x 80mm
Headset
R457 Headset Bearing for Allroad
Seat

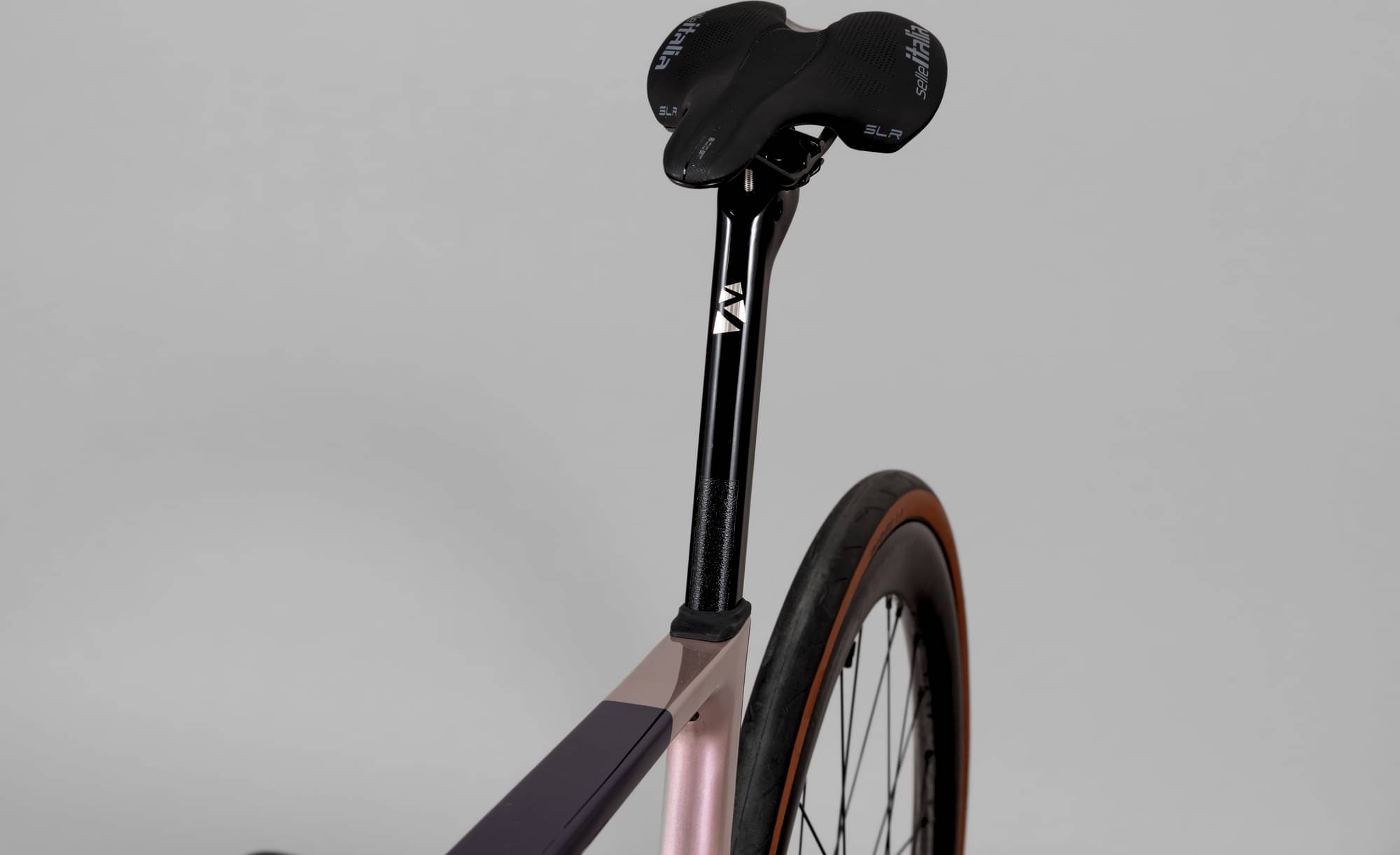

Saddle

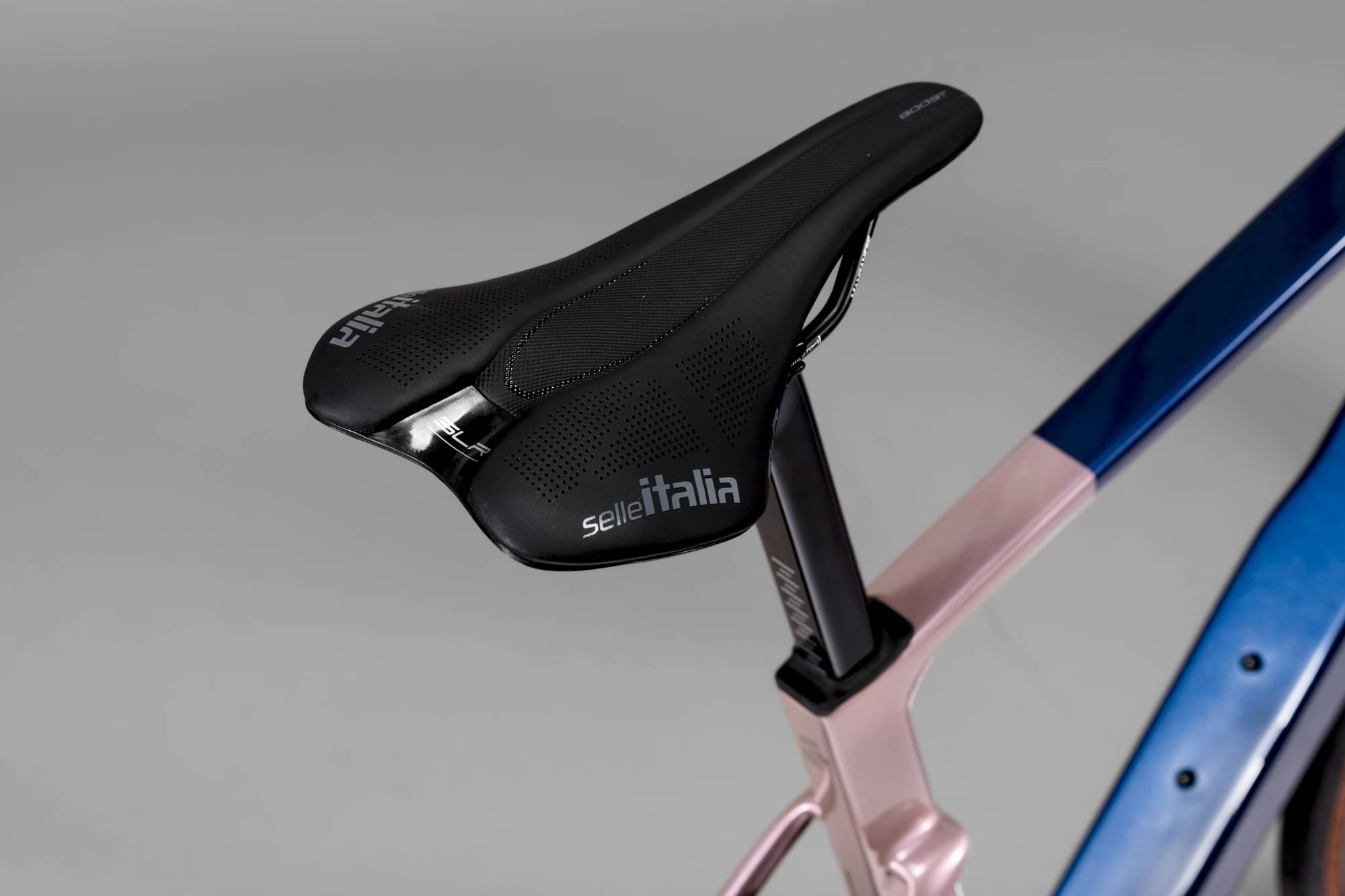

SL R Boost Saddle
Seatpost

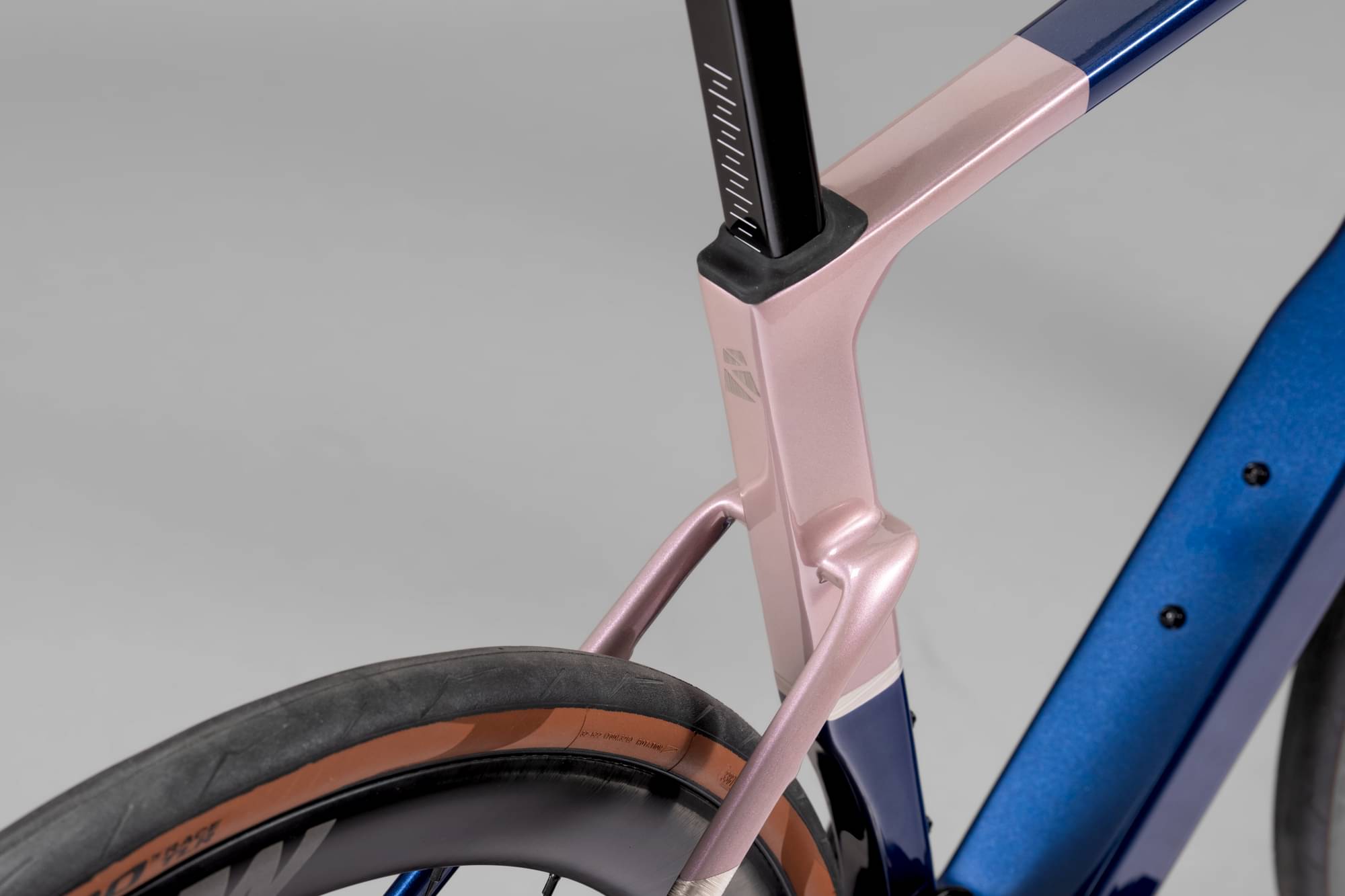

Allroad SL R/SL R e Seat Tube Wedge Plug
Motor & Battery
Motor
X20 iX3+ Battery Pack
Battery
X20 iX3+ Battery Pack
Charger
Charger Wire For UK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.46 mm | 1.511 mm | 1.504 mm | 1.499 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 573 mm | 580 mm | 580 mm | 600 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 56 mm | 57 mm | 56 mm |
| Stack | 523 mm | 546 mm | 568 mm | 588 mm | 607 mm |
| Reach | 365 mm | 374 mm | 376 mm | 391 mm | 405 mm |
| Top Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 978 mm | 985 mm | 985 mm | 1005 mm | 1026 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 169 cm | 176 cm | 181 cm | 186 cm | 193 cm |
