Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 169cm
SM
167cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

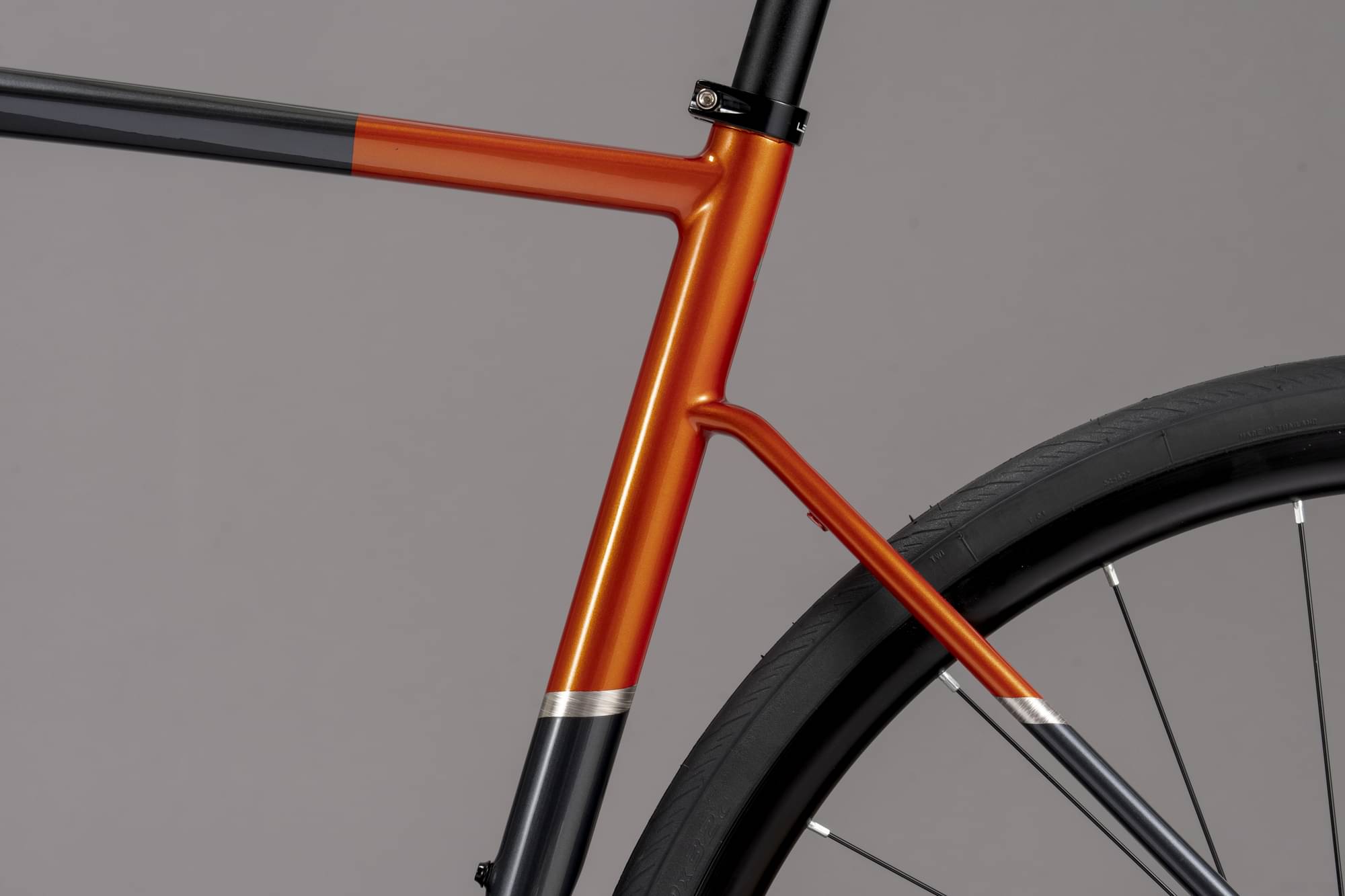

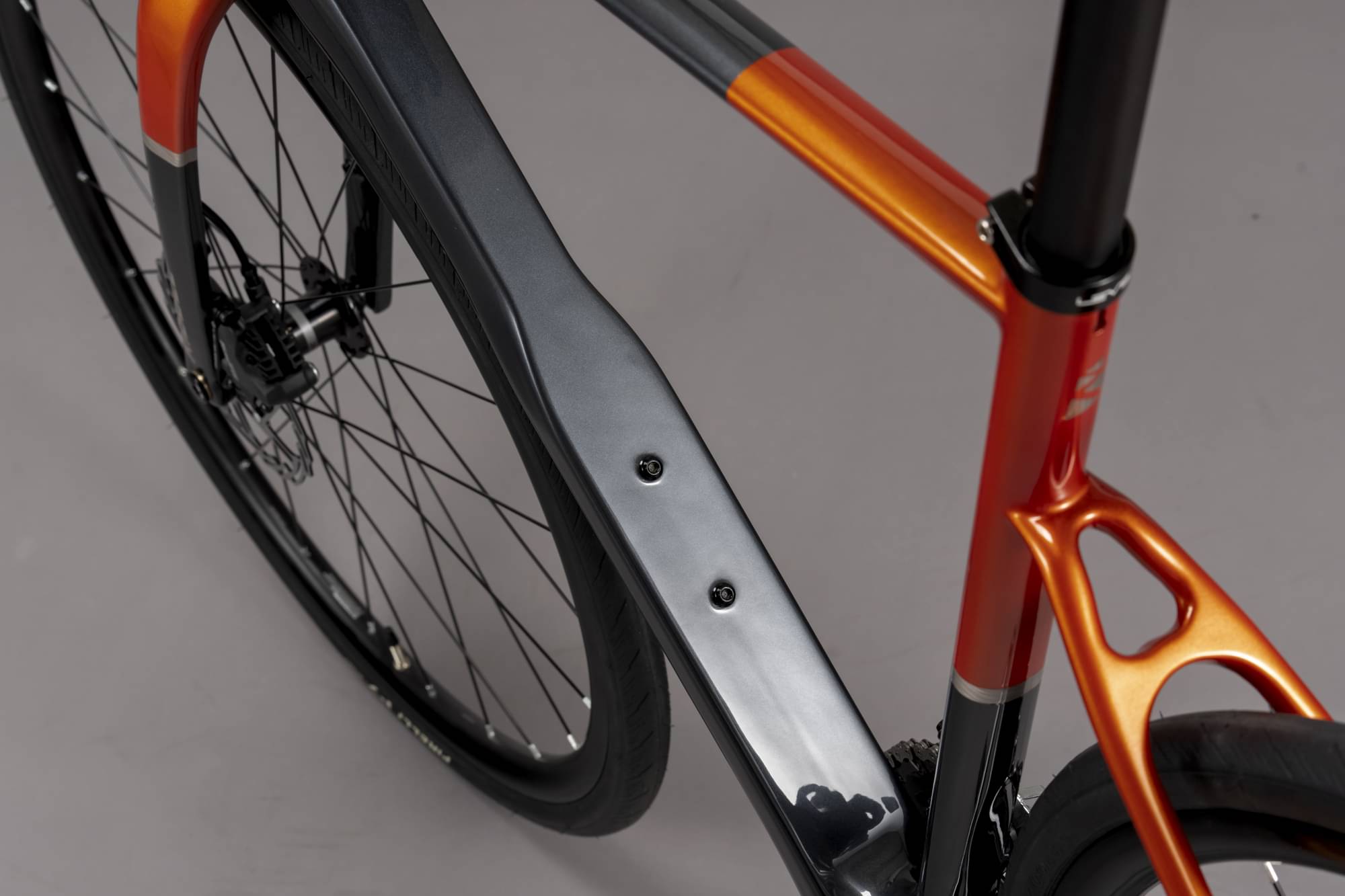

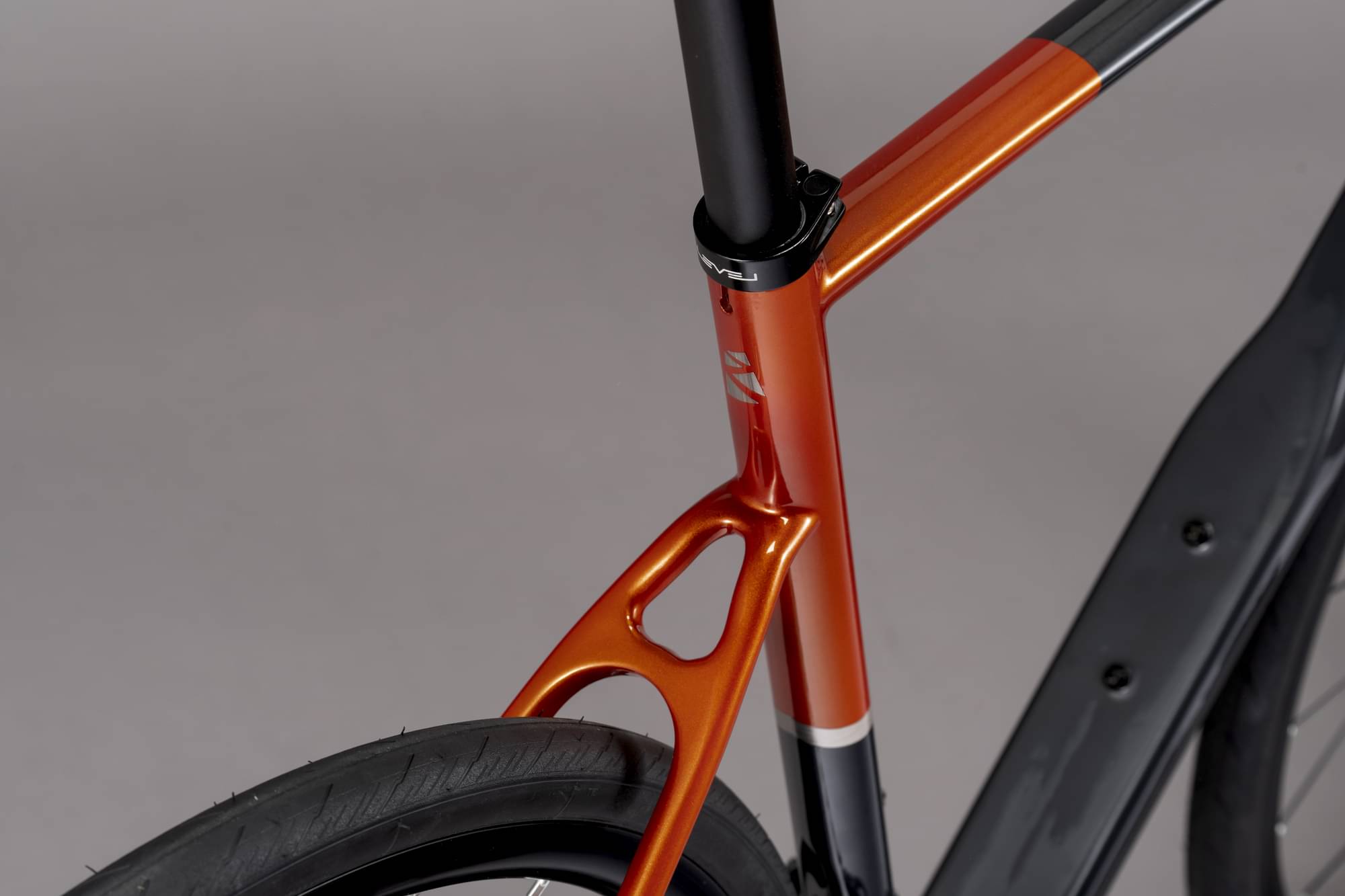

Frame
Frame
Allroad SL Frame Anthracite/Orange Rust XSM 45cm

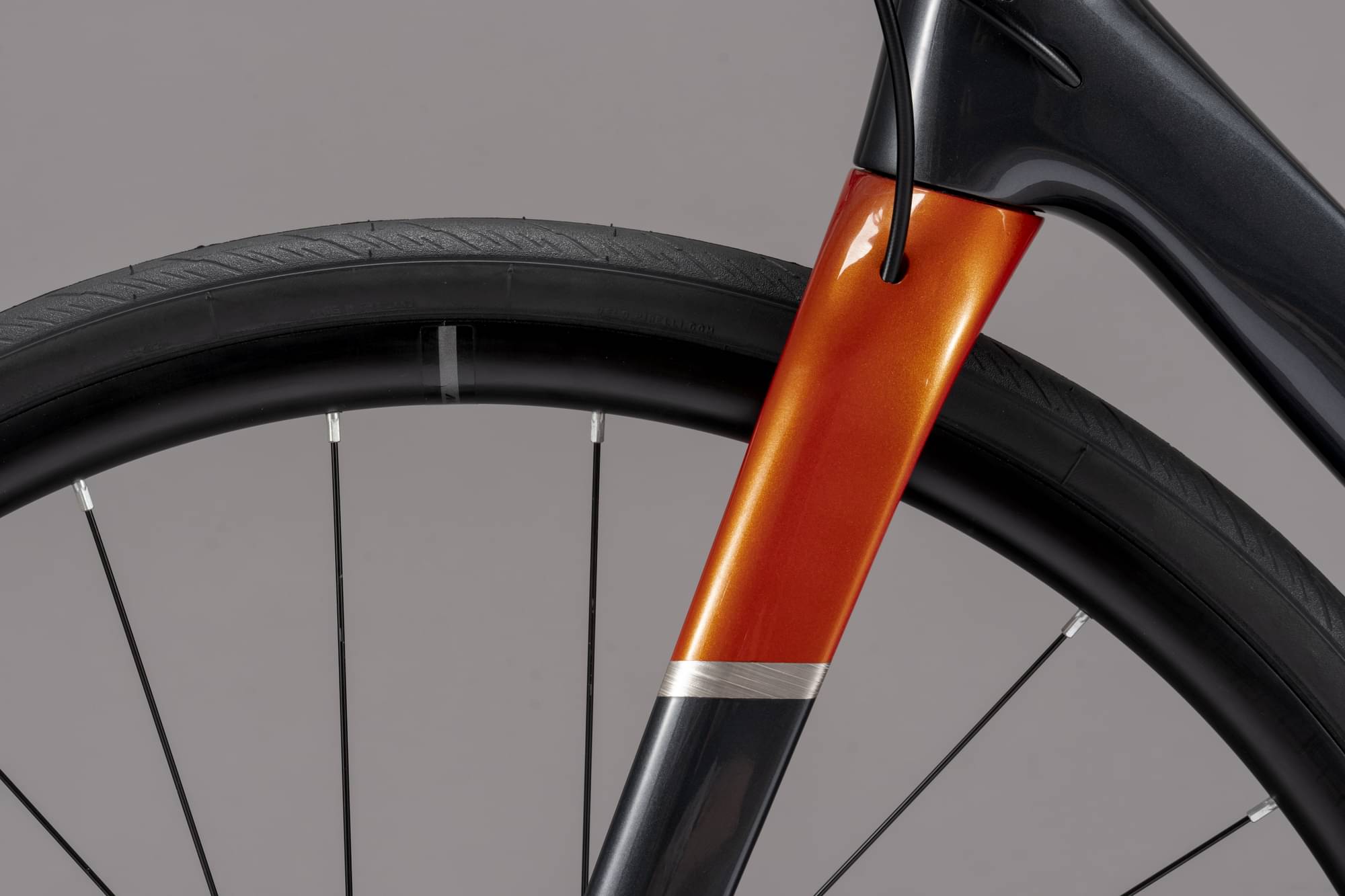

Suspension Fork
Allroad SL Carbon Fork Anthracite/Orange Rust

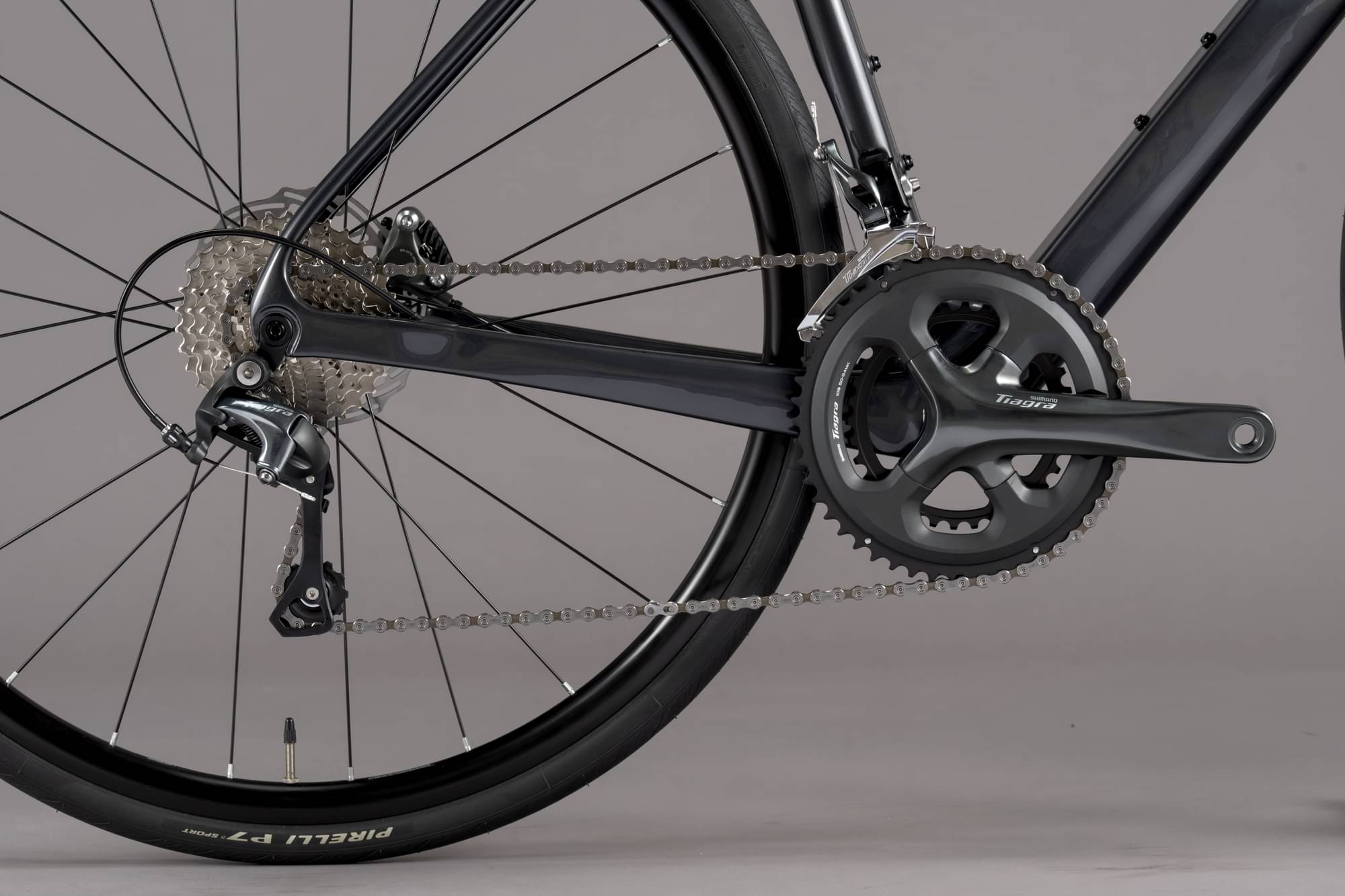

Drivetrain
Rear Derailleur
RD-4700 Tiagra Medium Cage Rear Derailleur
Front Derailleur
FD-R4700 Tiagra Front Derailleur Braze On

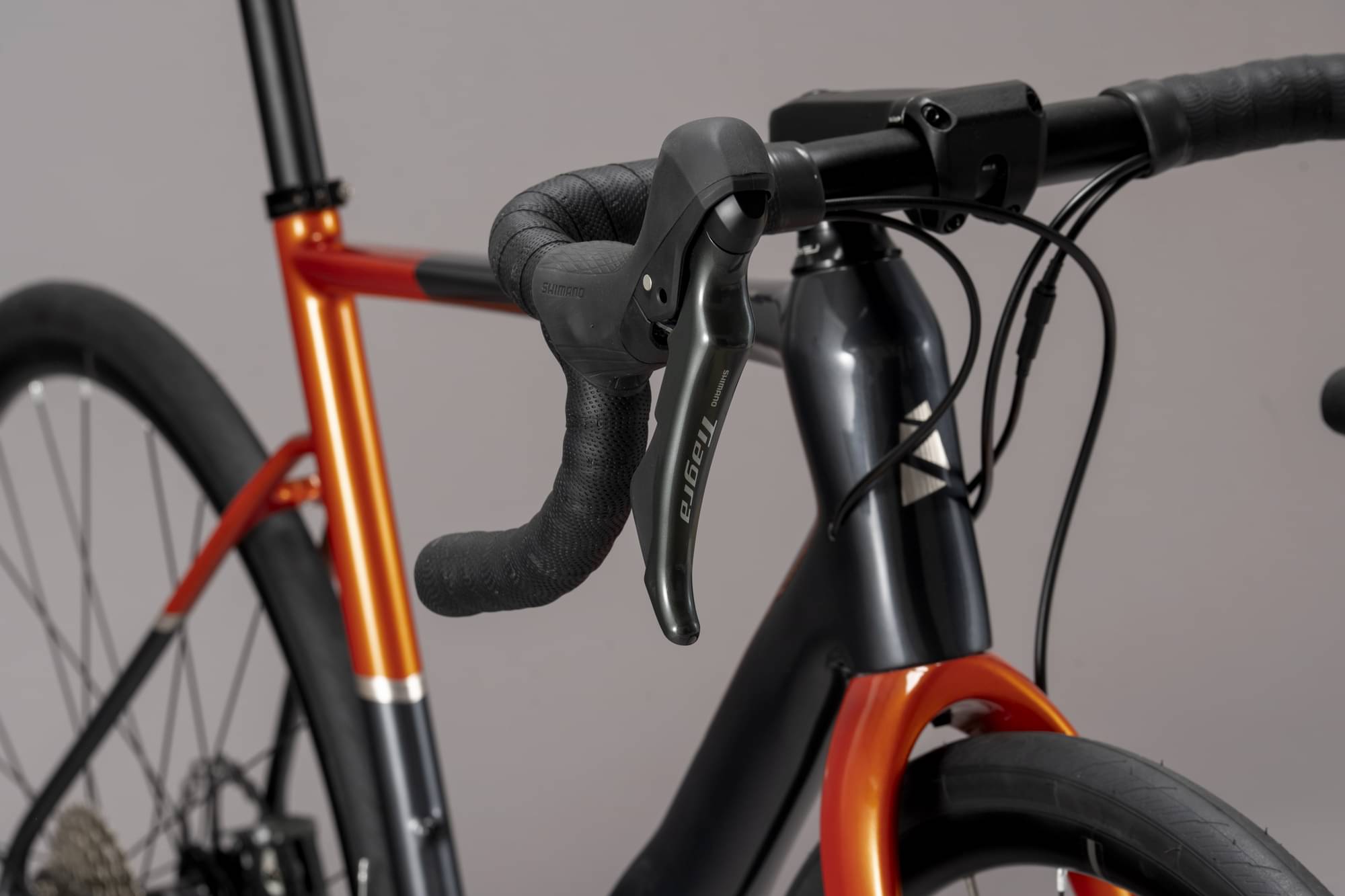

Shift Levers
ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH, ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
Cassette
CS-HG500 10spd Cassette HG 11-34T
Crank
FC-R4700 Tiagra 10spd Chainset 165mm 50-34T
Bottom Bracket
BBRS500 68mm Bottom Bracket
Chain
CN-HG54 10spd Chain 116 Links
Wheels

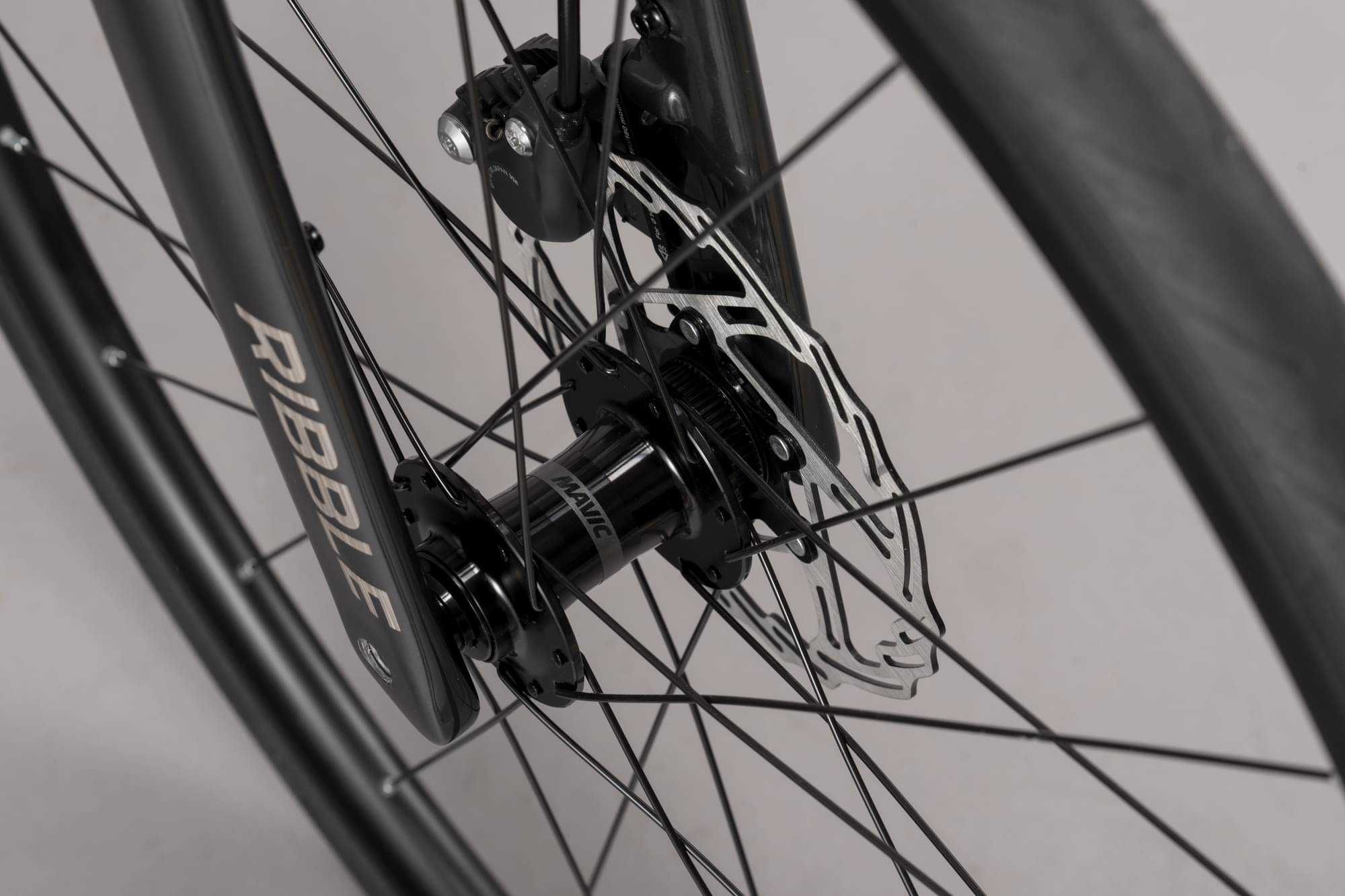

Rims
Aksium 1 Disc Front Wheel 700c CL, Aksium 1 Disc Rear Wheel 700c CL HG
Tires
P7 Sport Black 700x32mm

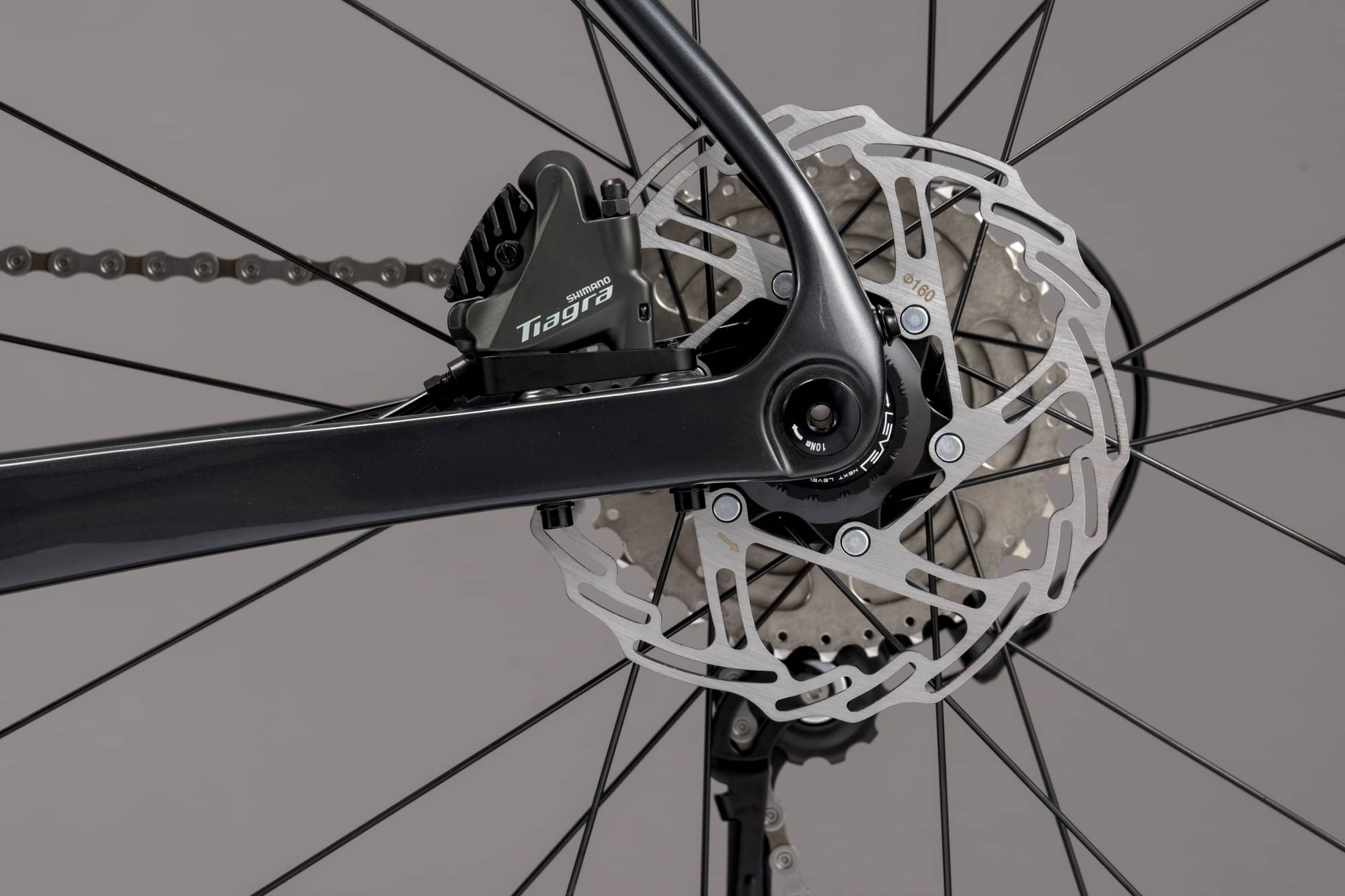

Brakes

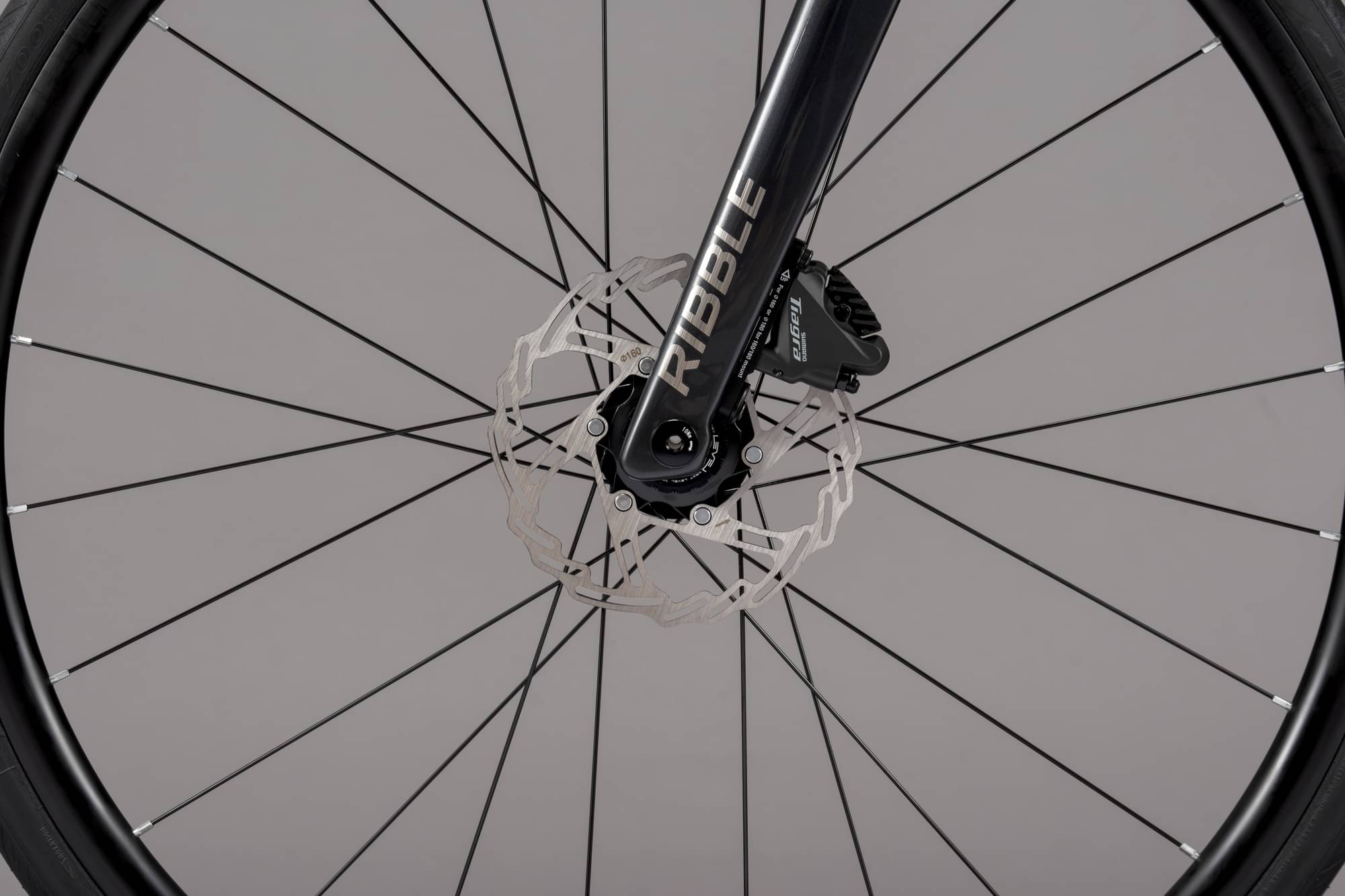

Brakes
Hydraulic Disc

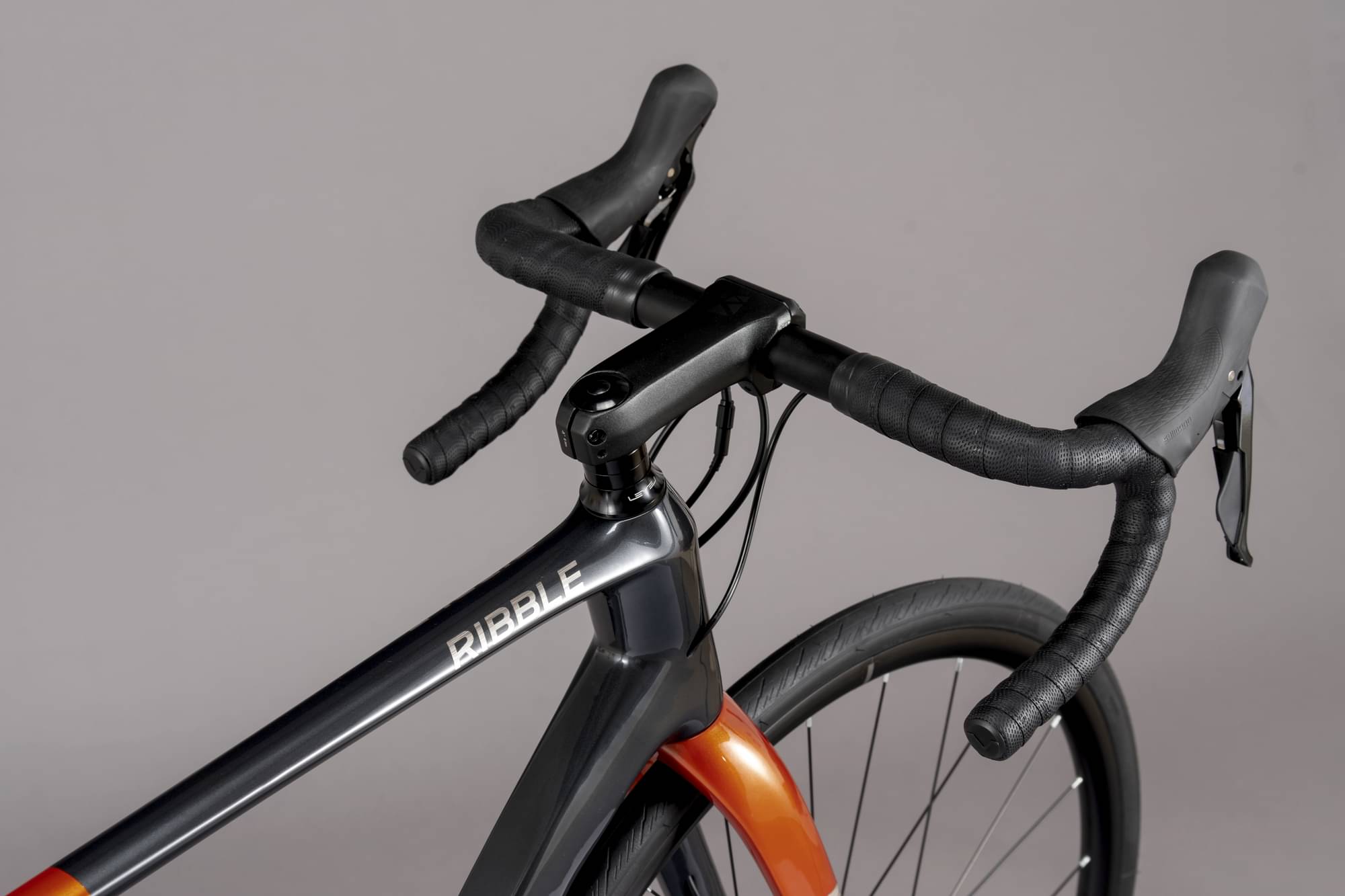

Cockpit

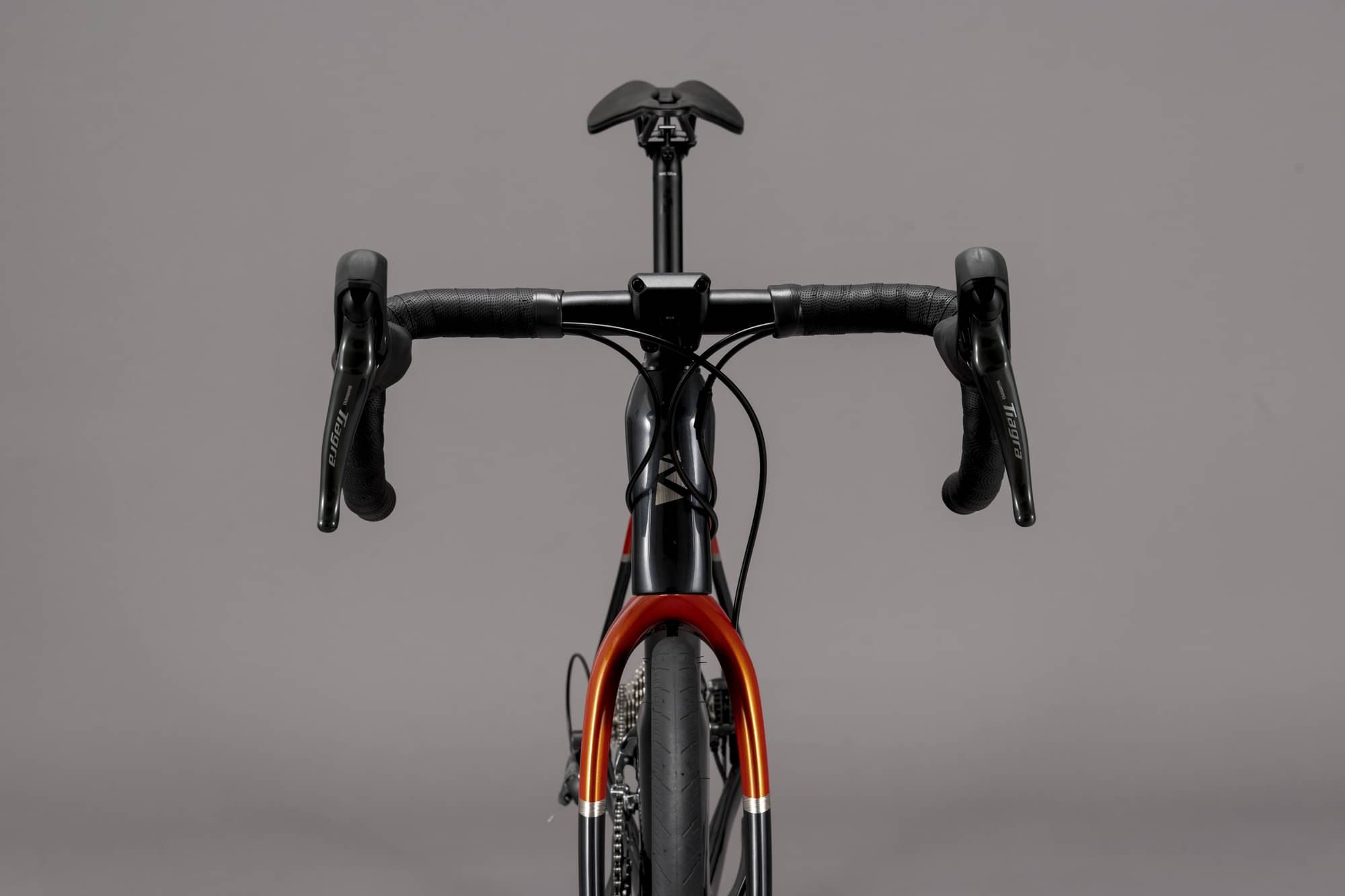

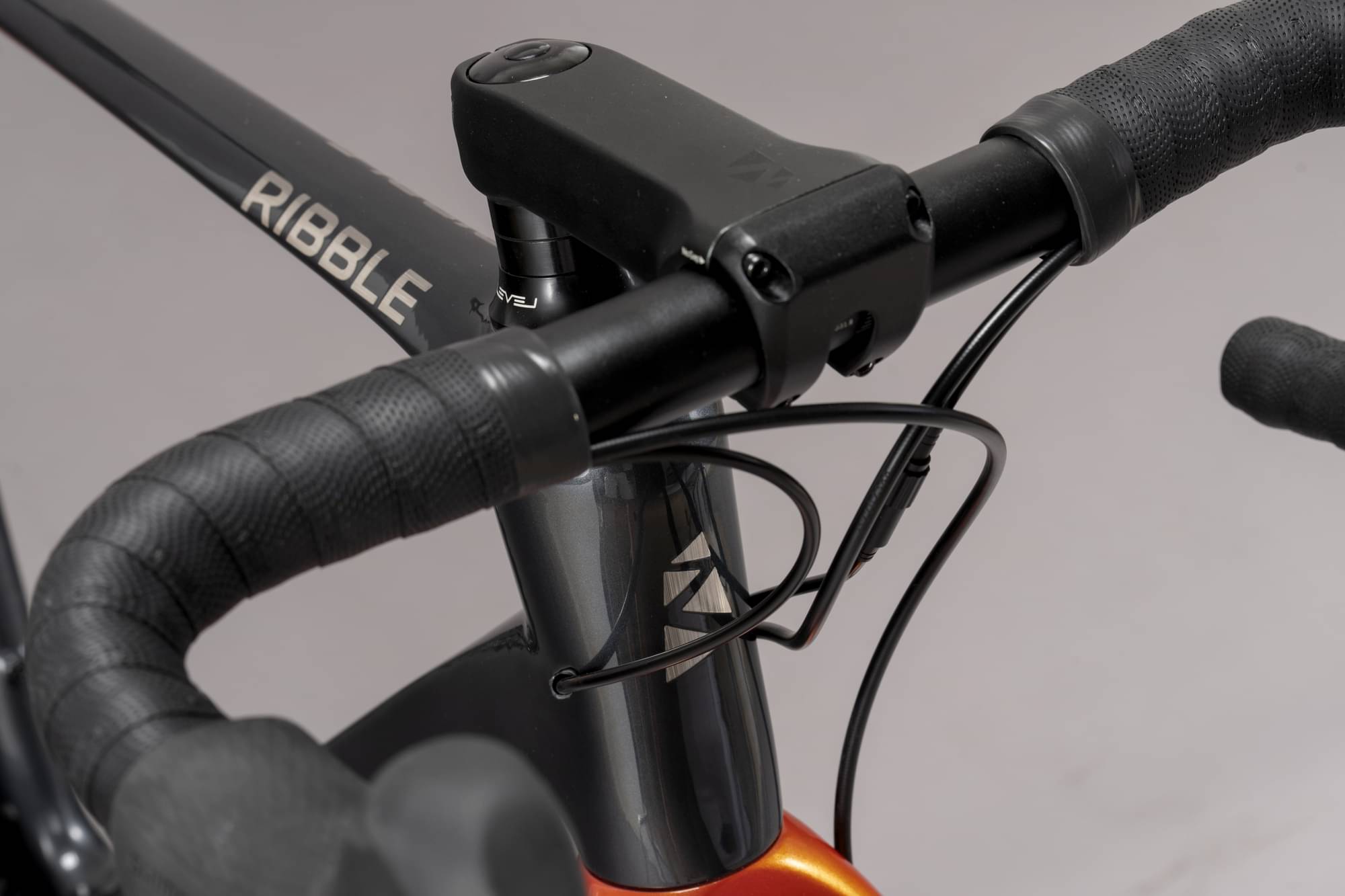

Handlebar
Level Alloy Handlebar
Headset
52 Headset With Top Cap For Alloy Frames, R457 Headset Bearing for Allroad
Seat

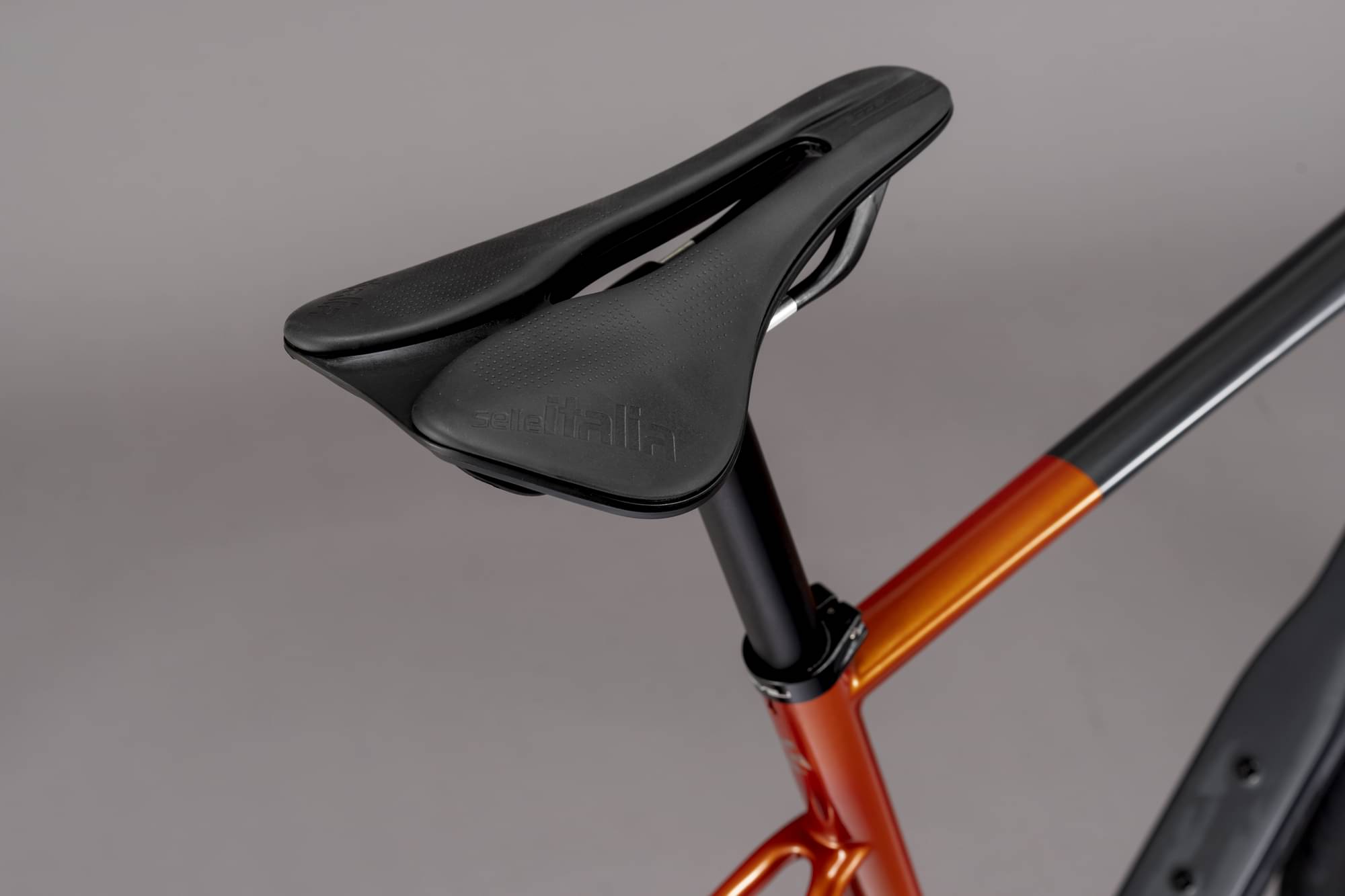

Saddle
Model X Superflow Saddle
Seatpost
Alloy Seatpost 350mm 27.2mm w/Ribble Logo
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.415 mm | 1.44 mm | 1.489 mm | 1.481 mm | 1.477 mm |
| Front Center | 574 mm | 579 mm | 581 mm | 601 mm | 621 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 67 mm | 59 mm | 59 mm | 59 mm |
| Stack | 518 mm | 540 mm | 563 mm | 582 mm | 601 mm |
| Reach | 366 mm | 375 mm | 378 mm | 393 mm | 407 mm |
| Top Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 979 mm | 984 mm | 986 mm | 1007 mm | 1027 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 169 cm | 176 cm | 181 cm | 186 cm | 193 cm |
