Ribble CGR AL e – Enthusiast 2025
2025 E-bike
Estimate price |
4,334$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Battery X 35 Battery Unit -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CGR AL e Frame Red/White/Black XSM 47cm
Suspension Fork
CGR AL e Carbon Fork Red/White/Black

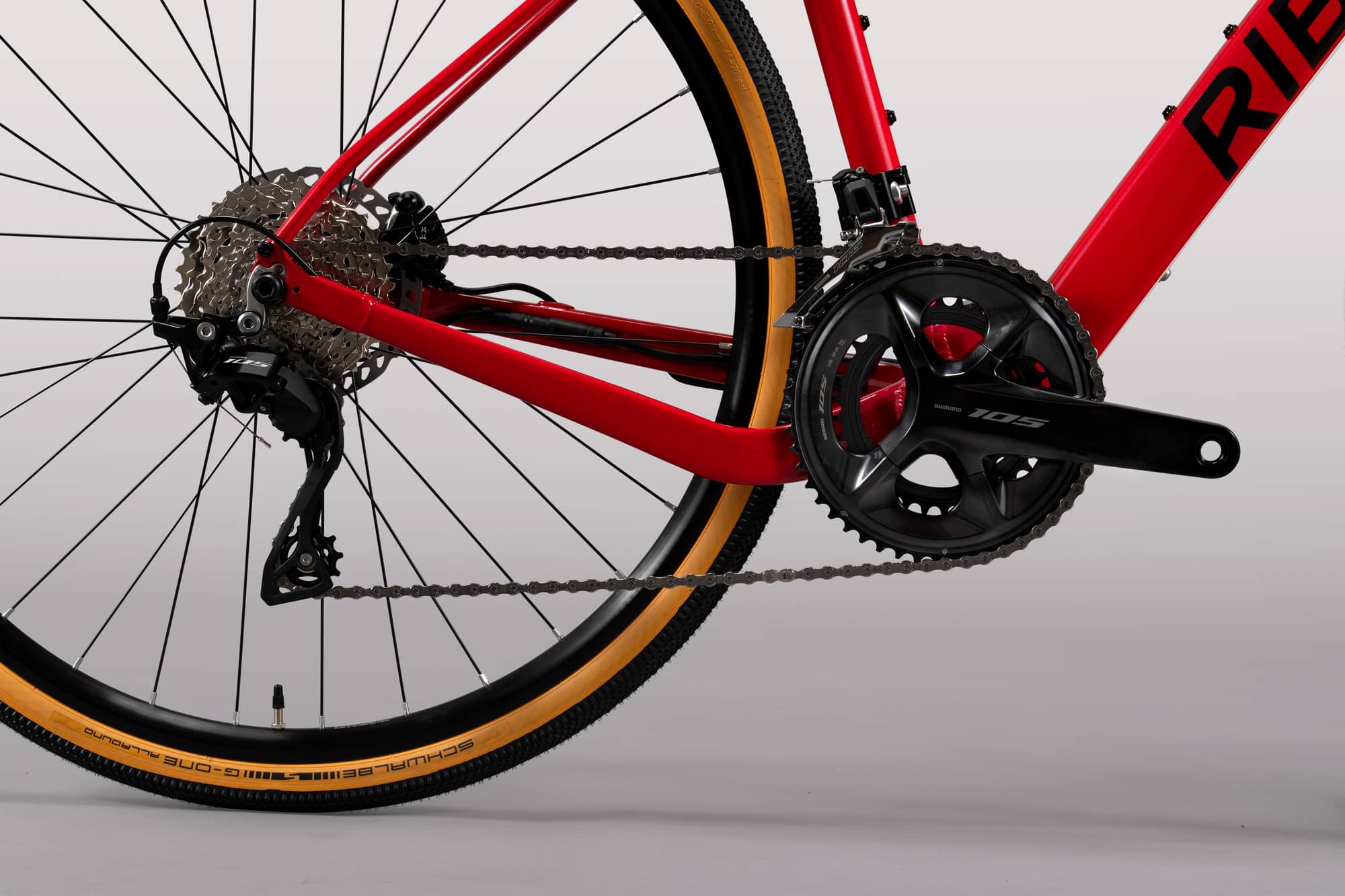

Drivetrain
Rear Derailleur
RD-R7100 105 12spd Rear Derailleur
Front Derailleur
FD-R7100 105 12spd Front Derailleur Braze On
Shift Levers
ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
Cassette
CS-HG710 12spd Cassette HG 11-36T
Bottom Bracket
BB71/BB72-41B PF Road BB 41x86.5mm
Chain
CN-M7100 SLX 12spd Chain 126 Links
Wheels
Rims
Allroad Disc Front Wheel 700c 6B 12mm TL
Tires

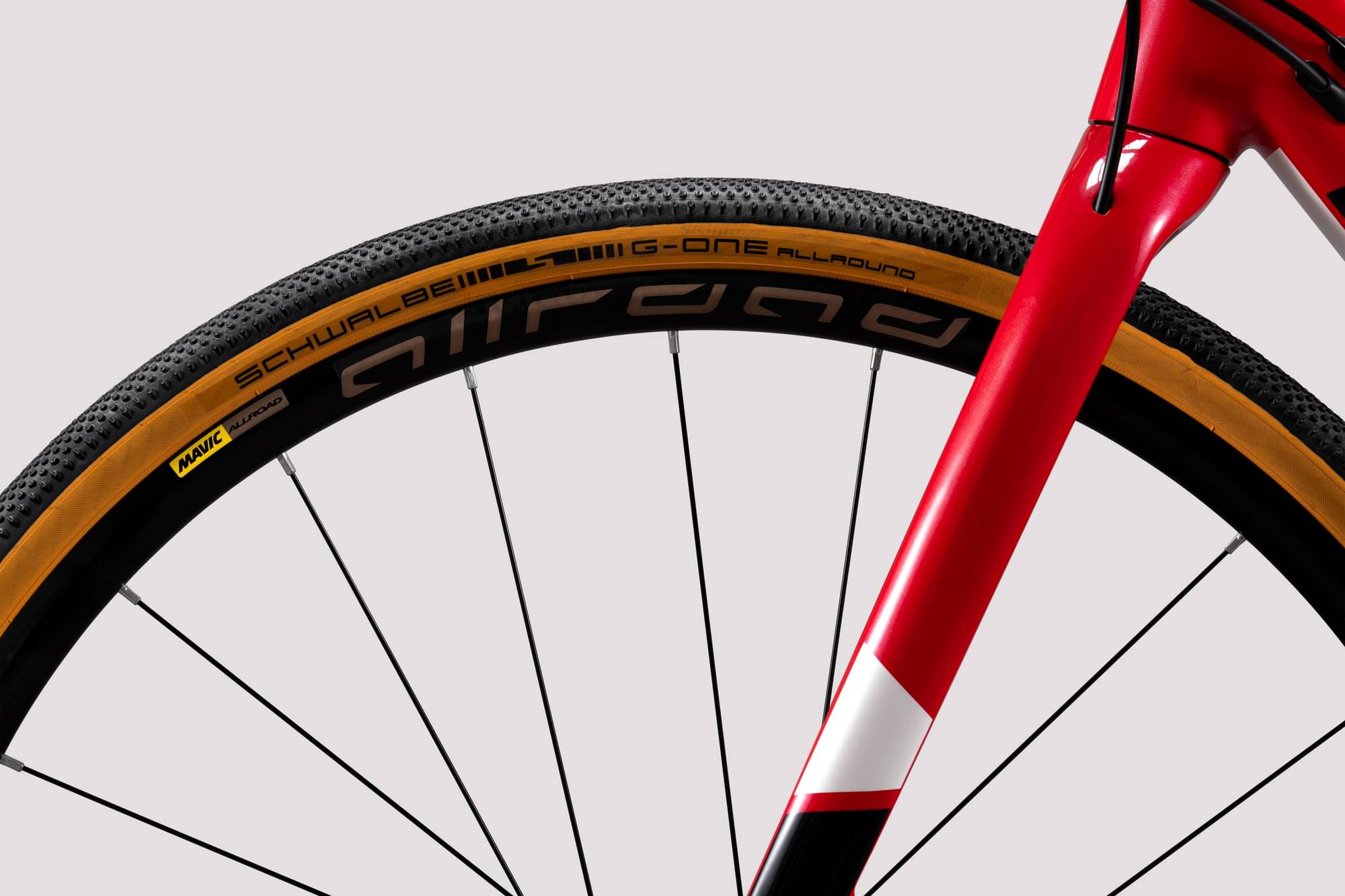

G-One Allround RaceGuard Folding Tyre 700x40mm
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar

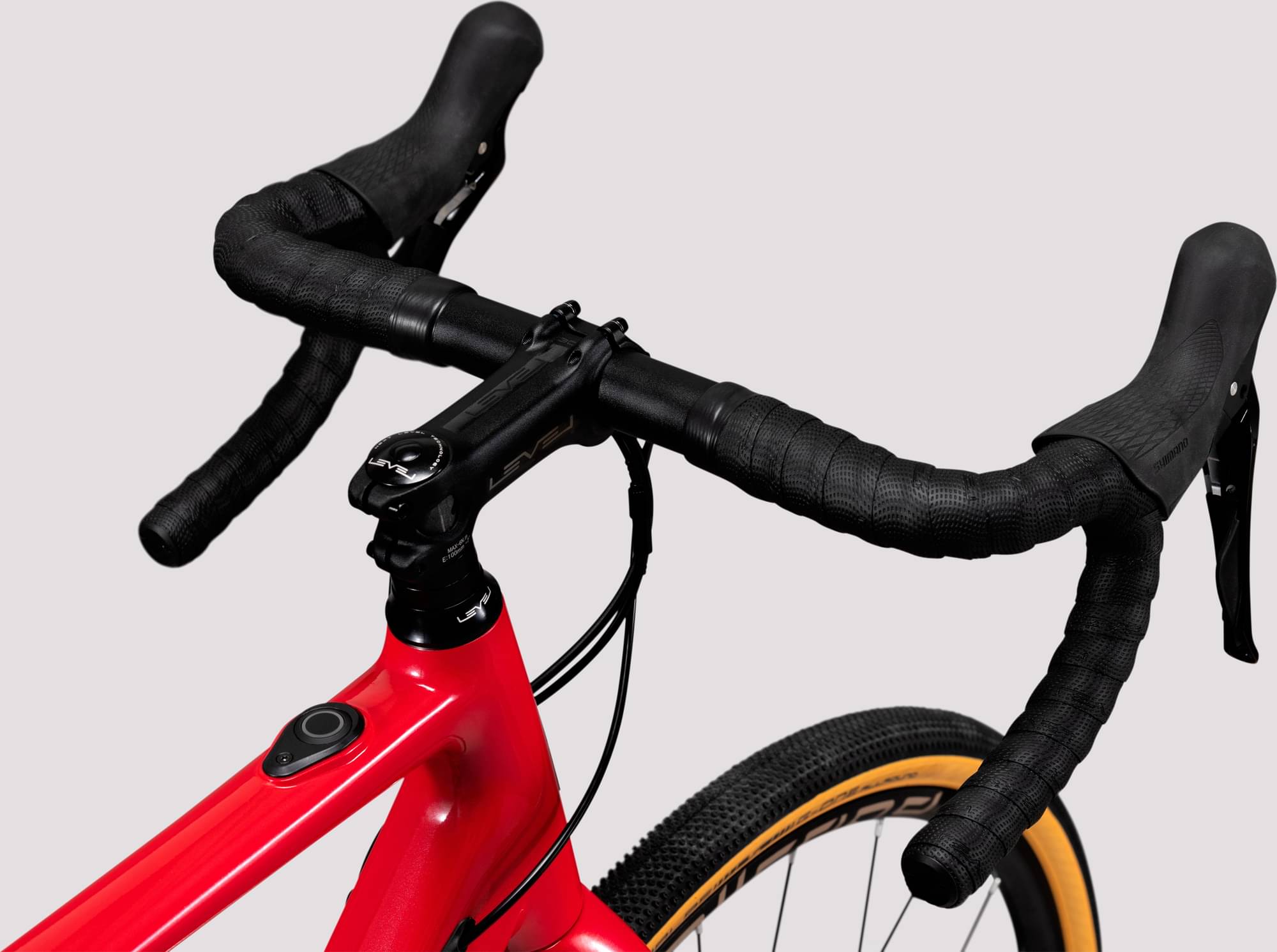

Level Alloy Handlebar
Headset
52 Headset With Top Cap For Alloy Frames
Seat
Saddle

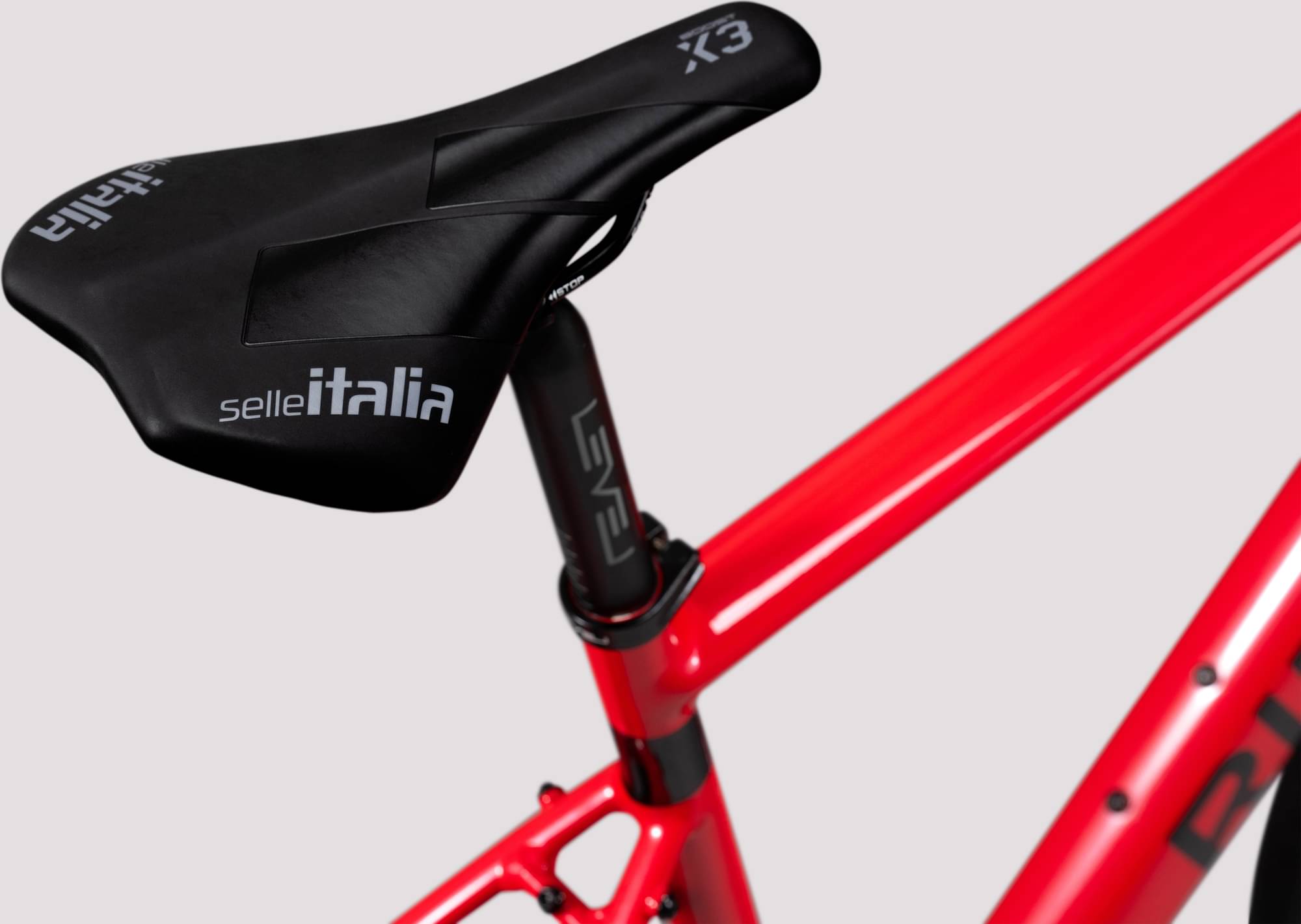

X3 Boost Saddle
Seatpost
Alloy Seatpost 27.2 330mm
Motor & Battery
Battery
X 35 Battery Unit
Remote
X35 One Remote
Charger
X35 Charger Mains Cable UK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.507 mm | 1.55 mm | 1.593 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 556 mm | 568 mm | 589 mm | 610 mm | 620 mm |
| Reach | 365 mm | 377 mm | 380 mm | 383 mm | 395 mm |
| Top Tube Length | 520 mm | 540 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1021 mm | 1031 mm | 1037 mm | 1042 mm | 1055 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
