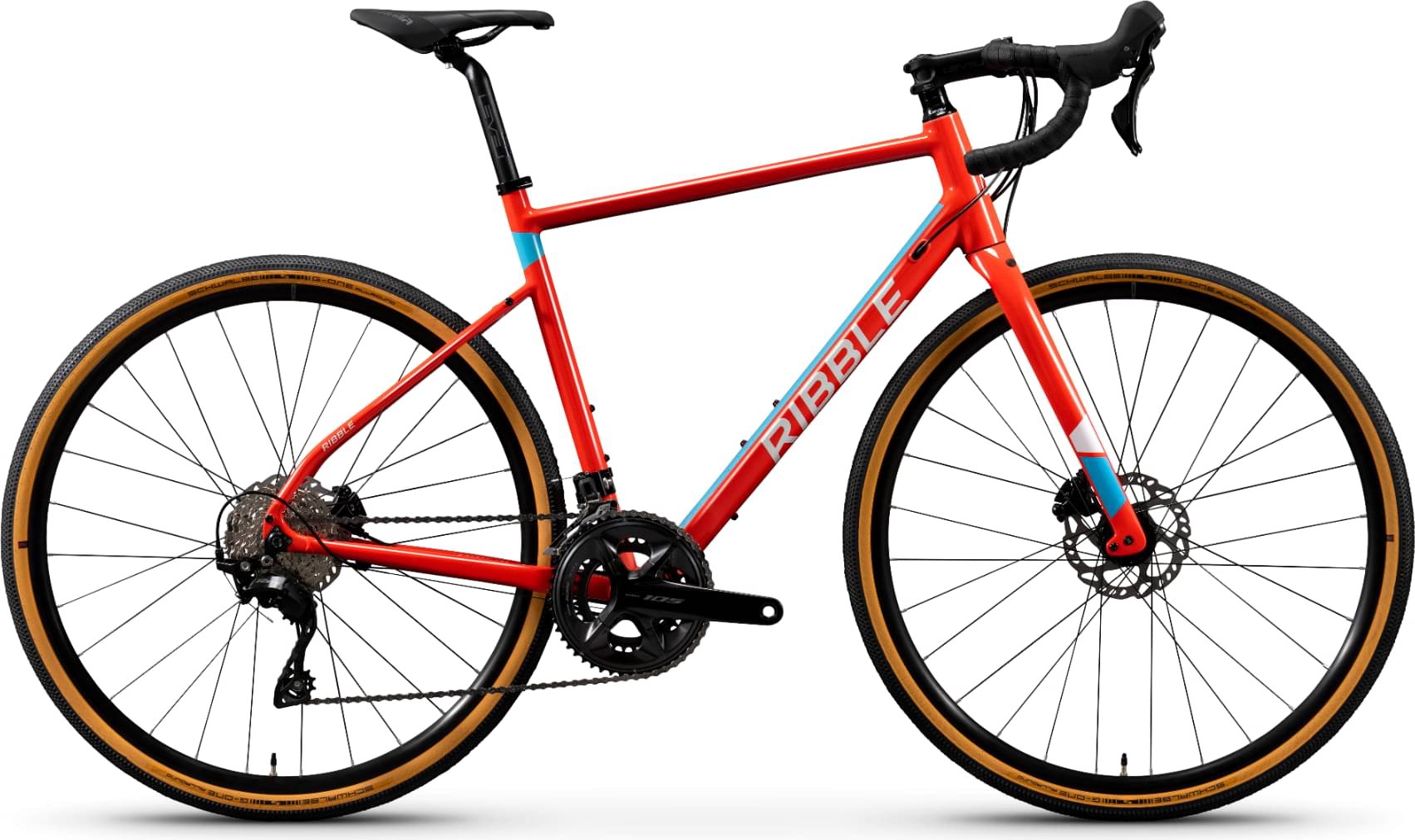

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
CS-HG710 12spd Cassette HG 11-36T
Crank
FC-R7100 105 12spd Chainset 165mm 50-34T
Brakes
Brakes
Disc Brake Adapter Rear 160mm Flat to Flat
Cockpit
Handlebar
Embossed Black Bar Tape
Seat
Seatpost
Alloy Seatpost 27.2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.523 mm | 1.507 mm | 1.55 mm | 1.593 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 610 mm | 620 mm |
| Reach | 356 mm | 365 mm | 377 mm | 380 mm | 383 mm | 395 mm |
| Top Tube Length | 500 mm | 520 mm | 540 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1005 mm | 1021 mm | 1023 mm | 1036 mm | 1041 mm | 1055 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
