Bike details
Overview
Key information split into simple groups.

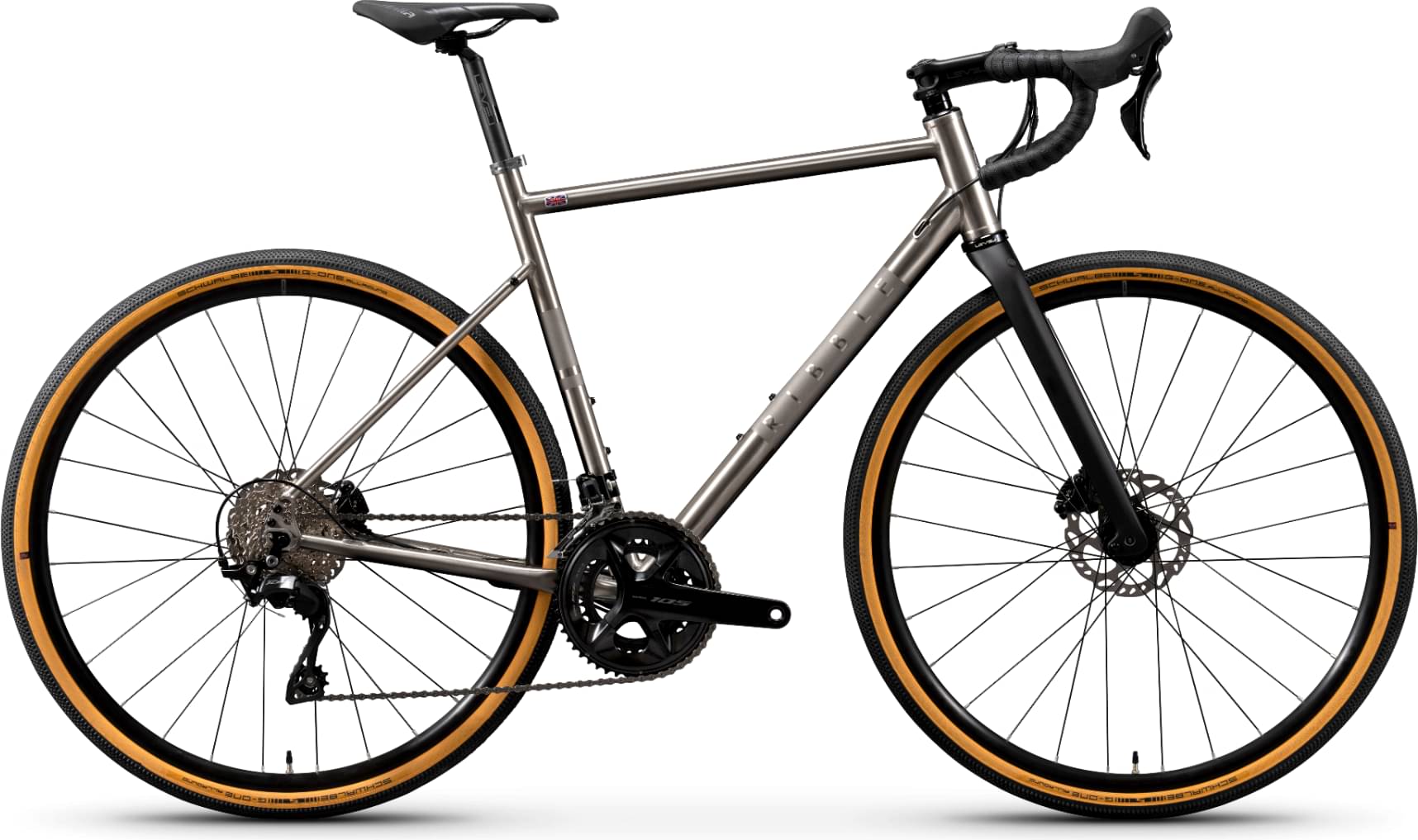

Bike summary
-
-
Frame Titanium -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Front Thru-Axle for Carbon Forks
Drivetrain
Cassette
CS-HG710 12spd Cassette HG 11-36T
Crank
FC-R7100 105 12spd Chainset 165mm 50-34T
Brakes
Brakes
Disc Brake Adapter Rear 160mm Flat to Flat
Cockpit
Handlebar
Embossed Black Bar Tape
Seat
Seatpost
CGR/END Ti Seatpost Clamp 31.8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm | 1.582 mm |
| Front Center | 599.4 mm | 600 mm | 605 mm | 610 mm | 629 mm |
| Stack | 556 mm | 568 mm | 589 mm | 606 mm | 625 mm |
| Reach | 375 mm | 377 mm | 380 mm | 384 mm | 395 mm |
| Top Tube Length | 530 mm | 545 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1026 mm | 1026 mm | 1031 mm | 1042 mm | 1053 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
