Bike details
Overview
Key information split into simple groups.

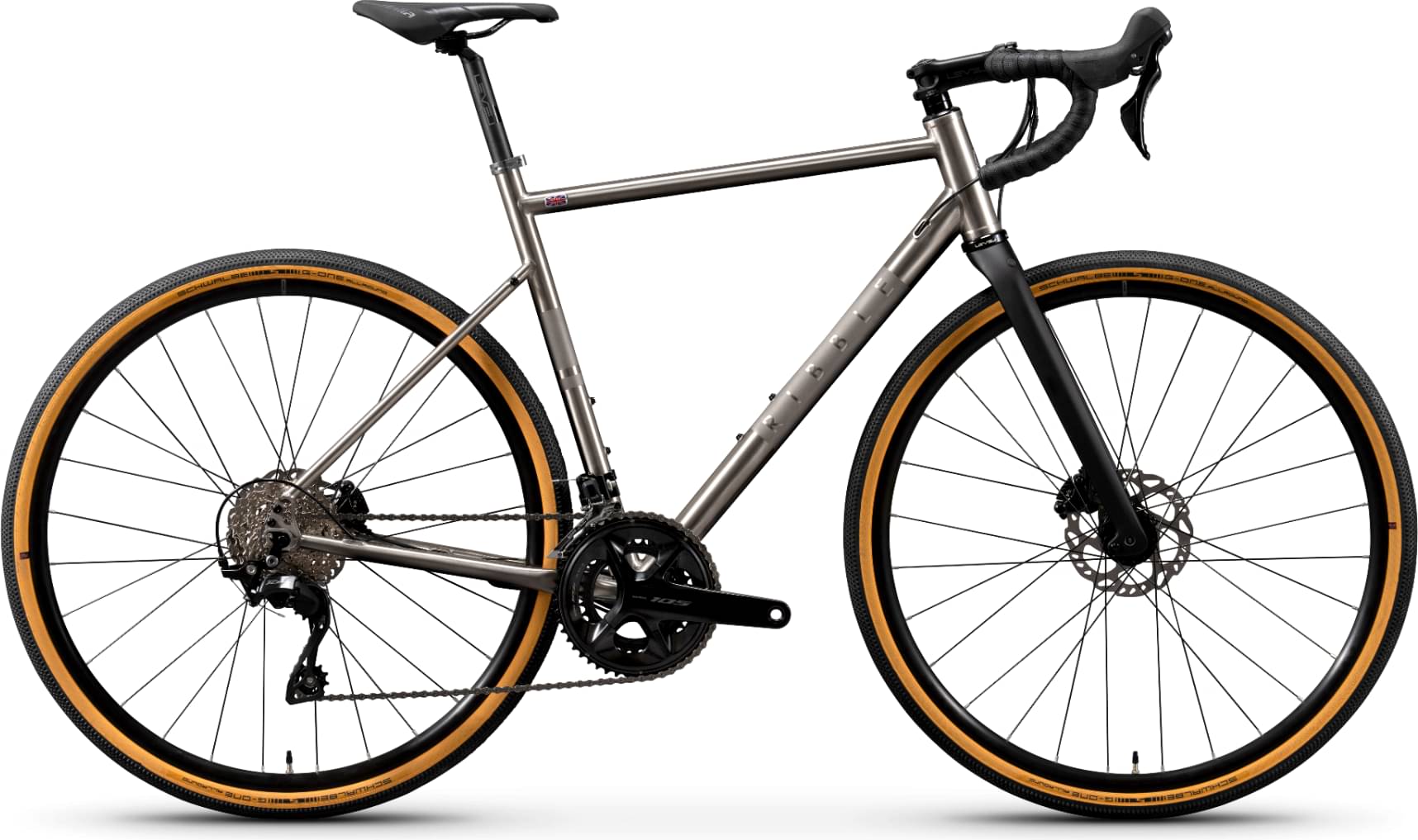

Bike summary
-
-
Frame Titanium -
Travel Rear 15mm -
Groupset 105 -
Suspension Full -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 15mm Hex 3 Domehead P0.8 W/Washer SSA2
Suspension Fork
Expander For Carb Steerer 1-1/8 x 65mm (Regular)

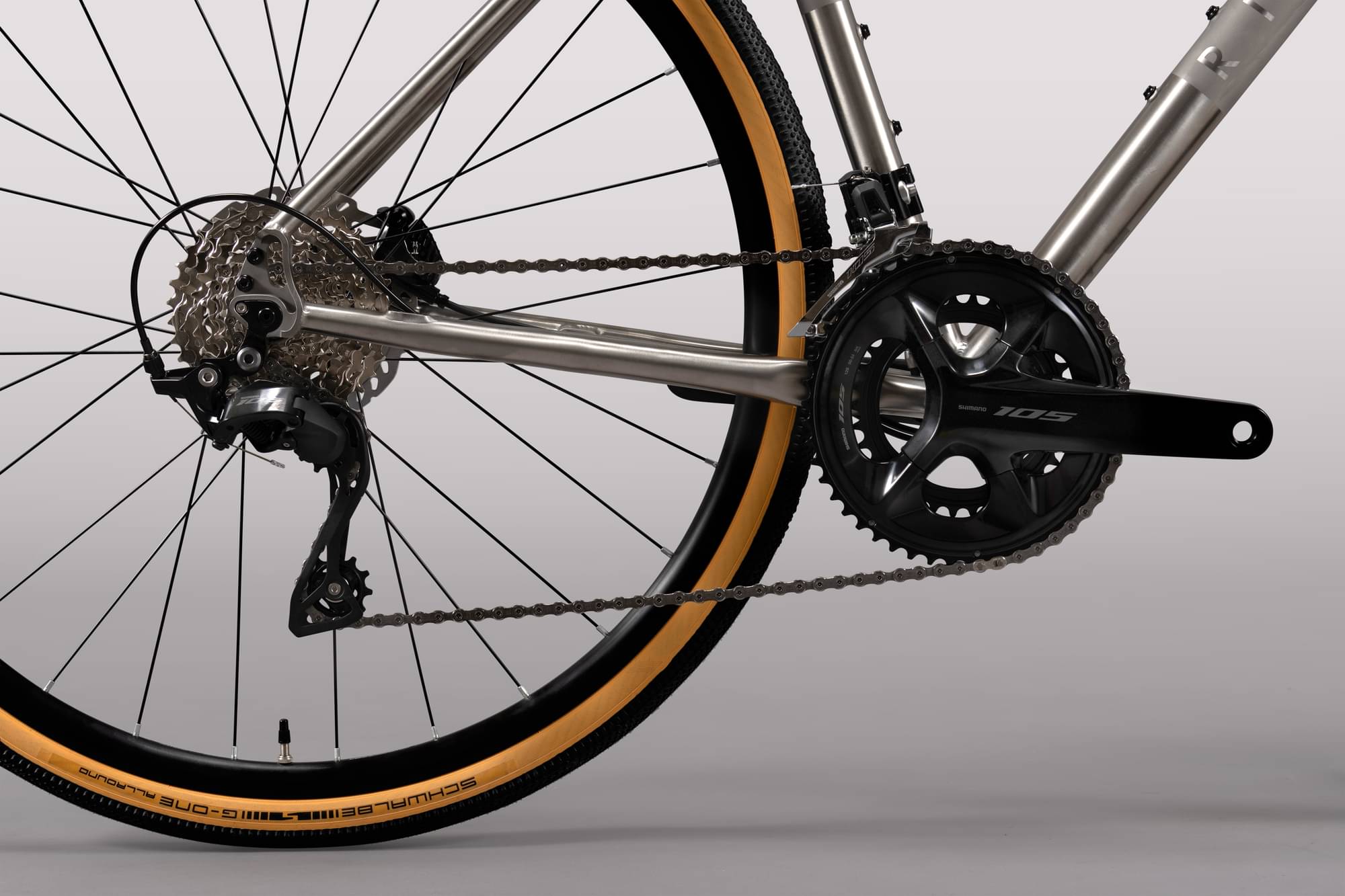

Drivetrain
Rear Derailleur
RD-R7100 105 12spd Rear Derailleur
Front Derailleur
Front Mech Clamp 31.8mm
Shift Levers
ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
Cassette
CS-HG710 12spd Cassette HG 11-36T
Crank
FC-R7100 105 12spd Chainset 165mm 50-34T
Bottom Bracket
BBR60 68mm Bottom Bracket
Chain
CN-M7100 SLX 12spd Chain 126 Links
Wheels
Rear Hub
CGR Ti Rear Thru Axle - 169mm
Rims
Allroad 1 Disc Rear Wheel 700c CL HG

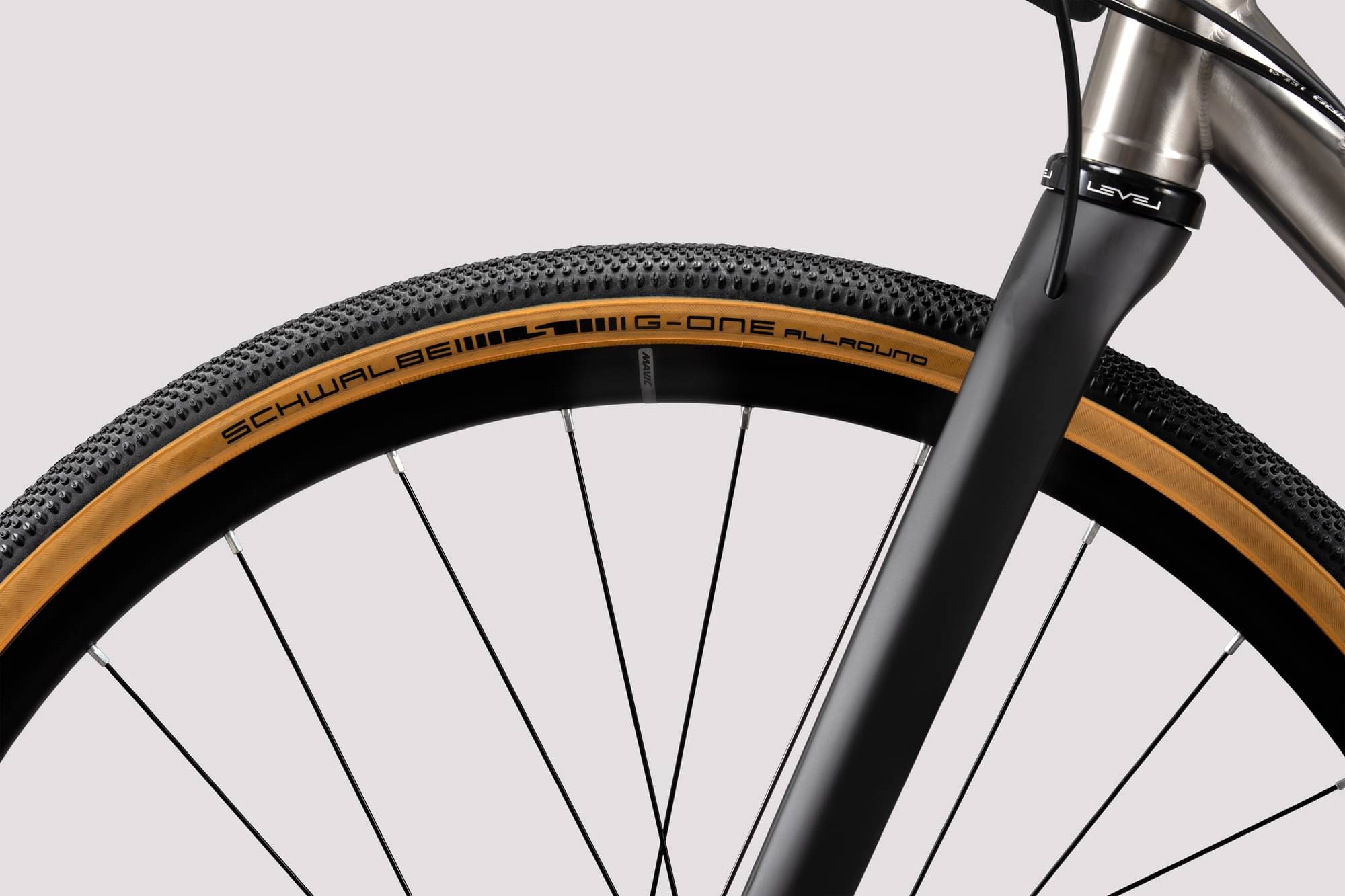

Tires
Inner Tube 700x35/45 SV40mm
Brakes
Brakes
Inline Cable Adjuster 5mm
Cockpit

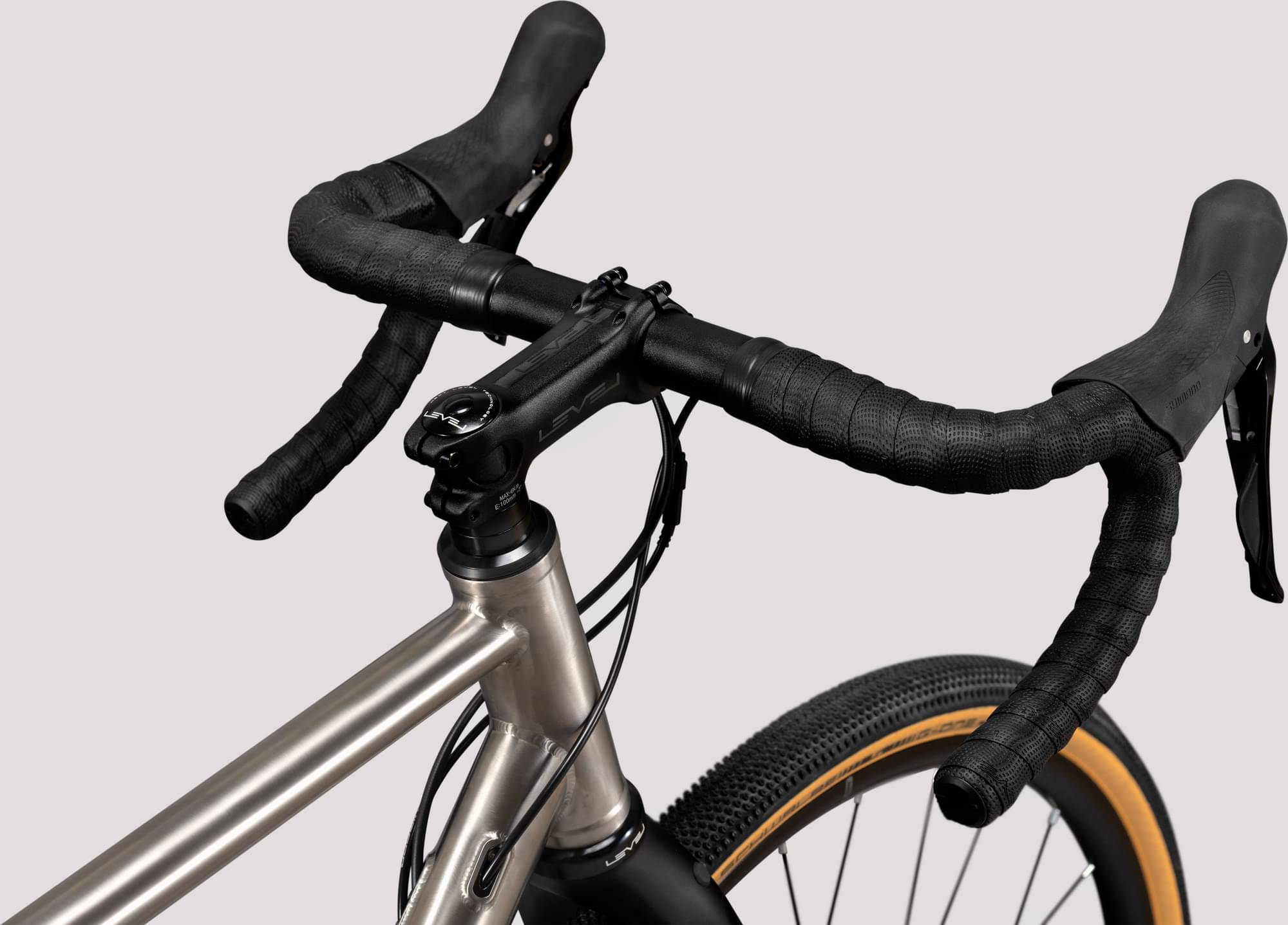

Handlebar
Level Alloy Handlebar
Grips
Embossed Black Bar Tape
Headset
Alloy Spacer Black 10mm
Seat

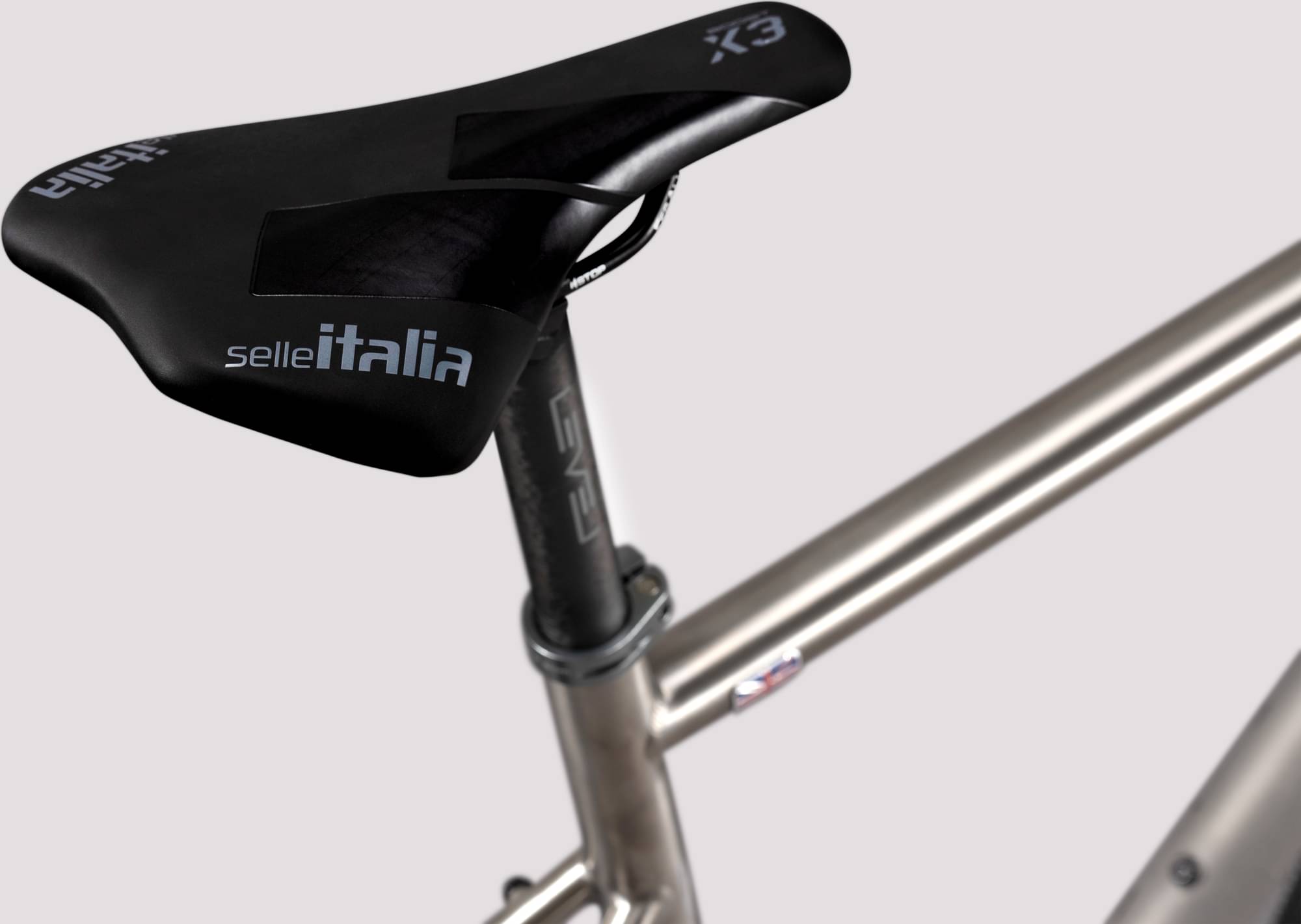

Saddle
X3 Boost Saddle
Seatpost
Inline Carbon Road Seatpost - 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm | 1.582 mm |
| Front Center | 599 mm | 600 mm | 605 mm | 610 mm | 629 mm |
| Stack | 556 mm | 568 mm | 589 mm | 606 mm | 625 mm |
| Reach | 375 mm | 377 mm | 380 mm | 384 mm | 395 mm |
| Top Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1026 mm | 1027 mm | 1032 mm | 1042 mm | 1053 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
