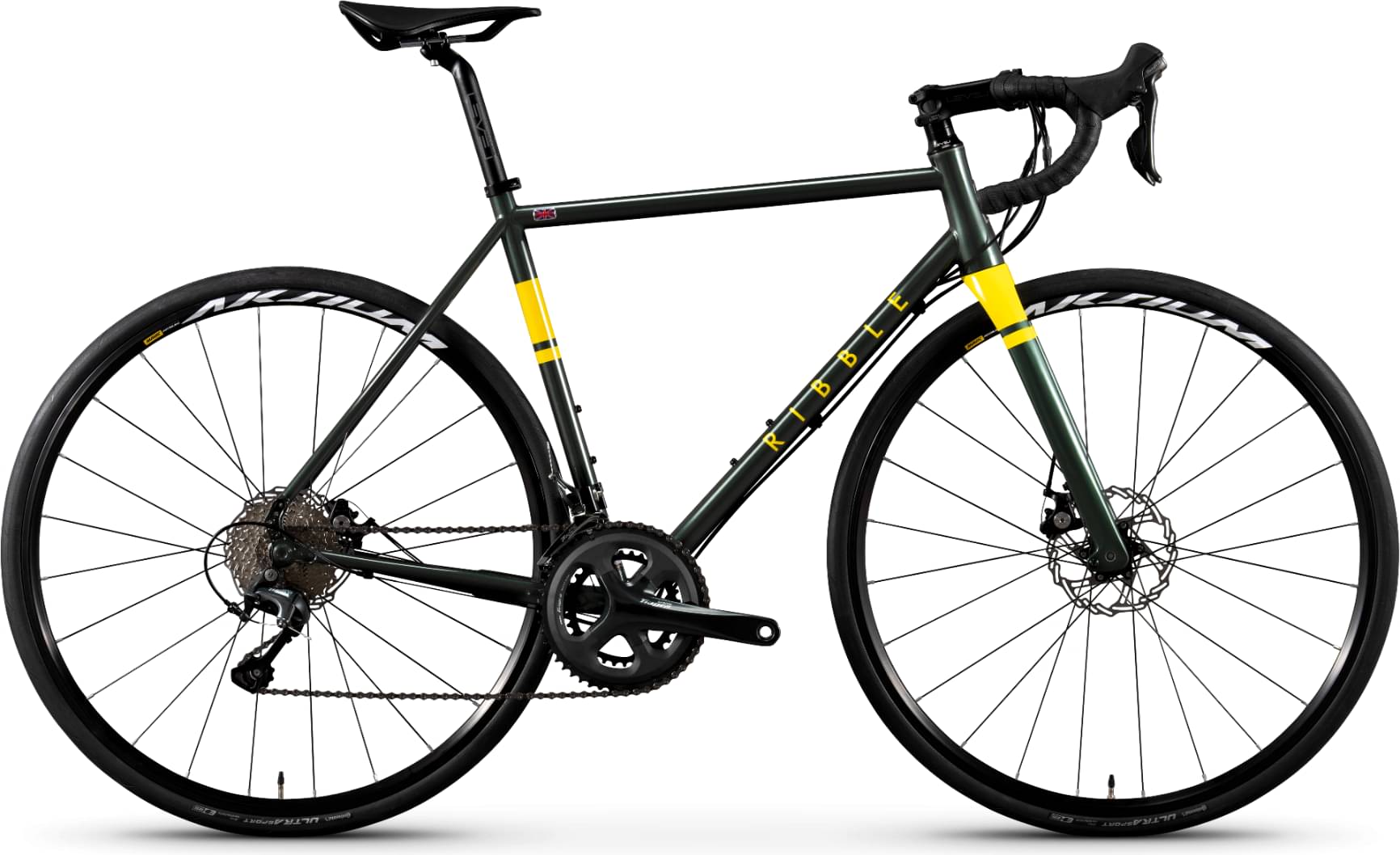

Ribble Endurance 725 Disc – Sport 2025
2025 Road
Estimate price |
2,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

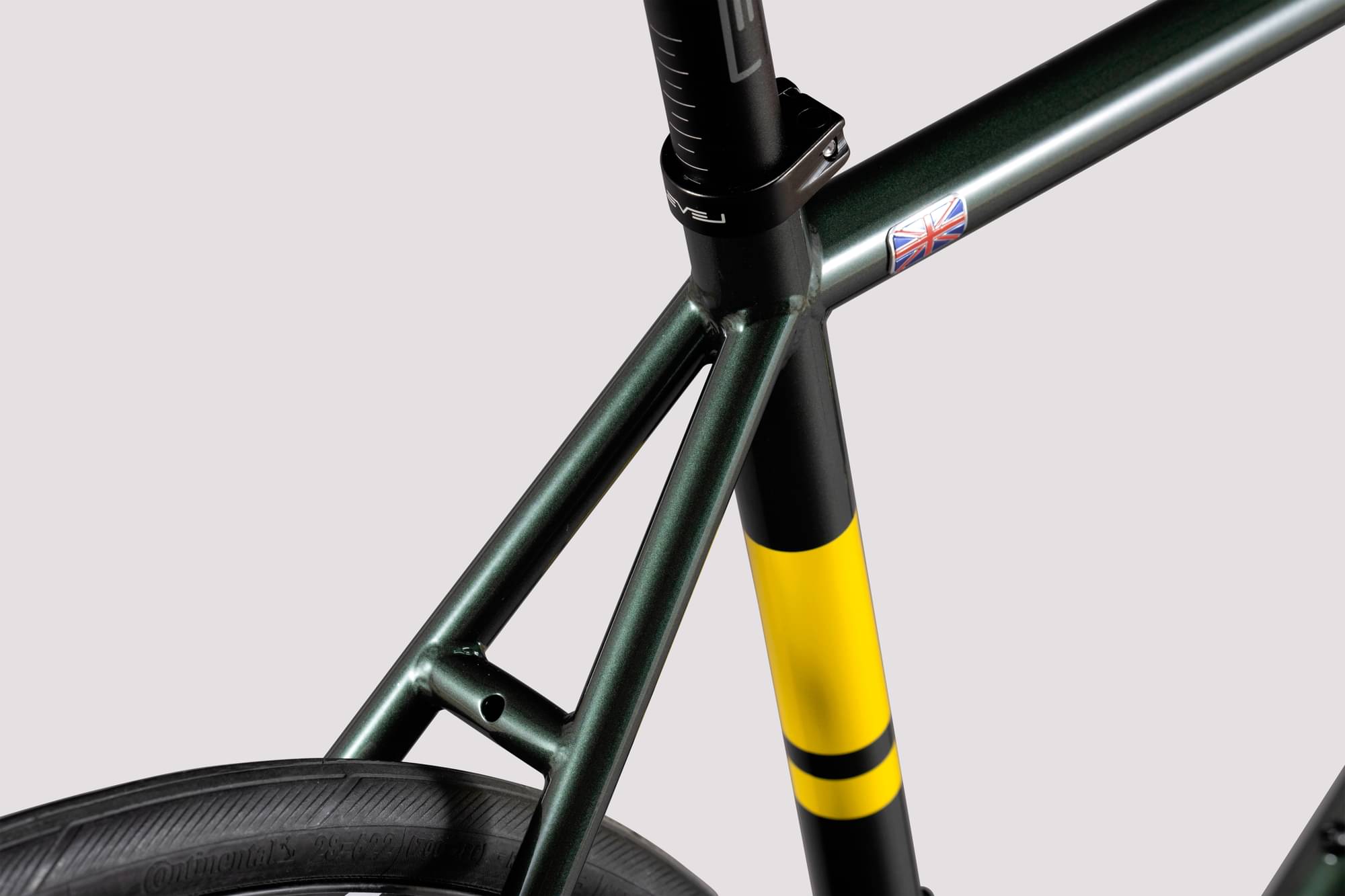

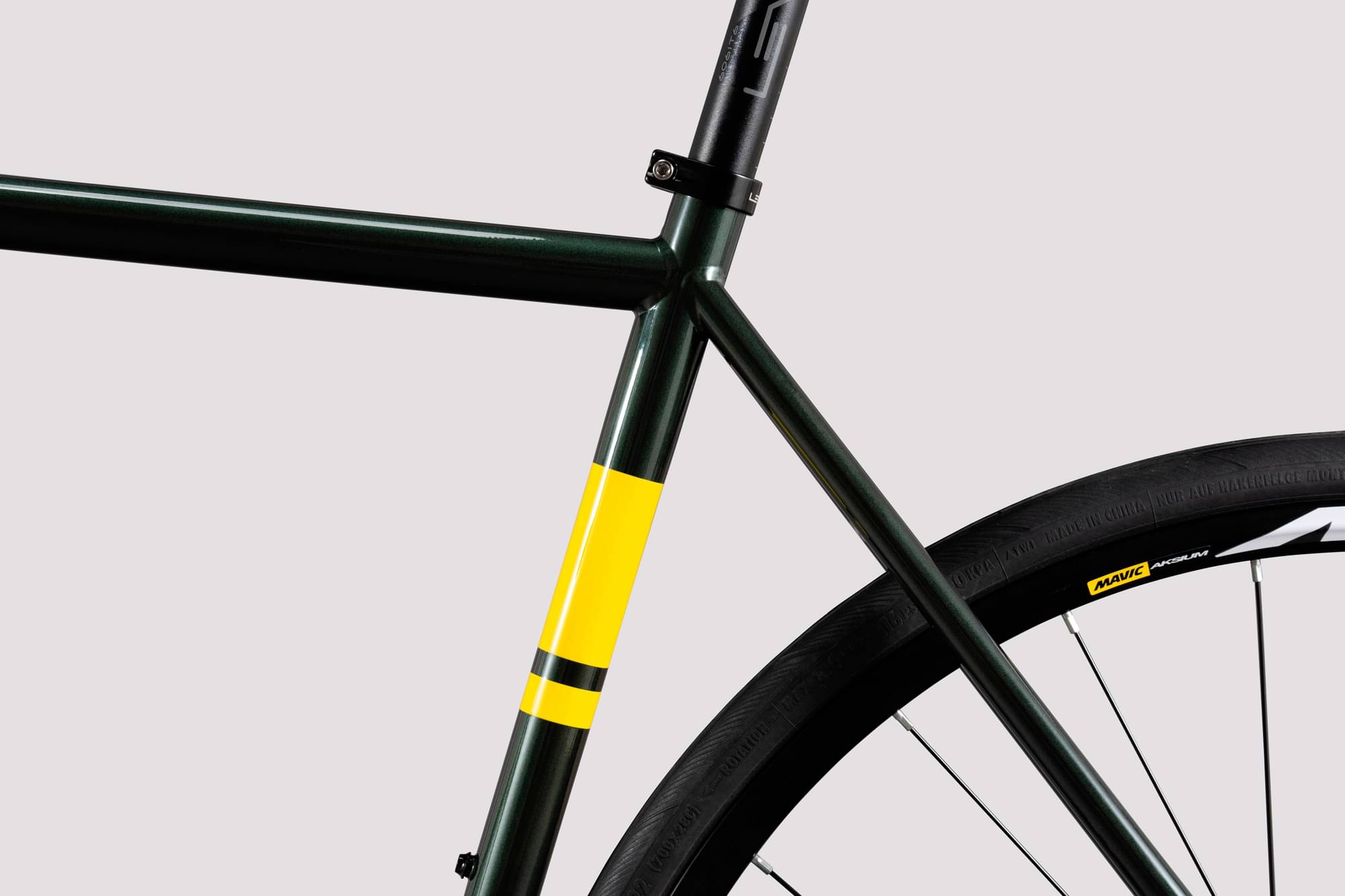

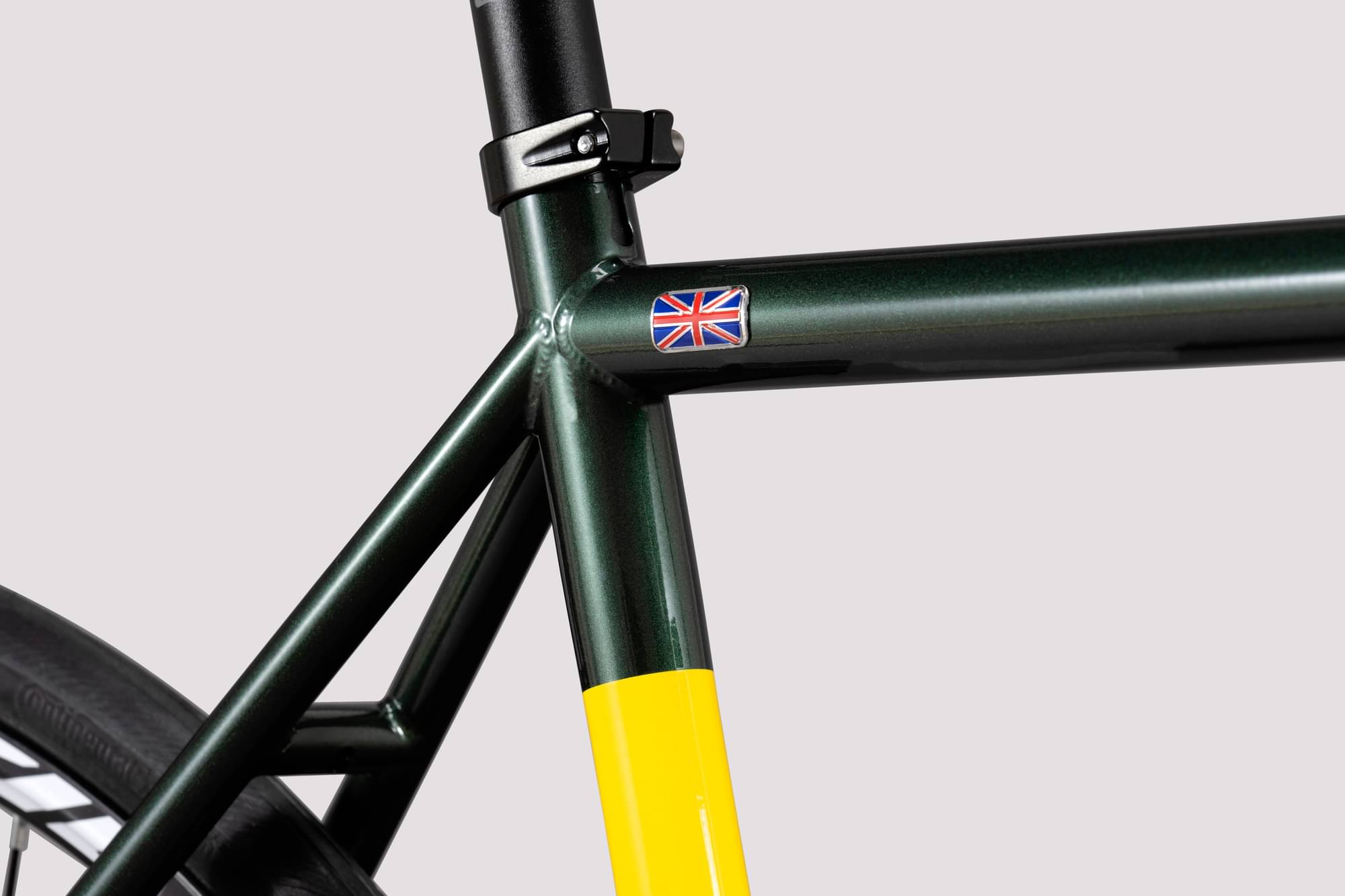

Frame
Frame
Endurance 725 Disc Frame Green/Yellow XSM 47cm
Suspension Fork
Endurance Carbon Disc Fork 725 Green/Yellow
Drivetrain
Rear Derailleur
RD-4700 Tiagra Medium Cage Rear Derailleur
Front Derailleur
FD-R4700 Tiagra FR Derailleur Clamp On 28.6/31.8mm

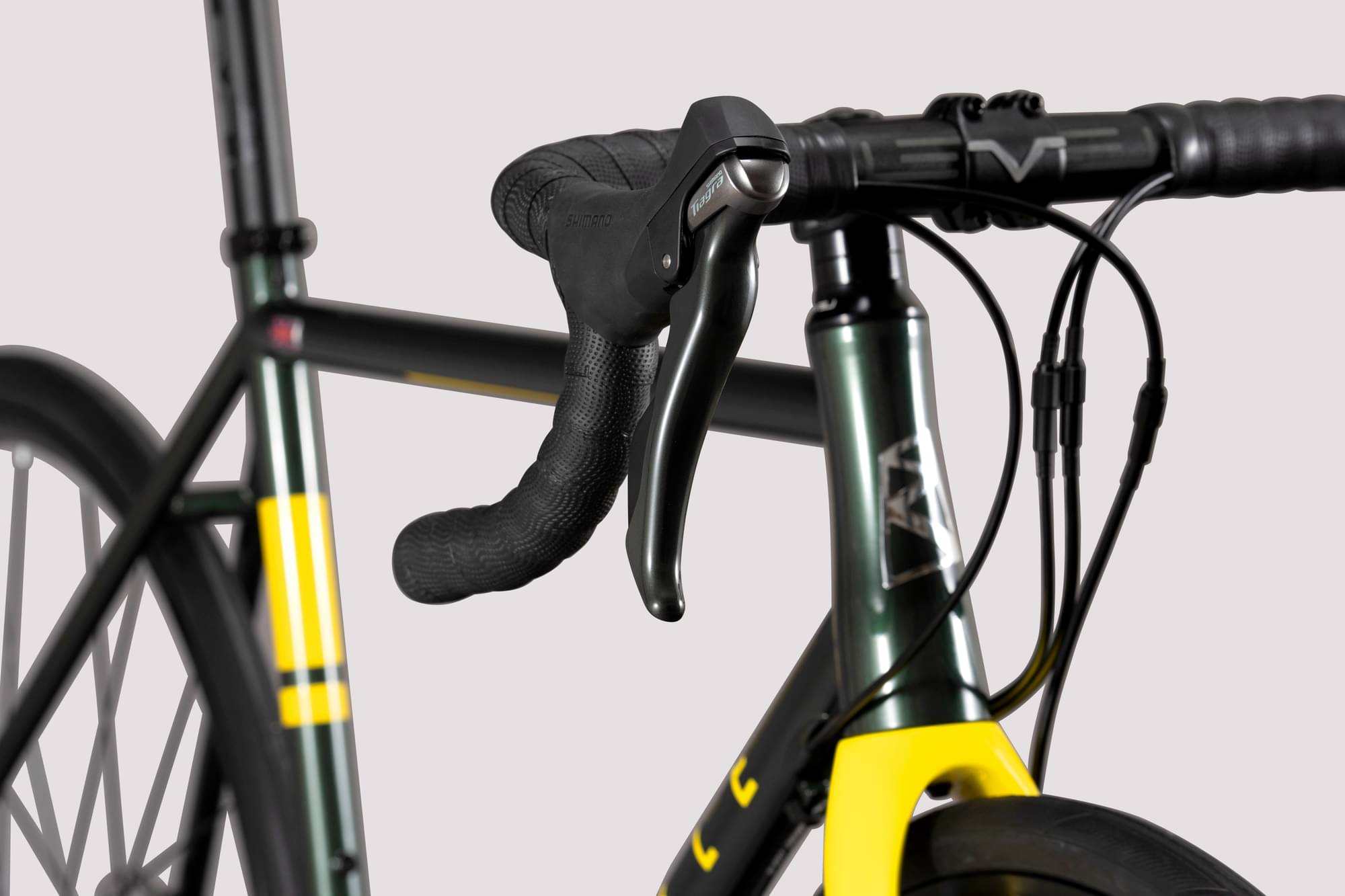

Shift Levers
ST-4700 Tiagra STI Lever 2X LH
Cassette
CS-HG500 10spd Cassette HG 11-34T
Crank
FC-R4700 Tiagra 10spd Chainset 165mm 50-34T

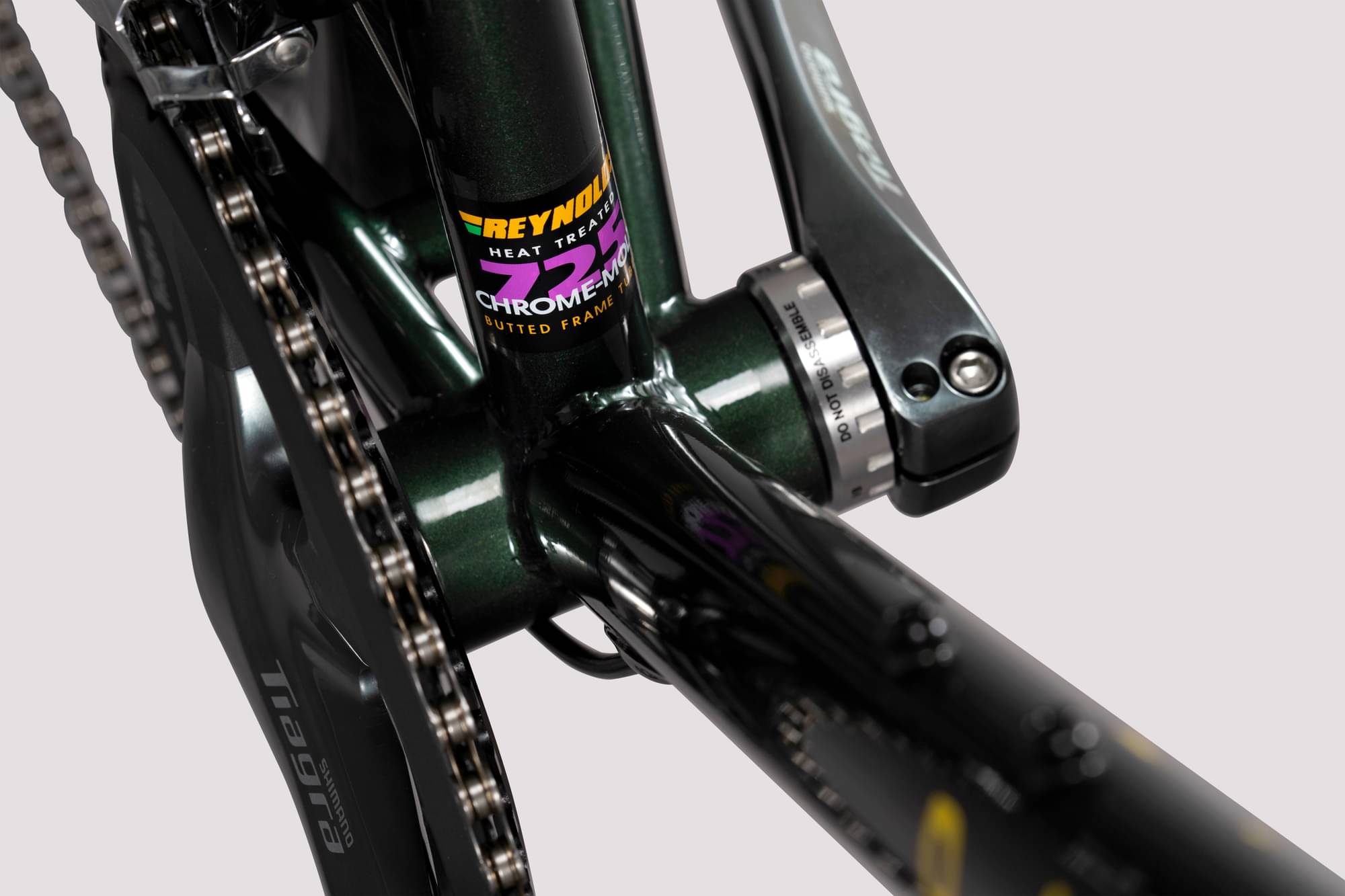

Bottom Bracket
BBRS500 68mm Bottom Bracket
Chain
CN-HG54 10spd Chain 116 Links
Wheels
Rims
Aksium 1 Disc Rear Wheel 700c CL HG
Tires
Ultrasport III Rigid Tyre Black 700x28mm

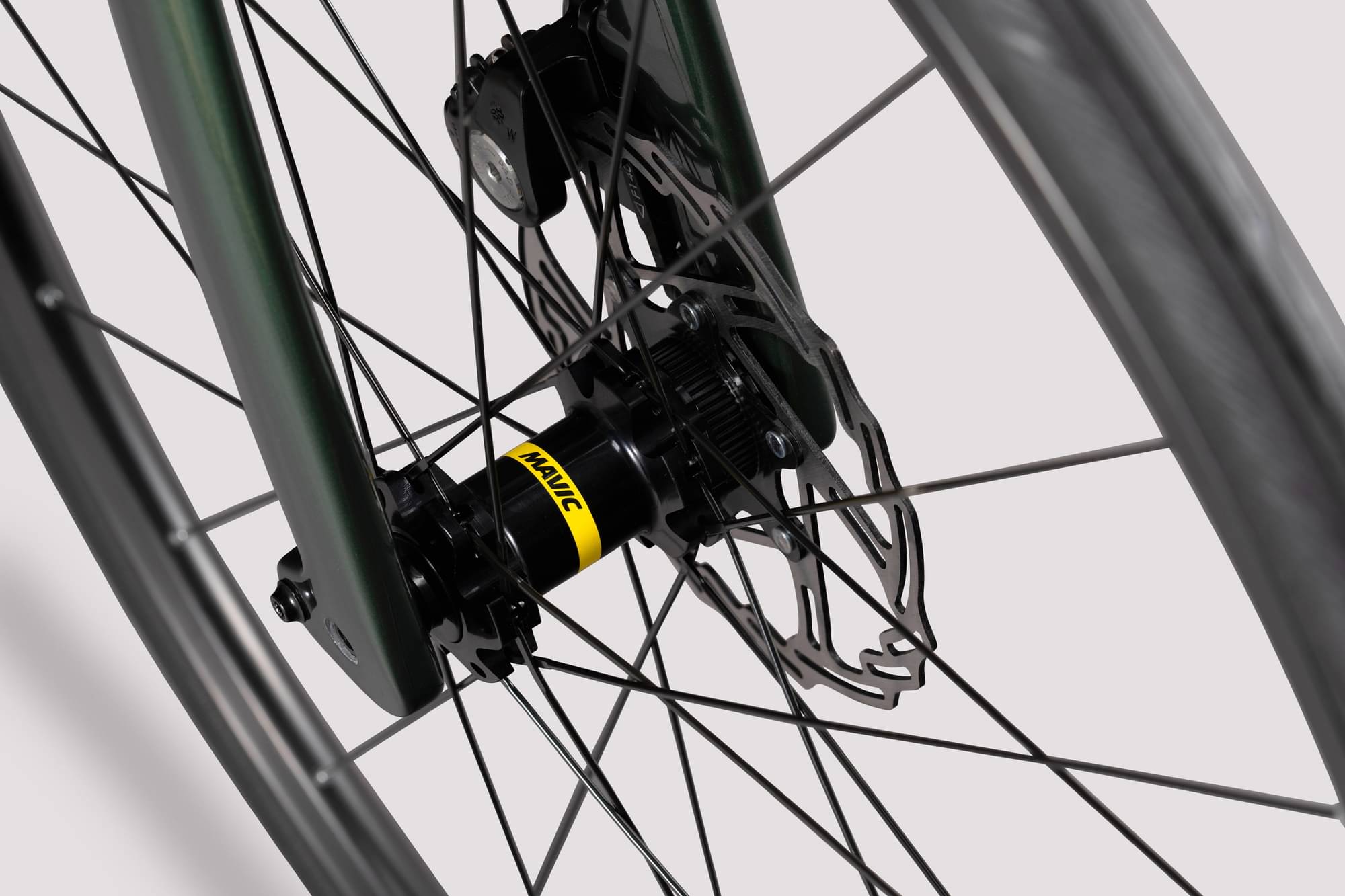

Brakes
Brakes

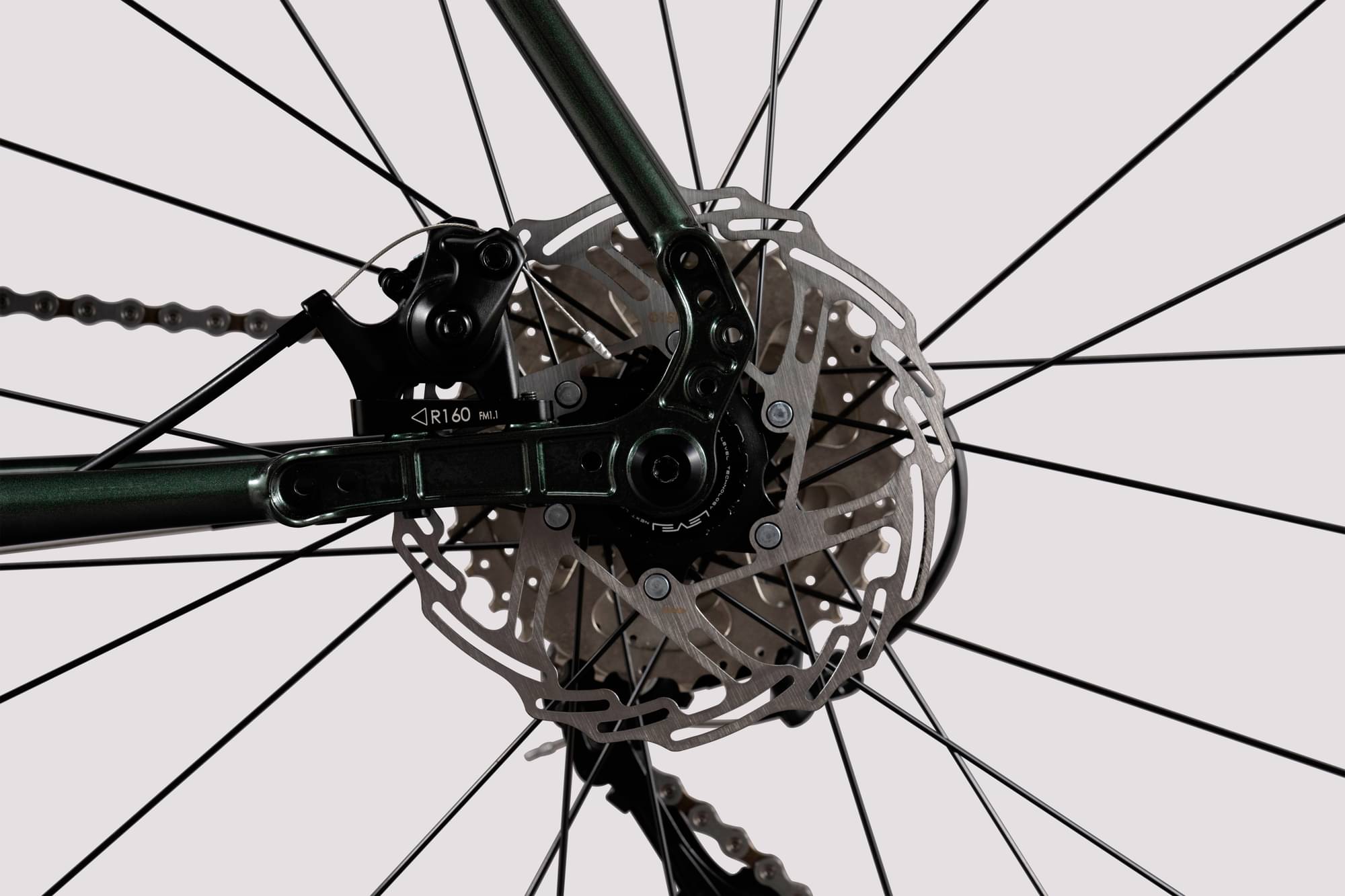

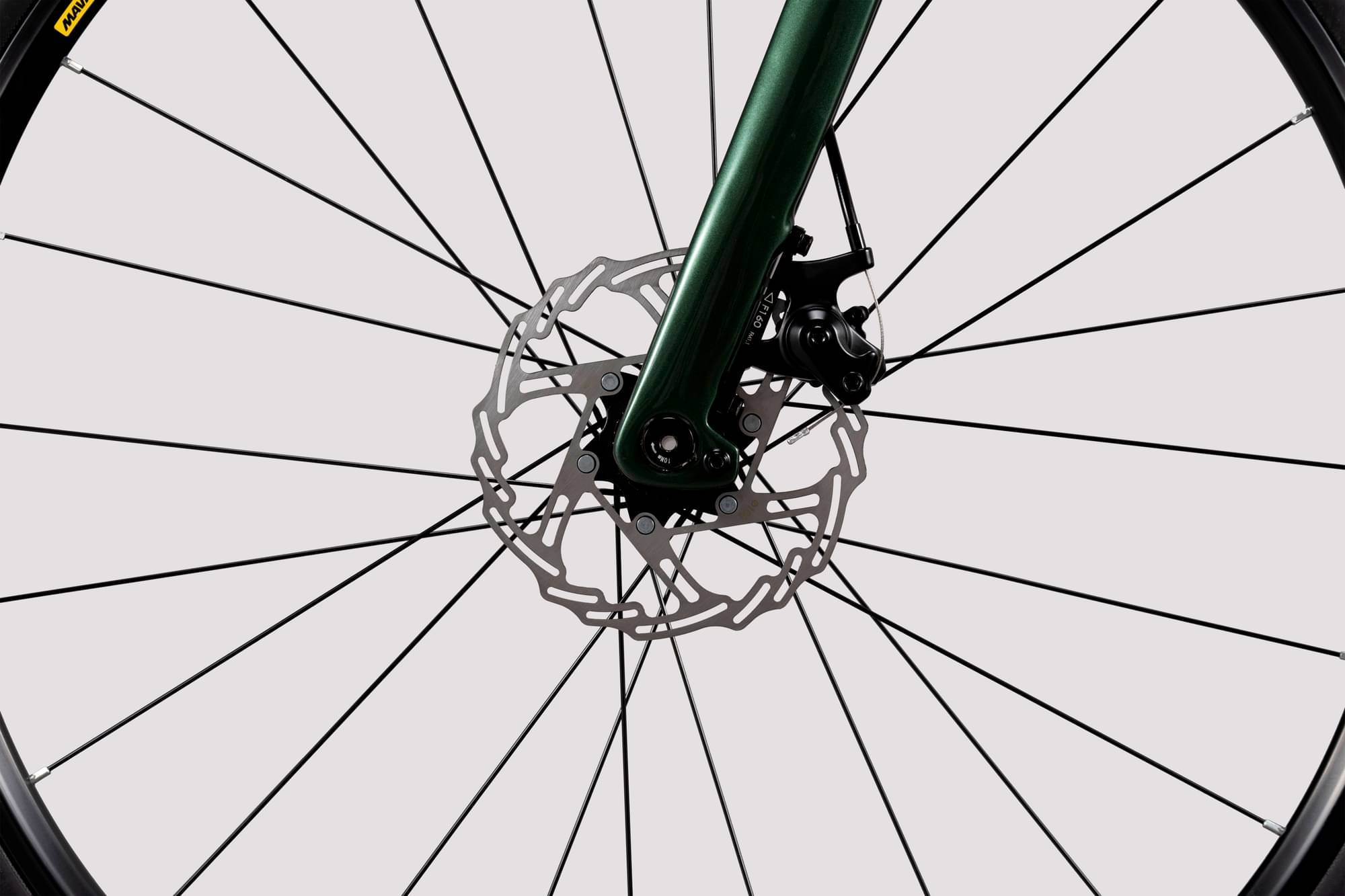

MD510 Mech Disc Calliper Rear
Cockpit

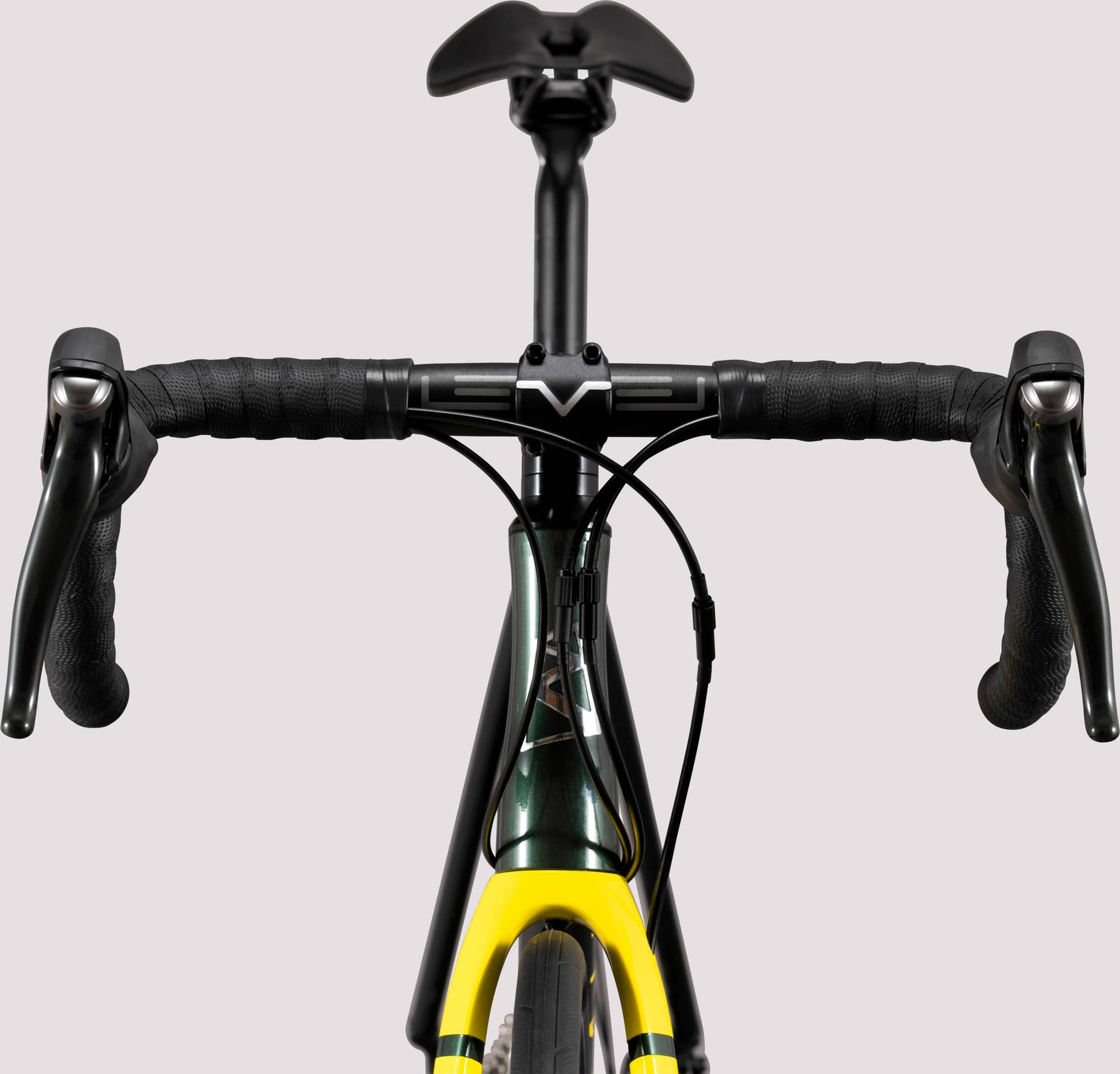

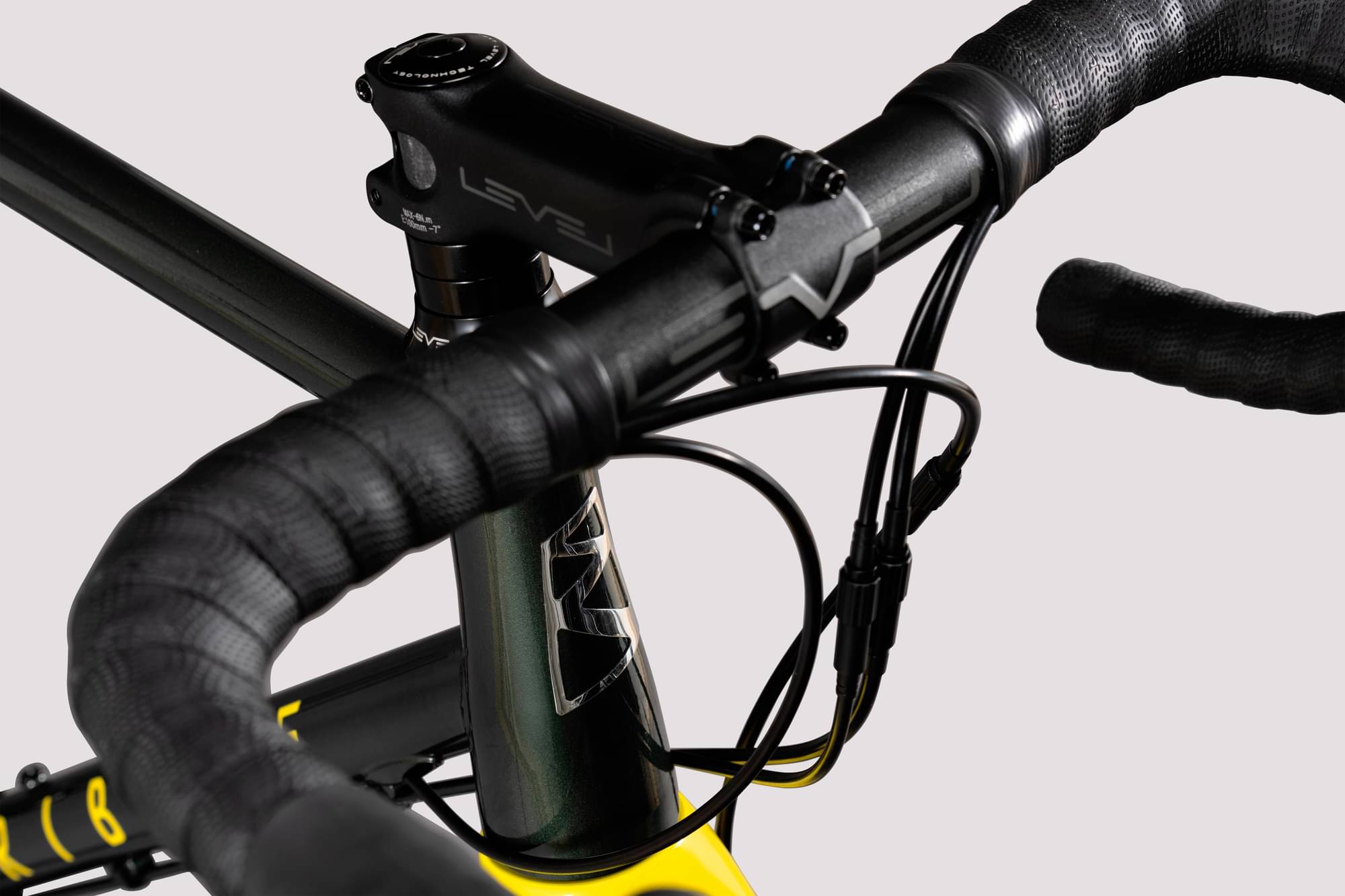

Handlebar
Level Alloy Handlebar

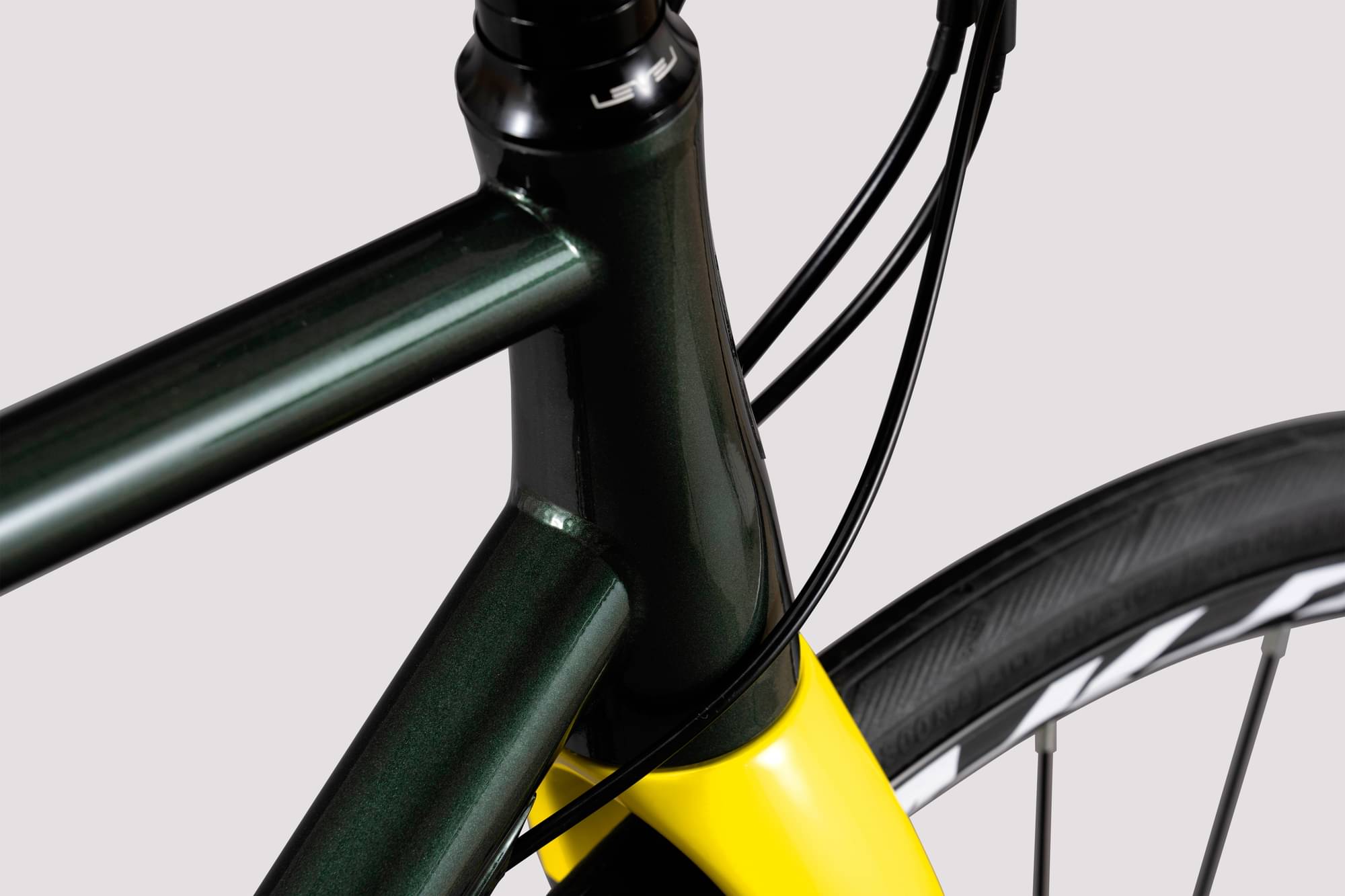

Headset
52 Headset With Top Cap For Alloy Frames
Seat
Saddle
Model X Superflow Saddle
Seatpost
Alloy Seatpost 27.2 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.346 mm | 1.386 mm | 1.42 mm | 1.455 mm | 1.484 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 52 mm | 50 mm | 48 mm | 46 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 56 mm | 55 mm |
| Stack | 510 mm | 531 mm | 551 mm | 572 mm | 592 mm |
| Reach | 379 mm | 383 mm | 388 mm | 393 mm | 399 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 570 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 991 mm | 990 mm | 995 mm | 999 mm | 1007 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
