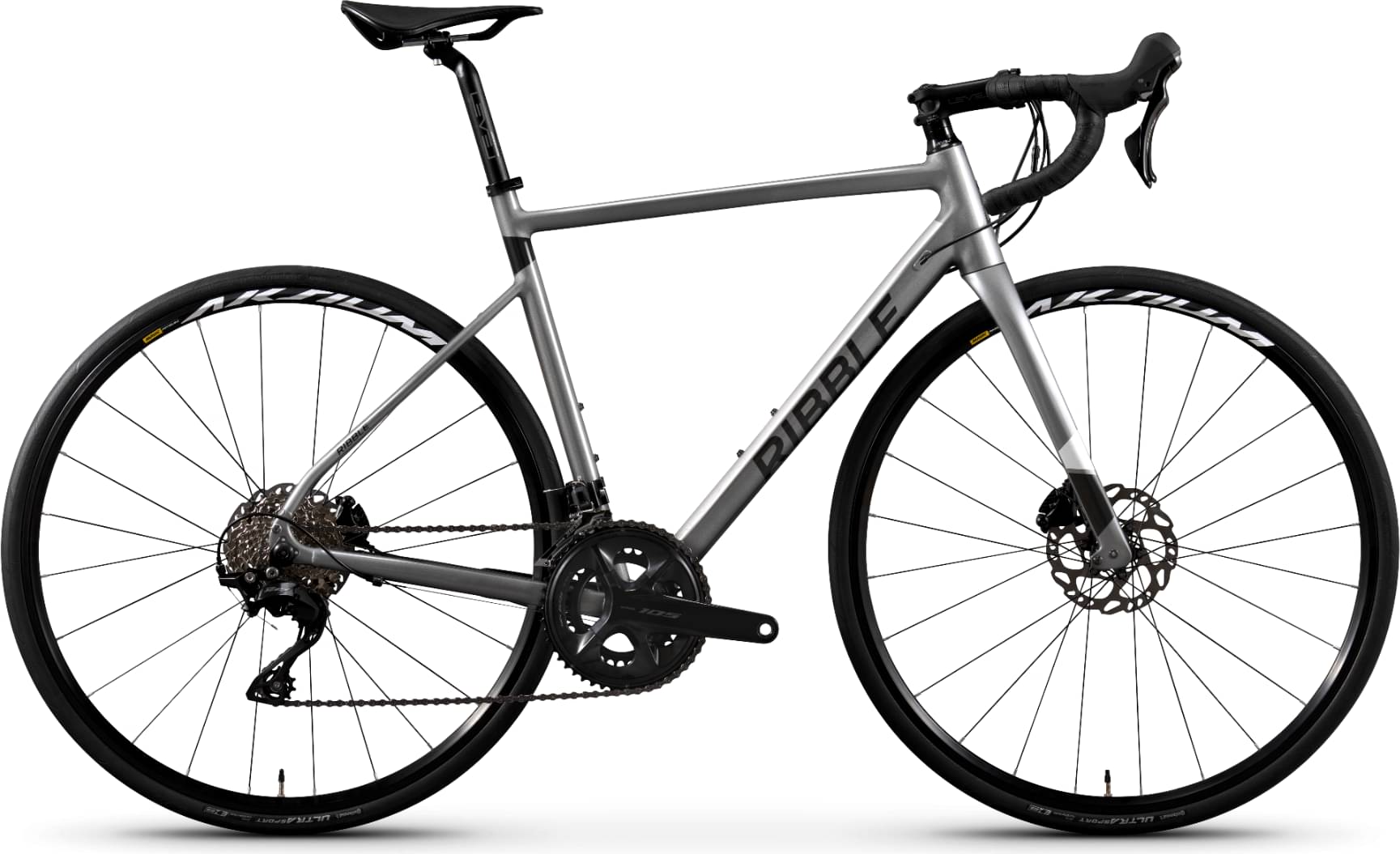

Ribble Endurance AL Disc – Enthusiast 2024
2024 Road
Estimate price |
2,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Cassette
CS-HG710 12spd Cassette HG 11-36T
Crank
FC-R7100 105 12spd Chainset 165mm 50-34T
Brakes
Brakes
Disc Brake Adapter Rear 160mm Flat to Flat
Cockpit
Handlebar
Embossed Black Bar Tape
Seat
Seatpost
Alloy Seatpost 27.2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.346 mm | 1.386 mm | 1.42 mm | 1.455 mm | 1.484 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 52 mm | 50 mm | 48 mm | 46 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 56 mm | 55 mm |
| Stack | 510 mm | 531 mm | 551 mm | 572 mm | 592 mm |
| Reach | 379 mm | 383 mm | 388 mm | 393 mm | 399 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 570 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 991 mm | 990 mm | 995 mm | 999 mm | 1007 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
