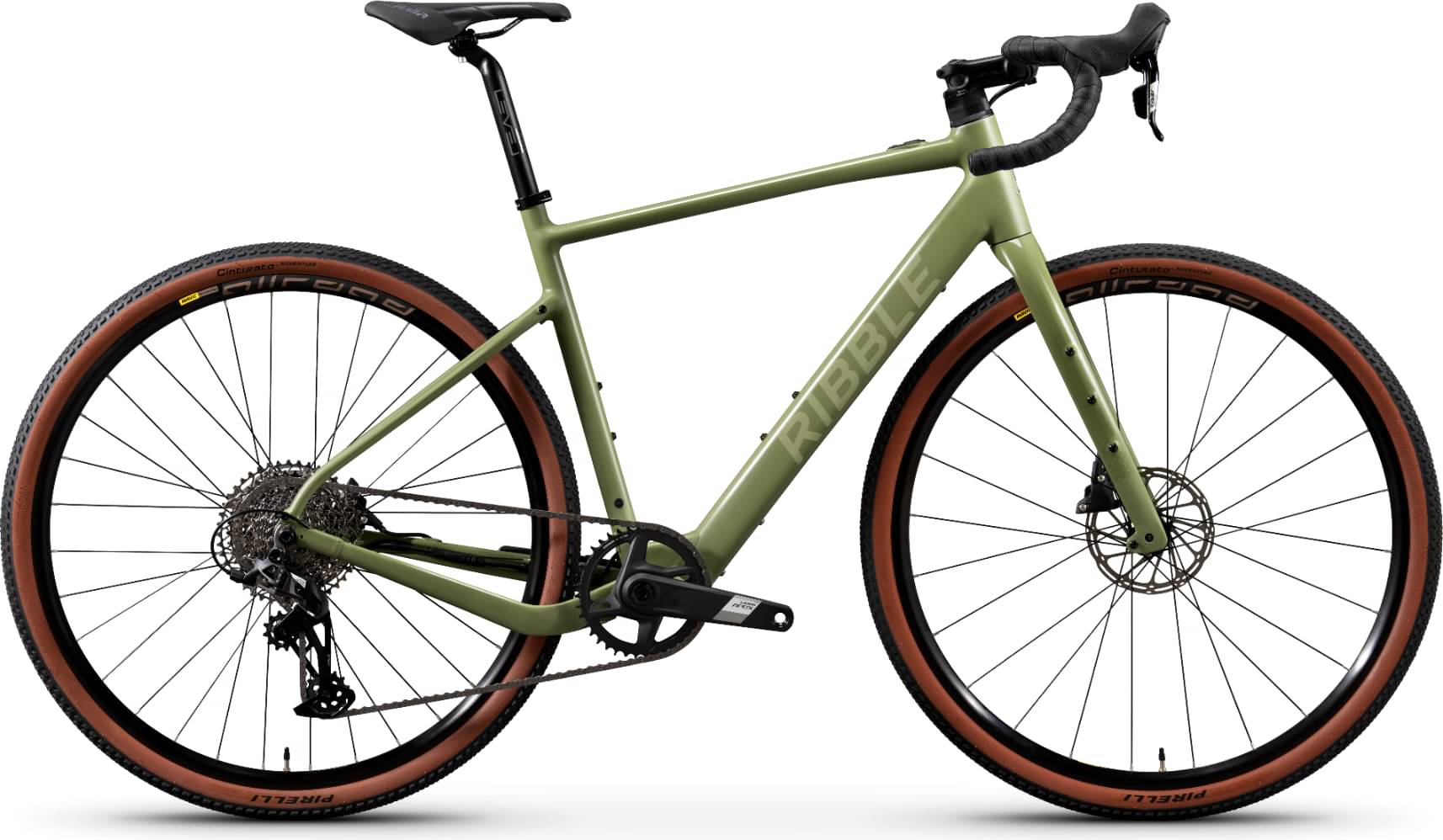

Ribble Gravel AL e – Sport 2024
2024 E-bike
Estimate price |
3,521$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Motor hub-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
150cm - 161cm
XS
159cm - 169cm
SM
167cm - 174cm
MD
172cm - 179cm
LG
177cm - 184cm
XL
182cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Front Thru-Axle for Carbon Forks
Drivetrain
Shift Levers
Apex D1 Shift Lever & Caliper 12spd RH
Cassette
PG1231 XPLR Cassette HG 11-44T
Crank
Apex 1 DUB Wide Crankset 165mm 40T
Brakes
Brakes
Apex D1 Brake Lever & Caliper LH
Cockpit
Handlebar
Embossed Black Bar Tape
Seat
Seatpost
Alloy Seatpost 27.2 350mm
Motor & Battery
Motor
X35 Motor Lock Nut
Remote
X35 Manual - One Remote
Charger
X35 Charger C Without Wire
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.433 mm | 1.456 mm | 1.471 mm | 1.485 mm | 1.517 mm |
| Stack | 525 mm | 546 mm | 565 mm | 584 mm | 603 mm | 625 mm |
| Reach | 372 mm | 381 mm | 388 mm | 397 mm | 406 mm | 412 mm |
| Top Tube Length | 508 mm | 522 mm | 550 mm | 570 mm | 585 mm | 602 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 73.5 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1020 mm | 1016 mm | 1037 mm | 1052 mm | 1068 mm | 1075 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 159 cm | 167 cm | 172 cm | 177 cm | 182 cm |
| Rider Max Height | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm | 191 cm |
