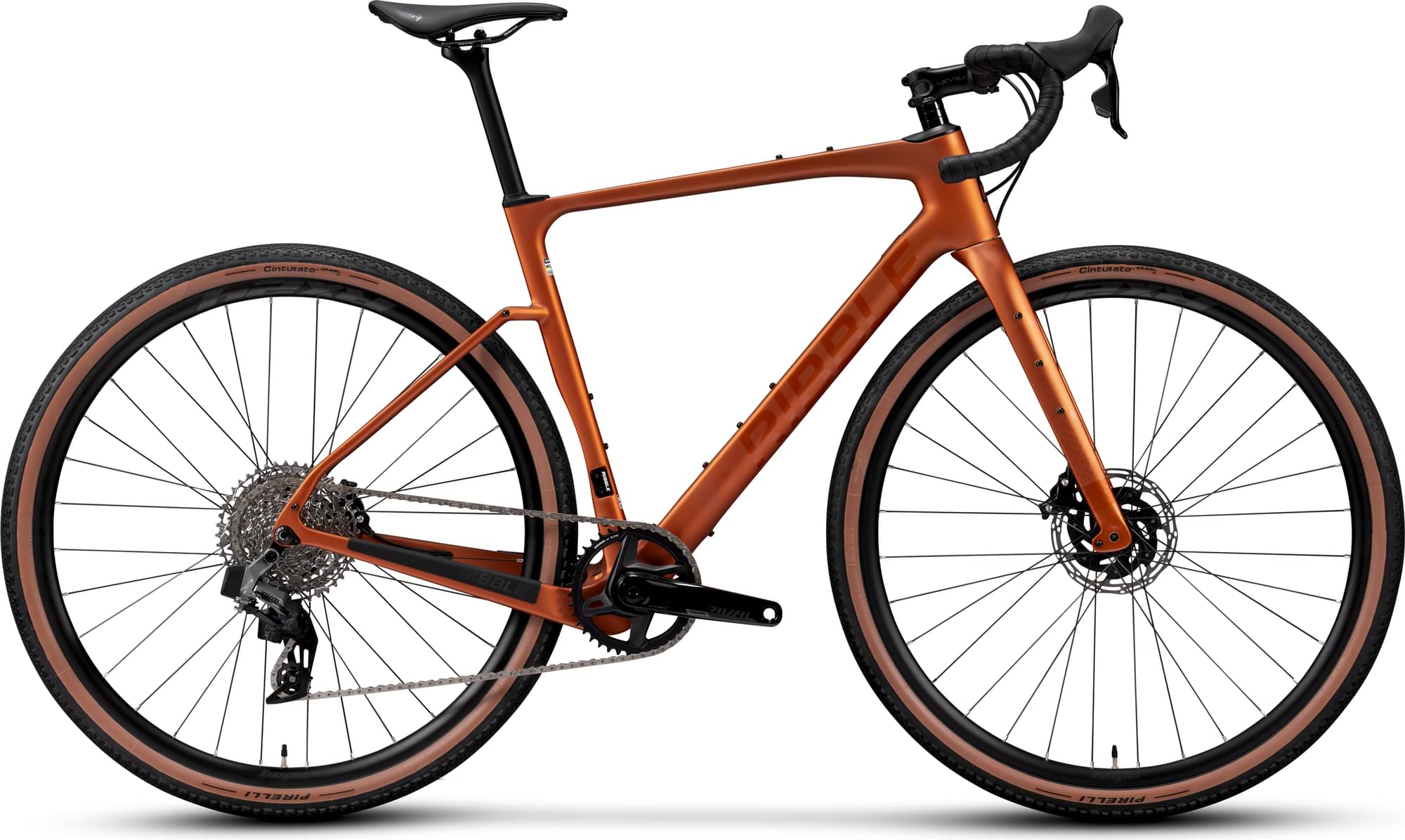

Ribble Gravel SL – Enthusiast 2025
2025 Road
Estimate price |
4,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS -
Suspension Rigid -
Battery EP Powerpack 1 Battery -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

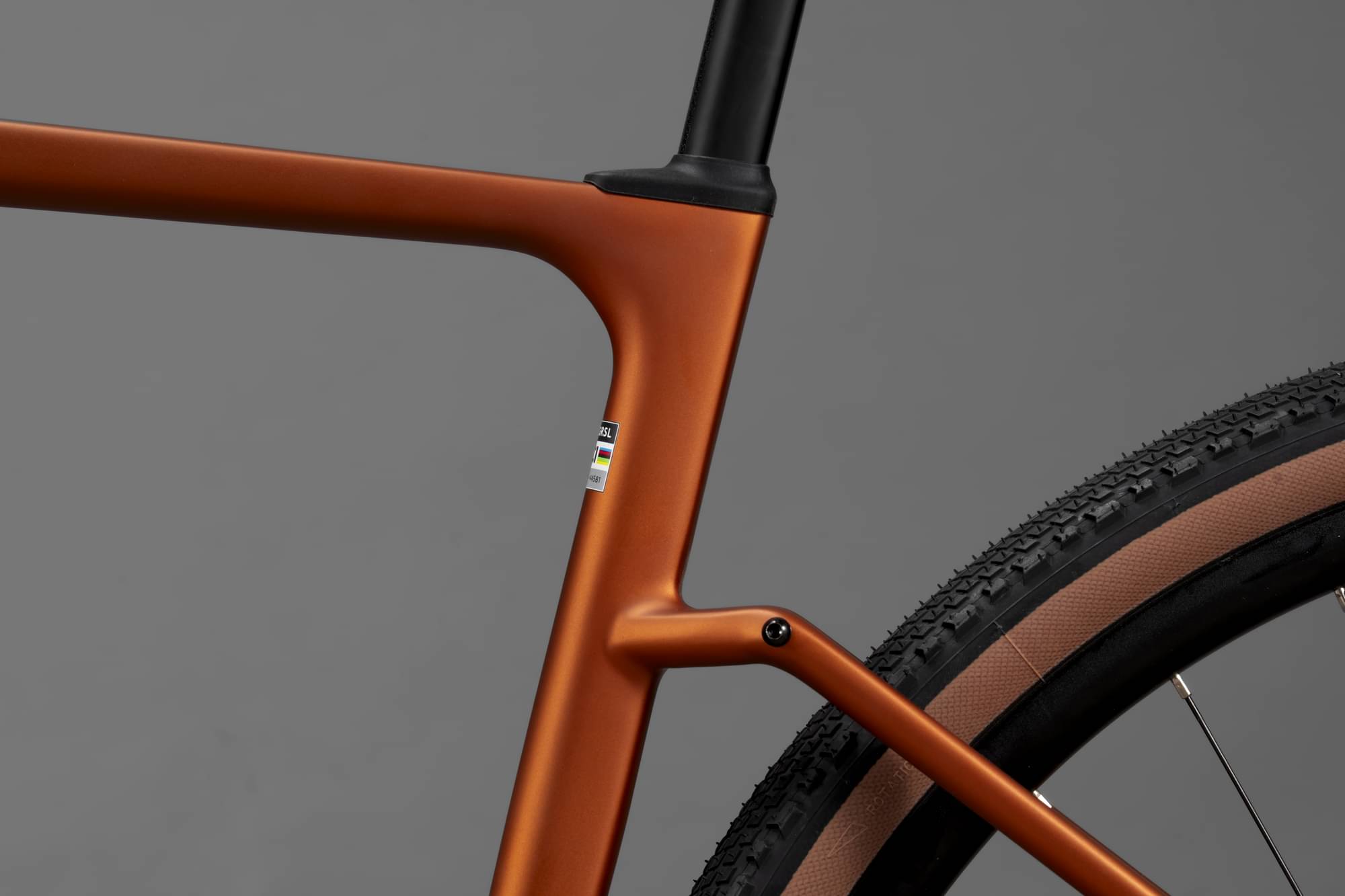

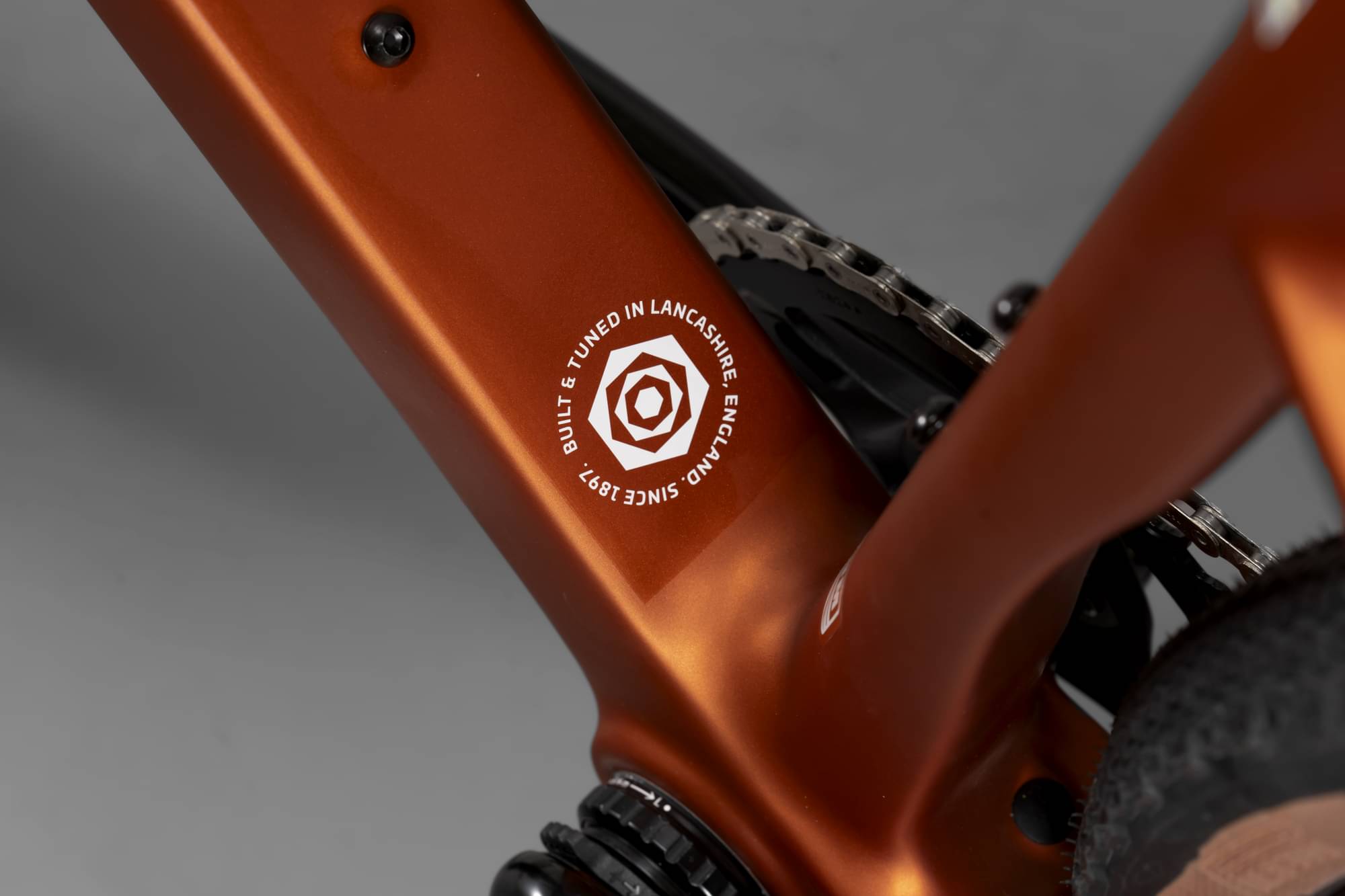

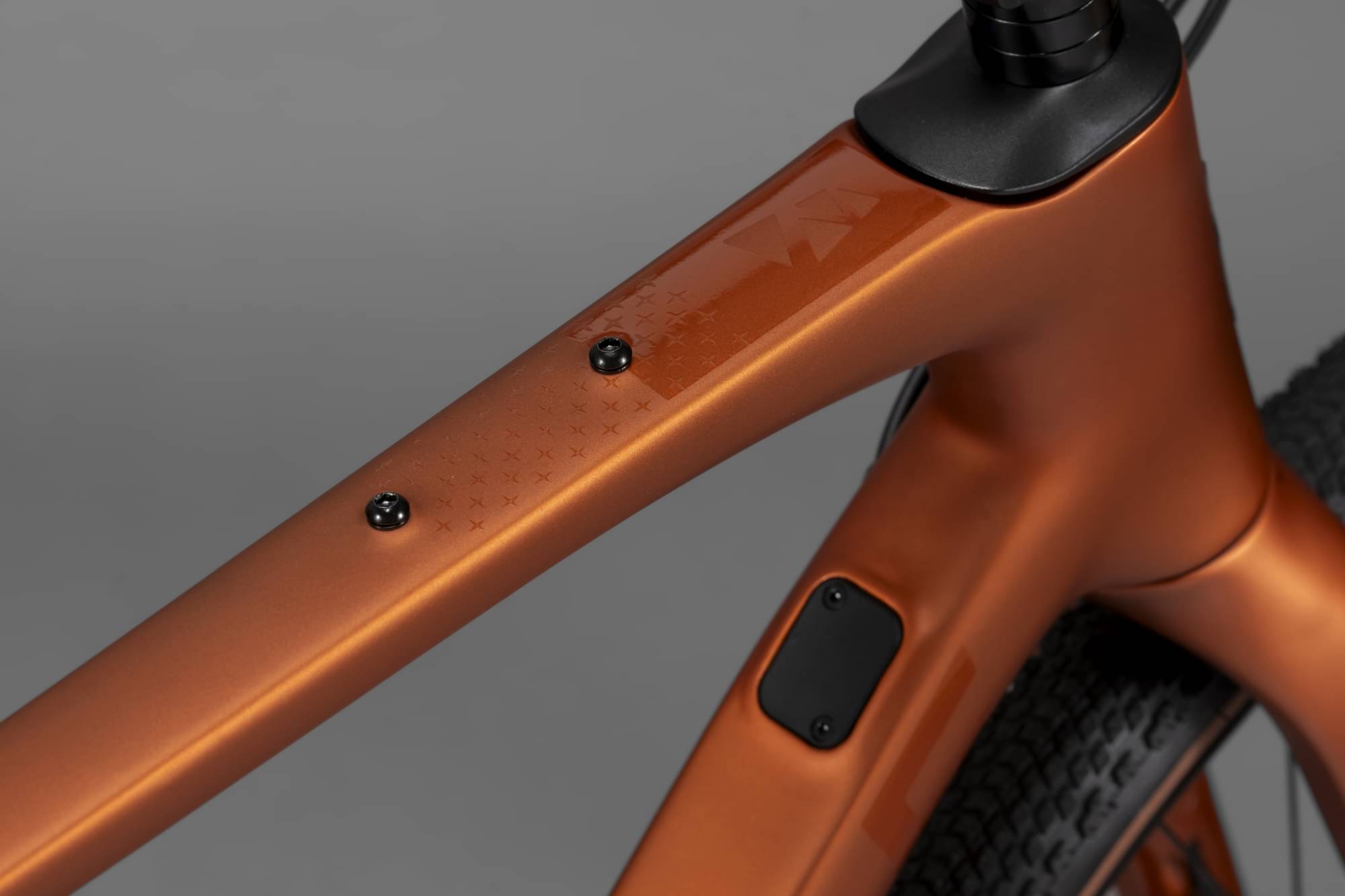

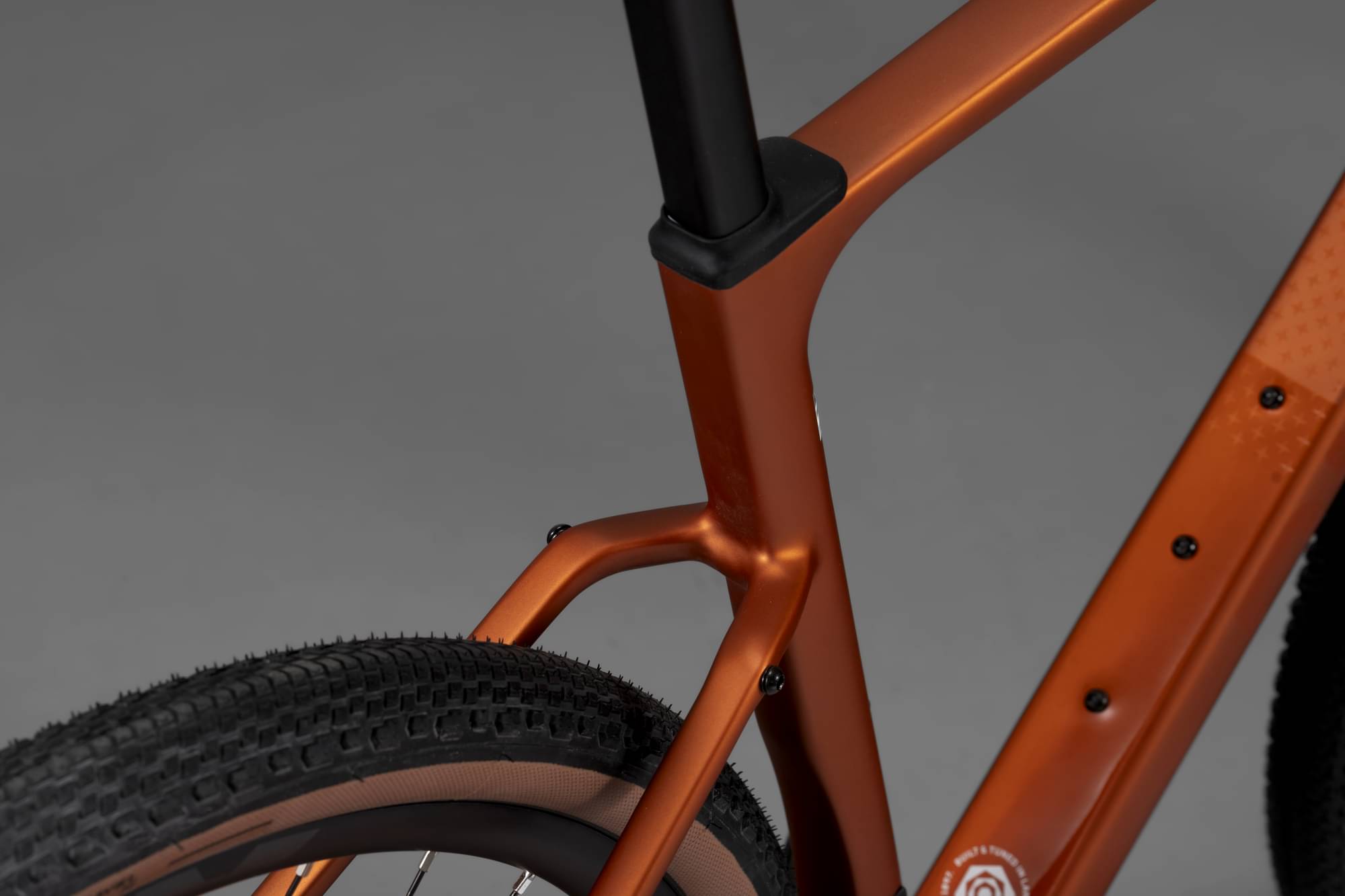

Frame
Frame
Rear Thru-Axle for Carbon Frames
Suspension Fork

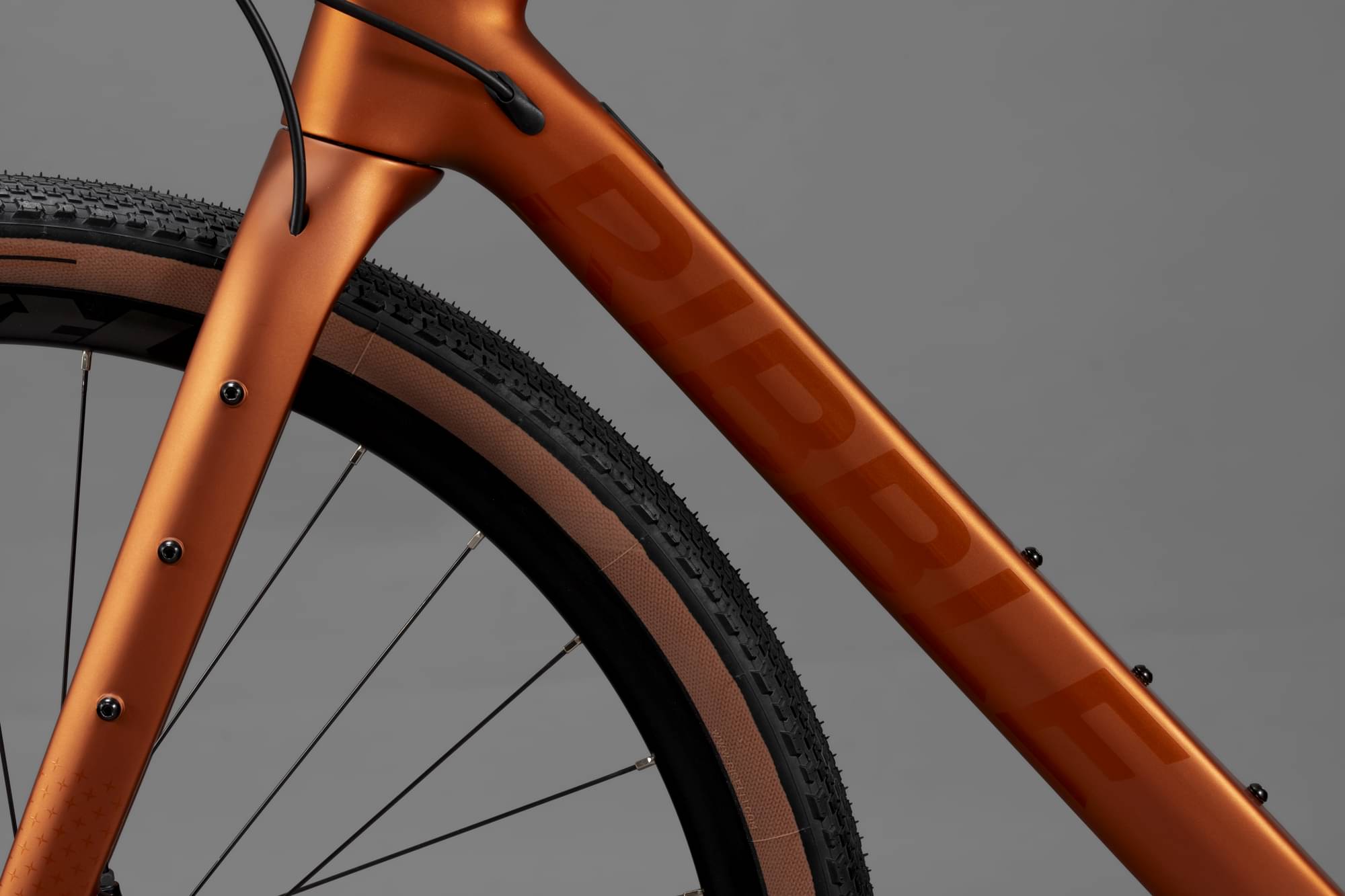

Gravel SL Fork

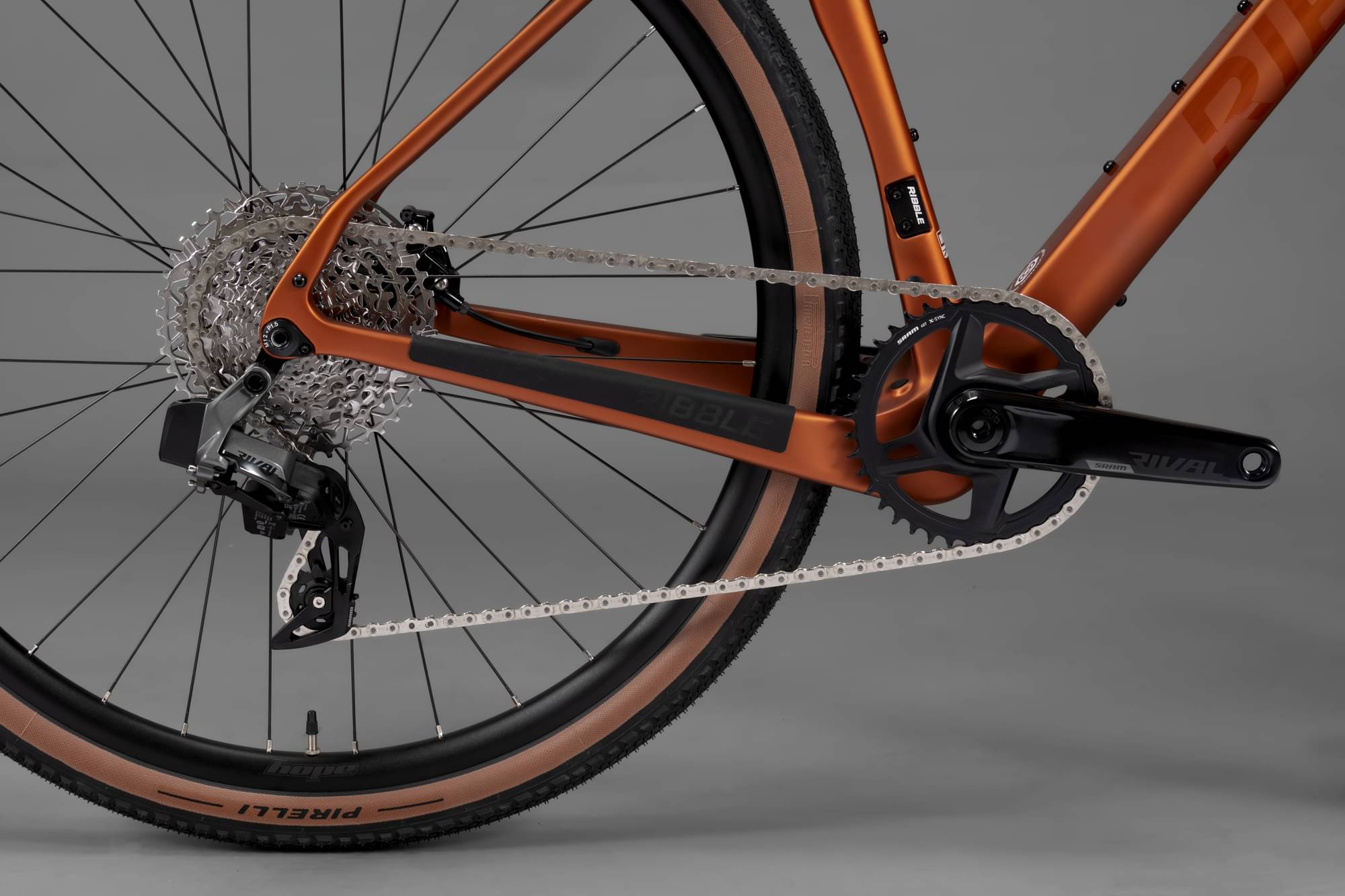

Drivetrain
Rear Derailleur
Rival XPLR eTap AXS Rear Derailleur D1 Max 44T
Front Derailleur
Front Mech Blanking Plate
Cassette
XG 1251 D1 XPLR Cassette XDR 10-44T
Crank

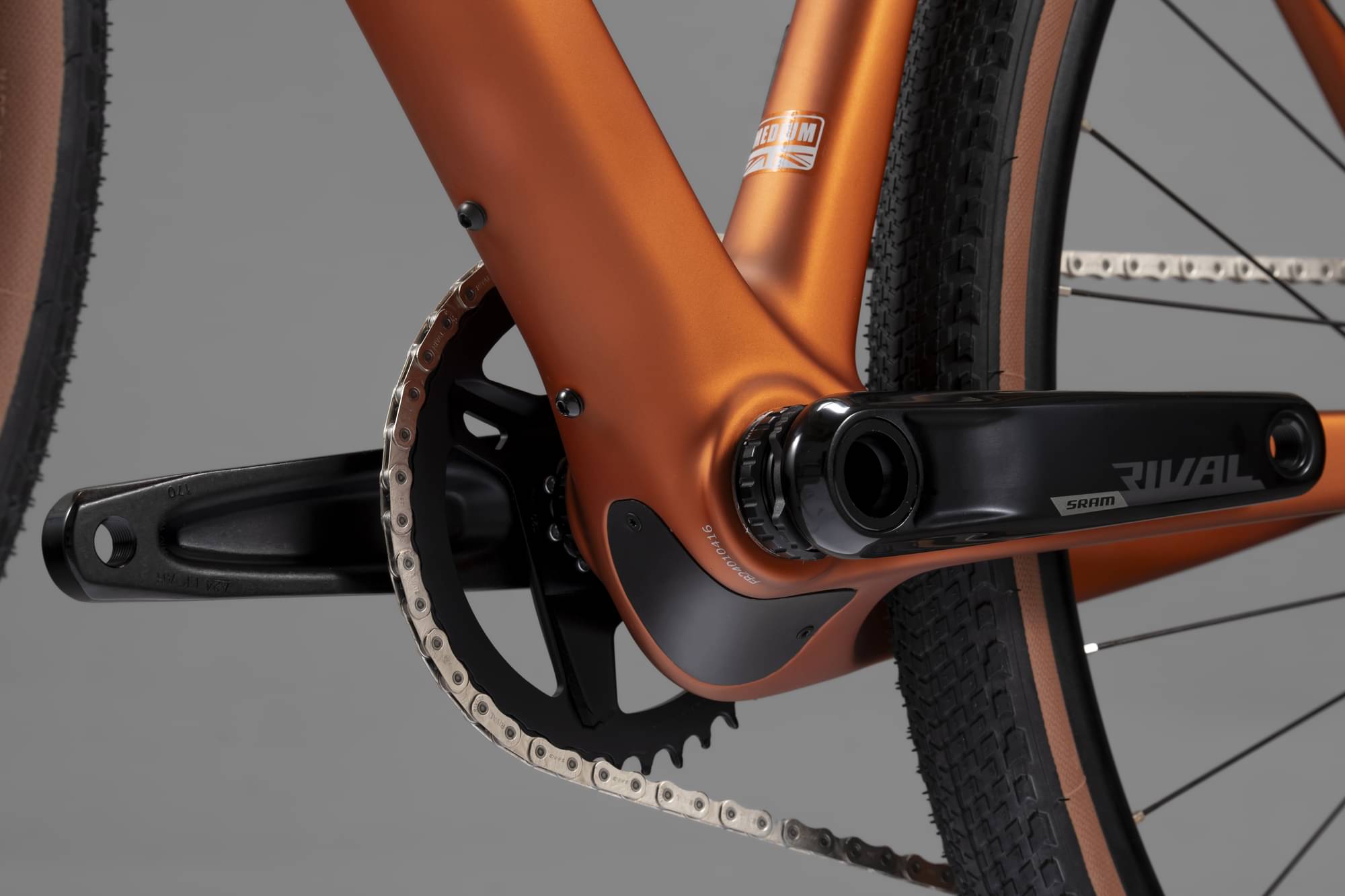

Rival 1 D1 Dub Wide Chainset 165mm 40T
Bottom Bracket
DUB BSA 68mm Road WIDE Bottom Bracket
Chain
Rival D1 12spd Chain 120 Links

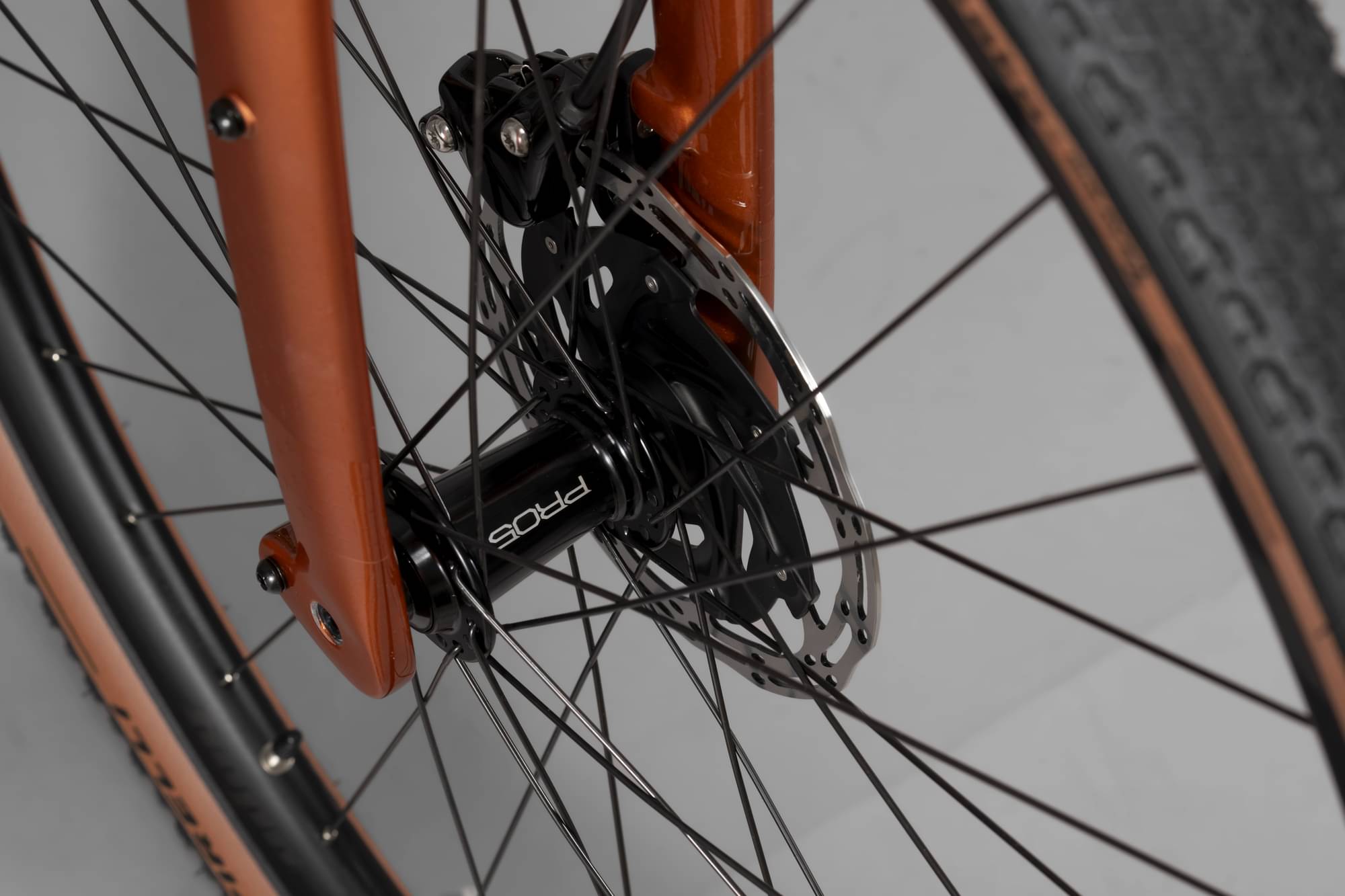

Wheels
Rims
RX24 Pro 5 Rear Wheel 700c 32H CL XDR

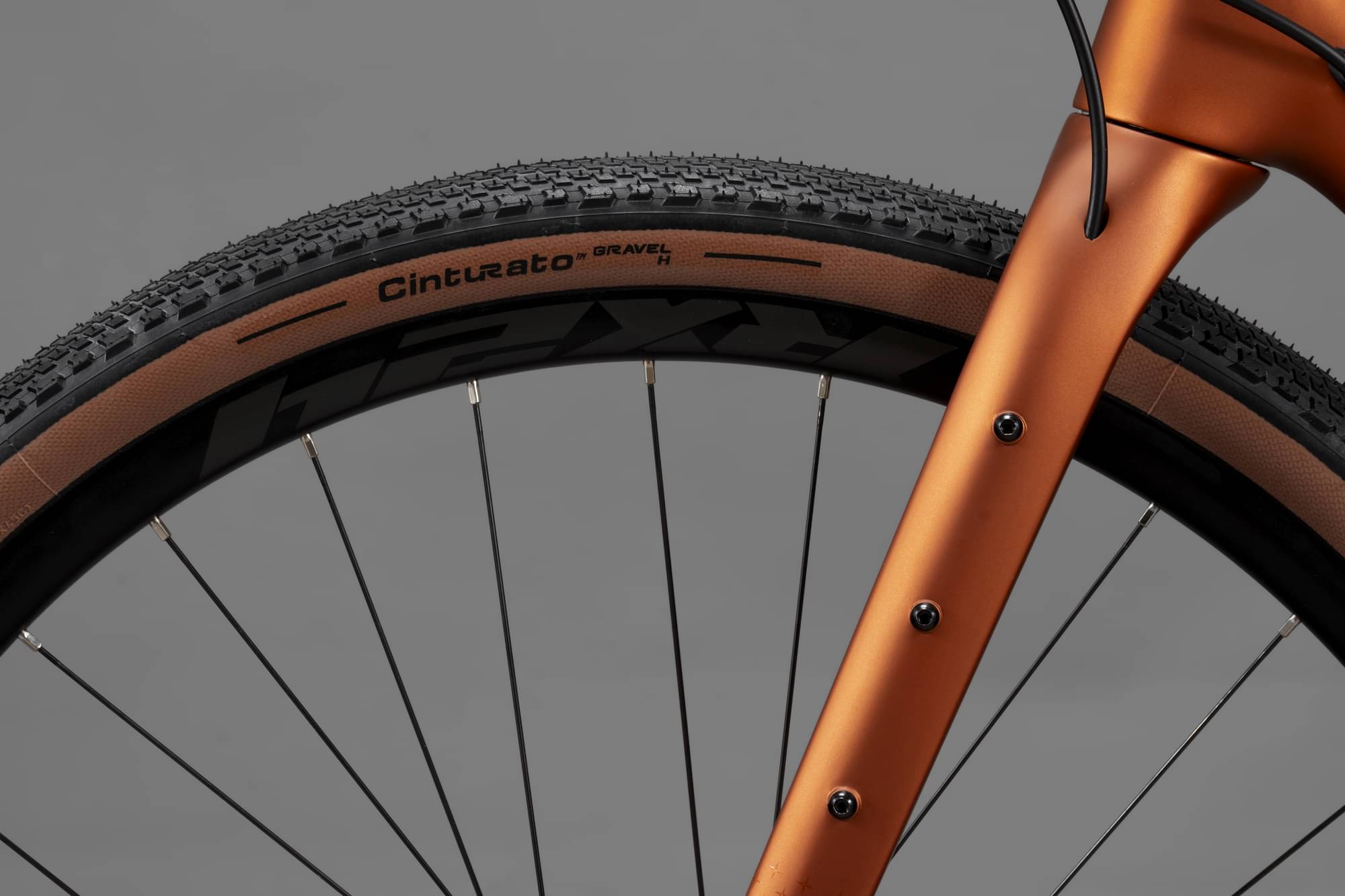

Tires
Inner Tube 700x35/45 SV40mm
Brakes

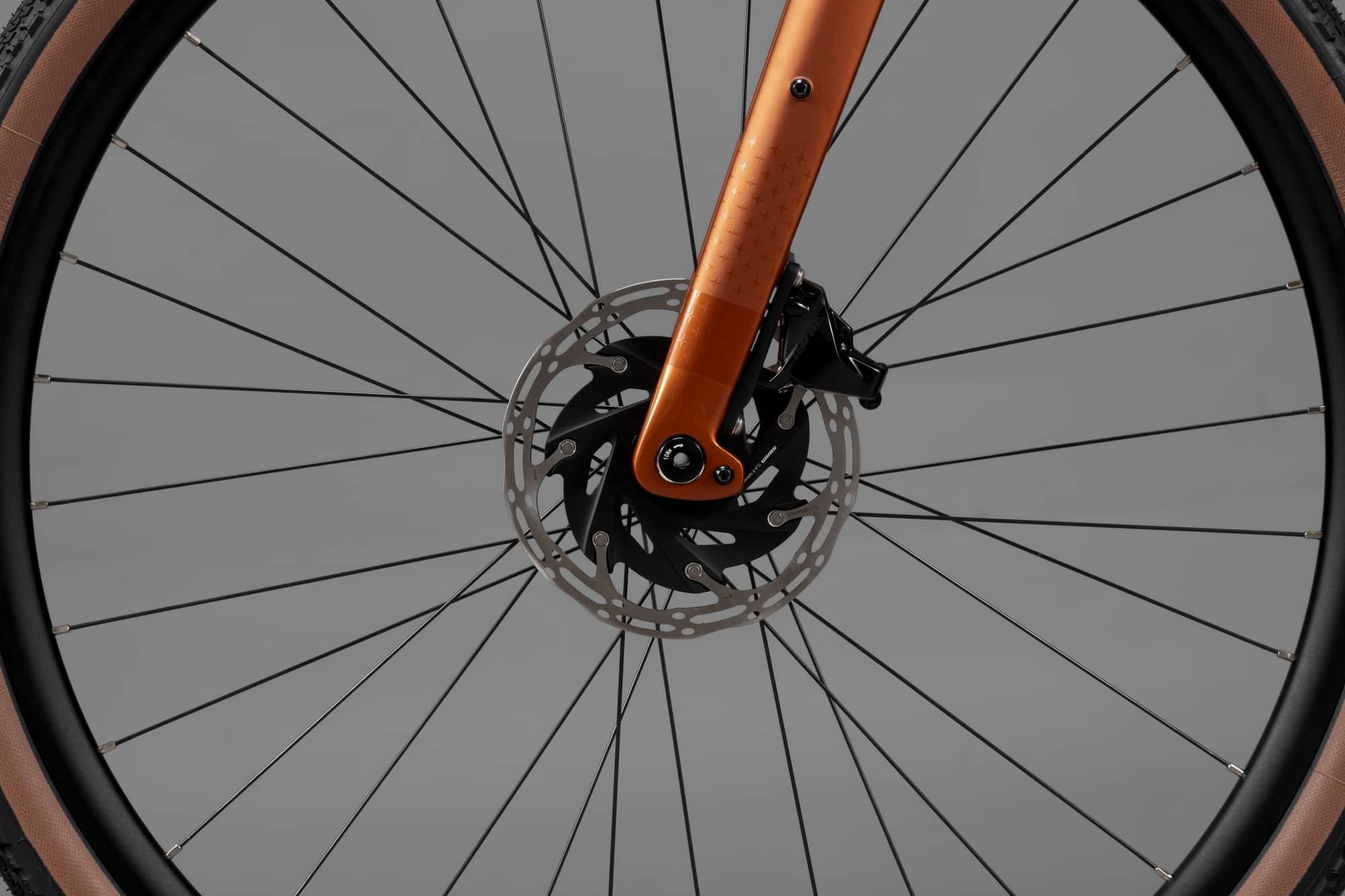

Brakes

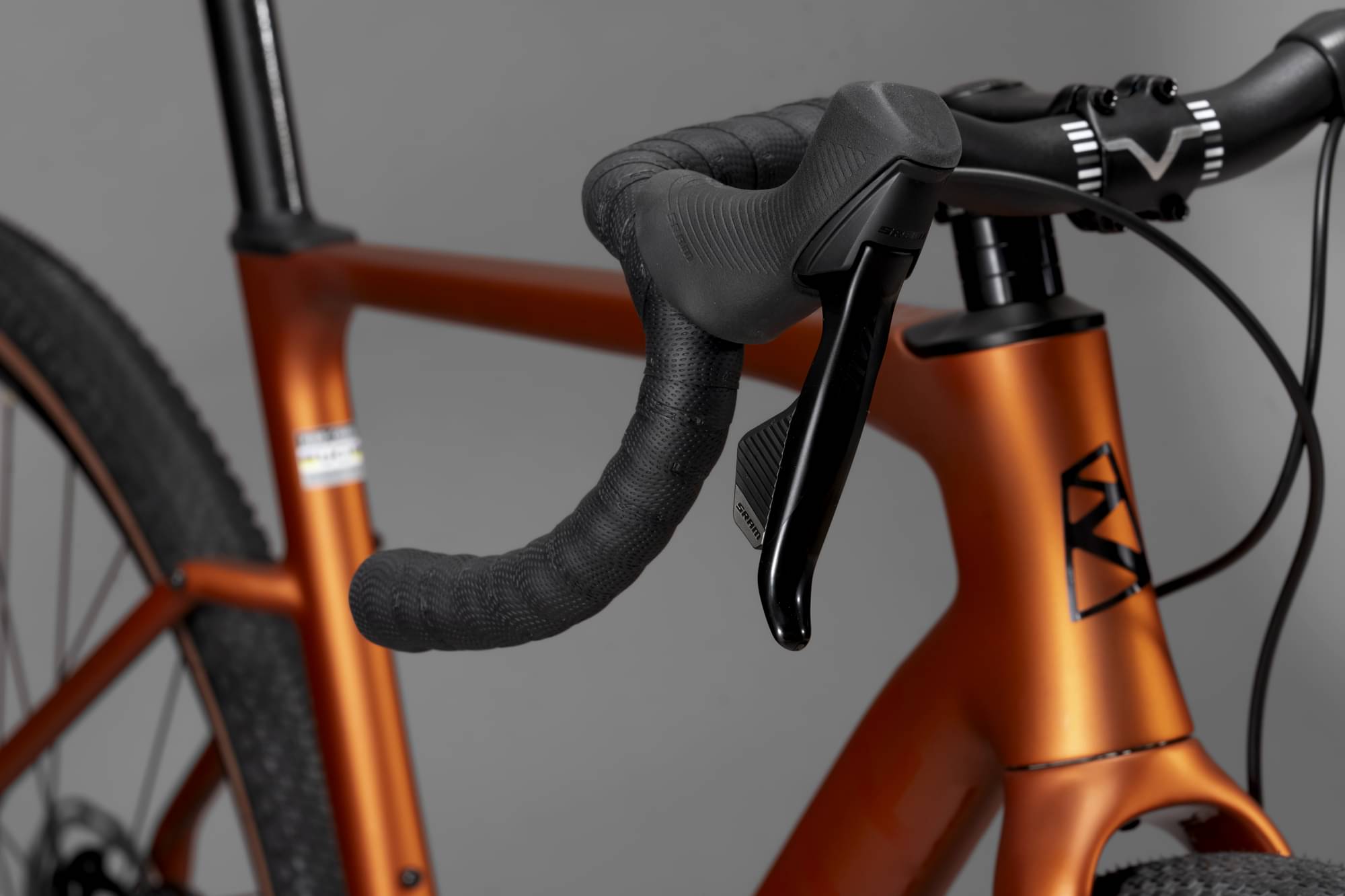

Rival eTap AXS D1 Shift Lever & Caliper RH
Brake Levers
Rival eTap AXS D1 Shift Lever & Caliper RH

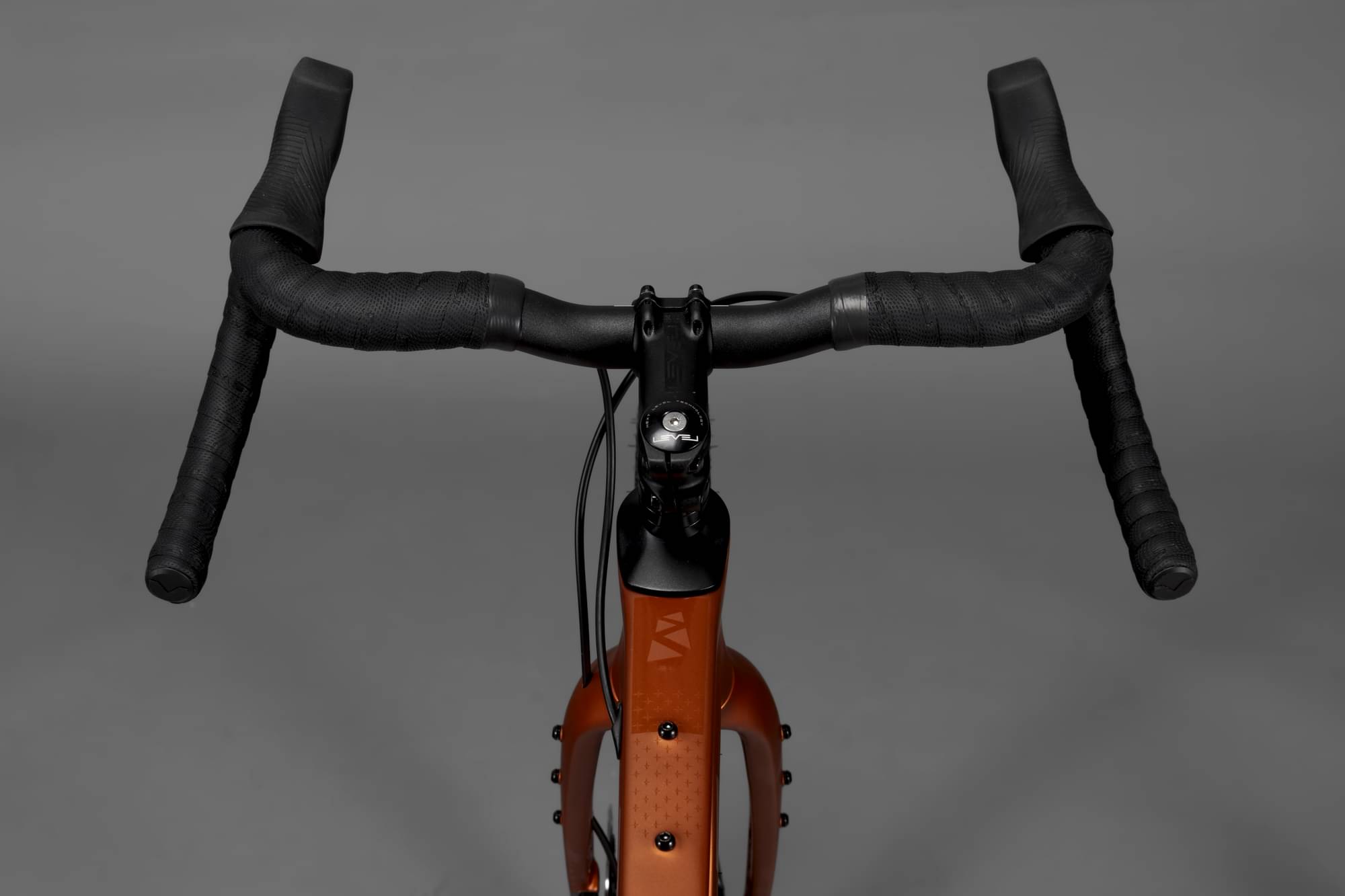

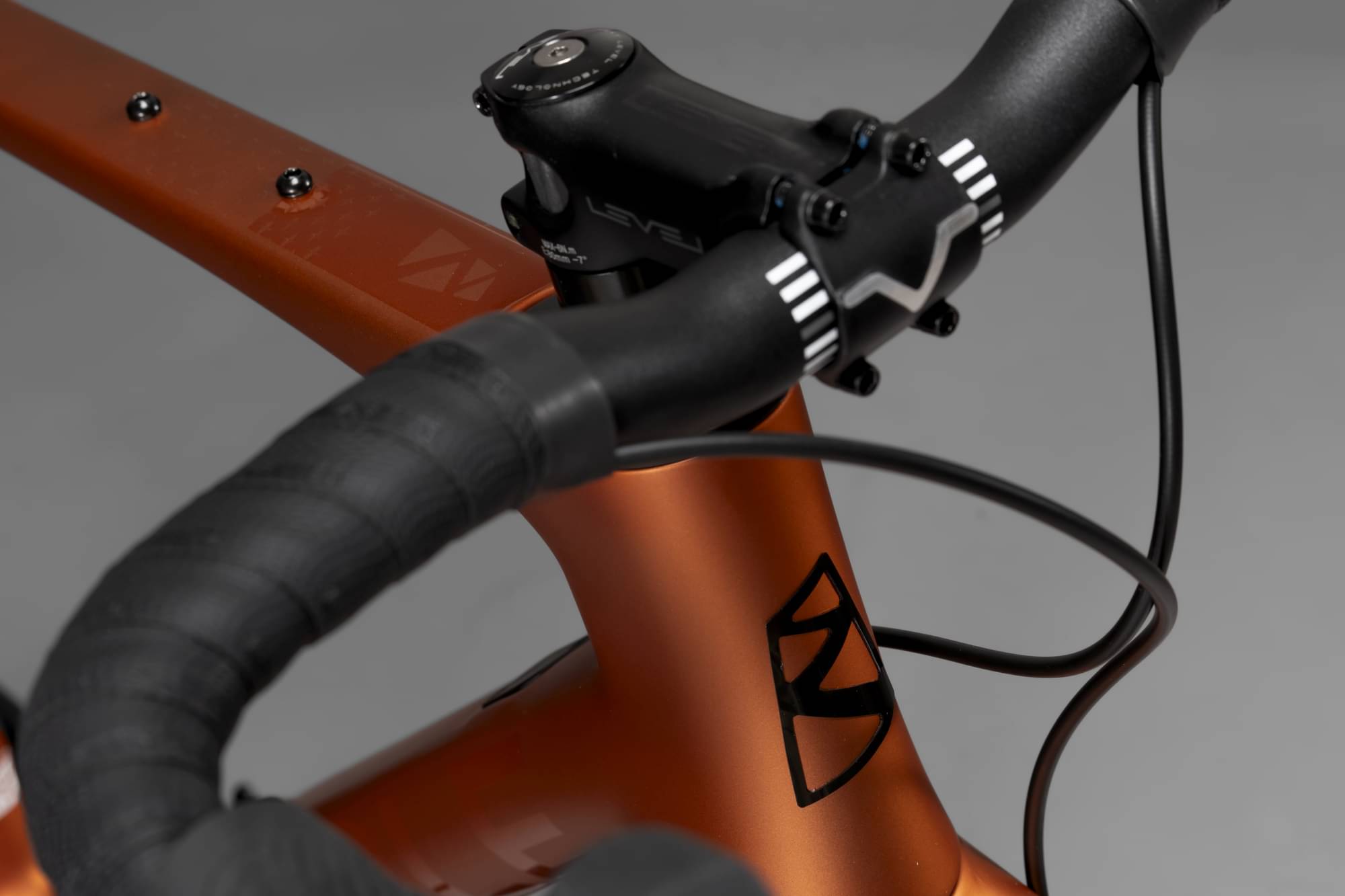

Cockpit
Handlebar

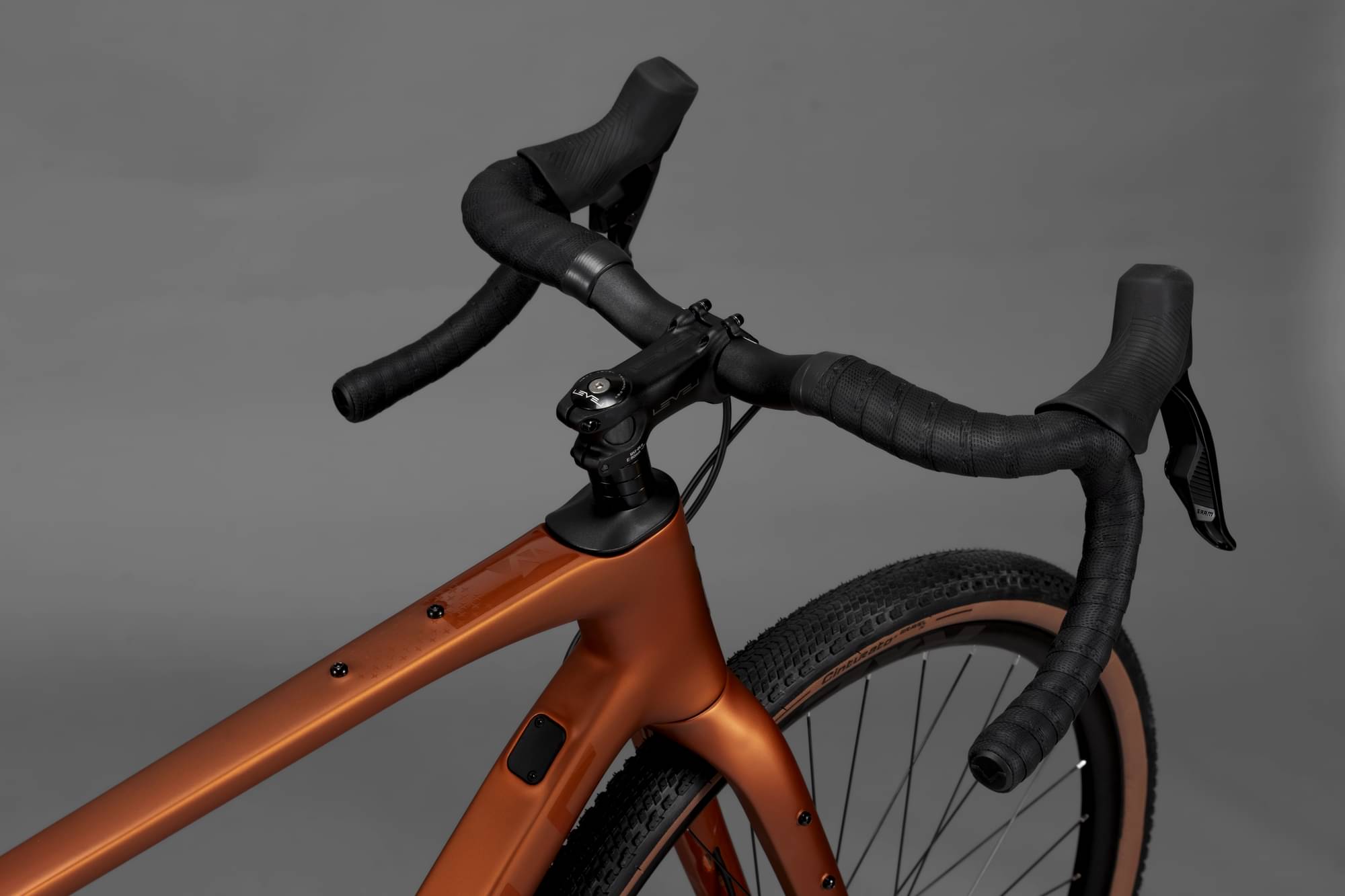

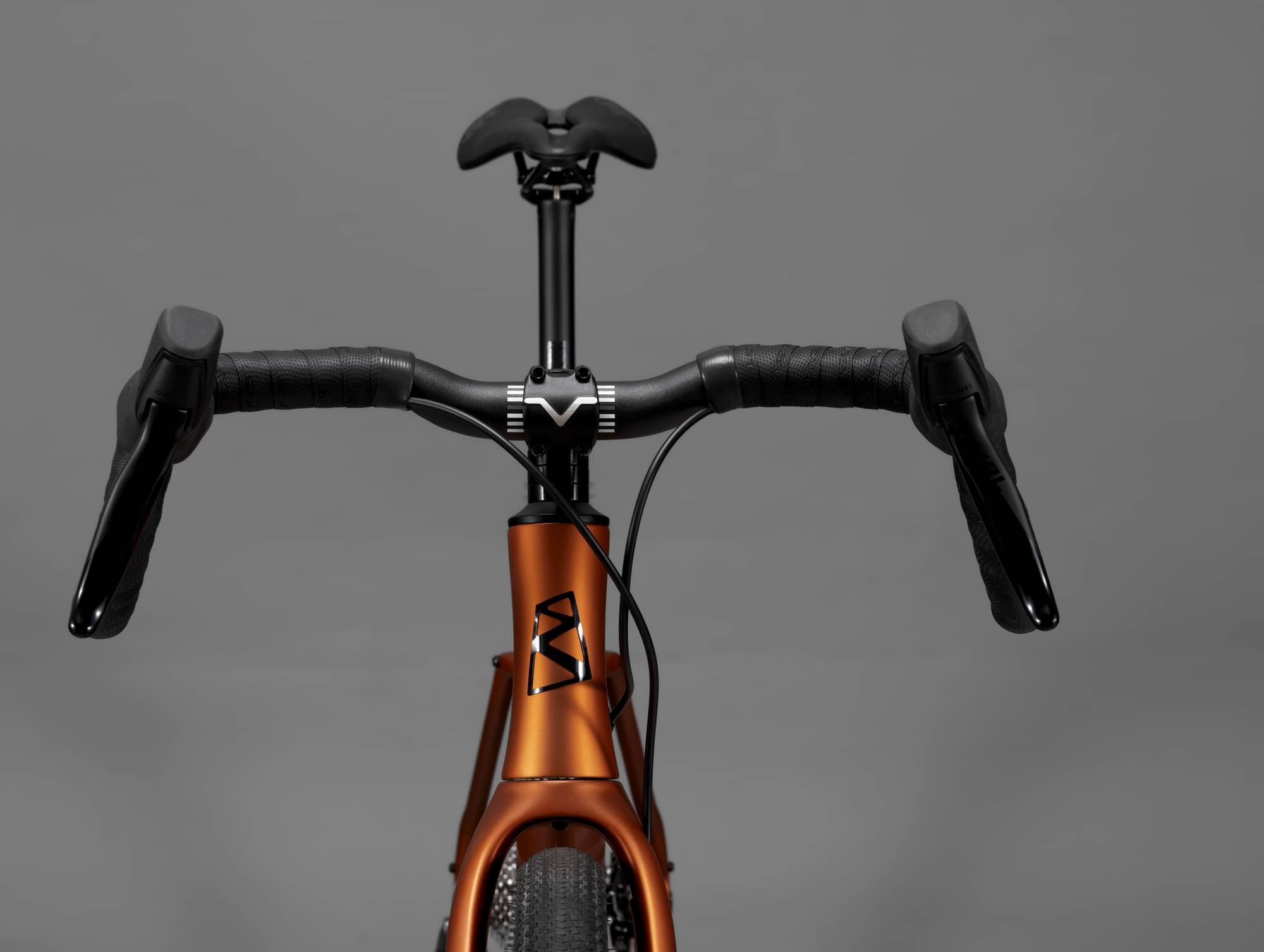

Gravel Riser Bar Black 42cm x 51cm
Headset
Expander For Carb Steerer 1-1/8 x 65mm (Regular)
Seat
Saddle

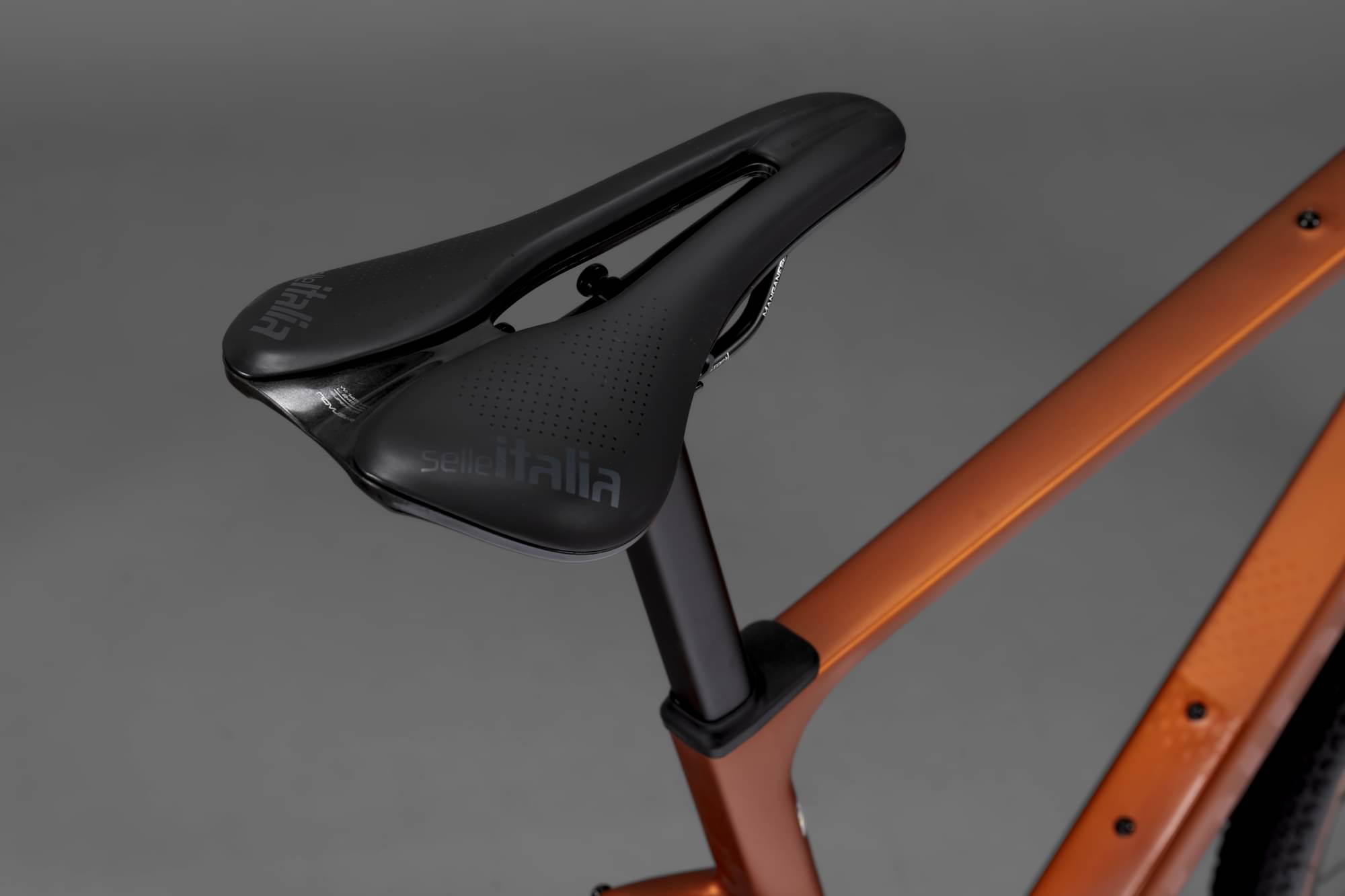

Novus Boost EVO Superflow Saddle
Motor & Battery
Battery
EP Powerpack 1 Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.461 mm | 1.48 mm | 1.522 mm | 1.543 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 593 mm | 599 mm | 601 mm | 615 mm | 616 mm |
| Rake | 50 mm | 53 mm | 49 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 65 mm | 61 mm | 61 mm |
| Stack | 537 mm | 548 mm | 561 mm | 592 mm | 611 mm |
| Reach | 371 mm | 375 mm | 379 mm | 389 mm | 396 mm |
| Top Tube Length | 520 mm | 535 mm | 545 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1019 mm | 1025 mm | 1025 mm | 1041 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
