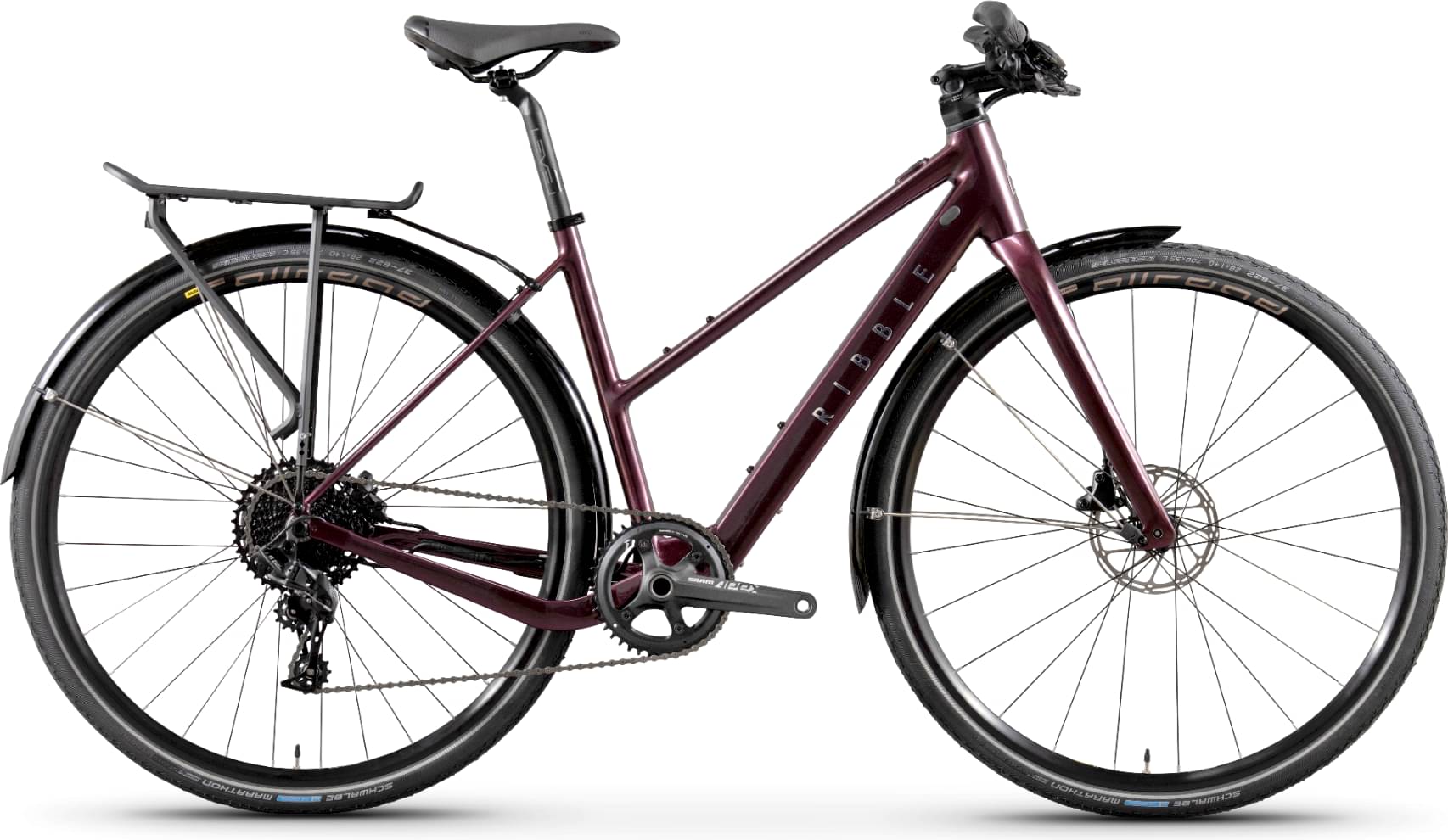

Ribble Hybrid AL e Step Through – Fully Loaded Edition 2024
2024 E-bike
Estimate price |
3,657$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset NX, Apex -
Suspension Rigid -
Motor hub-drive -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 169cm
MD
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Front Thru-Axle for Carbon Forks
Drivetrain
Shift Levers
NX Trigger Shifter With Discrete Clamp 11spd RH
Cassette
PG-1130 Cassette HG 11-42T
Crank
Apex 1 Chainset GXP 172.5mm 42T
Brakes
Brakes
Rim
Cockpit
Handlebar
Urban Alloy Bar Black 64cm
Seat
Seatpost
Alloy Seatpost 27.2 350mm
Motor & Battery
Motor
X35 Motor Lock Nut
Remote
X35 Manual - One Remote
Charger
X35 Charger C Without Wire
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.514 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 557 mm | 586 mm |
| Reach | 365 mm | 387 mm |
| Top Tube Length | 520 mm | 550 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1021 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
