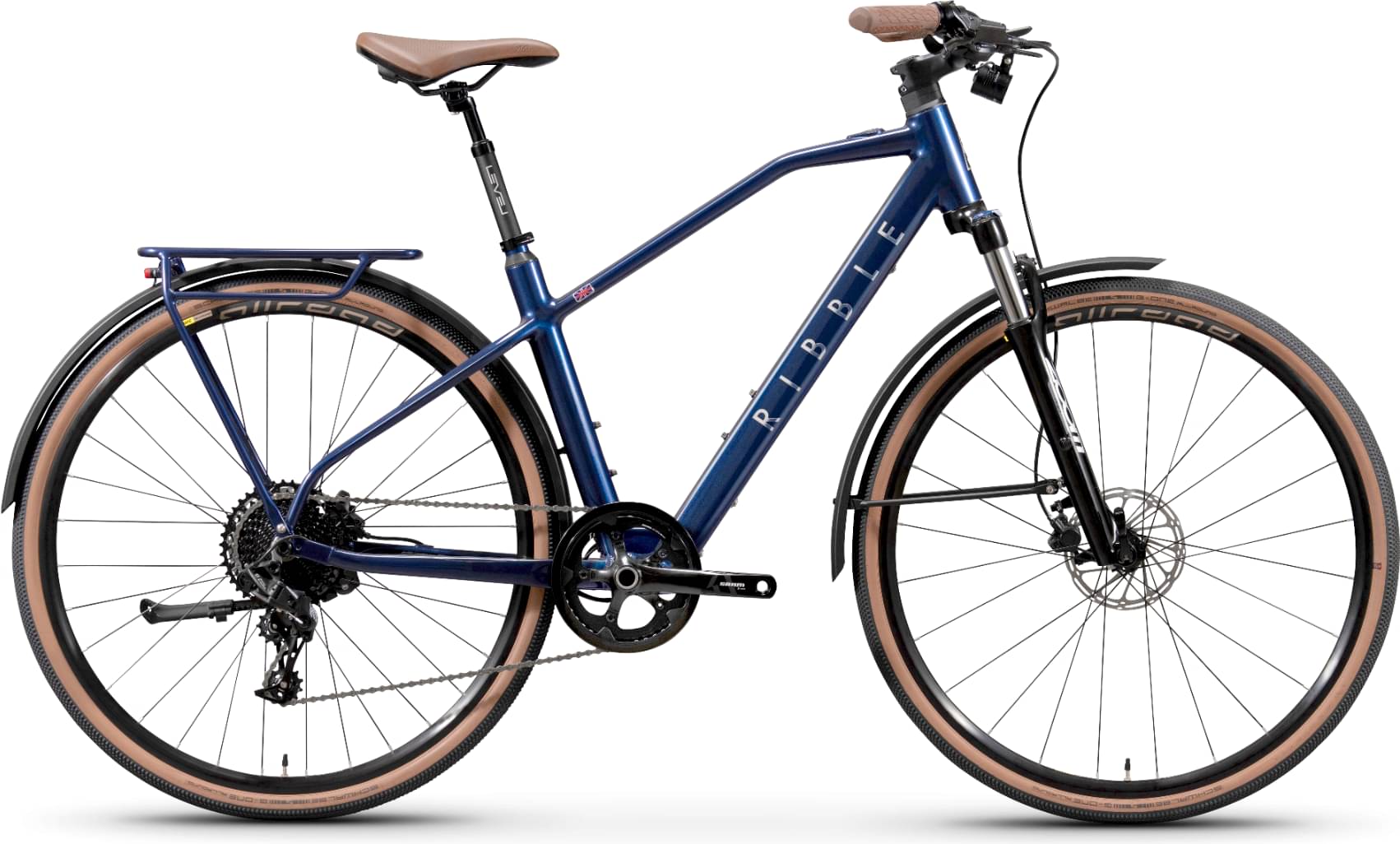

Ribble Hybrid AL e Trail 2024
2024 E-bike
Estimate price |
3,657$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 60mm -
Groupset NX, Apex -
Suspension Hardtail -
Motor hub-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
188DS-B Suspension Fork 60mm RL
Drivetrain
Shift Levers
NX Trigger Shifter With Discrete Clamp 11spd RH
Cassette
PG-1130 Cassette HG 11-42T
Crank
Apex 1 Chainset GXP 172.5mm 42T
Brakes
Brakes
Attack U Hydraulic Disc Brake Front Right PM
Motor & Battery
Motor
X35 Motor Lock Nut
Remote
X35 Manual - One Remote
Charger
X35 Charger C Without Wire
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.468 mm | 1.476 mm | 1.45 mm |
| Stack | 568 mm | 587 mm | 605 mm | 625 mm |
| Reach | 378 mm | 400 mm | 410 mm | 431 mm |
| Top Tube Length | 550 mm | 585 mm | 601 mm | 630 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1040 mm | 1068 mm | 1085 mm | 1112 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 171 cm | 179 cm | 186 cm | 194 cm |
