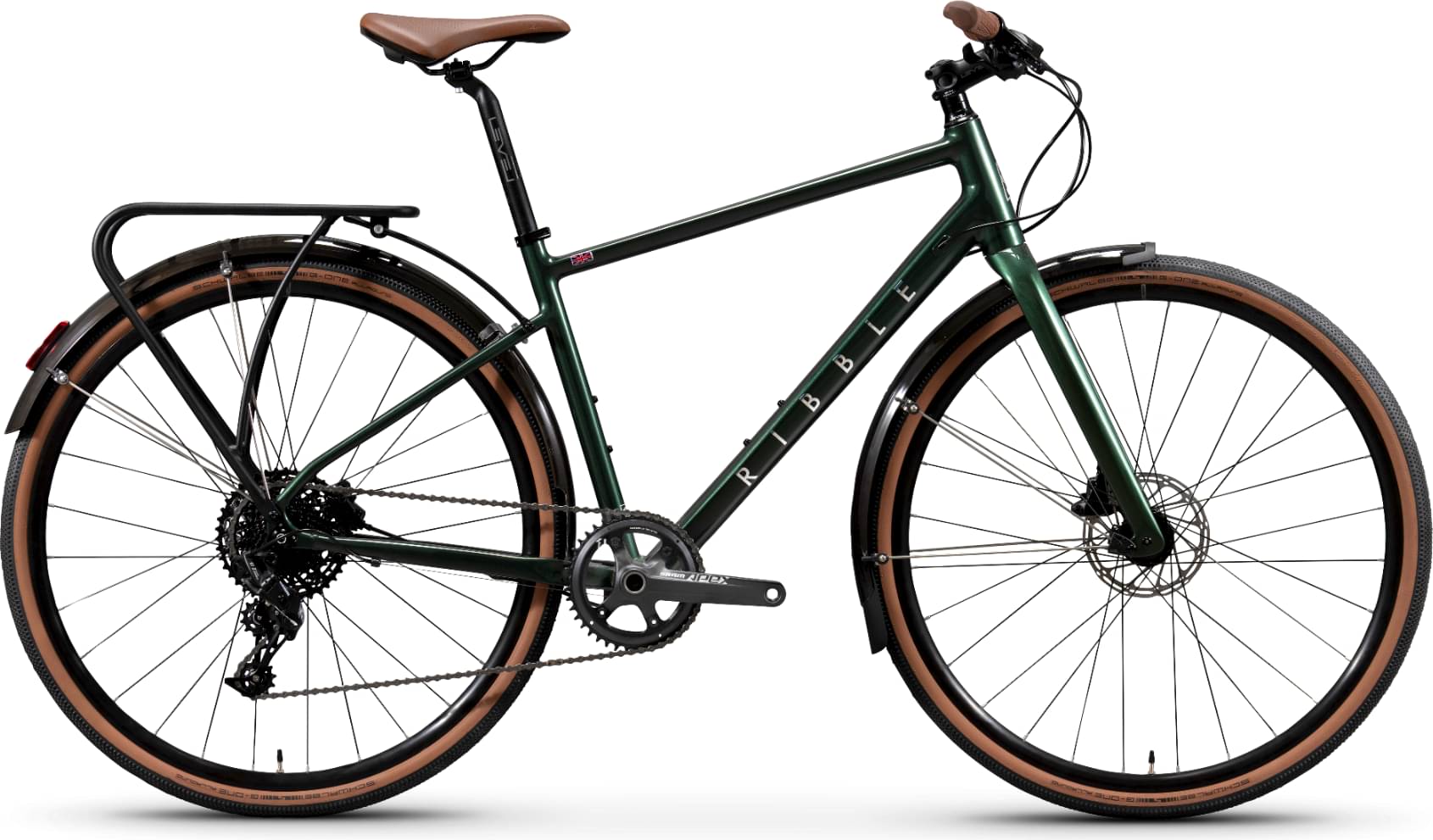

Ribble Hybrid AL – Fully Loaded Edition 2025
2025 Urban
Estimate price |
1,895$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset NX, Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 170cm
MD
167cm - 176cm
LG
174cm - 184cm
XL
182cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hybrid AL Frame Green SML 41cm
Suspension Fork
Hybrid AL Fork Green
Drivetrain
Rear Derailleur
NX Rear Derailleur 1x11spd Long Cage
Shift Levers
NX Trigger Shifter With Discrete Clamp 11spd RH
Cassette
PG-1130 Cassette HG 11-42T
Crank
Apex 1 Chainset GXP 172.5mm 42T
Chain
PC-1110 Chain 120 Links
Wheels
Rims
Allroad 1 Disc Rear Wheel 700c CL HG

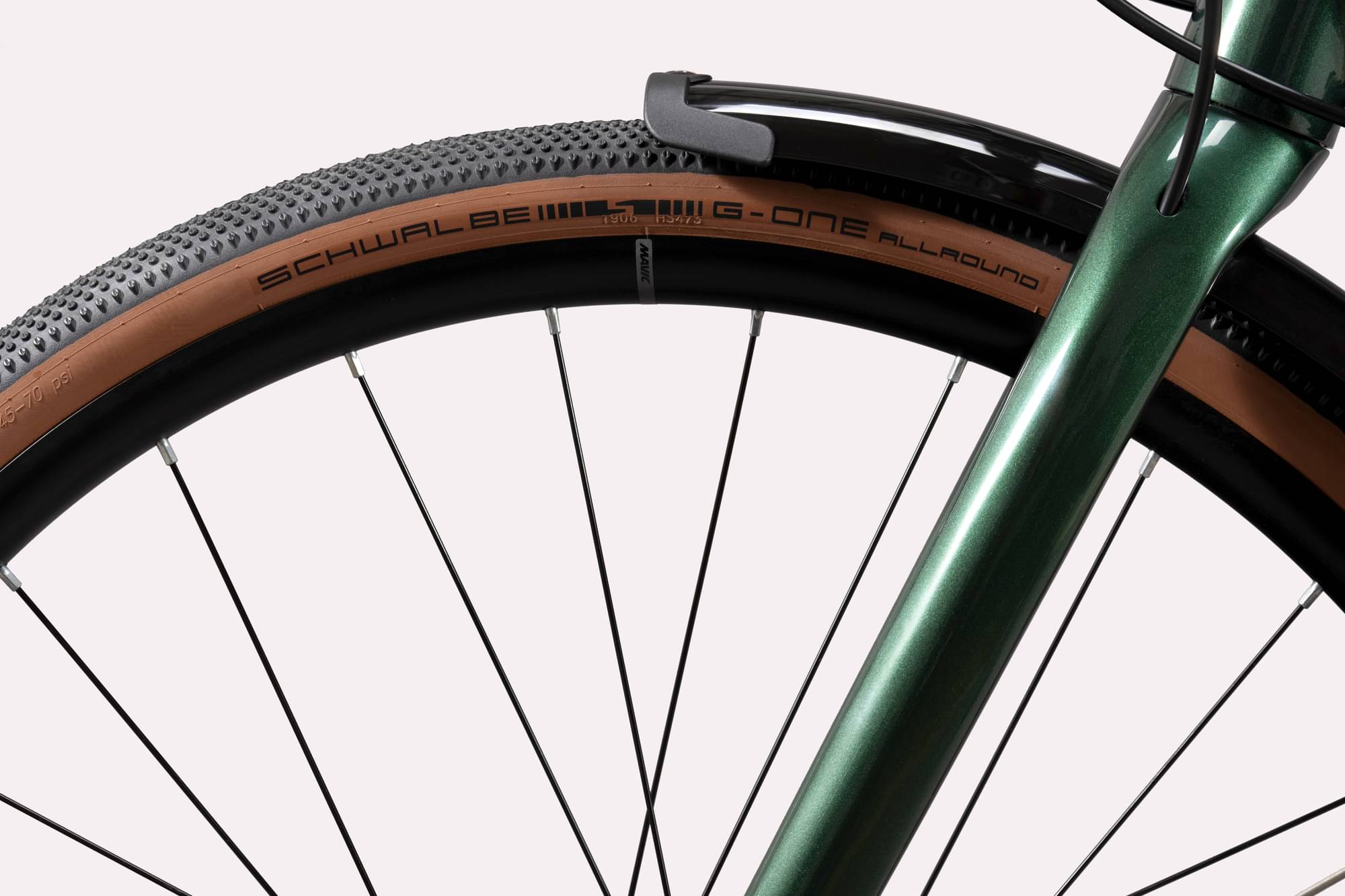

Tires
G-One Allround RaceGuard Folding Tyre 700x40mm
Brakes
Brakes
Hydraulic Disc

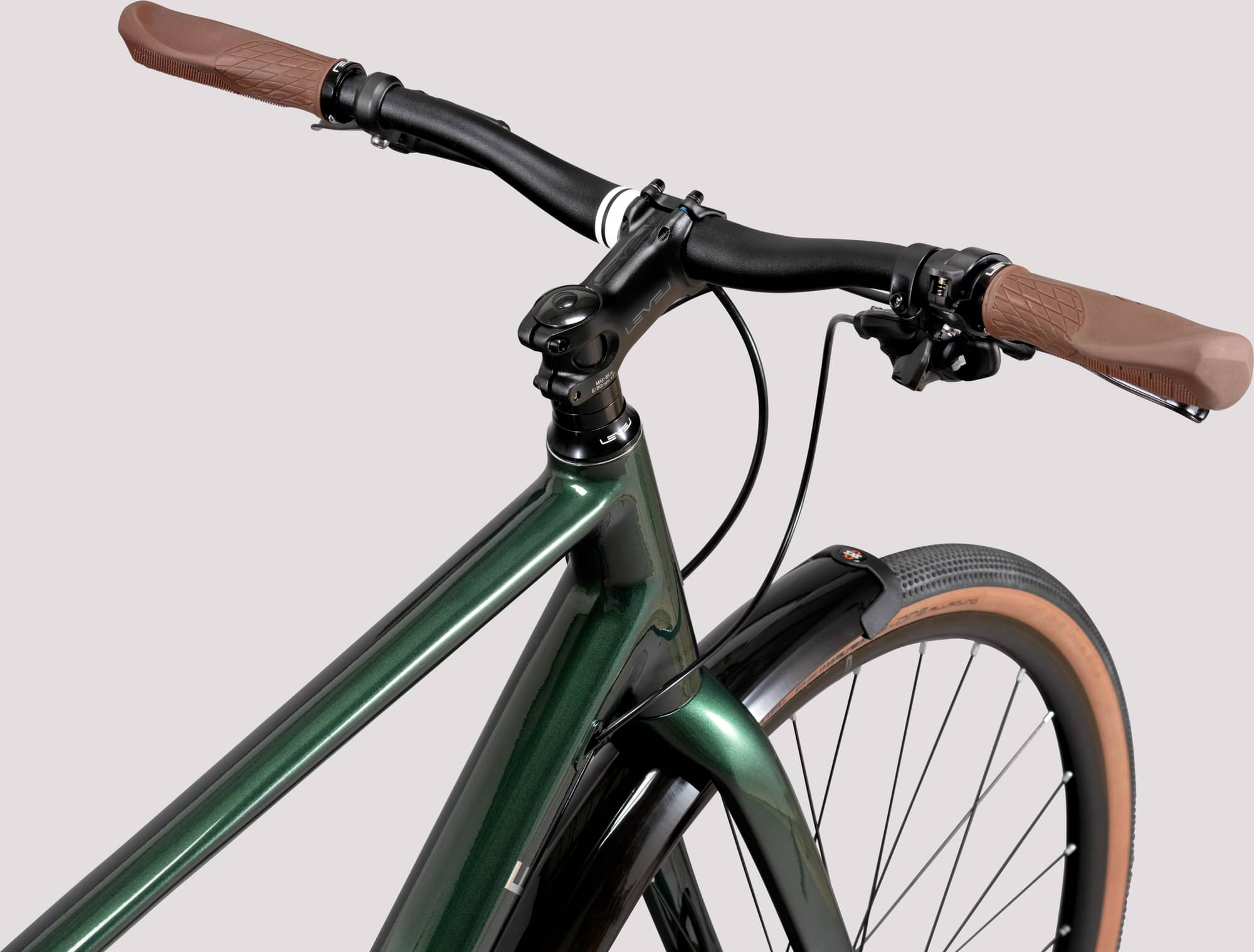

Cockpit
Stem
2 Riser Stem 80mm
Handlebar
Urban Alloy Handlebar 640 mm
Headset
52 Headset With Top Cap For Alloy Frames

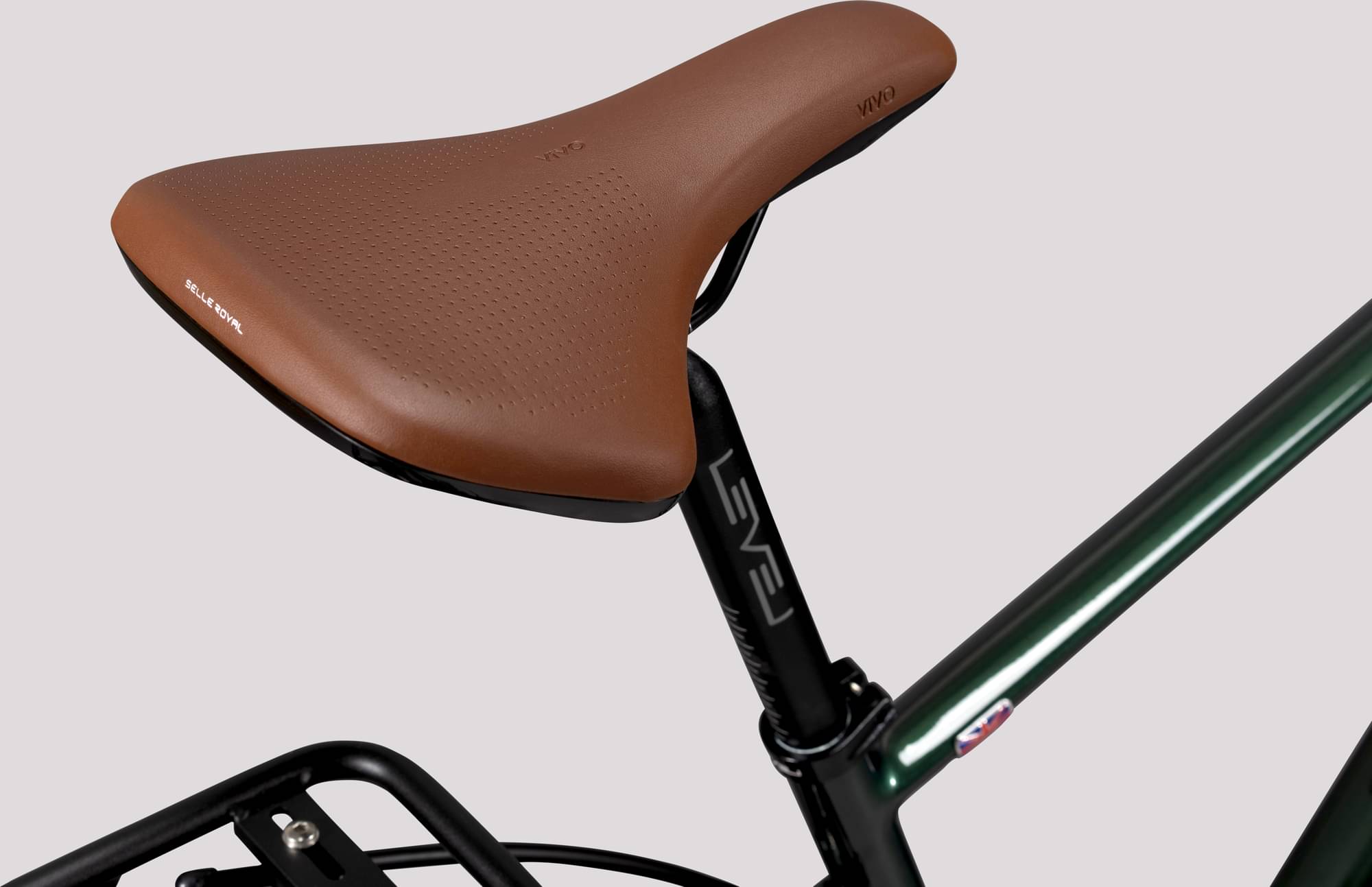

Seat
Saddle
Vivo Trekking Saddle Brown
Seatpost
Alloy Seatpost 27.2 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.41 mm | 1.424 mm | 1.465 mm |
| Front Center | 608 mm | 637 mm | 654 mm | 682 mm |
| Rake | 48 mm | 48 mm | 48 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 70 mm |
| Stack | 530 mm | 571 mm | 591 mm | 630 mm |
| Reach | 390 mm | 405 mm | 415 mm | 430 mm |
| Top Tube Length | 552 mm | 585 mm | 600 mm | 634 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 122 mm | 165 mm | 190 mm | 230 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1039 mm | 1068 mm | 1085 mm | 1113 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 167 cm | 174 cm | 182 cm |
| Rider Max Height | 170 cm | 176 cm | 184 cm | 191 cm |
