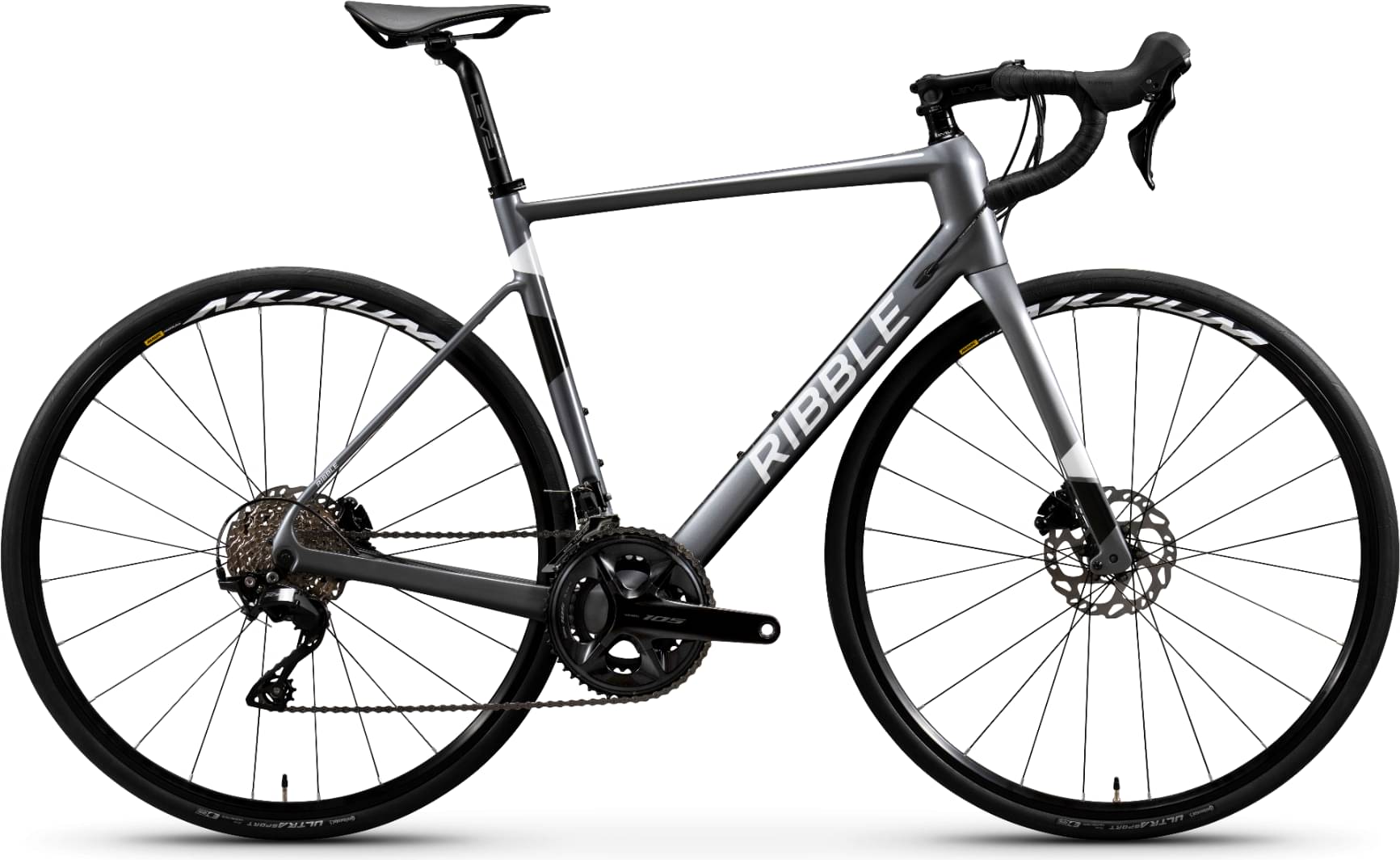

Ribble R872 Disc 105 – Enthusiast 2024
2024 Road
Estimate price |
2,844$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 169cm
SM
167cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Front Thru-Axle for Carbon Forks
Drivetrain
Cassette
CS-HG710 12spd Cassette HG 11-36T
Crank
FC-R7100 105 12spd Chainset 165mm 50-34T
Brakes
Brakes
Disc Brake Adapter Rear 160mm Flat to Flat
Cockpit
Handlebar
Embossed Black Bar Tape
Seat
Seatpost
Alloy Seatpost 27.2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.406 mm | 1.455 mm | 1.464 mm | 1.476 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 561.5 mm | 568.9 mm | 580.2 mm | 600.4 mm | 620.5 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 62 mm | 56 mm | 56 mm | 56 mm |
| Stack | 503.5 mm | 521.1 mm | 554.1 mm | 577 mm | 600.9 mm |
| Reach | 360.1 mm | 370.5 mm | 380.7 mm | 394.1 mm | 407 mm |
| Top Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 961 mm | 968 mm | 980 mm | 1000 mm | 1020 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 169 cm | 176 cm | 181 cm | 186 cm | 193 cm |
